RadioMaster ER6GV 2.4GHz ELRS PWM Receiver

Original price $34.99 - Original price $34.99
Original price
$34.99 - $34.99
Current price $34.99
RadioMaster ER4 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers operates on the innovative ExpressLRS system, delivering top-notch performance, reliability, customizable configurations, swift response times, and an extensive range, offering an entirely fresh experience within your hobby.

Specifically tailored for glider pilots seeking a compact, slender receiver, the ER6G & ER6GV receivers accommodate up to 6 servos. They incorporate built-in receiver voltage telemetry and flight battery telemetry, automatically identifying the appropriate voltage input. Both models feature dual-antenna systems capable of telemetry power up to 50mw, ensuring stable operation with a 1S Lipo receiver battery.

While the ER6GV includes a built-in Vario, perfect for various scenarios, the ER6G omits this feature. This design choice caters to competitions that prohibit Vario use or users who simply don't require it on their receiver.


  • Based on the Revolutionary ExpressLRS System
  • High performance, high reliability, flexible configuration, fast response speed and ultra-long range
  • Support 6 PWM Channels
  • Optimized ground up PCB design
  • Automatically voltage telemetry of external battery voltage or built-in receiver voltage
  • ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
  • Supports Wi-Fi updates and WEBUI configuration

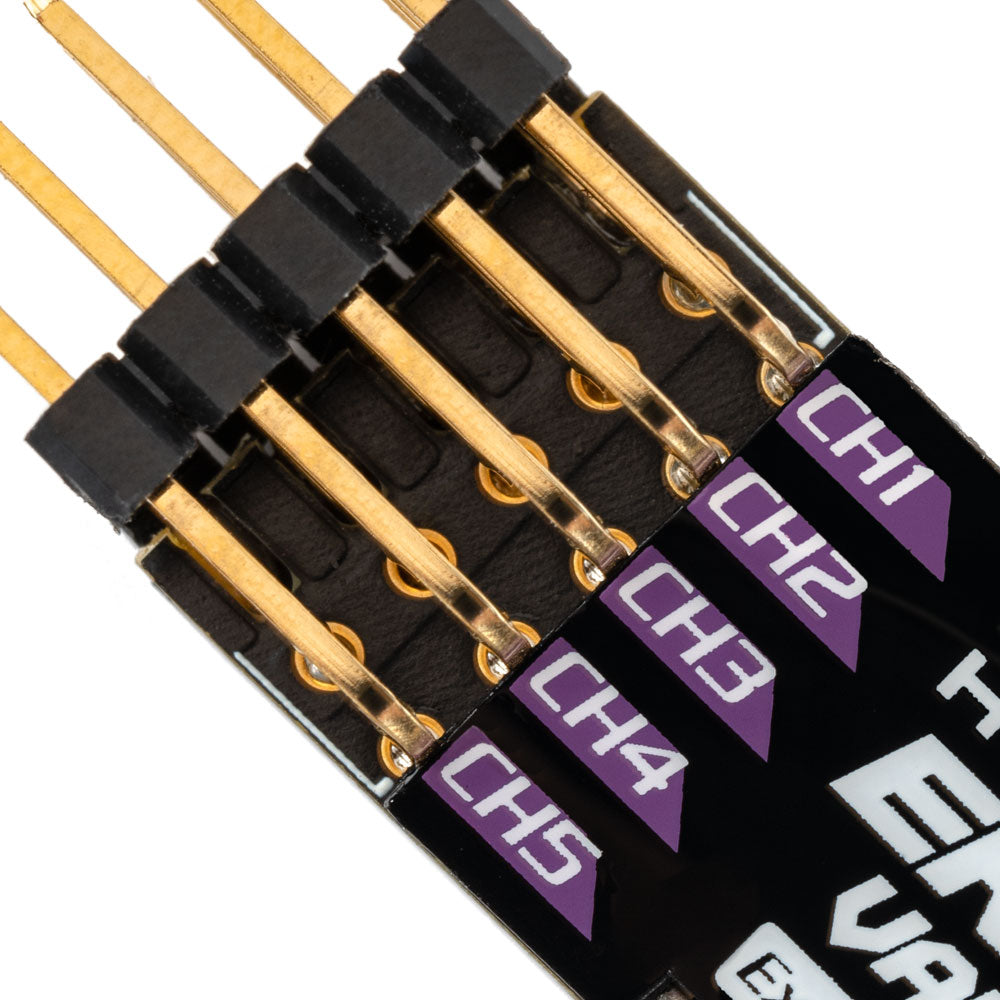

  • High quality 2.54 mm connector
  • Standard 15 cm High Sensitivity Antenna
  • For fixed-wing aircraft and gliders
  • Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

    Specification (ER6GV)

    • Item: ER6GV 2.4GHz ELRS PWM Receiver
    • Power supply: DC 3.5 - 8.4V

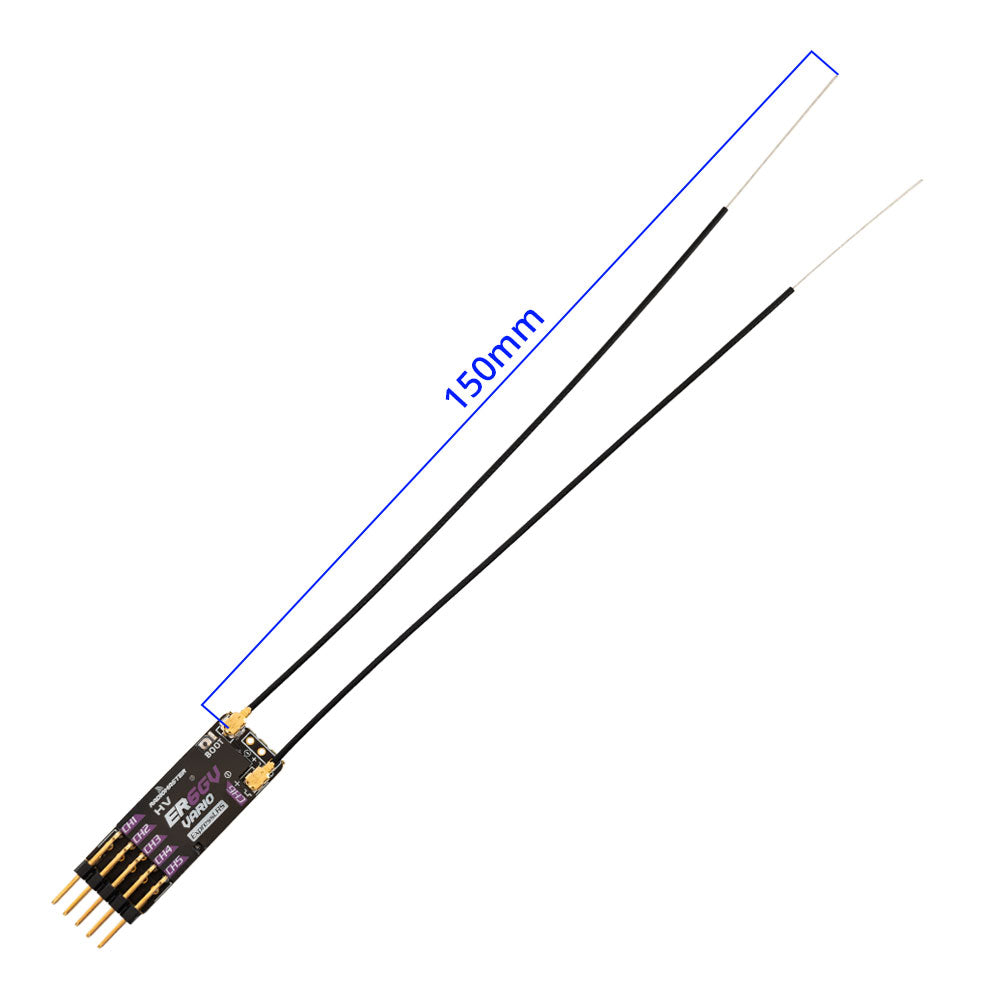

    • Antenna type: 15cm high sensitivity antenna
    • Wireless protocol: ExpressLRS 3.2 pre-installed
    • Output channel: 6CH PWM
    • Return power: maximum 50mw (LUA Adjustable)
    • Built-in high-precision air pressure sensor (Vario)
    • Battery voltage detection range: DC 3.0 - 26V
    • Weight: 5.0 grams

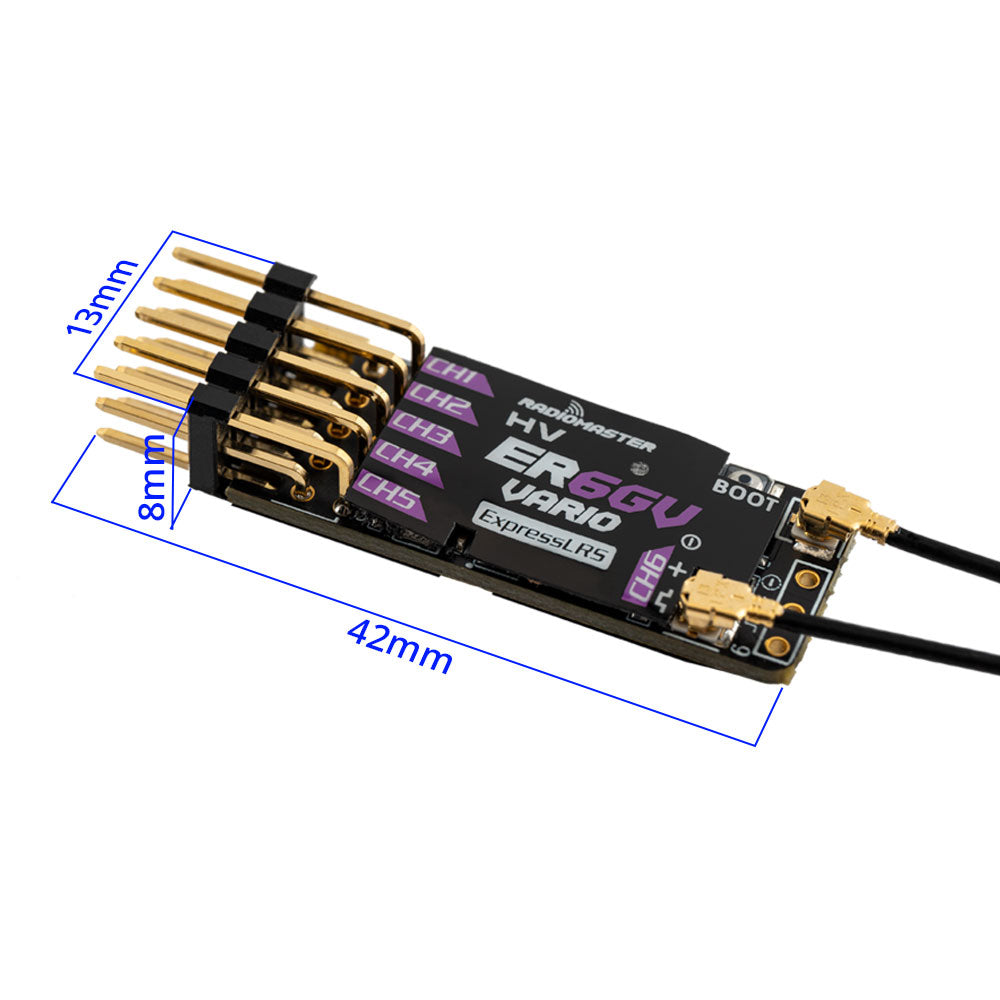

    • Dimensions: 42*13*8mm
    • Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV

    Package Includes

    • 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
    • 1 * Voltage telemetry wire (Type-A)
    • 2 * Heat-shrink tube
    • 1 * User Card
