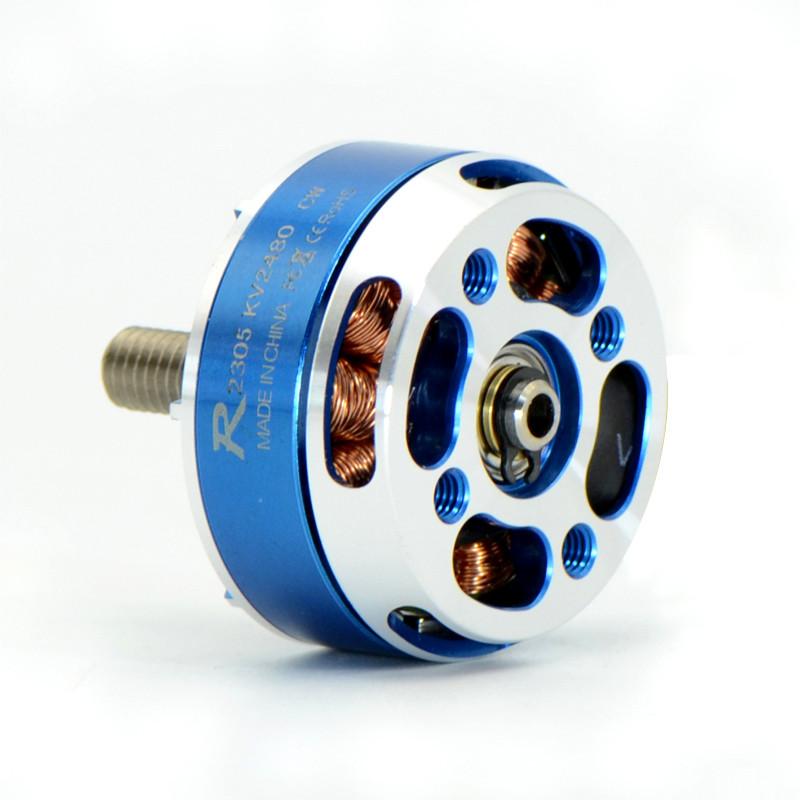

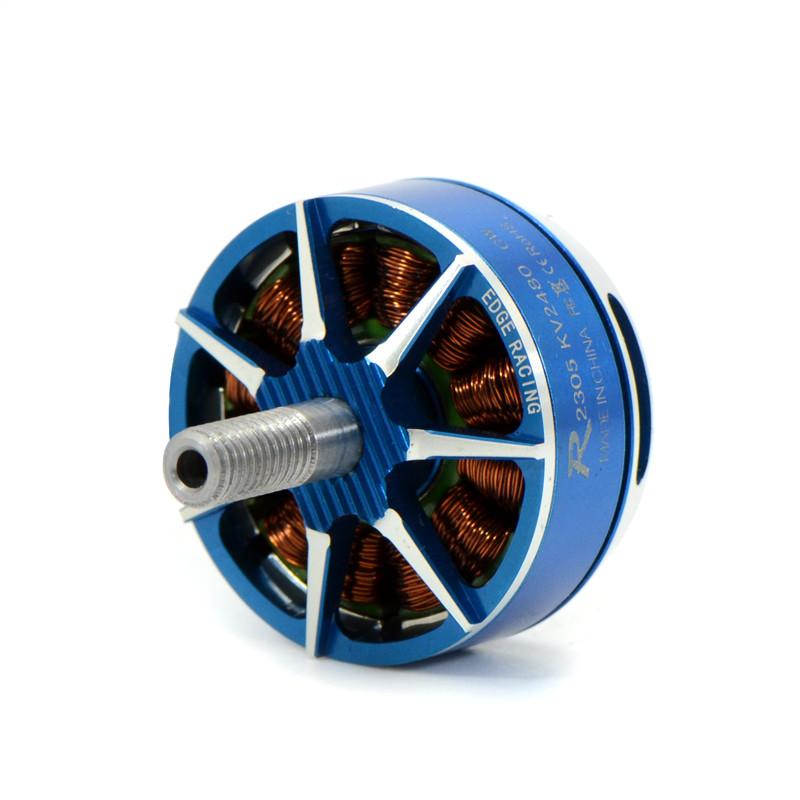

SunnySky Edge Racing R2305 FPV Brushless Motors

SunnySky Edge Racing R2305 FPV Brushless Motors

SS-Edge-R2305-2300

$9.98 USD
$19.95 USD $9.98 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

KV
View full details
The new design which perfectly interprets the exquisite of Sunnysky. After oxidation of stator and rotator end-cap, then to process with CNC processing to make the whole color looks more fancy, seven blade edge hollow out design which maximum to reduce the weight but with enough strength to support it.
[TABS]Overview

KV2300
Stator Diameter 23mm Max Continuous Power 1000W
Stator Thickness 5mm Weight 29g
No.of Stator Slots 12 Rotor Diameter 29mm
No.of Rotor Poles 14 Body Length 29.95mm
Motor Kv 2300 Max Lipo Cell 3-5S
No-load current 1.2A/10V ESC 30-50A
Motor Resistance 38mΩ Recommended Prop(inch) 5x4x2/5x4x3/5x4.5x3/5x4.5x2
Max Continuous Current 50A/10s
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
HQ5x4x2 14.8 1.3 100 19 5.2 29℃
3.1 200 46 4.36
5.1 300 75 3.97
7.6 400 112 3.56
10.5 500 155 3.22
13.6 600 201 2.98
17.4 700 258 2.72
22.7 860 336 2.56
16.5 1.2 100 20 5.05 32℃
2.9 200 48 4.18
4.8 300 79 3.79
7.2 400 119 3.37
9.7 500 160 3.12
12.6 600 208 2.89
15.1 700 249 2.81
19.3 800 318 2.51
22.1 900 365 2.47
26.7 1000 441 2.27
18.5 1.1 100 20 4.91 50℃
2.6 200 48 4.16
4.4 300 81 3.69
6.5 400 120 3.33
9.2 500 170 2.94
11.8 600 218 2.75
14.7 700 272 2.57
17.5 800 324 2.47
20.5 900 379 2.37
25 1000 463 2.16
29.3 1100 542 2.03
32.4 1200 599 2
20 1 100 20 5 60℃
2.4 200 48 4.17
4 300 80 3.75
5.9 400 118 3.39
8.2 500 164 3.05
10.3 600 206 2.91
12.7 700 254 2.76
16.2 800 324 2.47
20.4 900 408 2.21
22.8 1000 456 2.19
26.8 1100 536 2.05
32.1 1200 642 1.87
36 1340 720 1.86
HQ5x4.5x2 14.8 1.2 100 18 5.63 31℃
2.8 200 41 4.83
4.9 300 73 4.14
7.4 400 110 3.65
10 500 148 3.38
13.2 600 195 3.07
16.9 700 250 2.8
22.8 859 337 2.55
16.5 1.1 100 18 5.51 43℃
2.7 200 45 4.49
4.5 300 74 4.04
7.1 400 117 3.41
9.7 500 160 3.12
12.6 600 208 2.89
15.7 700 259 2.7
19.7 800 325 2.46
24 900 396 2.27
27 996 446 2.24
18.5 1 100 19 5.41 53℃
2.4 200 44 4.5
4.1 300 76 3.96
6.3 400 117 3.43
8.7 500 161 3.11
11.6 600 215 2.8
14.3 700 265 2.65
17.8 800 329 2.43
21.3 900 394 2.28
25.4 1000 470 2.13
32.5 1150 601 1.91
20 1 100 20 5 63℃
2.3 200 46 4.35
4 300 80 3.75
6 400 120 3.33
8.4 500 168 2.98
10.8 600 216 2.78
13.6 700 272 2.57
16.7 800 334 2.4
20.1 900 402 2.24
24.2 1000 484 2.07
28.9 1100 578 1.9
37.5 1285 750 1.71
HQ5x4x3 14.8 1.1 100 16 6.14 40℃
2.7 200 40 5.01
4.7 300 70 4.31
6.9 400 102 3.92
9.8 500 145 3.45
12.6 600 186 3.22
15.5 700 229 3.05
19.1 800 283 2.83
23.1 900 342 2.63
26.9 1000 398 2.51
16.5 1 100 17 6.06 51℃
2.5 200 41 4.85
4.2 300 69 4.33
6.3 400 104 3.85
8.7 500 144 3.48
11.6 600 191 3.13
14.2 700 234 2.99
17 800 281 2.85
21.2 900 350 2.57
24.5 1000 404 2.47
28.1 1100 464 2.37
31.5 1200 520 2.31
18.5 0.9 100 17 6.01 58℃
2.3 200 43 4.7
3.9 300 72 4.16
5.7 400 105 3.79
8 500 148 3.38
10.5 600 194 3.09
13.1 700 242 2.89
15.7 800 290 2.75
18.9 900 350 2.57
22.4 1000 414 2.41
25.6 1100 474 2.32
30 1200 555 2.16
34.7 1300 642 2.03
37 1400 685 2.05
20 0.8 100 16 6.25 65℃
2 200 40 5
3.6 300 72 4.17
5.4 400 108 3.7
7.4 500 148 3.38
9.9 600 198 3.03
12.2 700 244 2.87
14.5 800 290 2.76
17.5 900 350 2.57
20.7 1000 414 2.42
24 1100 480 2.29
28 1200 560 2.14
32.3 1300 646 2.01
36.8 1400 736 1.9
41.6 1520 832 1.83
GF5x4.5x3 14.8 1.3 100 19 5.2 65℃
2.9 200 43 4.66
4.9 300 73 4.14
7.2 400 107 3.75
9.7 500 144 3.48
12.8 600 189 3.17
15.9 700 235 2.97
19.9 800 295 2.72
24 900 355 2.53
28.8 1000 426 2.35
33.8 1140 500 2.28
16.5 1 100 17 6.06 65℃
2.5 200 41 4.85
4.3 300 71 4.23
6.2 400 102 3.91
8.5 500 140 3.57
11.4 600 188 3.19
14.7 700 243 2.89
18.1 800 299 2.68
21.6 900 356 2.53
25 1000 413 2.42
29.2 1100 482 2.28
34.3 1200 566 2.12
39.5 1330 652 2.04
18.5 0.9 100 17 6.01 75℃
2.2 200 41 4.91
3.8 300 70 4.27
5.6 400 104 3.86
7.8 500 144 3.47
10.2 600 189 3.18
13 700 241 2.91
16 800 296 2.7
19.5 900 361 2.49
22.3 1000 413 2.42
26.1 1100 483 2.28
30.4 1200 562 2.13
35.5 1300 657 1.98
41 1400 759 1.85
46.4 1550 858 1.81
20 0.9 100 18 5.56 HOT
2.1 200 42 4.76
3.6 300 72 4.17
5.1 400 102 3.92
7.3 500 146 3.42
9.5 600 190 3.16
12.4 700 248 2.82
15.9 800 318 2.52
18.5 900 370 2.43
21.4 1000 428 2.34
24.4 1100 488 2.25
28 1200 560 2.14
32.1 1300 642 2.02
37.6 1400 752 1.86
43 1500 860 1.74
48.7 1600 974 1.64
56.7 1700 1134 1.5



KV2480
Stator Diameter 23mm Max Continuous Power 825W
Stator Thickness 5mm Weight 29g
No.of Stator Slots 12 Rotor Diameter 29mm
No.of Rotor Poles 14 Body Length 29.95mm
Motor Kv 2480 Max Lipo Cell 3-4S
No-load current 1.5A/10V ESC 30-50A
Motor Resistance 35mΩ Recommended Prop(inch) 5x4x2/5x4x3/5x4.5x3/5x4.5x2
Max Continuous Current 50A/10s
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
HQ5x4x2 14.8 1.3 100 19 5.2 29℃
3.1 200 46 4.36
5.1 300 75 3.97
7.6 400 112 3.56
10.5 500 155 3.22
13.6 600 201 2.98
17.4 700 258 2.72
22.7 860 336 2.56
16.5 1.2 100 20 5.05 32℃
2.9 200 48 4.18
4.8 300 79 3.79
7.2 400 119 3.37
9.7 500 160 3.12
12.6 600 208 2.89
15.1 700 249 2.81
19.3 800 318 2.51
22.1 900 365 2.47
26.7 1000 441 2.27
18.5 1.1 100 20 4.91 50℃
2.6 200 48 4.16
4.4 300 81 3.69
6.5 400 120 3.33
9.2 500 170 2.94
11.8 600 218 2.75
14.7 700 272 2.57
17.5 800 324 2.47
20.5 900 379 2.37
25 1000 463 2.16
29.3 1100 542 2.03
32.4 1200 599 2
20 1 100 20 5 60℃
2.4 200 48 4.17
4 300 80 3.75
5.9 400 118 3.39
8.2 500 164 3.05
10.3 600 206 2.91
12.7 700 254 2.76
16.2 800 324 2.47
20.4 900 408 2.21
22.8 1000 456 2.19
26.8 1100 536 2.05
32.1 1200 642 1.87
36 1340 720 1.86
HQ5x4.5x2 14.8 1.2 100 18 5.63 31℃
2.8 200 41 4.83
4.9 300 73 4.14
7.4 400 110 3.65
10 500 148 3.38
13.2 600 195 3.07
16.9 700 250 2.8
22.8 859 337 2.55
16.5 1.1 100 18 5.51 43℃
2.7 200 45 4.49
4.5 300 74 4.04
7.1 400 117 3.41
9.7 500 160 3.12
12.6 600 208 2.89
15.7 700 259 2.7
19.7 800 325 2.46
24 900 396 2.27
27 996 446 2.24
18.5 1 100 19 5.41 53℃
2.4 200 44 4.5
4.1 300 76 3.96
6.3 400 117 3.43
8.7 500 161 3.11
11.6 600 215 2.8
14.3 700 265 2.65
17.8 800 329 2.43
21.3 900 394 2.28
25.4 1000 470 2.13
32.5 1150 601 1.91
20 1 100 20 5 63℃
2.3 200 46 4.35
4 300 80 3.75
6 400 120 3.33
8.4 500 168 2.98
10.8 600 216 2.78
13.6 700 272 2.57
16.7 800 334 2.4
20.1 900 402 2.24
24.2 1000 484 2.07
28.9 1100 578 1.9
37.5 1285 750 1.71
HQ5x4x3 14.8 1.1 100 16 6.14 40℃
2.7 200 40 5.01
4.7 300 70 4.31
6.9 400 102 3.92
9.8 500 145 3.45
12.6 600 186 3.22
15.5 700 229 3.05
19.1 800 283 2.83
23.1 900 342 2.63
26.9 1000 398 2.51
16.5 1 100 17 6.06 51℃
2.5 200 41 4.85
4.2 300 69 4.33
6.3 400 104 3.85
8.7 500 144 3.48
11.6 600 191 3.13
14.2 700 234 2.99
17 800 281 2.85
21.2 900 350 2.57
24.5 1000 404 2.47
28.1 1100 464 2.37
31.5 1200 520 2.31
18.5 0.9 100 17 6.01 58℃
2.3 200 43 4.7
3.9 300 72 4.16
5.7 400 105 3.79
8 500 148 3.38
10.5 600 194 3.09
13.1 700 242 2.89
15.7 800 290 2.75
18.9 900 350 2.57
22.4 1000 414 2.41
25.6 1100 474 2.32
30 1200 555 2.16
34.7 1300 642 2.03
37 1400 685 2.05
20 0.8 100 16 6.25 65℃
2 200 40 5
3.6 300 72 4.17
5.4 400 108 3.7
7.4 500 148 3.38
9.9 600 198 3.03
12.2 700 244 2.87
14.5 800 290 2.76
17.5 900 350 2.57
20.7 1000 414 2.42
24 1100 480 2.29
28 1200 560 2.14
32.3 1300 646 2.01
36.8 1400 736 1.9
41.6 1520 832 1.83
GF5x4.5x3 14.8 1.3 100 19 5.2 65℃
2.9 200 43 4.66
4.9 300 73 4.14
7.2 400 107 3.75
9.7 500 144 3.48
12.8 600 189 3.17
15.9 700 235 2.97
19.9 800 295 2.72
24 900 355 2.53
28.8 1000 426 2.35
33.8 1140 500 2.28
16.5 1 100 17 6.06 65℃
2.5 200 41 4.85
4.3 300 71 4.23
6.2 400 102 3.91
8.5 500 140 3.57
11.4 600 188 3.19
14.7 700 243 2.89
18.1 800 299 2.68
21.6 900 356 2.53
25 1000 413 2.42
29.2 1100 482 2.28
34.3 1200 566 2.12
39.5 1330 652 2.04
18.5 0.9 100 17 6.01 75℃
2.2 200 41 4.91
3.8 300 70 4.27
5.6 400 104 3.86
7.8 500 144 3.47
10.2 600 189 3.18
13 700 241 2.91
16 800 296 2.7
19.5 900 361 2.49
22.3 1000 413 2.42
26.1 1100 483 2.28
30.4 1200 562 2.13
35.5 1300 657 1.98
41 1400 759 1.85
46.4 1550 858 1.81
20 0.9 100 18 5.56 HOT
2.1 200 42 4.76
3.6 300 72 4.17
5.1 400 102 3.92
7.3 500 146 3.42
9.5 600 190 3.16
12.4 700 248 2.82
15.9 800 318 2.52
18.5 900 370 2.43
21.4 1000 428 2.34
24.4 1100 488 2.25
28 1200 560 2.14
32.1 1300 642 2.02
37.6 1400 752 1.86
43 1500 860 1.74
48.7 1600 974 1.64
56.7 1700 1134 1.5



KV2800
Stator Diameter 23mm Max Continuous Power 900W
Stator Thickness 5mm Weight 29g
No.of Stator Slots 12 Rotor Diameter 29mm
No.of Rotor Poles 14 Body Length 29.95mm
Motor Kv 2800 Max Lipo Cell 3-4S
No-load current 1.8A/10V ESC 30-50A
Motor Resistance 27mΩ Recommended Prop(inch) 5x4x2/5x4x3/5x4.5x3/5x4.5x2
Max Continuous Current 55A/10s
Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
HQ5x4x2 14.8 1.3 100 19 5.2 29℃
3.1 200 46 4.36
5.1 300 75 3.97
7.6 400 112 3.56
10.5 500 155 3.22
13.6 600 201 2.98
17.4 700 258 2.72
22.7 860 336 2.56
16.5 1.2 100 20 5.05 32℃
2.9 200 48 4.18
4.8 300 79 3.79
7.2 400 119 3.37
9.7 500 160 3.12
12.6 600 208 2.89
15.1 700 249 2.81
19.3 800 318 2.51
22.1 900 365 2.47
26.7 1000 441 2.27
18.5 1.1 100 20 4.91 50℃
2.6 200 48 4.16
4.4 300 81 3.69
6.5 400 120 3.33
9.2 500 170 2.94
11.8 600 218 2.75
14.7 700 272 2.57
17.5 800 324 2.47
20.5 900 379 2.37
25 1000 463 2.16
29.3 1100 542 2.03
32.4 1200 599 2
20 1 100 20 5 60℃
2.4 200 48 4.17
4 300 80 3.75
5.9 400 118 3.39
8.2 500 164 3.05
10.3 600 206 2.91
12.7 700 254 2.76
16.2 800 324 2.47
20.4 900 408 2.21
22.8 1000 456 2.19
26.8 1100 536 2.05
32.1 1200 642 1.87
36 1340 720 1.86
HQ5x4.5x2 14.8 1.2 100 18 5.63 31℃
2.8 200 41 4.83
4.9 300 73 4.14
7.4 400 110 3.65
10 500 148 3.38
13.2 600 195 3.07
16.9 700 250 2.8
22.8 859 337 2.55
16.5 1.1 100 18 5.51 43℃
2.7 200 45 4.49
4.5 300 74 4.04
7.1 400 117 3.41
9.7 500 160 3.12
12.6 600 208 2.89
15.7 700 259 2.7
19.7 800 325 2.46
24 900 396 2.27
27 996 446 2.24
18.5 1 100 19 5.41 53℃
2.4 200 44 4.5
4.1 300 76 3.96
6.3 400 117 3.43
8.7 500 161 3.11
11.6 600 215 2.8
14.3 700 265 2.65
17.8 800 329 2.43
21.3 900 394 2.28
25.4 1000 470 2.13
32.5 1150 601 1.91
20 1 100 20 5 63℃
2.3 200 46 4.35
4 300 80 3.75
6 400 120 3.33
8.4 500 168 2.98
10.8 600 216 2.78
13.6 700 272 2.57
16.7 800 334 2.4
20.1 900 402 2.24
24.2 1000 484 2.07
28.9 1100 578 1.9
37.5 1285 750 1.71
HQ5x4x3 14.8 1.1 100 16 6.14 40℃
2.7 200 40 5.01
4.7 300 70 4.31
6.9 400 102 3.92
9.8 500 145 3.45
12.6 600 186 3.22
15.5 700 229 3.05
19.1 800 283 2.83
23.1 900 342 2.63
26.9 1000 398 2.51
16.5 1 100 17 6.06 51℃
2.5 200 41 4.85
4.2 300 69 4.33
6.3 400 104 3.85
8.7 500 144 3.48
11.6 600 191 3.13
14.2 700 234 2.99
17 800 281 2.85
21.2 900 350 2.57
24.5 1000 404 2.47
28.1 1100 464 2.37
31.5 1200 520 2.31
18.5 0.9 100 17 6.01 58℃
2.3 200 43 4.7
3.9 300 72 4.16
5.7 400 105 3.79
8 500 148 3.38
10.5 600 194 3.09
13.1 700 242 2.89
15.7 800 290 2.75
18.9 900 350 2.57
22.4 1000 414 2.41
25.6 1100 474 2.32
30 1200 555 2.16
34.7 1300 642 2.03
37 1400 685 2.05
20 0.8 100 16 6.25 65℃
2 200 40 5
3.6 300 72 4.17
5.4 400 108 3.7
7.4 500 148 3.38
9.9 600 198 3.03
12.2 700 244 2.87
14.5 800 290 2.76
17.5 900 350 2.57
20.7 1000 414 2.42
24 1100 480 2.29
28 1200 560 2.14
32.3 1300 646 2.01
36.8 1400 736 1.9
41.6 1520 832 1.83
GF5x4.5x3 14.8 1.3 100 19 5.2 65℃
2.9 200 43 4.66
4.9 300 73 4.14
7.2 400 107 3.75
9.7 500 144 3.48
12.8 600 189 3.17
15.9 700 235 2.97
19.9 800 295 2.72
24 900 355 2.53
28.8 1000 426 2.35
33.8 1140 500 2.28
16.5 1 100 17 6.06 65℃
2.5 200 41 4.85
4.3 300 71 4.23
6.2 400 102 3.91
8.5 500 140 3.57
11.4 600 188 3.19
14.7 700 243 2.89
18.1 800 299 2.68
21.6 900 356 2.53
25 1000 413 2.42
29.2 1100 482 2.28
34.3 1200 566 2.12
39.5 1330 652 2.04
18.5 0.9 100 17 6.01 75℃
2.2 200 41 4.91
3.8 300 70 4.27
5.6 400 104 3.86
7.8 500 144 3.47
10.2 600 189 3.18
13 700 241 2.91
16 800 296 2.7
19.5 900 361 2.49
22.3 1000 413 2.42
26.1 1100 483 2.28
30.4 1200 562 2.13
35.5 1300 657 1.98
41 1400 759 1.85
46.4 1550 858 1.81
20 0.9 100 18 5.56 HOT
2.1 200 42 4.76
3.6 300 72 4.17
5.1 400 102 3.92
7.3 500 146 3.42
9.5 600 190 3.16
12.4 700 248 2.82
15.9 800 318 2.52
18.5 900 370 2.43
21.4 1000 428 2.34
24.4 1100 488 2.25
28 1200 560 2.14
32.1 1300 642 2.02
37.6 1400 752 1.86
43 1500 860 1.74
48.7 1600 974 1.64
56.7 1700 1134 1.5



[/TABS]
