ZTW Skyhawk 160A HV SBEC Series ESC for Airplane and Helicopter

Sold out
Original price $189.99 - Original price $189.99
Original price
$189.99
$189.99 - $189.99
Current price $189.99
SKU ZTW-SKH-160HV

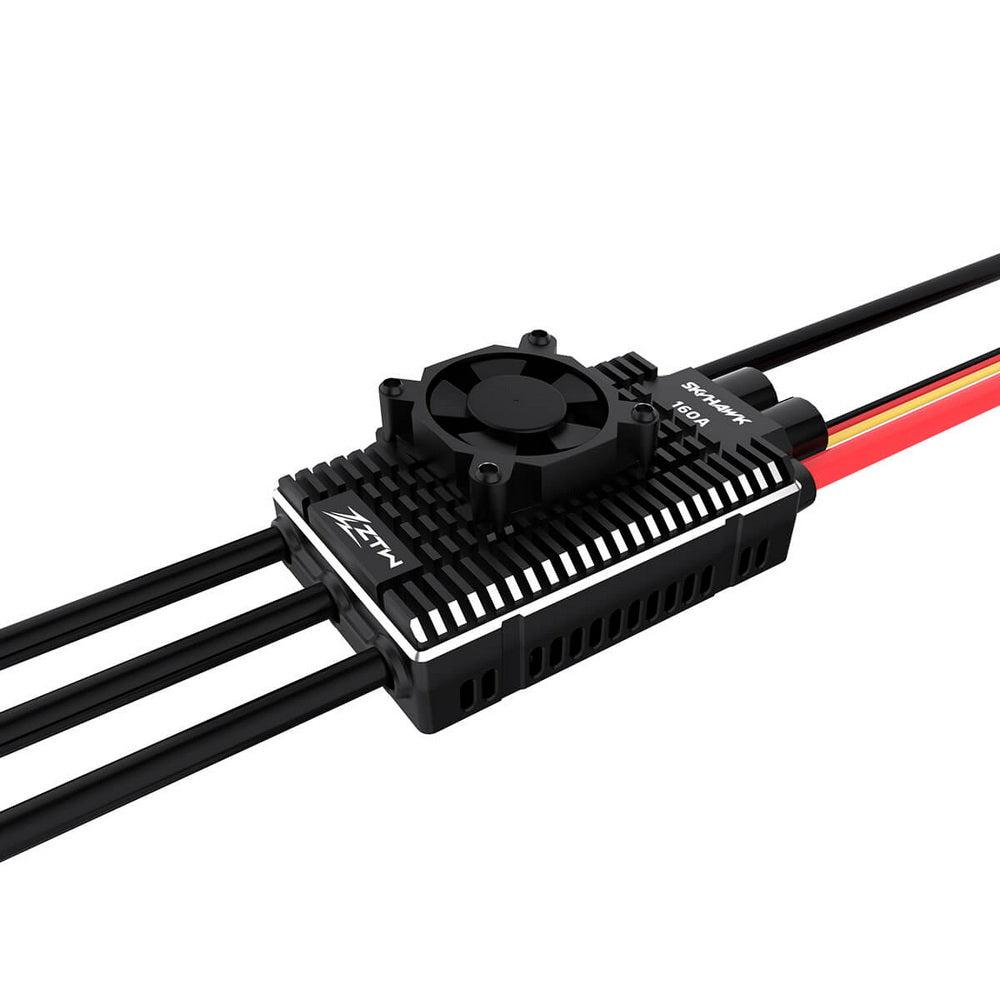

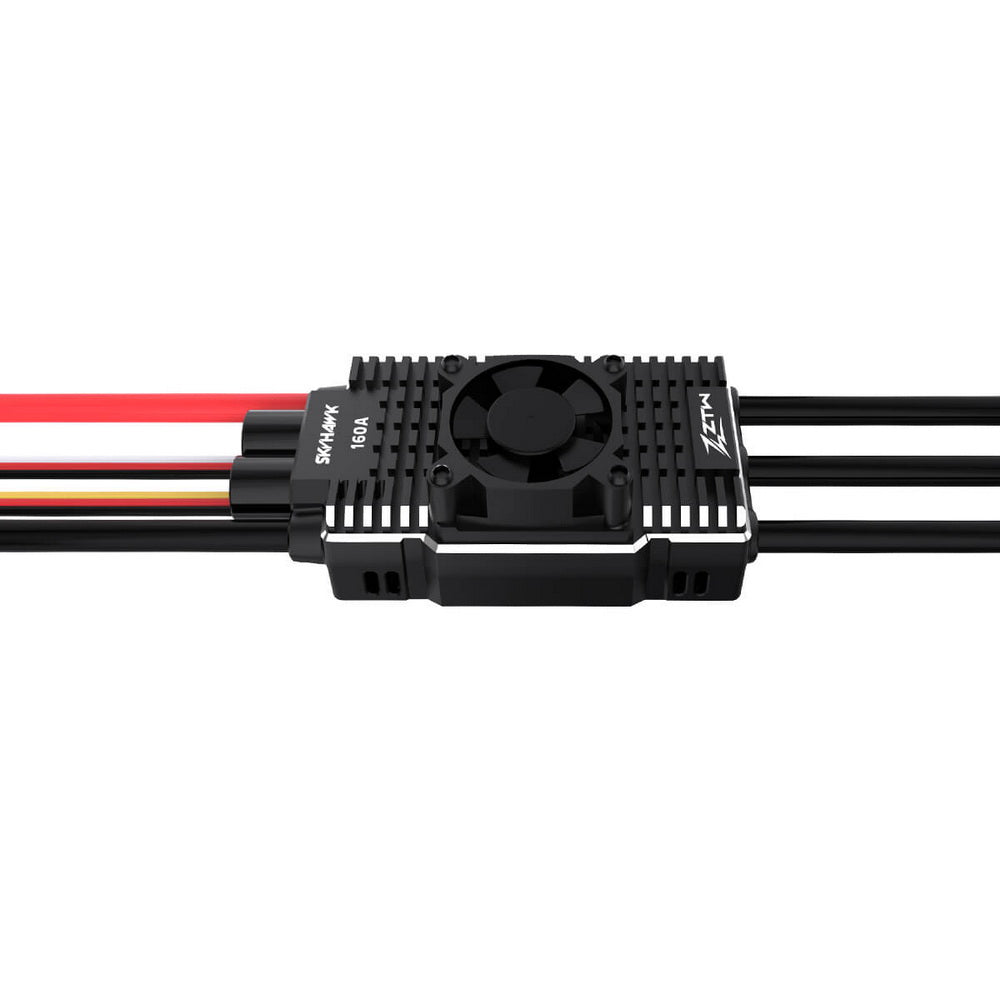

ZTW Skyhawk 160A HV SBEC Series ESC for Airplane and Helicopter
Skyhawk Series ESC Specs 160A)
Product Name Skyhawk 160A HV SBEC
Product Picture
PN#Model 4160311
Power Wires 10# 160mm (Red*1/Black*1)
Motor Wires 10# 160mm (Black*3)
Signal Wires 100C   500mm / Yellow,Red,Black   3P/JR*2       100C   500mm / White,Red,Black     3P/JR
Data wires (For telemetry) 30C 500mm / Yellow     1P/JR
Plug EC5
Gold Connectoer 5.5
Continuous Current 160A
Burst Current 180A
Input Voltage 6-14S LiPo
BEC Output  6.0,7.4,8.4V adjustable /10A
CPU Frequency 170MHz
Programming Way LCD Program Card G2/Android&IOS APP
Telemetry Supported
Governor Mode Supported
Firmware Upgrade Supported
Anti-ignition Function Yes
Applications 1.550-600 Class Heli(Main Blade:550-690mm)
2.90-.140 Class Fixed-wing Airplane, 2m FAIF3A&3D
Size 95.0*50.0*36.0mm
Weight 236g
