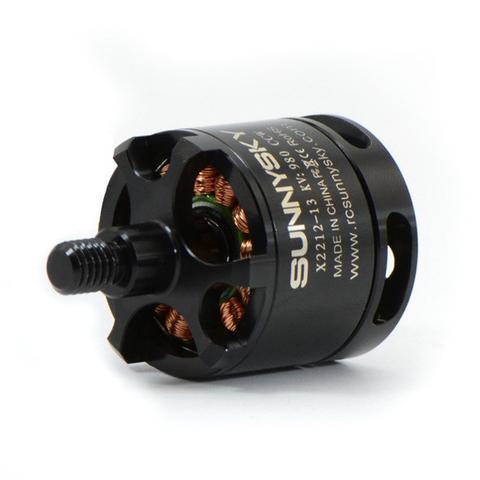

SunnySky X2212 KV980 Brushless Motors - Multirotor Version No Accessory

Original price $15.95 - Original price $15.95
Original price $15.95
$15.99
$15.99 - $15.99
Current price $15.99
SKU SS-X2212-N-980-CW
Rotation: CW
Specifications

Please note that this version does not include any accessories and is designed for use with props that have built-in nuts, as shown in the accompanying photos.

The X series of motors are crafted with precision CNC milling, resulting in a hollow design that not only promotes efficient heat dissipation, but also significantly reduces the weight of the motor. The sleek and sturdy appearance is also visually appealing.

The motor shaft is made of 420 stainless steel imported from Japan and undergoes a heat treatment process that enhances its strength, ductility, and resistance to bending and breaking.

The top and bottom caps of the X series motors are constructed from high-strength 6061-T6 aviation aluminum alloy, which boasts high hardness and strength of extension, ensuring optimal performance and reliability.

The X series utilizes customized NMB mini bearings imported from Japan to provide longer motor life and quiet, stable operation.

The coils of the X series motors are all hand wound, which involves a higher labor cost but results in a tightly wound and neatly arranged coil with improved space factor, thereby increasing the motor's continuous power output.

[TABS]OVERVIEW

KV980
Stator Diameter 22mm Rotor Diameter 27.5mm
Stator Thickness 12mm Shaft Diameter 3.175mm
No.of Stator Slots 12 Body Length    (Without Shaft) 42mm
No.of Rotor Poles 14 Max Lipo Cell 3-4S
Motor Kv 980 ESC 20A
No-load current 0.7A/10V Recommended Prop(inch) 9450
Motor Resistance 100mΩ
Max Continuous Current 25A/30s
Max Continuous Power 412W
Weight

56g





Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
9450 11.1 0.8 100 9 11.26 92℃
1.9 200 21 9.48
3.2 300 36 8.45
4.5 400 50 8.01
6.1 500 68 7.38
7.8 600 87 6.93
11 780 122 6.39
12.5 0.7 100 9 11.43
1.7 200 21 9.41
2.9 300 36 8.28
4.1 400 51 7.8
5.5 500 69 7.27
7.1 600 89 6.76
8.7 700 109 6.44
10.6 800 133 6.04
12.5 900 156 5.76
13 930 163 5.72
14.8 0.6 100 9 11.26
1.5 200 22 9.01
2.5 300 37 8.11
3.6 400 53 7.51
4.9 500 73 6.89
6.3 600 93 6.44
7.9 700 117 5.99
9.3 800 138 5.81
11 900 163 5.53
12.8 1000 189 5.28
14.5 1100 215 5.13
16.8 1230 249 4.95
16.5 0.5 100 8 12.12
1.4 200 23 8.66
2.3 300 38 7.91
3.4 400 56 7.13
4.5 500 74 6.73
5.9 600 97 6.16
7.3 700 120 5.81
8.7 800 144 5.57
10.2 900 168 5.35
11.8 1000 195 5.14
13.3 1100 219 5.01
15.3 1200 252 4.75
17.3 1300 285 4.55
19.5 1440 322 4.48





[/TABS]
