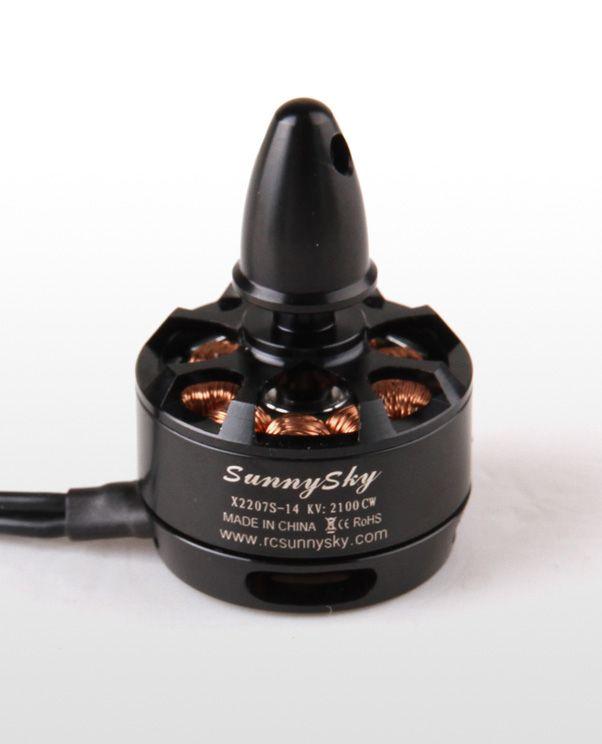

Included with the motor are 6mm screws, but it is important to ensure that the mount plate is thick enough to avoid touching the stator. Any motor damage resulting from extruded screws will not be covered by warranty. This motor is designed to support 3S-4S LiPo batteries and 5-6 inch propellers, making it suitable for use in racing multirotors up to 350 or 250 size. Each motor weighs approximately 36 grams.
Specifications:
- KV: 2100
- Thread: CW
- Stator diameter: 22mm
- Stator thickness: 7mm
- No. of stator arms: 9
- No. of stator poles: 12
- No-load current: 0.9A at 10V
- Motor resistance: 77mΩ
- Max. continuous current: 18A for 30 seconds
- Max. continuous power: 350W
- Weight: 35g
- Outside diameter: 27.5mm
- Shaft diameter: M5
- Body length: 20mm
- Overall shaft length: 33mm
- Max. LiPo cell: 2-4S
