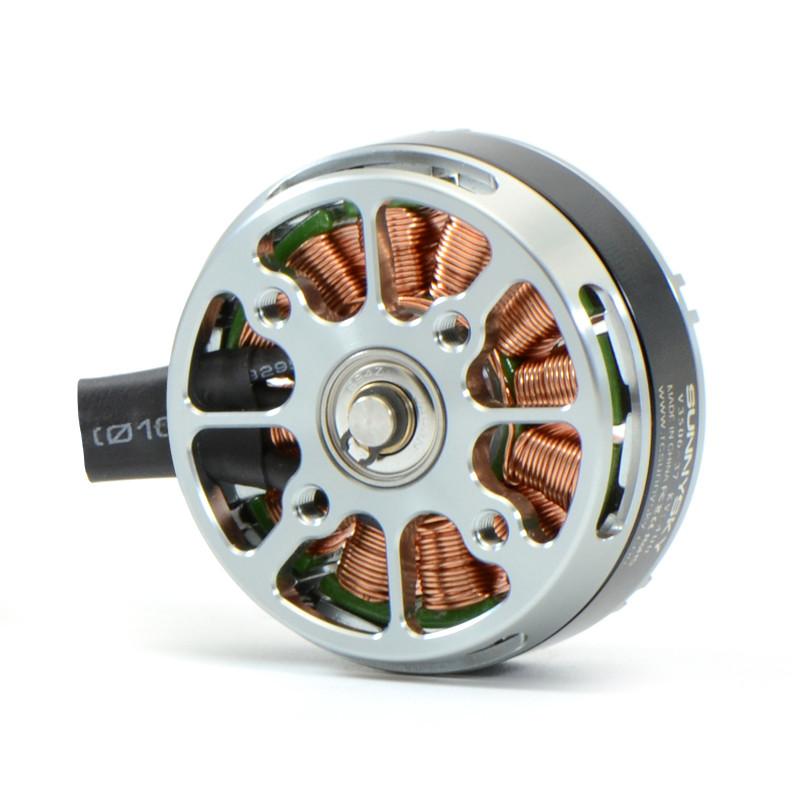

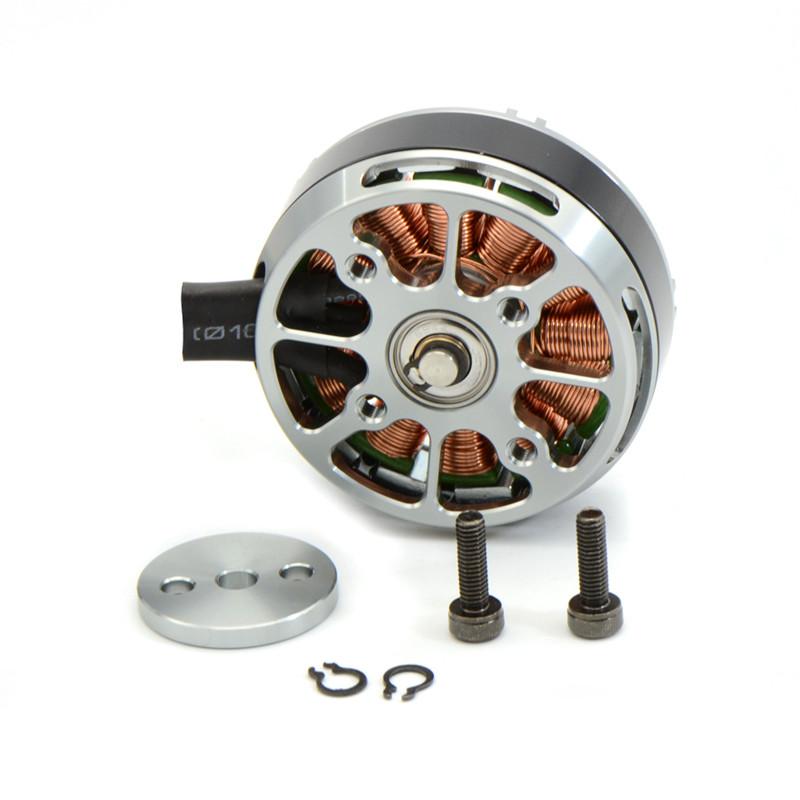

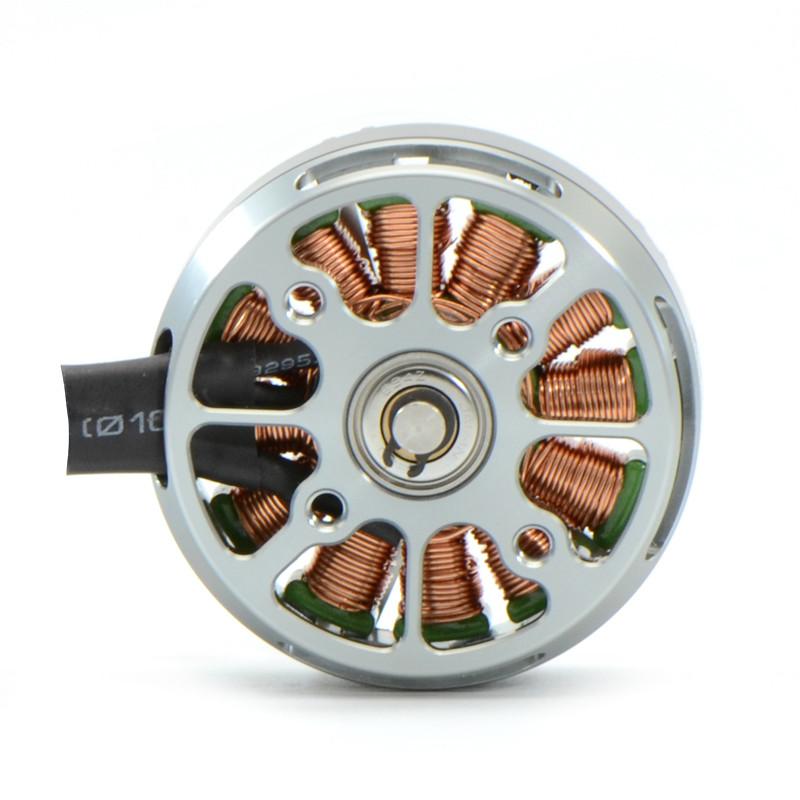

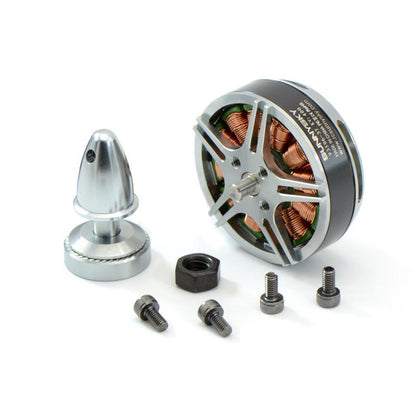

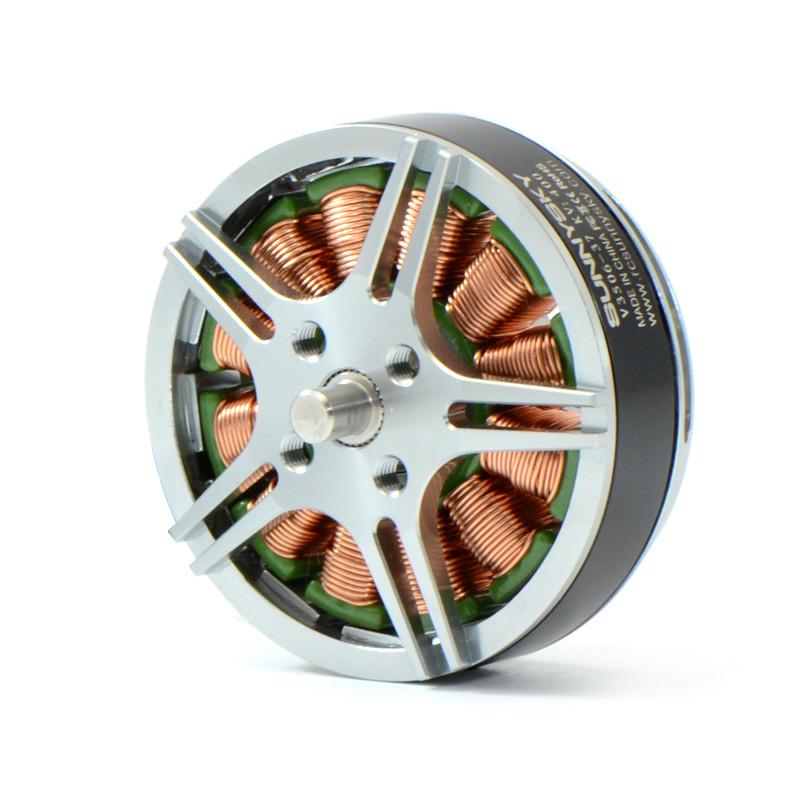

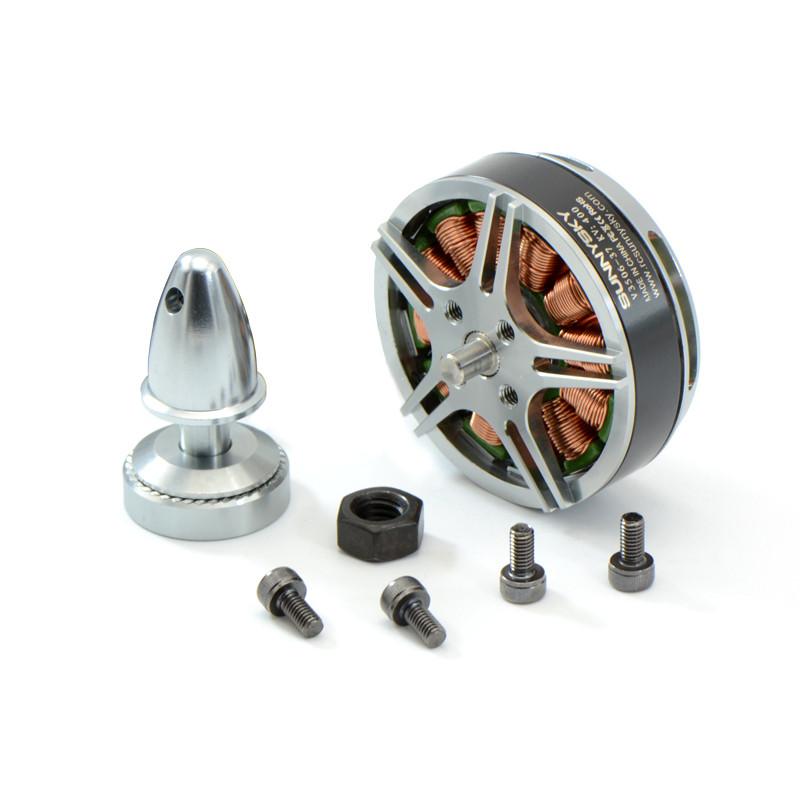

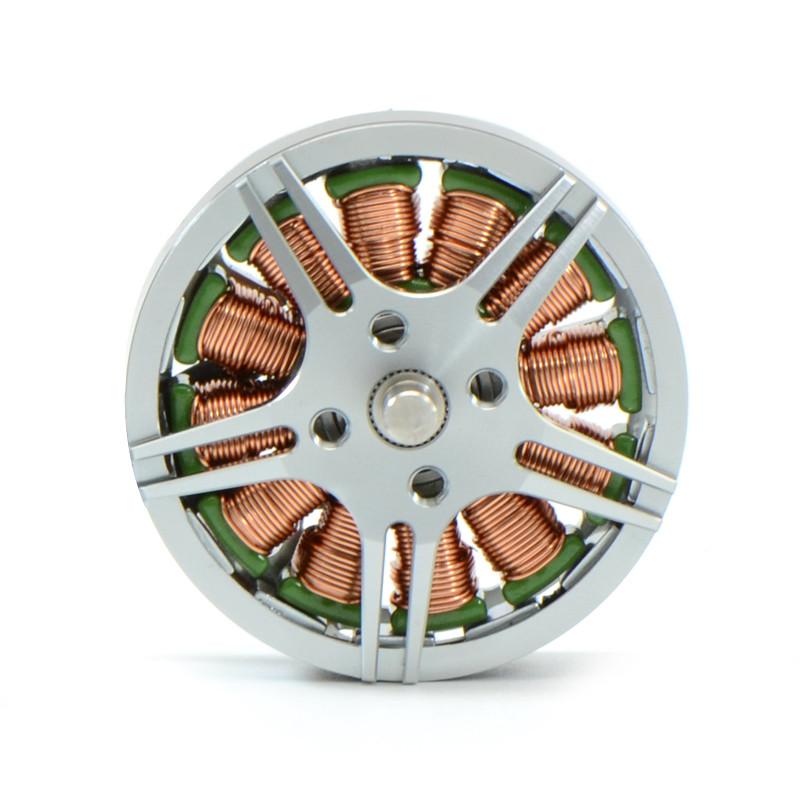

SunnySky V3506 High Efficiency Brushless Motors

SunnySky V3506 High Efficiency Brushless Motors

$37.85 - $37.85
$37.85
$37.99
$37.99 - $37.99
$37.99
SKU SS-V3506-400
KV: 400
Description


The Sunnysky V series of motors are specifically designed for long-endurance multirotor aircraft, featuring a high efficiency, stable structure, lightweight design, and high consistency. The flat V series motors are optimized for long flight times, providing ample torque at low RPM and peak efficiency during flight.

The series features Sunnysky's patented Stepped and knurled design, which effectively prevents motors from becoming loose and reduces the likelihood of malfunctions and unstable power output. The motors also use original Japanese EZO bearings, providing quiet and stable flight performance.

Despite their strength, the caps of the V motors have been hollow-cut to save weight, enabling these motors to achieve maximum thrust-to-weight ratio and gain more flight time.

All V series motors are tested using Sunnysky's strict QC protocols, undergoing dynamic balancing and rigorous axial and radial runout testing to ensure each motor performs within a 3% difference of its peers. These motors provide precise and stable power for professional applications.

Note: Real product photos are shown in the product photo section, not as the one in the overview section.

KV400
Stator Diameter 35mm Rotor Diameter 41.8mm
Stator Thickness 6mm Body Length 18mm
No.of Stator Slots 12 Max Lipo Cell 4-6S
No.of Rotor Poles 14 ESC 20-30A
Motor Kv 400 Recommended Prop(inch) EOLO CN11*4.5/CN12*5/CN13*5/CN15*5.5
No-load current 0.3A/10V Recommended single take-off Weight ≤550g
Motor Resistance 330mΩ
Max Continuous Current 13A/180s
Max Continuous Power 315W
Weight

84g
Prop(inch) Voltage(V) RPM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
EOLO CN11*4.5 22.2 3310 0.6 200 13 15.02 56℃
4105 1.15 300 26 11.75
4685 1.7 400 38 10.60
5129 2.3 500 51 9.79
5632 3 600 67 9.01
5903 3.7 700 82 8.52
6397 4.6 800 102 7.83
7101 6.3 997 140 7.13
25 3310 0.5 200 13 16.00
3967 1 300 25 12.00
4558 1.5 400 38 10.67
5054 2 500 50 10.00
5500 2.6 600 65 9.23
6000 3.3 700 83 8.48
6430 4 800 100 8.00
6740 4.85 900 121 7.42
7141 5.6 1000 140 7.14
7788 7.6 1208 190 6.36
EOLO CN12*5 22.2 2913 0.6 200 13 15.02 65℃
3545 1 300 22 13.51
3987 1.6 400 36 11.26
4460 2.2 500 49 10.24
4825 2.8 600 62 9.65
5120 3.6 700 80 8.76
5560 4.4 800 98 8.19
5849 5.2 900 115 7.80
6147 6.1 1000 135 7.38
6710 8.1 1215 180 6.76
25 2948 0.5 200 13 16.00
3544 0.9 300 23 13.33
3989 1.4 400 35 11.43
4453 2 500 50 10.00
4815 2.6 600 65 9.23
5144 3.2 700 80 8.75
5560 3.9 800 98 8.21
5892 4.6 900 115 7.83
6177 5.5 1000 138 7.27
6661 7.3 1200 183 6.58
7252 9.7 1447 243 5.97
EOLO CN13*5 14.8 2440 0.8 200 12 16.89 114℃1min40s
2899 1.4 300 21 14.48
3361 2.2 400 33 12.29
3800 3 500 44 11.26
4087 3.9 600 58 10.40
4603 5.6 760 83 9.17
16 2496 0.8 200 13 15.63
2984 1.3 300 21 14.42
3370 2 400 32 12.50
3740 2.8 500 45 11.16
4151 3.7 600 59 10.14
4426 4.6 700 74 9.51
4911 6.3 870 101 8.63
22.2 2463 0.5 200 11 18.02
2950 0.9 300 20 15.02
3398 1.45 400 32 12.43
3785 2 500 44 11.26
4112 2.7 600 60 10.01
4370 3.4 700 75 9.27
4646 4.15 800 92 8.68
5007 5 900 111 8.11
5268 5.9 1000 131 7.63
5755 7.9 1200 175 6.84
6240 10.4 1430 231 6.19
25 2493 0.5 200 13 16.00
3006 0.8 300 20 15.00
3381 1.3 400 33 12.31
3816 1.8 500 45 11.11
4119 2.4 600 60 10.00
4425 3 700 75 9.33
4716 3.7 800 93 8.65
4956 4.4 900 110 8.18
5255 5.3 1000 133 7.55
5746 7.1 1200 178 6.76
6135 9.5 1400 238 5.89
6580 12.3 1680 308 5.46
EOLO CN15*5.5 14.8 1911 0.7 200 10 19.31 55℃
2358 1.2 300 18 16.89
2694 2 400 30 13.51
2988 2.8 500 41 12.07
3253 3.8 600 56 10.67
3502 4.8 700 71 9.85
3745 5.8 800 86 9.32
4056 8 993 118 8.39
16 1921 0.7 200 11 17.86
2328 1.2 300 19 15.63
2664 1.9 400 30 13.16
2960 2.7 500 43 11.57
3239 3.55 600 57 10.56
3525 4.4 700 70 9.94
3758 5.5 800 88 9.09
3939 6.7 900 107 8.40
4275 9.6 1106 154 7.20



KV650
Stator Diameter 35mm Rotor Diameter 41.8mm
Stator Thickness 6mm Body Length 18mm
No.of Stator Slots 12 Max Lipo Cell 4S
No.of Rotor Poles 14 ESC 30A
Motor Kv 650 Recommended Prop(inch) EOLO CN12*5/CN13*5/CN15*5.5
No-load current 0.4A/10V Recommended single take-off Weight ≤600g
Motor Resistance 144mΩ
Max Continuous Current 25A/30s
Max Continuous Power 400W
Weight

84g
Prop(inch) Voltage(V) RPM Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
EOLO CN12*5 14.8 2967 0.9 200 13 15.02 80℃ 5min
3480 1.6 300 24 12.67
4050 2.5 400 37 10.81
4420 3.4 500 50 9.94
4890 4.4 600 65 9.21
5210 5.55 700 82 8.52
5570 6.7 800 99 8.07
5845 8.1 900 120 7.51
6180 9.6 1000 142 7.04
6850 13.9 1276 206 6.20
16 2978 0.8 200 13 15.63
3492 1.5 300 24 12.50
4030 2.3 400 37 10.87
4410 3.2 500 51 9.77
4832 4.1 600 66 9.15
5208 5.2 700 83 8.41
5560 6.3 800 101 7.94
5850 7.45 900 119 7.55
6129 8.8 1000 141 7.10
6730 11.8 1200 189 6.36
7229 15.6 1420 250 5.69
EOLO CN13*5 14.8 2348 0.8 200 12 16.89 94℃1min25s
2846 1.5 300 22 13.51
3333 2.2 400 33 12.29
3684 3.1 500 46 10.90
4067 4.1 600 61 9.89
4370 5.2 700 77 9.10
4589 6.3 800 93 8.58
4953 7.7 900 114 7.90
5229 9 1000 133 7.51
5695 12.4 1200 184 6.54
6273 17.4 1480 258 5.75
16 2438 0.8 200 13 15.63
2927 1.4 300 22 13.39
3354 2 400 32 12.50
3718 2.9 500 46 10.78
4066 3.85 600 62 9.74
4476 4.9 700 78 8.93
4650 6 800 96 8.33
4982 7.2 900 115 7.81
5282 8.6 1000 138 7.27
5699 11.6 1200 186 6.47
6115 15.6 1400 250 5.61
6520 19.4 1620 310 5.22
EOLO CN15*5.5 14.8 1933 0.7 200 10 19.31 98℃15s
2358 1.3 300 19 15.59
2574 2 400 30 13.51
2976 2.9 500 43 11.65
3244 3.9 600 58 10.40
3462 5.1 700 75 9.27
3725 6.2 800 92 8.72
2916 7.6 900 112 8.00
4126 9.1 1000 135 7.43
4424 12.8 1200 189 6.33
4786 17.8 1400 263 5.31
5085 23.5 1650 348 4.74
16 1856 0.6 200 10 20.83
2315 1.2 300 19 15.63
2622 1.9 400 30 13.16
2922 2.7 500 43 11.57
3200 3.6 600 58 10.42
3445 4.6 700 74 9.51
3660 5.85 800 94 8.55
3904 7 900 112 8.04
4149 8.6 1000 138 7.27
4486 12.2 1200 195 6.15
4816 17 1400 272 5.15
5338 25.9 1720 414 4.15
