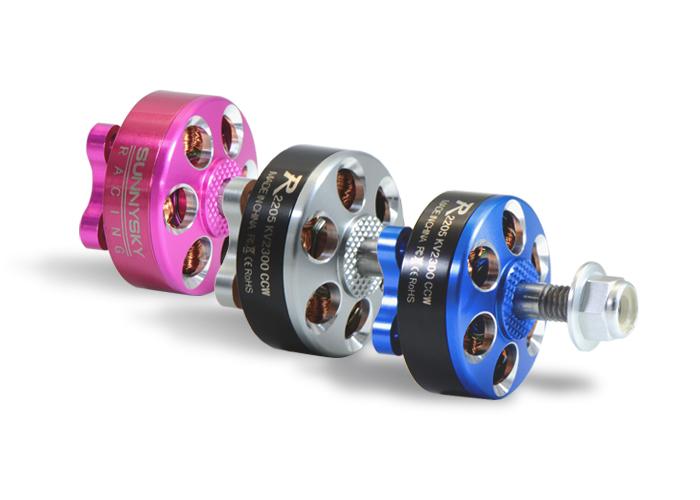

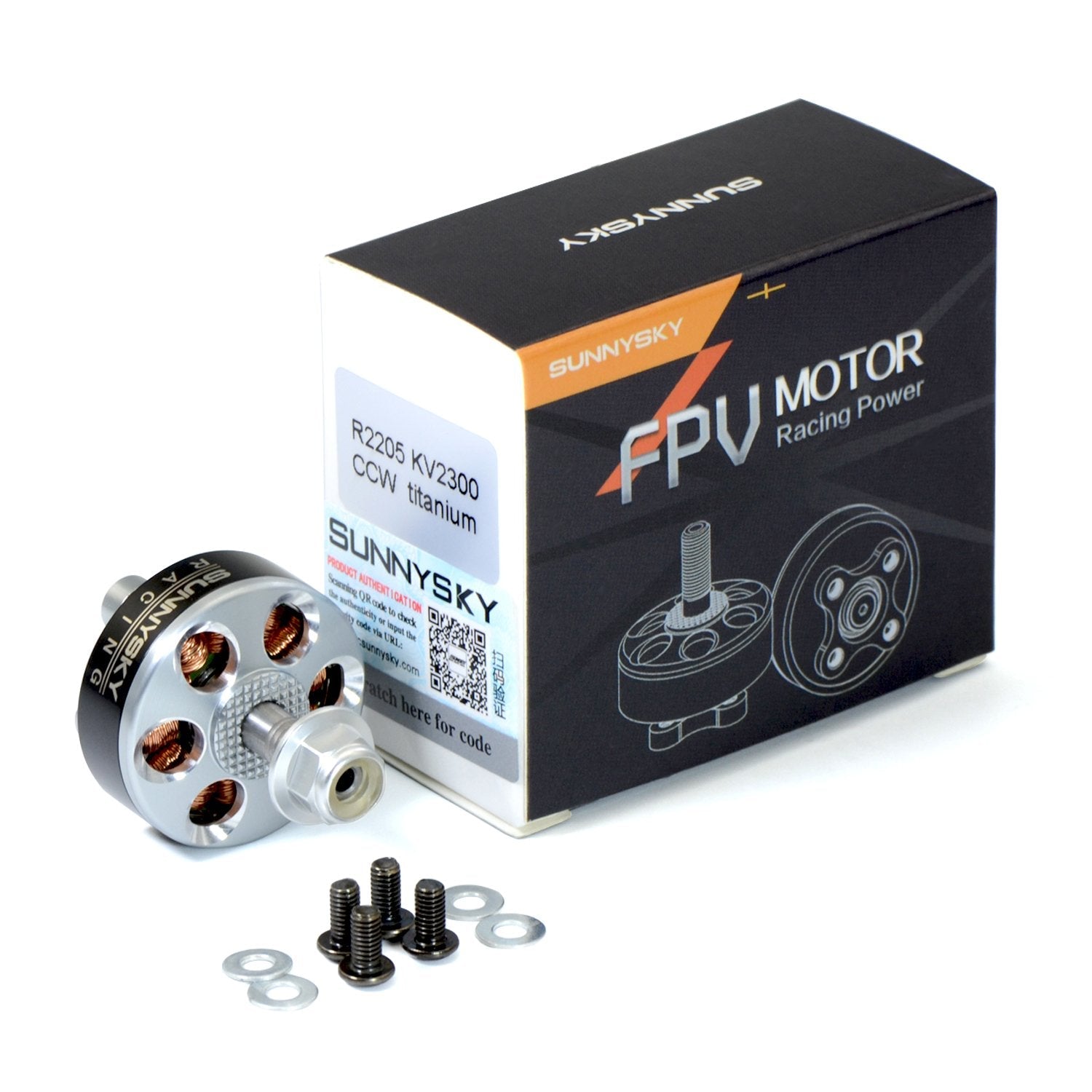

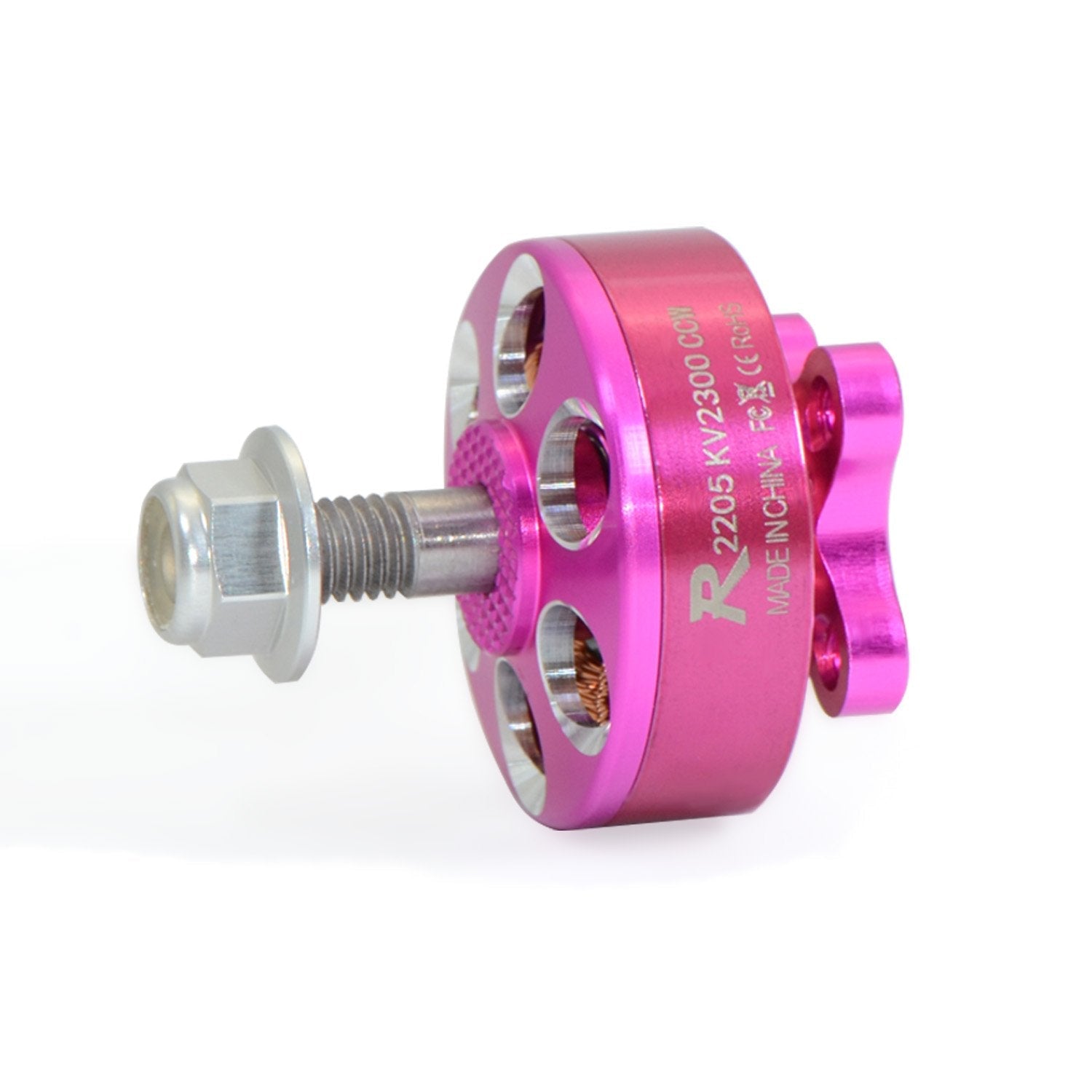

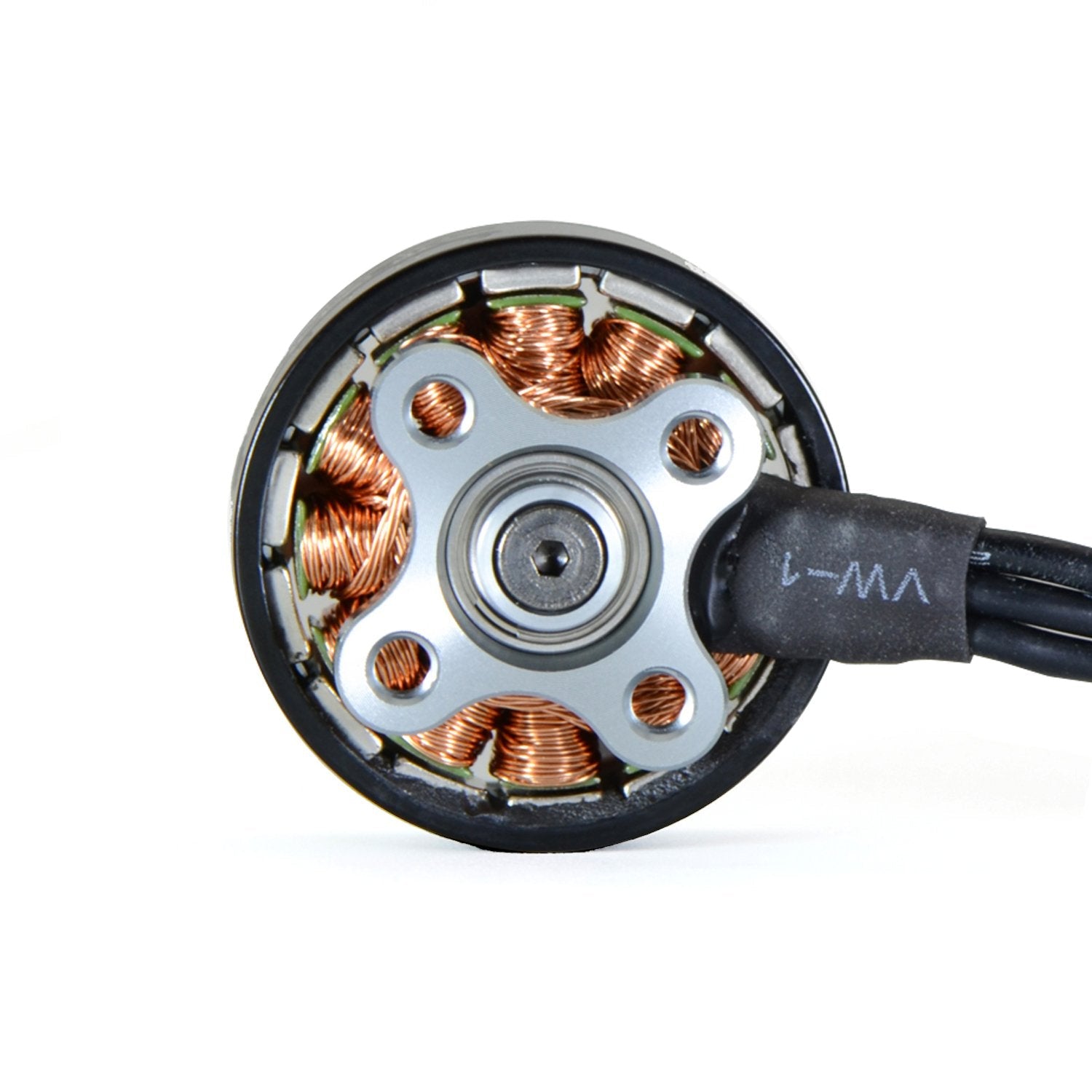

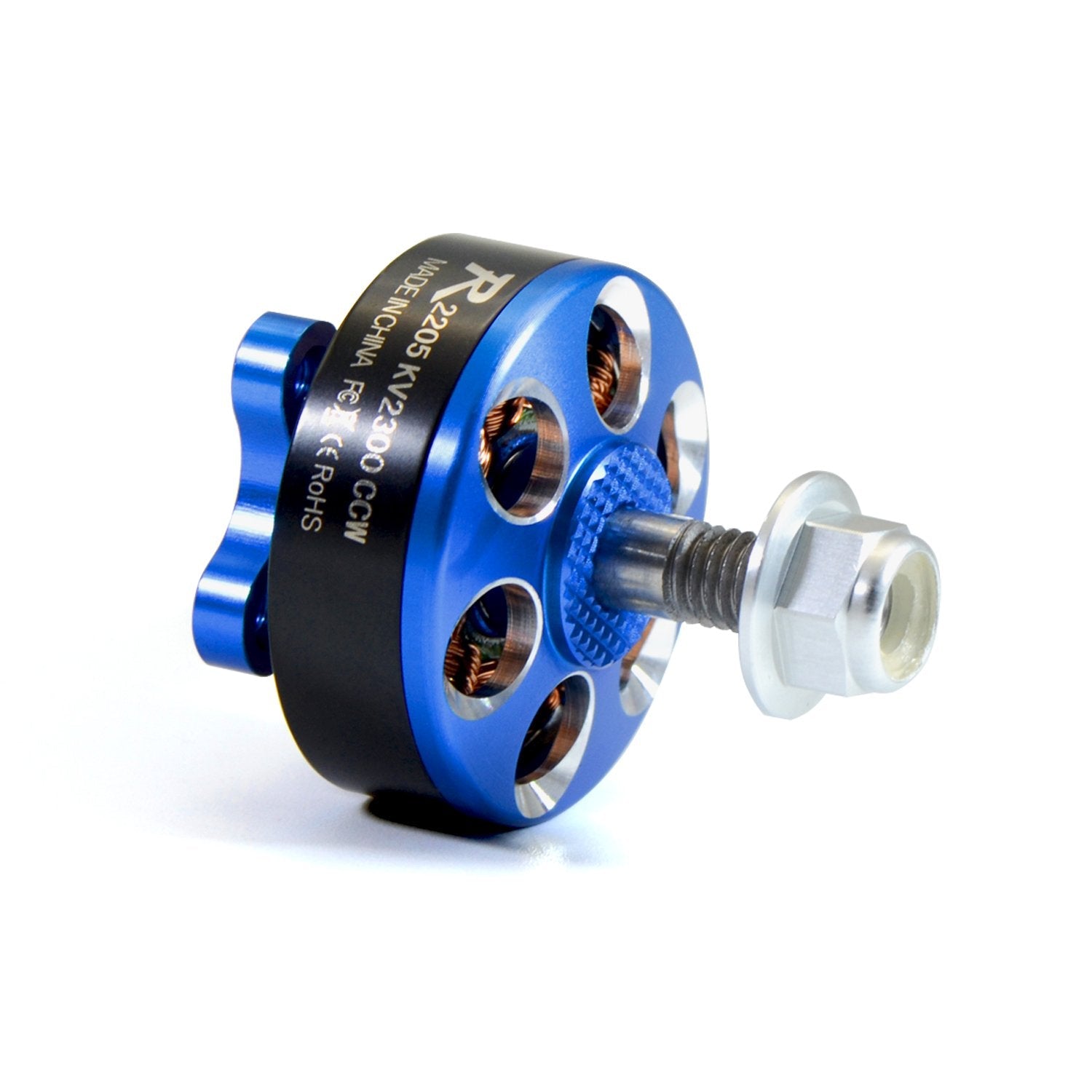

SunnySky R2205 FPV Brushless Motors

SunnySky R2205 FPV Brushless Motors

$12.90 - $12.90
$12.90
$12.90
$12.90 - $12.90
$12.90
SKU SS-E-R2205-2300-PP-CCW
KV: 2300 / Purple / CCW
Color: Purple
Rotation: CCW
[TABS]OVERVIEW

KV2300
Stator Diameter 22mm Rotor Diameter 27.4mm
Stator Thickness 5mm Body Length 18mm
No.of Stator Slots 12 Max Lipo Cell 3-4S
No.of Rotor Poles 14 ESC 30-45A
Motor Kv 2300 Recommended Prop(inch) GF5040*3/GF5045*3
No-load current 1.2A/10V
Motor Resistance 51.9mΩ
No-load current 40A/10s
Max Continuous Power 705W
Weight

31g



Prop(inch) Voltage(V) Throttle(%) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) Load temperature in 100% throttle
GF5040*3 14.8 1.2 100 18 5.63 8589 80℃ 60s
2.8 200 41 4.83 12405
4.8 300 71 4.22 15202
7.1 400 105 3.81 17717
9.7 500 144 3.48 19890
12.5 600 185 3.24 21649
15.4 700 228 3.07 23535
18.7 800 277 2.89 25050
22.5 900 333 2.70 26625
25.9 1002 383 2.61 28106
16.8 1.1 100 18 5.41 8707
2.5 200 42 4.76 12462
4.4 300 74 4.06 15265
6.5 400 109 3.66 17747
8.9 500 150 3.34 19896
11.4 600 192 3.13 21818
14.1 700 237 2.96 23505
16.9 800 284 2.82 24970
20.25 900 340 2.65 26687
23.6 1000 396 2.52 28240
30.8 1265 517 2.44 30813
GF5045*3 14.8 1.1 100 16 6.14 7741 89℃ HOT
2.7 200 40 5.01 10765
4.7 300 70 4.31 13151
7.1 400 105 3.81 15017
9.8 500 145 3.45 16793
12.8 600 189 3.17 18497
16.1 700 238 2.94 19974
19.5 800 289 2.77 21400
23.4 900 346 2.60 22734
28 1000 414 2.41 23901
33.5 1145 496 2.31 25404
16.8 1 100 17 5.95 7806
2.4 200 40 4.96 10704
4.3 300 72 4.15 13167
6.4 400 108 3.72 16818
8.8 500 148 3.38 16802
11.6 600 195 3.08 18492
14.7 700 247 2.83 1998
17.7 800 297 2.69 21395
21.1 900 354 2.54 22610
24.7 1000 415 2.41 23914
33.4 1200 561 2.14 26222
39.6 1386 665 2.08 27943
