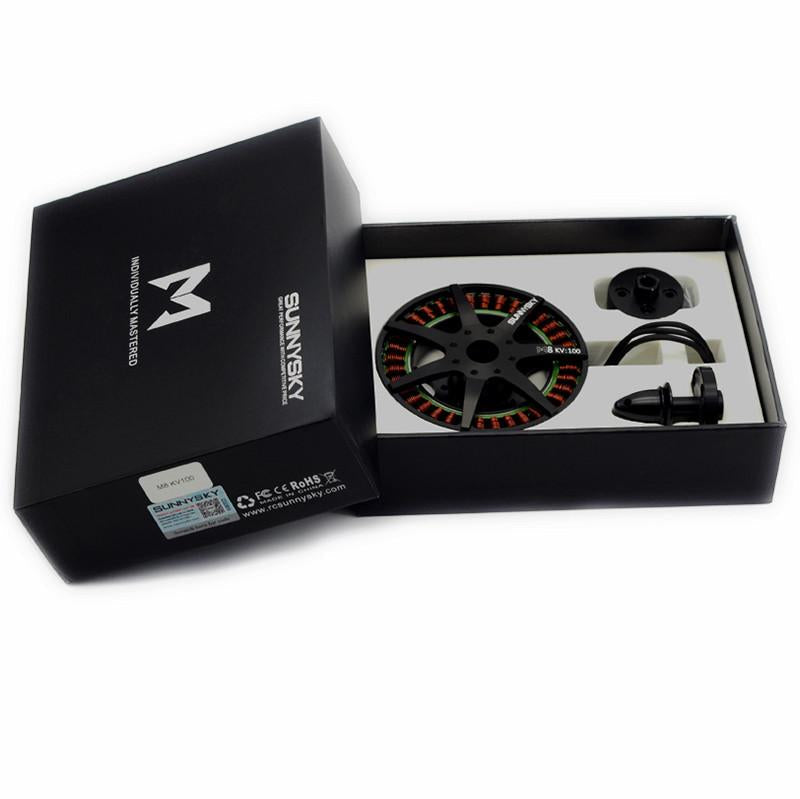

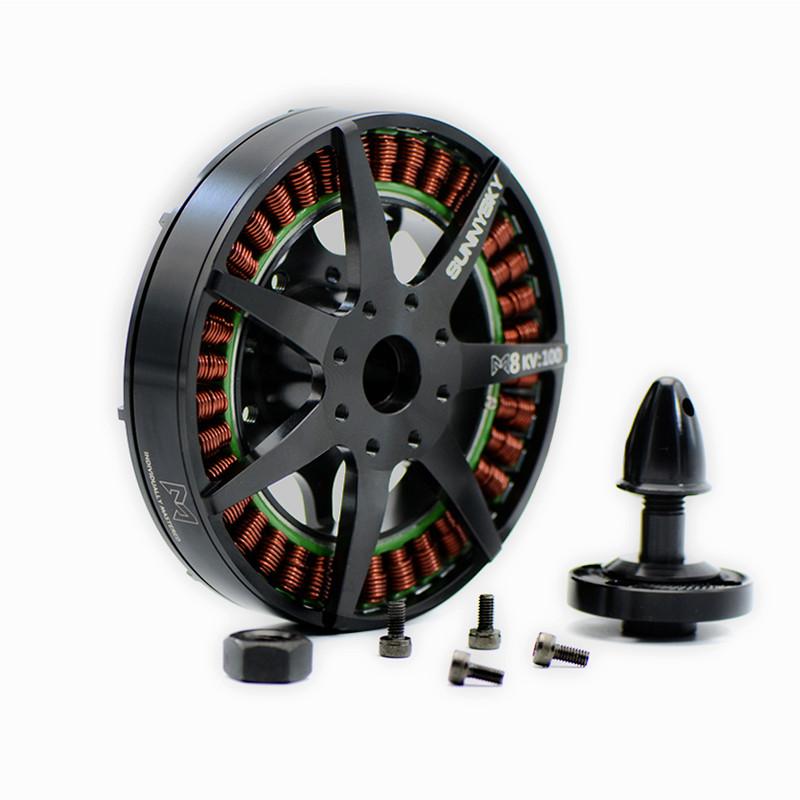

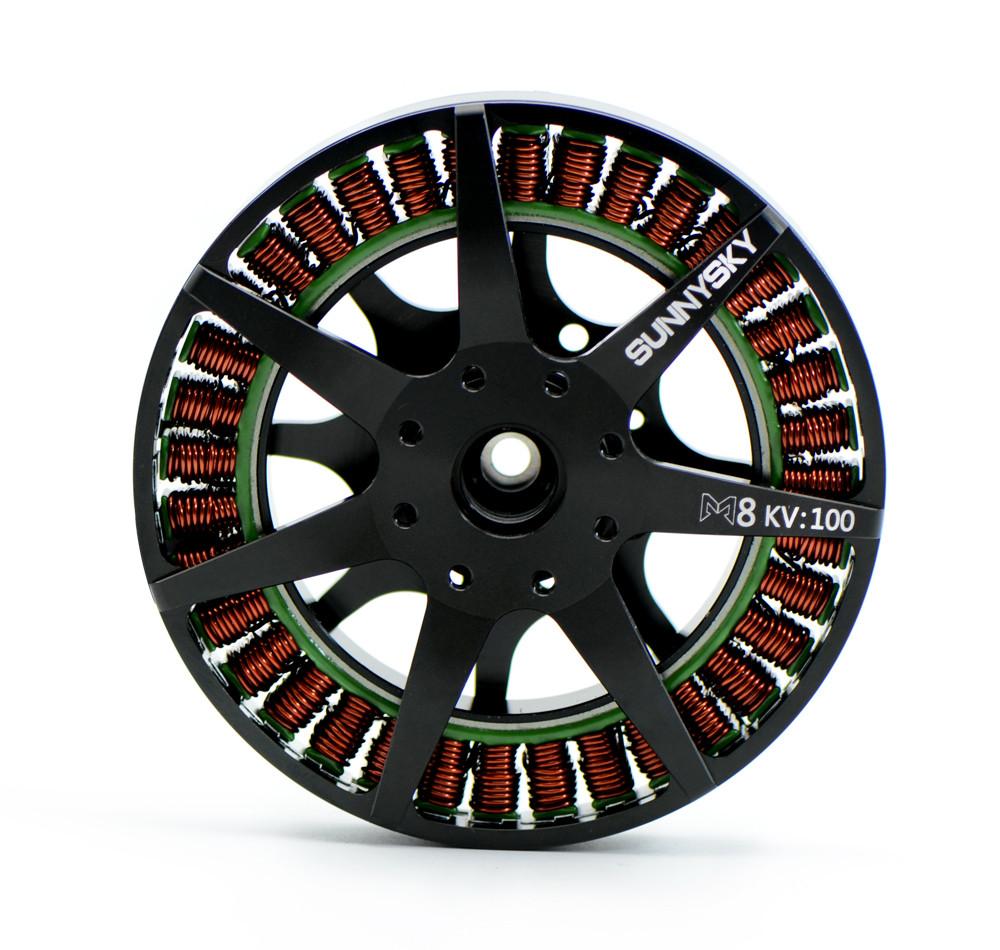

SunnySky M8 Brushless Motors
M series motors are specifically designed and manufactured for commercial and industrial drones, commonly used for purposes such as inspection, security, protection, patrol, monitoring, and aerial photography.
Integrated Design of Motor Case and Shaft: The M8 motor features an integrated design of motor case and shaft, constructed with high strength 6061-T6 aviation aluminum alloy. This design not only prevents shaft slipping in the radial direction but also saves weight without sacrificing motor durability.
Japanese EZO Bearings: All M series motors utilize customized EZO bearings manufactured in Japan. These high-quality bearings are essential for quiet, smooth, and stable performance, ensuring longevity of the motors.
Fully Hand Wound: Each M motor is meticulously hand wound by skilled and experienced staff. The hand wound coils are tightly and neatly spaced filled, increasing motor efficiency and power output.
Unique Appearance: The flat form of M motors not only lowers the center of gravity but also reduces weight. All components are processed with CNC machines, resulting in a unique appearance that ensures fast heat dissipation and smooth motor operation.
[TABS]Overview:
KV100
Stator Diameter | 81mm | Rotor Diameter | 86.8mm |
---|---|---|---|
Stator Thickness | 8mm | Body Length | 23.9mm |
No.of Stator Slots | 36 | Max Lipo Cell | 6-12S |
No.of Rotor Poles | 42 | ESC | 40-60A |
Motor Kv | 100 | Recommended Prop(inch) | 8-12S Lipo 26*8.5/8-10S Lipo 28*9.2/6-8S Lipo 29*9.5 |
No-load current | 0.6A/10V | Recommended single take-off Weight | ≤1750g |
Motor Resistance | 181mΩ | ||
Max Continuous Current | 25A/180s | ||
Max Continuous Power | 1100W | ||
Weight |
230g |
Prop(inch) | Voltage(V) | PRM | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|---|
26*8.5 | 29 | 790 | 0.5 | 250 | 15 | 17.24 | 45℃ |
1077 | 1 | 500 | 29 | 17.24 | |||
1315 | 1.5 | 750 | 44 | 17.24 | |||
1526 | 2.2 | 1000 | 64 | 15.67 | |||
1680 | 3 | 1250 | 87 | 14.37 | |||
1850 | 3.9 | 1500 | 113 | 13.26 | |||
1980 | 4.7 | 1750 | 136 | 12.84 | |||
2150 | 5.9 | 2000 | 171 | 11.69 | |||
2390 | 8 | 2500 | 232 | 10.78 | |||
2490 | 9.2 | 2790 | 267 | 10.46 | |||
33 | 782 | 0.4 | 250 | 13 | 18.94 | 52℃ | |
1075 | 0.8 | 500 | 26 | 18.94 | |||
1323 | 1.4 | 750 | 46 | 16.23 | |||
1526 | 2 | 1000 | 66 | 15.15 | |||
1680 | 2.6 | 1250 | 86 | 14.57 | |||
1830 | 3.3 | 1500 | 109 | 13.77 | |||
1980 | 4.2 | 1750 | 139 | 12.63 | |||
2140 | 5.1 | 2000 | 168 | 11.88 | |||
2390 | 7.1 | 2500 | 234 | 10.67 | |||
3610 | 9.2 | 3000 | 304 | 9.88 | |||
2770 | 11.1 | 3500 | 366 | 9.56 | |||
44.4 | 774 | 0.3 | 250 | 13 | 18.77 | 83℃ | |
1066 | 0.6 | 500 | 27 | 18.77 | |||
1315 | 1.1 | 750 | 49 | 15.36 | |||
1526 | 1.6 | 1000 | 71 | 14.08 | |||
1700 | 2.1 | 1250 | 93 | 13.41 | |||
1870 | 2.7 | 1500 | 120 | 12.51 | |||
2010 | 3.3 | 1750 | 147 | 11.94 | |||
2148 | 4 | 2000 | 178 | 11.26 | |||
2390 | 5.3 | 2500 | 235 | 10.62 | |||
2620 | 7 | 3000 | 311 | 9.65 | |||
2837 | 8.9 | 3500 | 395 | 8.86 | |||
3012 | 10.7 | 4000 | 475 | 8.42 | |||
3190 | 12.8 | 4500 | 568 | 7.92 | |||
3370 | 15.2 | 5000 | 675 | 7.41 | |||
3520 | 17.3 | 5650 | 768 | 7.36 | |||
3540 | 18.1 | 5900 | 804 | 7.34 | |||
50 | 760 | 0.3 | 250 | 15 | 16.67 | 120℃ | |
1060 | 0.6 | 500 | 30 | 16.67 | |||
1305 | 1 | 750 | 50 | 15 | |||
1515 | 1.4 | 1000 | 70 | 14.29 | |||
1710 | 1.9 | 1250 | 95 | 13.16 | |||
1860 | 2.4 | 1500 | 120 | 12.5 | |||
1995 | 3 | 1750 | 150 | 11.67 | |||
2140 | 3.5 | 2000 | 175 | 11.43 | |||
2365 | 4.8 | 2500 | 240 | 10.42 | |||
2625 | 6.4 | 3000 | 320 | 9.38 | |||
2815 | 7.8 | 3500 | 390 | 8.97 | |||
3025 | 9.8 | 4000 | 490 | 8.16 | |||
3170 | 11.3 | 4500 | 565 | 7.96 | |||
3355 | 13.5 | 5000 | 675 | 7.41 | |||
3505 | 15.5 | 5500 | 775 | 7.1 | |||
3660 | 18.1 | 6000 | 905 | 6.63 | |||
3860 | 21.6 | 7100 | 1080 | 6.57 | |||
28*9.2 | 29 | 678 | 0.4 | 250 | 12 | 21.55 | 55℃ |
918 | 0.9 | 500 | 26 | 19.16 | |||
1105 | 1.4 | 750 | 41 | 18.47 | |||
1290 | 2.1 | 1000 | 61 | 16.42 | |||
1440 | 2.8 | 1250 | 81 | 15.39 | |||
1579 | 3.6 | 1500 | 104 | 14.37 | |||
1702 | 4.5 | 1750 | 131 | 13.41 | |||
1807 | 5.4 | 2000 | 157 | 12.77 | |||
2015 | 7.4 | 2500 | 215 | 11.65 | |||
2210 | 9.6 | 3000 | 278 | 10.78 | |||
2380 | 12 | 3500 | 348 | 10.06 | |||
33 | 664 | 0.4 | 250 | 13 | 18.94 | 66℃ | |
924 | 0.8 | 500 | 26 | 18.94 | |||
1127 | 1.3 | 750 | 43 | 17.48 | |||
1290 | 1.9 | 1000 | 63 | 15.95 | |||
1435 | 2.5 | 1250 | 83 | 15.15 | |||
1576 | 3.2 | 1500 | 106 | 14.2 | |||
1750 | 4 | 1750 | 132 | 13.26 | |||
1838 | 5 | 2000 | 165 | 12.12 | |||
2030 | 6.7 | 2500 | 221 | 11.31 | |||
2225 | 8.7 | 3000 | 287 | 10.45 | |||
2404 | 11 | 3500 | 363 | 9.64 | |||
2640 | 14.8 | 4300 | 488 | 8.8 | |||
44.4 | 670 | 0.3 | 250 | 13 | 18.77 | 129℃ | |
922 | 0.6 | 500 | 27 | 18.77 | |||
1115 | 1 | 750 | 44 | 16.89 | |||
1300 | 1.5 | 1000 | 67 | 15.02 | |||
1460 | 2 | 1250 | 89 | 14.08 | |||
1593 | 2.5 | 1500 | 111 | 13.51 | |||
1708 | 3 | 1750 | 133 | 13.14 | |||
1826 | 3.7 | 2000 | 164 | 12.17 | |||
2045 | 5.1 | 2500 | 226 | 11.04 | |||
2225 | 6.6 | 3000 | 293 | 10.24 | |||
2408 | 8.3 | 3500 | 369 | 9.5 | |||
2570 | 10.3 | 4000 | 457 | 8.75 | |||
2730 | 12.2 | 4500 | 542 | 8.31 | |||
2870 | 14.4 | 5000 | 639 | 7.82 | |||
3007 | 16.9 | 5500 | 750 | 7.33 | |||
3140 | 20 | 6000 | 888 | 6.76 | |||
3257 | 22.7 | 6600 | 1008 | 6.55 | |||
3280 | 24.3 | 7000 | 1079 | 6.49 | |||
50 | 67.2 | 0.3 | 250 | 15 | 16.67 | 140℃ | |
912 | 0.5 | 500 | 25 | 20 | |||
1112 | 0.9 | 750 | 45 | 16.67 | |||
1285 | 1.3 | 1000 | 65 | 15.38 | |||
1446 | 1.7 | 1250 | 85 | 14.71 | |||
1570 | 2.2 | 1500 | 110 | 13.64 | |||
1715 | 2.8 | 1750 | 140 | 12.5 | |||
1836 | 3.4 | 2000 | 170 | 11.76 | |||
2045 | 4.6 | 2500 | 230 | 10.87 | |||
2229 | 5.9 | 3000 | 295 | 10.17 | |||
2424 | 7.7 | 3500 | 385 | 9.09 | |||
2577 | 9.2 | 4000 | 460 | 8.7 | |||
2723 | 11 | 4500 | 550 | 8.18 | |||
2857 | 12.8 | 5000 | 640 | 7.81 | |||
2980 | 15 | 5500 | 750 | 7.33 | |||
3112 | 17.4 | 6000 | 870 | 6.9 | |||
3235 | 20 | 6500 | 1000 | 6.5 | |||
3574 | 27 | 7800 | 1350 | 5.78 | |||
3596 | 28.8 | 8300 | 1440 | 5.76 | |||
29*9.5 | 22.2 | 657 | 0.5 | 250 | 11 | 22.52 | 43℃ |
911 | 1.1 | 500 | 24 | 20.48 | |||
1090 | 1.8 | 750 | 40 | 18.77 | |||
1245 | 2.6 | 1000 | 58 | 17.33 | |||
1383 | 3.5 | 1250 | 78 | 16.09 | |||
1511 | 4.6 | 1500 | 102 | 14.69 | |||
1615 | 5.7 | 1750 | 127 | 13.83 | |||
1736 | 7 | 2000 | 155 | 12.87 | |||
1860 | 8.6 | 2410 | 191 | 12.62 | |||
25 | 664 | 0.5 | 250 | 13 | 20 | 56℃ | |
903 | 1 | 500 | 25 | 20 | |||
1084 | 1.6 | 750 | 40 | 18.75 | |||
1233 | 2.3 | 1000 | 58 | 17.39 | |||
1388 | 3.2 | 1250 | 80 | 15.63 | |||
1494 | 4 | 1500 | 100 | 15 | |||
1606 | 4.9 | 1750 | 123 | 14.29 | |||
1710 | 6 | 2000 | 150 | 13.33 | |||
1908 | 8.3 | 2500 | 208 | 12.05 | |||
2070 | 10.6 | 3000 | 265 | 11.32 |
KV135
Stator Diameter | 81mm | Rotor Diameter | 86.8mm |
---|---|---|---|
Stator Thickness | 8mm | Body Length | 23.9mm |
No.of Stator Slots | 36 | Max Lipo Cell | 6-12S |
No.of Rotor Poles | 42 | ESC | 40-60A |
Motor Kv | 135 | Recommended Prop(inch) | 8-12S Lipo 24*8/6-10S Lipo 26*8.5/6-8S Lipo 28*9.2/29*9.5 |
No-load current | 0.7A/10V | Recommended single take-off Weight | ≤2200g |
Motor Resistance | 123mΩ | ||
Max Continuous Current | 30A/30s | ||
Max Continuous Power | 1200W | ||
Weight |
230g |
Prop(inch) | Voltage(V) | PRM | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
---|---|---|---|---|---|---|---|
26*8.5 | 22.2 | 774 | 0.6 | 250 | 13 | 18.77 | 39℃ |
1050 | 1.2 | 500 | 27 | 18.77 | |||
1305 | 2.1 | 750 | 47 | 16.09 | |||
1500 | 3 | 1000 | 67 | 15.02 | |||
1660 | 4 | 1250 | 89 | 14.08 | |||
1830 | 5 | 1500 | 111 | 13.51 | |||
1950 | 6.1 | 1750 | 135 | 12.92 | |||
2087 | 7.5 | 2000 | 167 | 12.01 | |||
2330 | 10.3 | 2550 | 229 | 11.15 | |||
26 | 262 | 0.5 | 250 | 13 | 19.23 | 50℃ | |
1062 | 1.1 | 500 | 29 | 17.48 | |||
1295 | 1.8 | 750 | 47 | 16.03 | |||
1492 | 2.6 | 1000 | 68 | 14.79 | |||
1646 | 3.3 | 1250 | 86 | 14.57 | |||
1810 | 4.3 | 1500 | 112 | 13.42 | |||
1962 | 5.4 | 1750 | 140 | 12.46 | |||
2086 | 6.5 | 2000 | 169 | 11.83 | |||
2336 | 9 | 2500 | 234 | 10.68 | |||
2555 | 11.7 | 3000 | 304 | 9.86 | |||
2665 | 13.2 | 3400 | 343 | 9.91 | |||
29 | 766 | 0.6 | 250 | 17 | 14.37 | 56℃ | |
1069 | 1 | 500 | 29 | 17.24 | |||
1281 | 1.6 | 750 | 46 | 16.16 | |||
1495 | 2.4 | 1000 | 70 | 14.37 | |||
1653 | 3.1 | 1250 | 90 | 13.9 | |||
1830 | 4 | 1500 | 116 | 12.93 | |||
1958 | 4.9 | 1750 | 142 | 12.32 | |||
2092 | 5.9 | 2000 | 171 | 11.69 | |||
2340 | 8 | 2500 | 232 | 10.78 | |||
2565 | 10.6 | 3000 | 307 | 9.76 | |||
2760 | 13.3 | 3500 | 386 | 9.07 | |||
2920 | 16 | 4050 | 464 | 8.73 | |||
33 | 781 | 0.4 | 250 | 13 | 18.94 | 68℃ | |
1077 | 0.9 | 500 | 30 | 16.84 | |||
1310 | 1.5 | 750 | 50 | 15.15 | |||
1510 | 2.1 | 1000 | 69 | 14.43 | |||
1685 | 2.8 | 1250 | 92 | 13.53 | |||
1805 | 3.5 | 1500 | 116 | 12.99 | |||
1968 | 4.4 | 1750 | 145 | 12.05 | |||
2125 | 5.4 | 2000 | 178 | 11.22 | |||
2380 | 7.4 | 2500 | 244 | 10.24 | |||
2588 | 9.5 | 3000 | 314 | 9.57 | |||
2780 | 11.8 | 3500 | 389 | 8.99 | |||
2980 | 14.5 | 4000 | 479 | 8.36 | |||
3144 | 17.2 | 4500 | 568 | 7.93 | |||
3225 | 19.3 | 4950 | 637 | 7.77 | |||
28*9.2 | 22.2 | 665 | 0.5 | 250 | 11 | 22.52 | 50℃ |
925 | 1.1 | 500 | 24 | 20.48 | |||
1119 | 1.8 | 750 | 40 | 18.77 | |||
1295 | 2.7 | 1000 | 60 | 16.68 | |||
1443 | 3.7 | 1250 | 82 | 15.22 | |||
1580 | 4.8 | 1500 | 107 | 14.08 | |||
1720 | 6 | 1750 | 133 | 13.14 | |||
1831 | 7.2 | 2000 | 160 | 12.51 | |||
2040 | 10 | 2500 | 222 | 11.26 | |||
2240 | 13.2 | 3100 | 293 | 10.58 | |||
26 | 675 | 0.5 | 250 | 13 | 19.23 | 63℃ | |
908 | 1 | 500 | 26 | 19.23 | |||
1122 | 1.6 | 750 | 42 | 18.03 | |||
1303 | 2.4 | 1000 | 62 | 16.03 | |||
1449 | 3.2 | 1250 | 83 | 15.02 | |||
1585 | 4.1 | 1500 | 107 | 14.07 | |||
1716 | 5.1 | 1750 | 133 | 13.2 | |||
1825 | 6.1 | 2000 | 159 | 12.61 | |||
2042 | 8.5 | 2500 | 221 | 11.31 | |||
2249 | 11.2 | 3000 | 291 | 10.3 | |||
2412 | 14.2 | 3500 | 369 | 9.48 | |||
2550 | 16.8 | 4050 | 437 | 9.27 | |||
29 | 657 | 0.5 | 250 | 15 | 17.24 | 73℃ | |
910 | 0.9 | 500 | 26 | 19.16 | |||
1126 | 1.5 | 750 | 44 | 17.24 | |||
1290 | 2.1 | 1000 | 61 | 16.42 | |||
1450 | 2.9 | 1250 | 84 | 14.86 | |||
1592 | 3.7 | 1500 | 107 | 13.98 | |||
1710 | 4.6 | 1750 | 133 | 13.12 | |||
1820 | 5.5 | 2000 | 160 | 12.54 | |||
2034 | 7.6 | 2500 | 220 | 11.34 | |||
2237 | 10 | 3000 | 290 | 10.34 | |||
2400 | 12.8 | 3500 | 371 | 9.43 | |||
2555 | 15 | 4000 | 435 | 9.2 | |||
2710 | 18.4 | 4500 | 534 | 8.43 | |||
2770 | 19.7 | 4800 | 571 | 8.4 | |||
33 | 670 | 0.4 | 250 | 13 | 18.94 | 103℃ | |
935 | 0.8 | 500 | 26 | 18.94 | |||
1126 | 1.3 | 750 | 43 | 17.48 | |||
1288 | 1.9 | 1000 | 63 | 15.95 | |||
1444 | 2.6 | 1250 | 86 | 14.57 | |||
1585 | 3.3 | 1500 | 109 | 13.77 | |||
1714 | 4.2 | 1750 | 139 | 12.63 | |||
1825 | 5 | 2000 | 165 | 12.12 | |||
2036 | 6.8 | 2500 | 224 | 11.14 | |||
2200 | 8.8 | 3000 | 290 | 10.33 | |||
2405 | 11.2 | 3500 | 370 | 9.47 | |||
2545 | 13.6 | 4000 | 449 | 8.91 | |||
2710 | 16.2 | 4500 | 535 | 8.42 | |||
2864 | 19.7 | 5000 | 650 | 7.69 | |||
3010 | 23.5 | 5700 | 776 | 7.35 | |||
3060 | 24.1 | 5800 | 795 | 7.29 | |||
24*8 | 44.4 | 889 | 0.4 | 250 | 18 | 14.08 | 90℃ |
1250 | 0.7 | 500 | 31 | 16.09 | |||
1535 | 1.2 | 750 | 53 | 14.08 | |||
1760 | 1.7 | 1000 | 75 | 13.25 | |||
1980 | 2.3 | 1250 | 102 | 12.24 | |||
2156 | 3 | 1500 | 133 | 11.26 | |||
2326 | 3.6 | 1750 | 160 | 10.95 | |||
2480 | 4.4 | 2000 | 195 | 10.24 | |||
2770 | 6 | 2500 | 266 | 9.38 | |||
3000 | 7.7 | 3000 | 342 | 8.78 | |||
3226 | 9.5 | 3500 | 422 | 8.3 | |||
2477 | 11.9 | 4000 | 528 | 7.57 | |||
3633 | 13.7 | 4500 | 608 | 7.4 | |||
3817 | 16.1 | 5000 | 715 | 6.99 | |||
4000 | 18.3 | 5500 | 813 | 6.77 | |||
4180 | 21.4 | 6000 | 950 | 6.31 | |||
4340 | 24 | 6500 | 1066 | 6.1 | |||
4350 | 24.2 | 6600 | 1074 | 6.14 | |||
29*9.5 | 22.2 | 655 | 0.5 | 250 | 11 | 22.52 | 60℃ |
914 | 1.2 | 500 | 27 | 18.77 | |||
1095 | 1.9 | 750 | 42 | 17.78 | |||
1247 | 2.8 | 1000 | 62 | 16.09 | |||
1381 | 3.7 | 1250 | 82 | 15.22 | |||
1503 | 4.7 | 1500 | 104 | 14.38 | |||
1623 | 5.8 | 1750 | 129 | 13.59 | |||
1720 | 7 | 2000 | 155 | 12.87 | |||
1941 | 9.9 | 2500 | 220 | 11.38 | |||
2100 | 12.8 | 3000 | 284 | 10.56 | |||
2205 | 14.6 | 3380 | 324 | 10.43 | |||
25 | 655 | 0.4 | 250 | 10 | 25 | 70℃ | |
903 | 1 | 500 | 25 | 20 | |||
1088 | 1.7 | 750 | 43 | 17.65 | |||
1243 | 2.4 | 1000 | 60 |
