Specifications
| Model No: |
4518R |
| Motor kV: |
1100kV |
| Stator Material: |
0.15mm |
| Stator Diameter: |
⌀ 45.5mm |
| Stator Thickness: |
18mm |
| Slots & Poles: |
12N / 10P |
| No-Load Current: |
6.8A |
| Motor Wind: |
3+3 Turn Delta |
| Motor Wire: |
Thick wire single-strand |
| Motor Resistance: |
3.9mΩ |
| Max Continuous Current: |
95A |
| Max Peak Current: |
115A |
| Max Continuous Power: |
2280W |
| Max Peak Power: |
2760W |
| Motor Weight: |
374g |
| Outside Diameter: |
⌀ 56.3mm |
| Shaft Diameter: |
⌀ 6mm |
| Body Length: |
44mm |
| Overall Shaft Length: |
36mm |
| Max Lipo Cell: |
6S |
| ESC: |
130-160A |
| Mounting Holes & Screw: |
4 × M4 ⌀ 30mm |
| Suitable Helicopter Size: |
500-600 |
Includes
| 1 x |

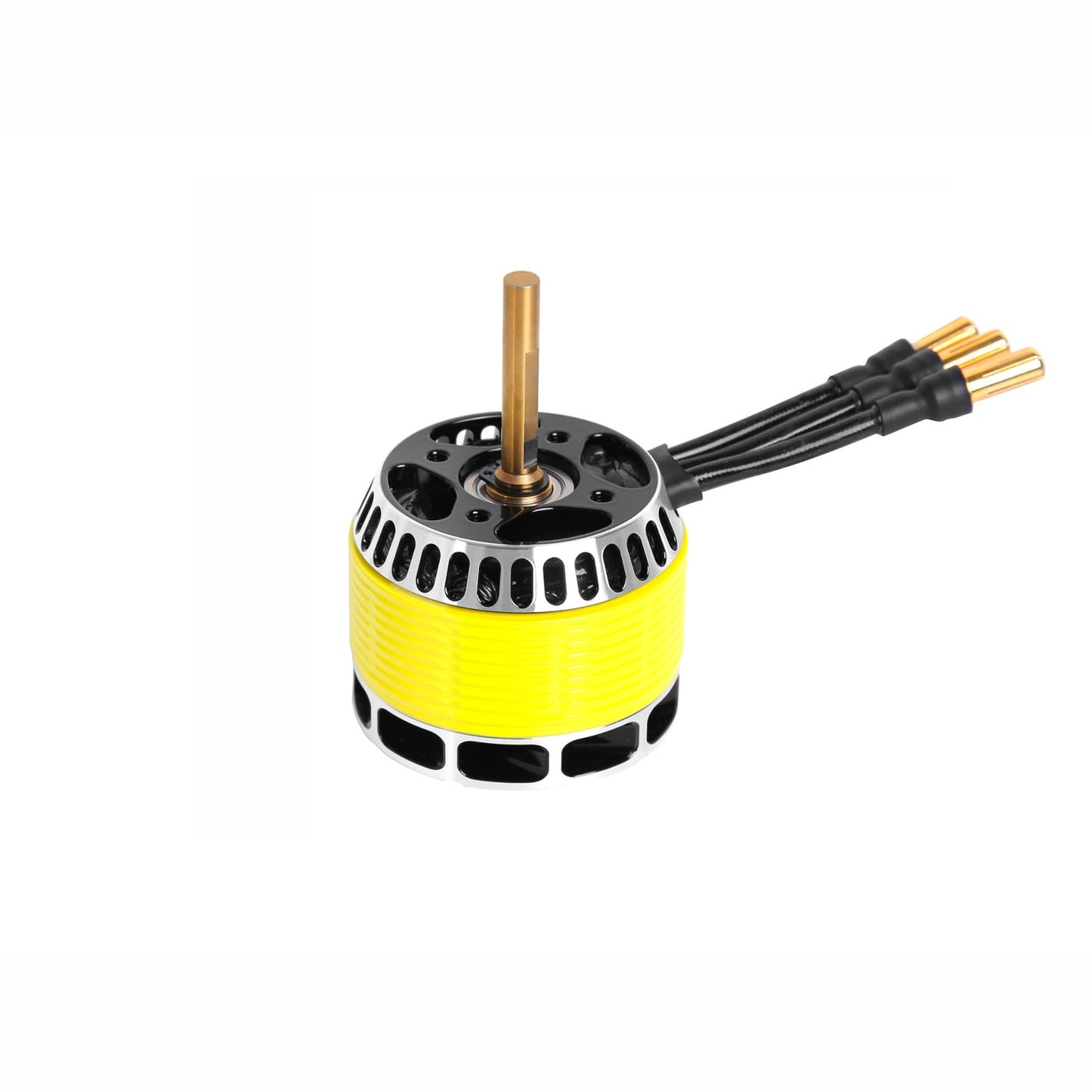

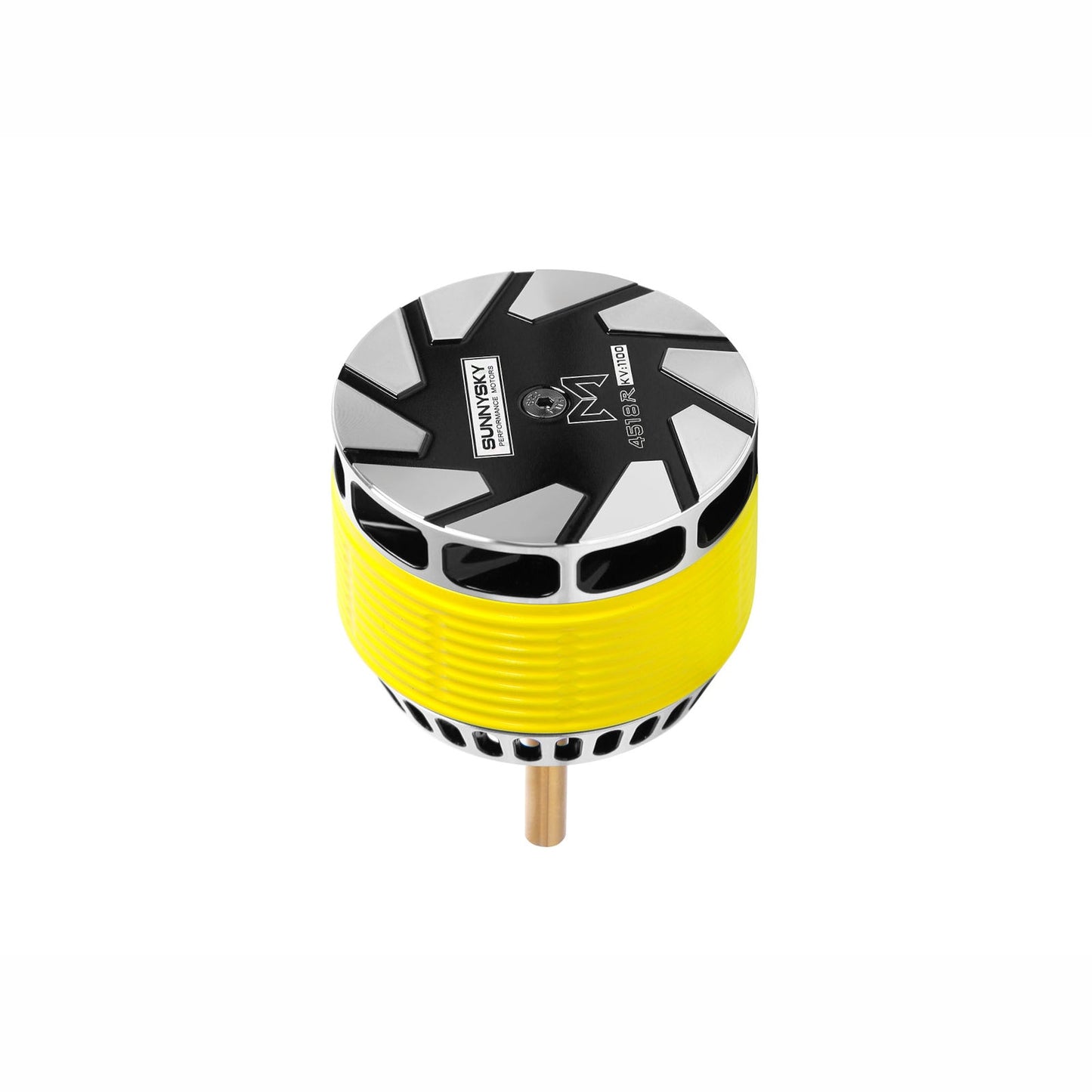

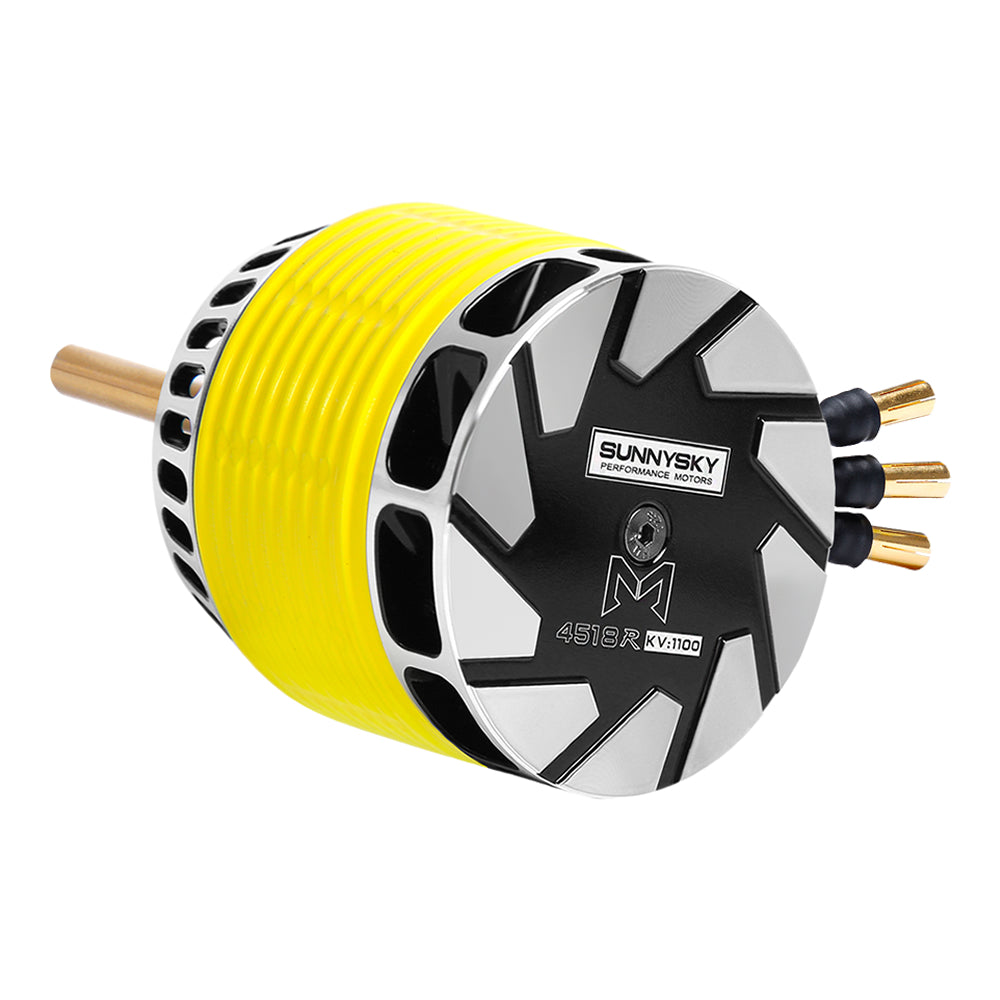

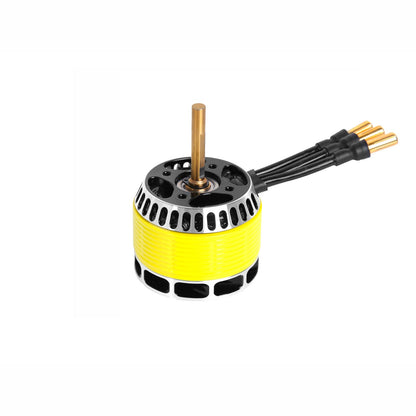

SunnySky Brushless Motor 4518R 1100kV |
3 x 6mm female bullet connectors
3 x Heat shrink
1 x Sticker sheet
