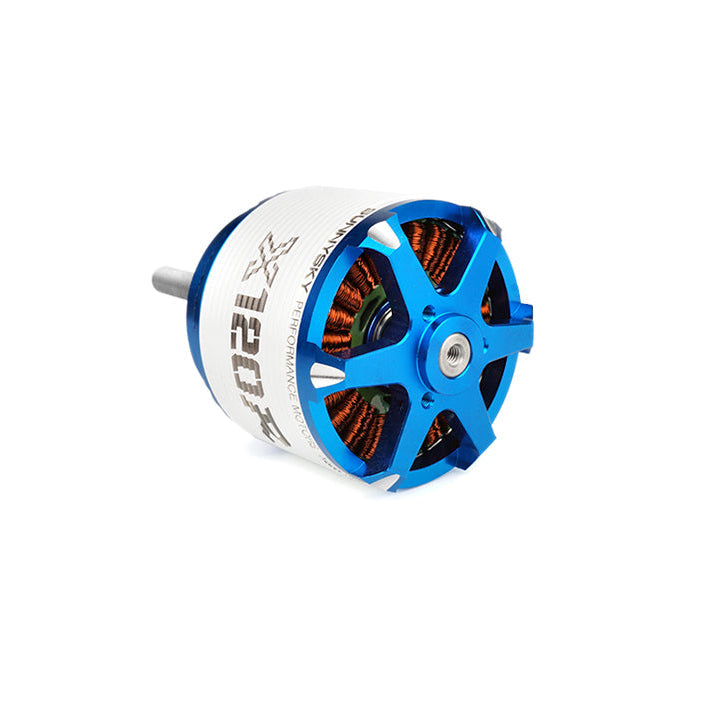

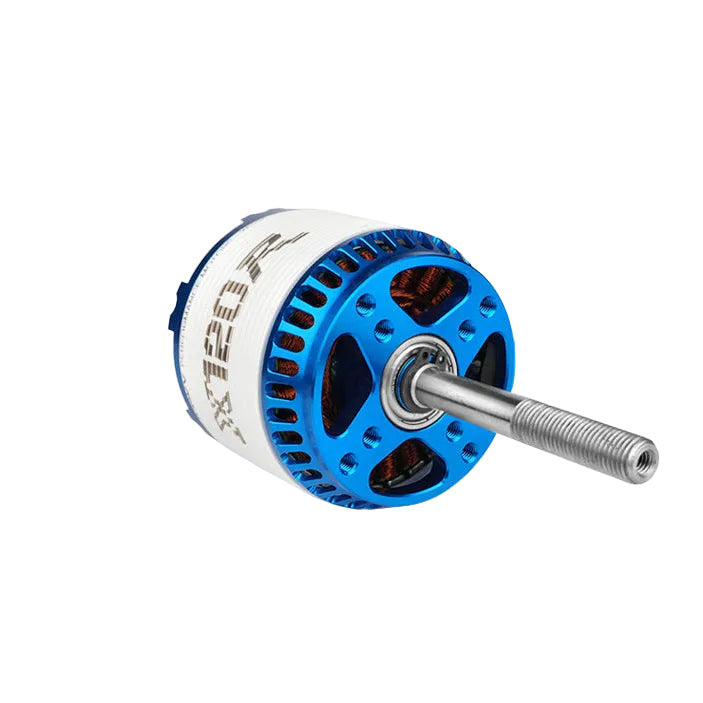

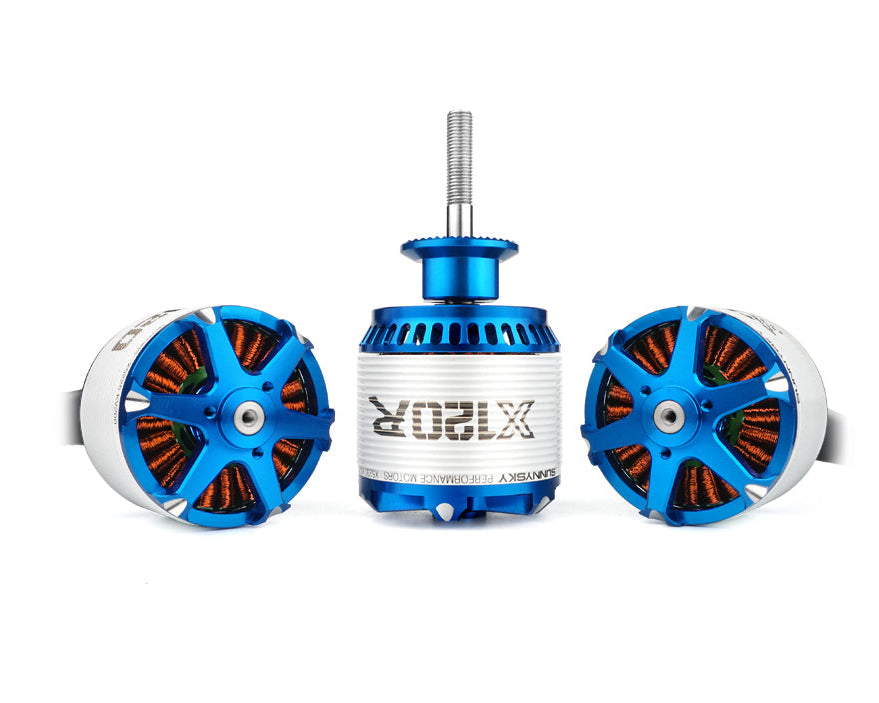

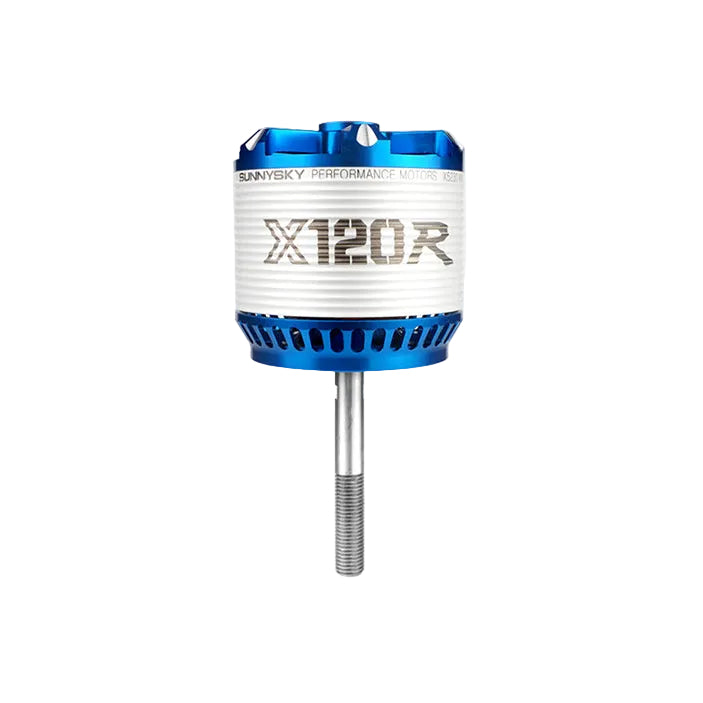

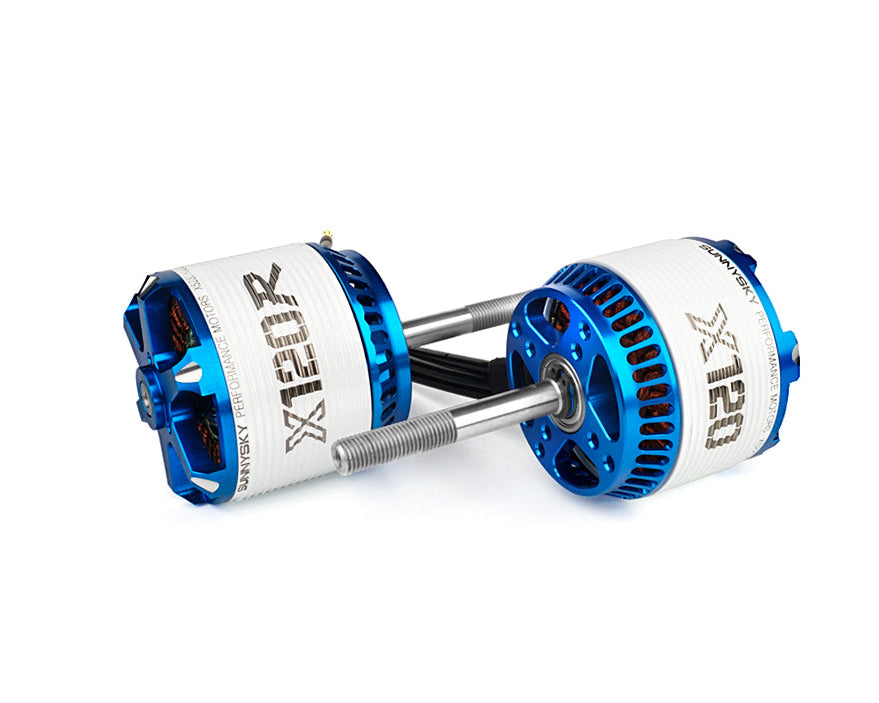

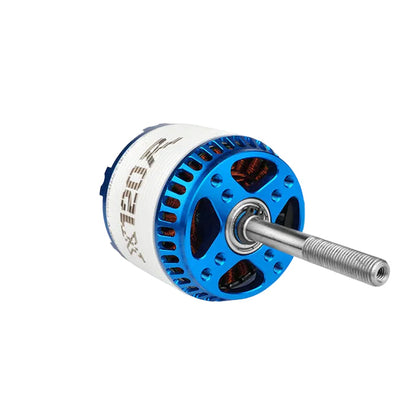

SunnySky Airplane X5230 V3 Brushless Motors X120R Equivalent Power

SunnySky Airplane X5230 V3 Brushless Motors X120R Equivalent Power

SS-XV3-X5230-200

$159.99 USD
$169.00 USD $159.99 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

KV
View full details

X5230-120E

Motor Model / KV X5230-120E/ KV200
Stator/Rotor Poles 24N28P
Internal resistance 24.3mΩ
Motor size φ60.15*121.0mm
Shaft diameter 8.0mm
AWG 20AWG 150mm
Motor weight(wire included) 615g
Motor weight(wire excluded) ——
Rated operational voltage 10S
No-load current 1.9A/10V
Maximum continuous power 3900W
Maximum continuous current 97A/30s
ESC recommended use 120A
Propeller size recommended use 20*8/20*10/20*12/21*10/22*10



X5230-120E

KV200
No.of Stator Slots 24 Weight 615g
No.of Rotor Poles 28 Rotor Diameter 60.15mm
Motor Kv 200 Body Lengt h 60mm
No-load current 1.9A/10V Max Lipo Cell 10S
Motor Resistance    24.3mΩ ESC 120A
Max Continuous Current 97A/30s Recommended Prop(inch) 20*8/20*10/20*12/21*10/22*1 0
Max Continuous Power       3900W
Prop(inch) Voltage(V) Current(A) Input power(W) Speed （rpm） Torque （N.m） Output power(W) Thrust(gf) Efficiency （%） Force effect(g/W) Load temperature in 100% throttle
20*8 36.99 7.227 267.32 3265.33 -0.46 157.28 1873.45 58.83 7 127℃ 2min30s
37.03 11.188 414.29 3900.43 -0.68 277.72 2734.98 67.03 6.6
36.82 16.184 595.89 4523.04 -0.9 426.25 3689.93 71.53 6.19
36.55 23.361 853.84 5138.32 -1.25 672.55 4776.22 78.76 5.59
36.52 32.273 1178.6 5719.16 -1.55 928.24 6027.59 78.75 5.11
36.37 42.798 1556.56 6266.61 -1.91 1253.32 7307.21 80.51 4.69
36.17 53.428 1932.49 6693.27 -2.26 1583.95 8438.96 81.96 4.36
42.1 8.472 356.67 3644.7 -0.57 217.53 2296.06 60.98 6.43
41.93 13.022 546.01 4330.02 -0.82 371.79 3290.61 68.09 6.02
41.84 19.666 822.82 5029.86 -1.16 610.95 4540.38 74.25 5.51
41.79 28.683 1198.66 5687.7 -1.57 935.04 6048.9 78 5.04
41.33 39.03 1613.1 6334.78 -1.94 1286.85 7495.99 79.77 4.64
41.11 51.981 2136.93 6925.32 -2.42 1754.89 9050.99 82.12 4.23
40.88 65.181 2664.59 7375.29 -2.83 2185.55 10539.24 82.02 3.95
20*10 38.08 8.482 322.99 3259.85 -0.61 208.22 2152.53 64.46 6.66 120℃ 1min17s
37.97 13.421 509.59 3872.8 -0.89 360.92 3127.16 70.82 6.13
37.88 20.441 774.3 4513.48 -1.24 586.04 4348.45 75.68 5.61
37.91 24.87 942.82 4817.8 -1.44 726.45 4972.5 77.05 5.27
37.67 40.469 1524.46 5673.82 -2.03 1206.05 7002.64 79.11 4.59
37.2 52.897 1967.76 6177.65 -2.47 1597.77 8307.44 81.19 4.22
36.84 65.707 2420.64 6598.6 -2.86 1976.12 9531.48 81.63 3.93
41.72 9.573 399.38 3495.57 -0.69 252.55 2516.12 63.23 6.3
41.68 15.178 632.61 4168.22 -1.02 445.19 3652.72 70.37 5.77
41.49 23.318 967.46 4825.58 -1.43 722.57 5058.31 74.68 5.22
41.28 33.604 1387.17 5493.7 -1.87 1075.72 6582.34 77.54 4.74
41.08 46.564 1912.84 6098.07 -2.41 1538.88 8132.1 80.45 4.25
40.69 61.457 2500.68 6616.93 -2.96 2050.9 9635 82.01 3.85
40.54 76.233 3090.48 7076.47 -3.36 2489.73 11087.91 80.56 3.58
20*12 37.81 9.095 343.88 3175.12 -0.66 219.43 2281.03 63.81 6.63 125℃ 1min07s
37.61 14.549 547.18 3781.49 -0.99 392 3295.29 71.64 6.02
37.38 22.3 833.57 4421.21 -1.36 629.61 4533.24 75.53 5.43
37.43 32.791 1227.36 5019.14 -1.87 982.8 6049.1 80.07 4.92
37.07 43.898 1627.29 5561.2 -2.26 1316.05 7418.89 80.87 4.55
36.73 57.388 2107.86 6071.01 -2.69 1710.05 8848.88 81.12 4.19
36.4 70.945 2582.39 6444.28 -3.12 2105.35 10094.82 81.52 3.9
41.97 10.387 435.94 3439.26 -0.79 284.5 2700.62 65.26 6.19
41.79 16.822 702.99 4136.05 -1.17 506.72 3944.6 72.08 5.61
41.56 26.12 1085.54 4805.53 -1.67 840.33 5496.42 77.41 5.06
41.21 37.168 1531.69 5442.47 -2.13 1213.87 7048.01 79.25 4.6
40.68 49.482 2012.92 6035.47 -2.53 1598.92 8528.81 79.43 4.23
40.74 67.261 2740.21 6546.32 -3.27 2241.51 10403.06 81.8 3.79
40.25 82.515 3321.22 6953.9 -3.71 2701.46 11771.58 81.33 3.54
21*10 37.87 9.113 345.1 3153.77 -0.68 224.56 2377.1 65.07 6.88 128℃ 1min
37.67 14.722 554.57 3790.32 -0.99 392.92 3456.66 70.85 6.23
37.47 22.659 849.03 4414.12 -1.4 647.09 4812.68 76.21 5.66
37.24 32.917 1225.82 4971.5 -1.85 963.06 6318.8 78.56 5.15
37.28 45.732 1704.88 5530.83 -2.39 1384.15 7846.15 81.18 4.6
36.88 58.836 2169.87 6024.42 -2.78 1753.7 9302.17 80.82 4.28
36.41 73.739 2684.83 6409.08 -3.32 2228.07 10675.55 82.98 3.97
41.77 10.378 433.48 3440.17 -0.81 291.78 2828.8 67.31 6.52
41.57 17.19 714.58 4105.03 -1.23 528.71 4166.18 73.98 5.83
41.41 26.283 1088.37 4799.08 -1.68 844.23 5694.81 77.56 5.23
41.18 37.86 1559.07 5413.54 -2.17 1230.09 7386.96 78.89 4.73
40.94 51.975 2127.85 5968.03 -2.74 1712.29 9077.31 80.47 4.26
40.48 68.795 2784.82 6487.42 -3.31 2248.51 10895.8 80.74 3.91
40.13 84.514 3391.54 6877.92 -3.81 2743.96 12260.14 80.9 3.61
22*10 37.81 10.215 386.22 3093.87 -0.81 262.41 2740.48 67.94 7.09 130℃ 35s
37.7 17.096 644.51 3726.2 -1.22 476.01 4044.5 73.85 6.27
37.51 26.442 991.83 4333.82 -1.69 766.92 5585.86 77.32 5.63
37.12 38.267 1420.47 4873.14 -2.22 1132.81 7240.79 79.74 5.09
37.04 52.605 1948.48 5377.58 -2.77 1559.77 8937.77 80.05 4.58
36.61 69.422 2541.53 5828.68 -3.4 2075.13 10534.98 81.64 4.14
35.98 84.453 3038.61 6149.04 -3.74 2408.1 12020.54 79.25 3.95
41.7 11.601 483.76 3325.24 -0.95 330.78 3246.1 68.37 6.71
41.62 19.527 812.71 4035.25 -1.45 612.68 4740.49 75.38 5.83
41.31 31.063 1283.21 4668.84 -2.07 1011.98 6656.63 78.86 5.18
41.18 44.845 1846.71 5246.59 -2.66 1461.35 8548.31 79.13 4.62
40.67 60.803 2472.85 5771.92 -3.28 1982.39 10356.9 80.16 4.18
40.35 79.966 3226.62 6216.61 -3.98 2590.79 12137.23 80.29 3.76
39.82 97.705 3890.61 6576.23 -4.42 3043.65 13699.63 78.23 3.52
