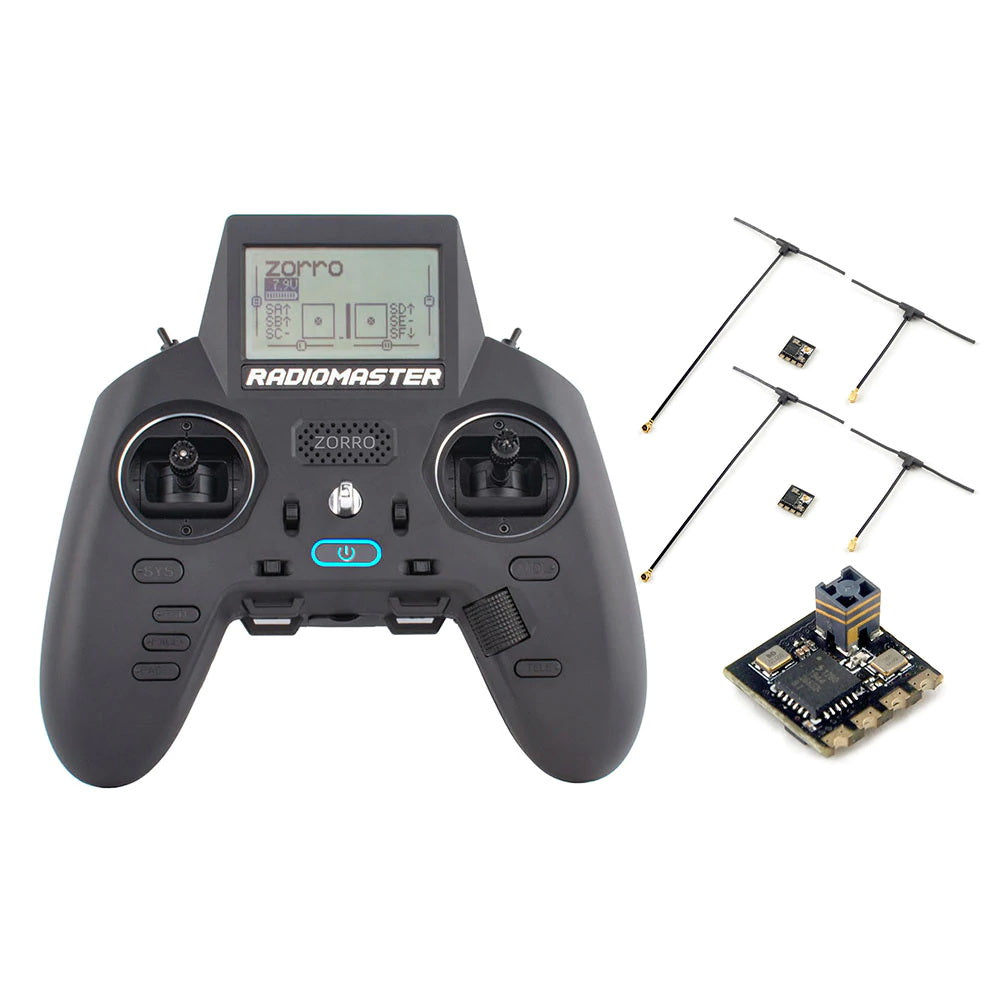

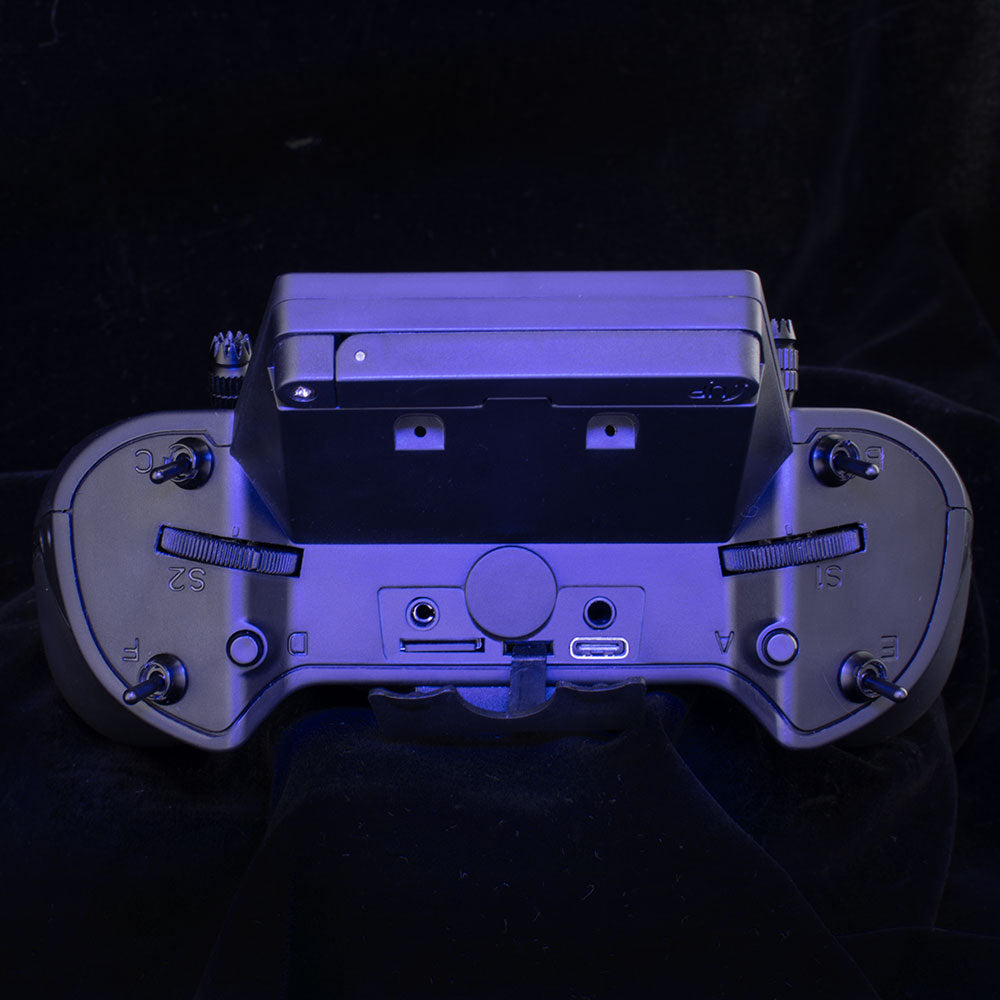

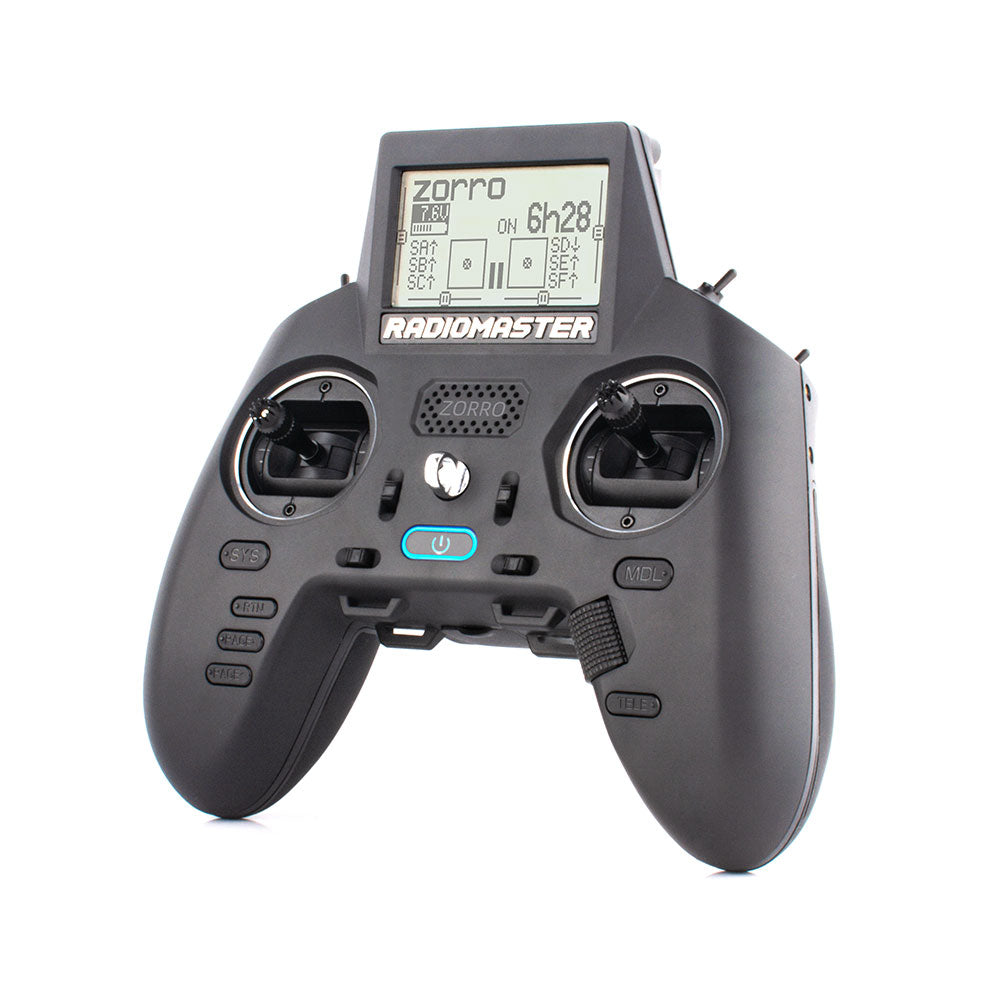

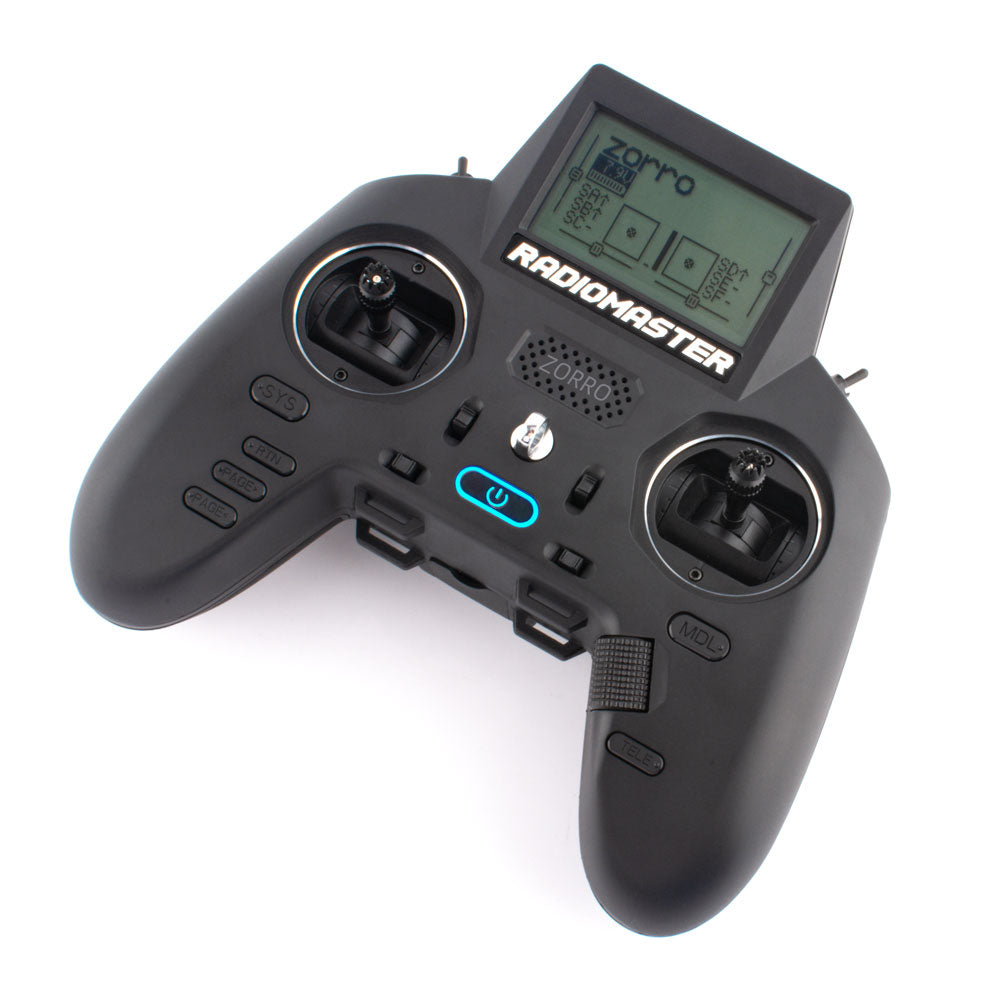

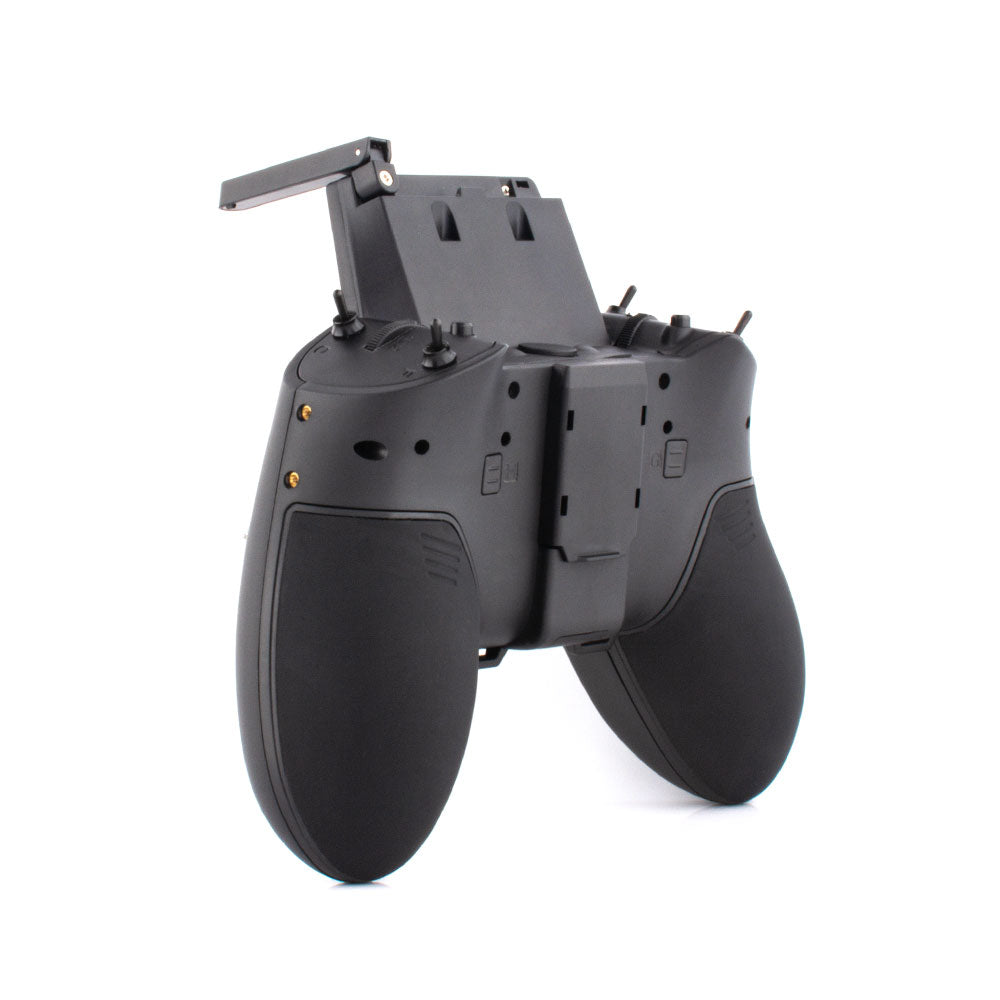

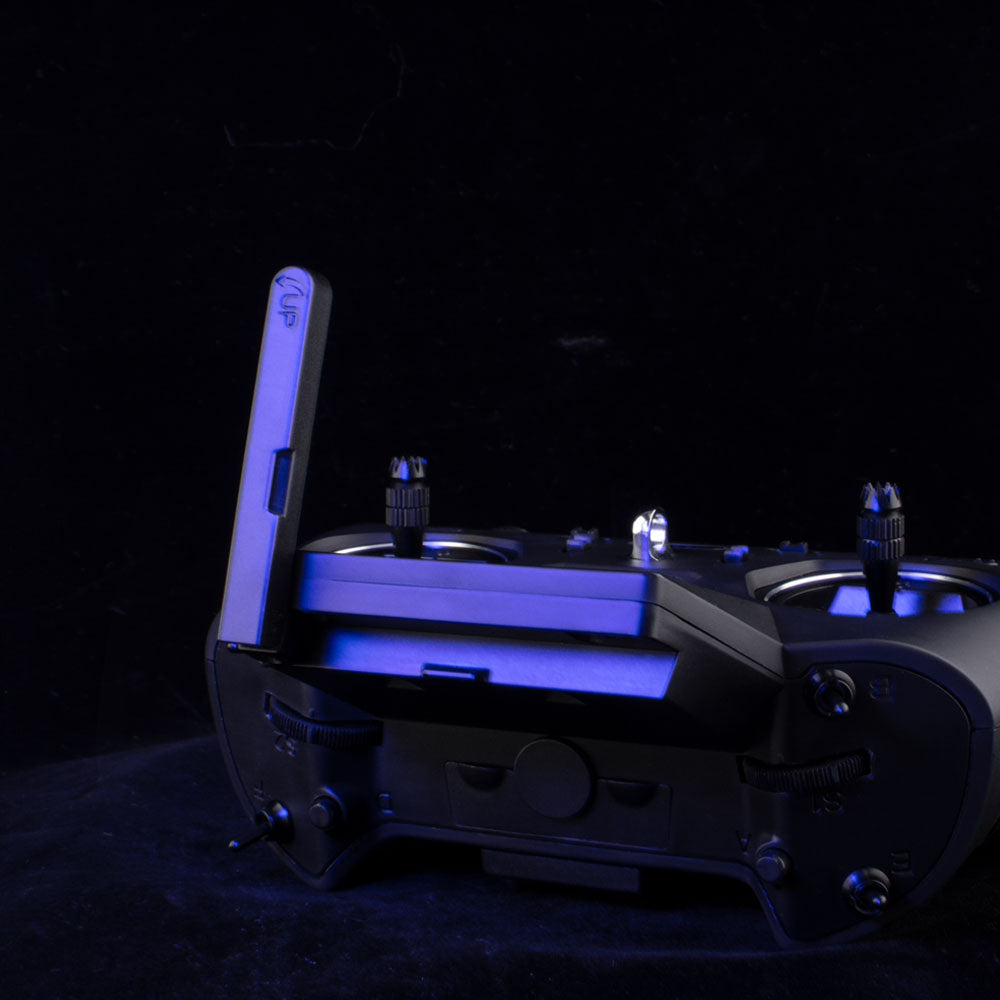

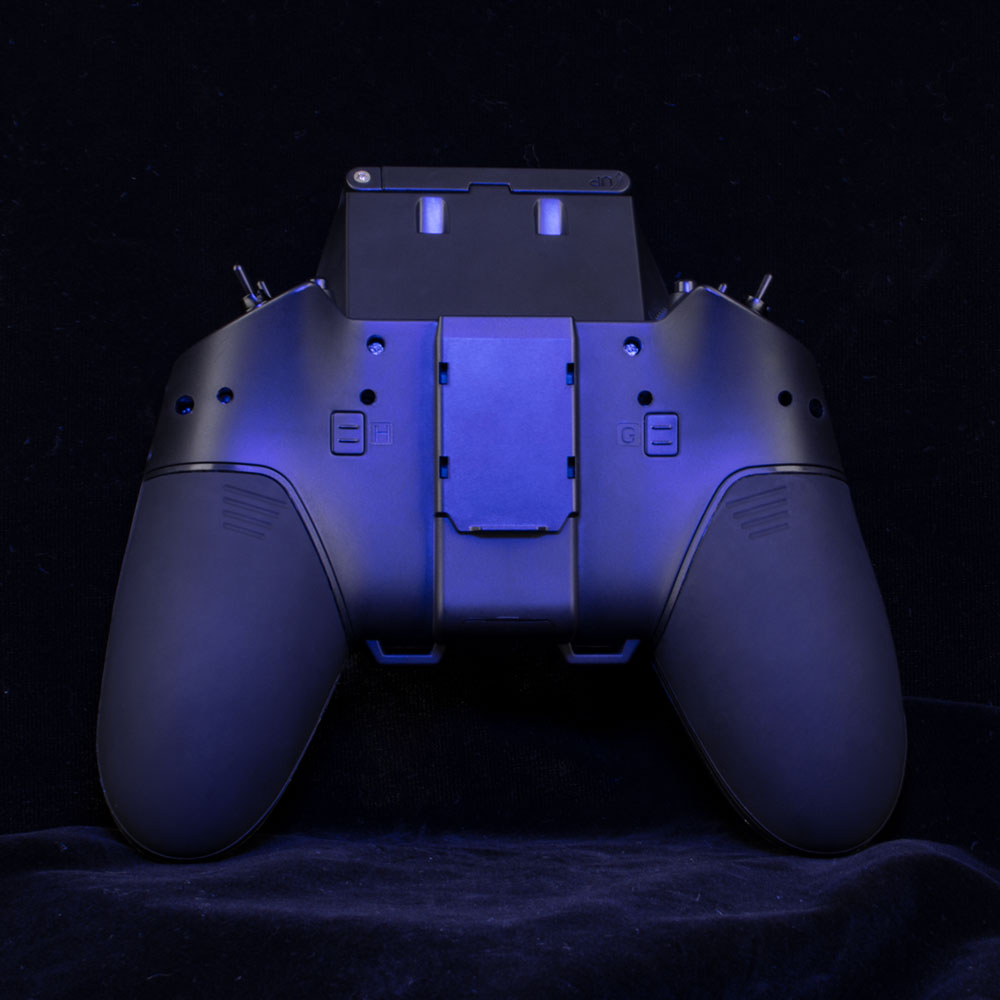

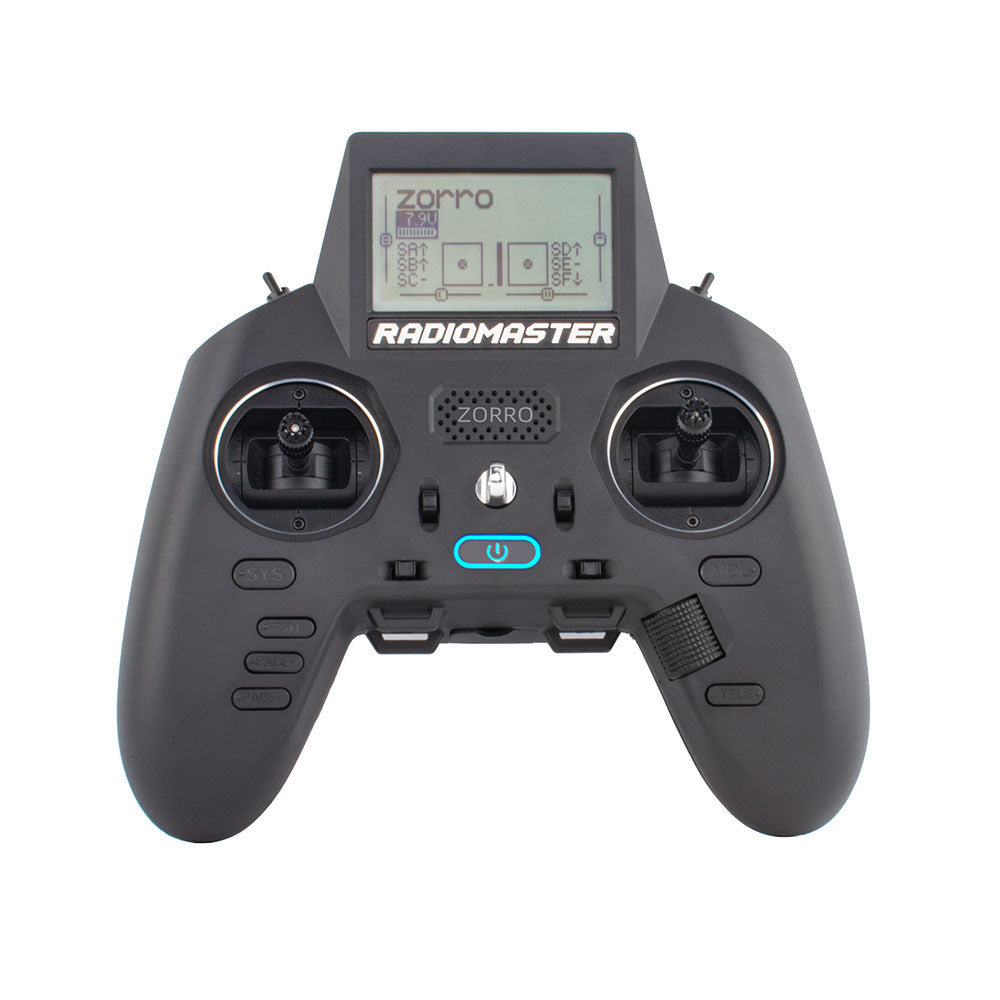

RadioMaster Zorro Transmitter

RadioMaster Zorro Transmitter

SKU:RMS-ZORRO-4IN1

Regular price $119.99 USD
Regular price Sale price $119.99 USD
Sale Sold out
Shipping calculated at checkout.

18 in stock

Style
View full details

RadioMaster Zorro Transmitter

Physical dimensions:170*159*108mm

Weight:350 grams

Operating frequency:2.400GHz-2.480GHz

Internal RF Options:CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols :Module dependent

RF power:CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain:Folding 2db

Operational current:160mA@8.4V

Operational voltage:6.6-8.4v DC

Control distance:> 2km @ 20dbm

Operating system:OpenTX / EdgeTX Compatible

Control channels:Maximum 16 (Rx dependent)

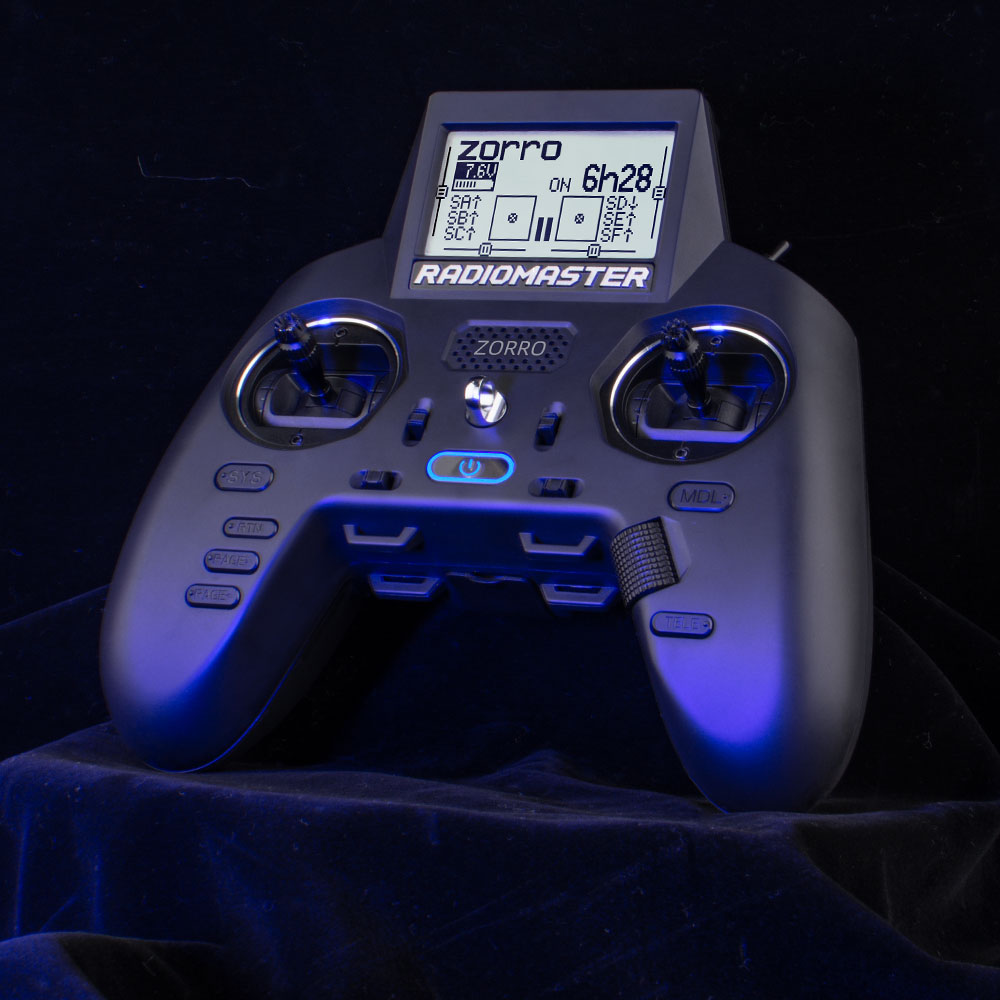

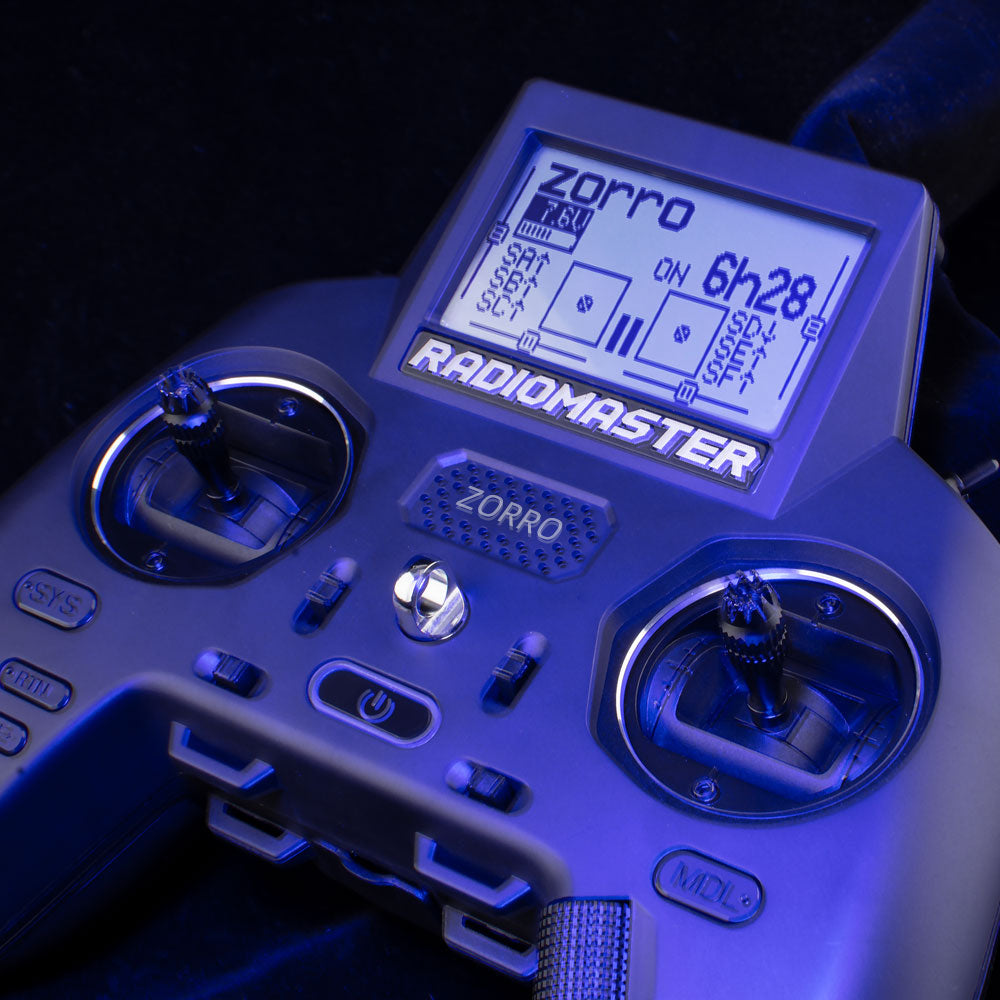

Display :128*64 Monochrome LCD

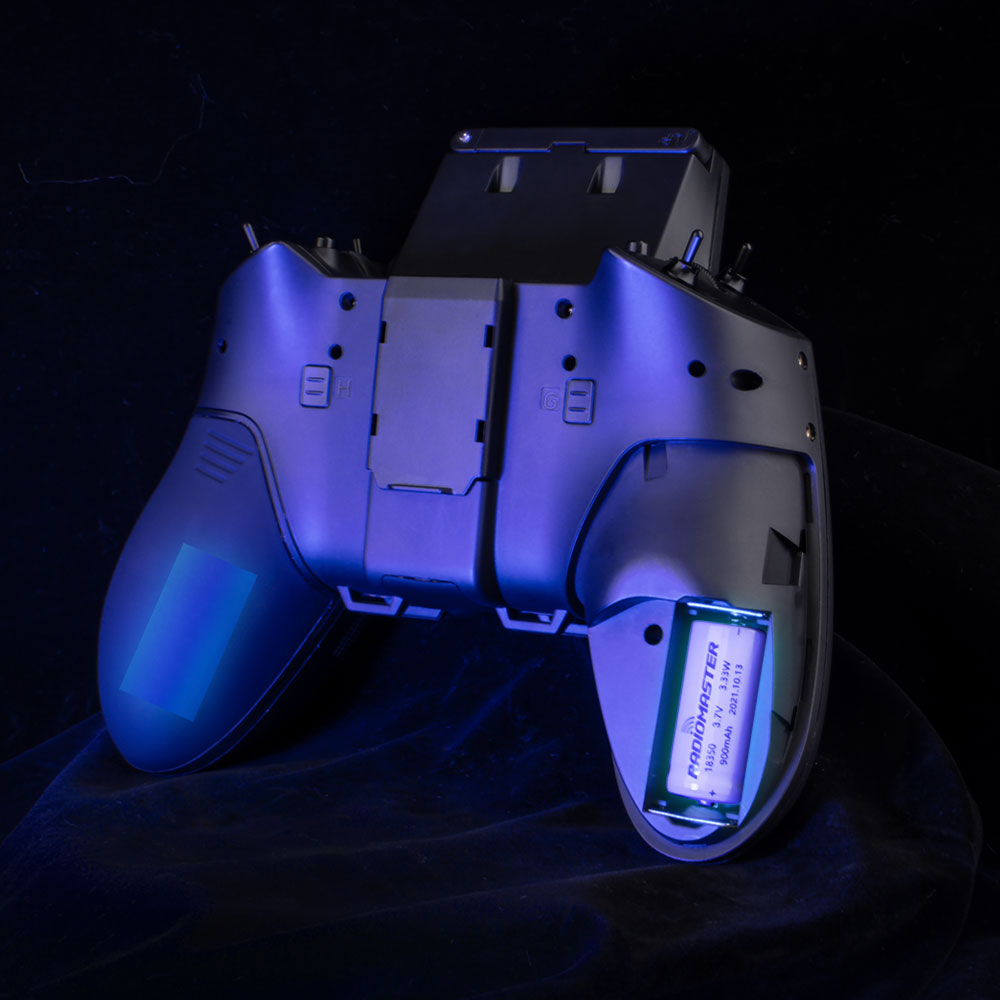

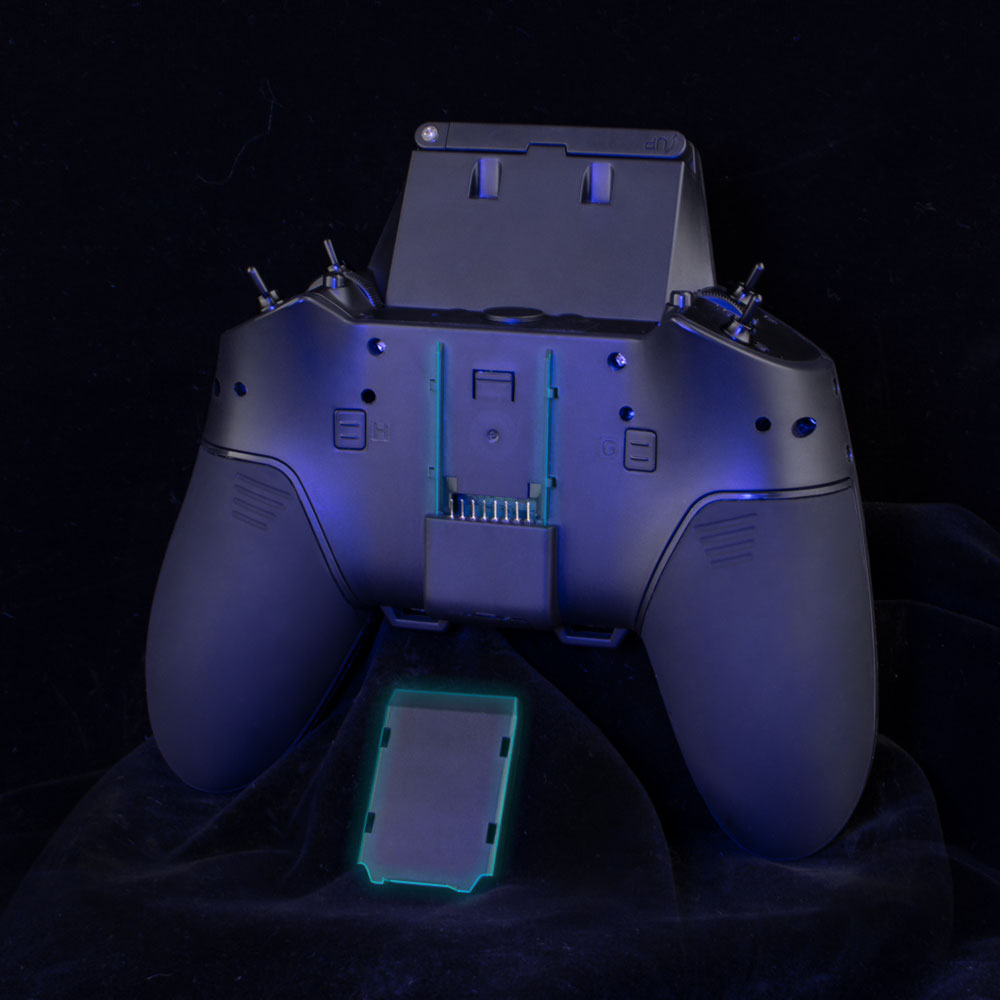

Battery :2 x 18350 (Not included)

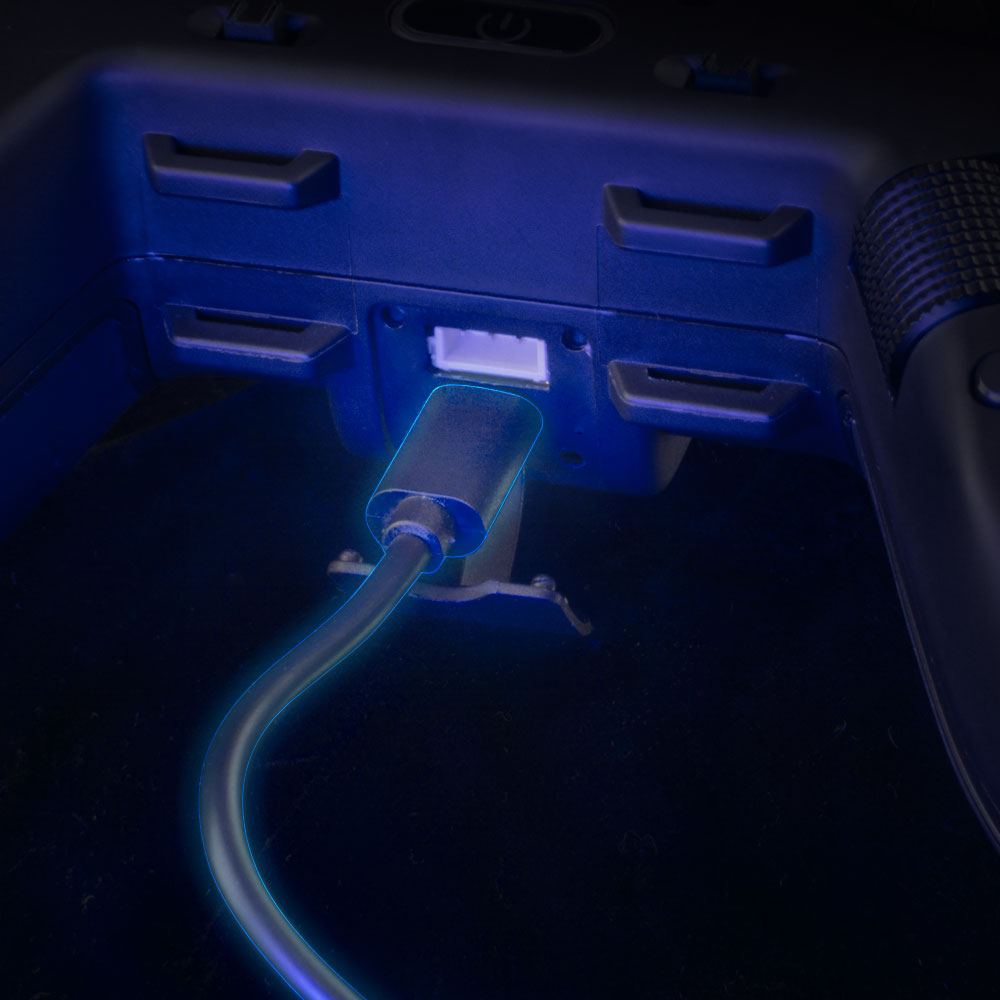

Charging :Built in USB-C Charging

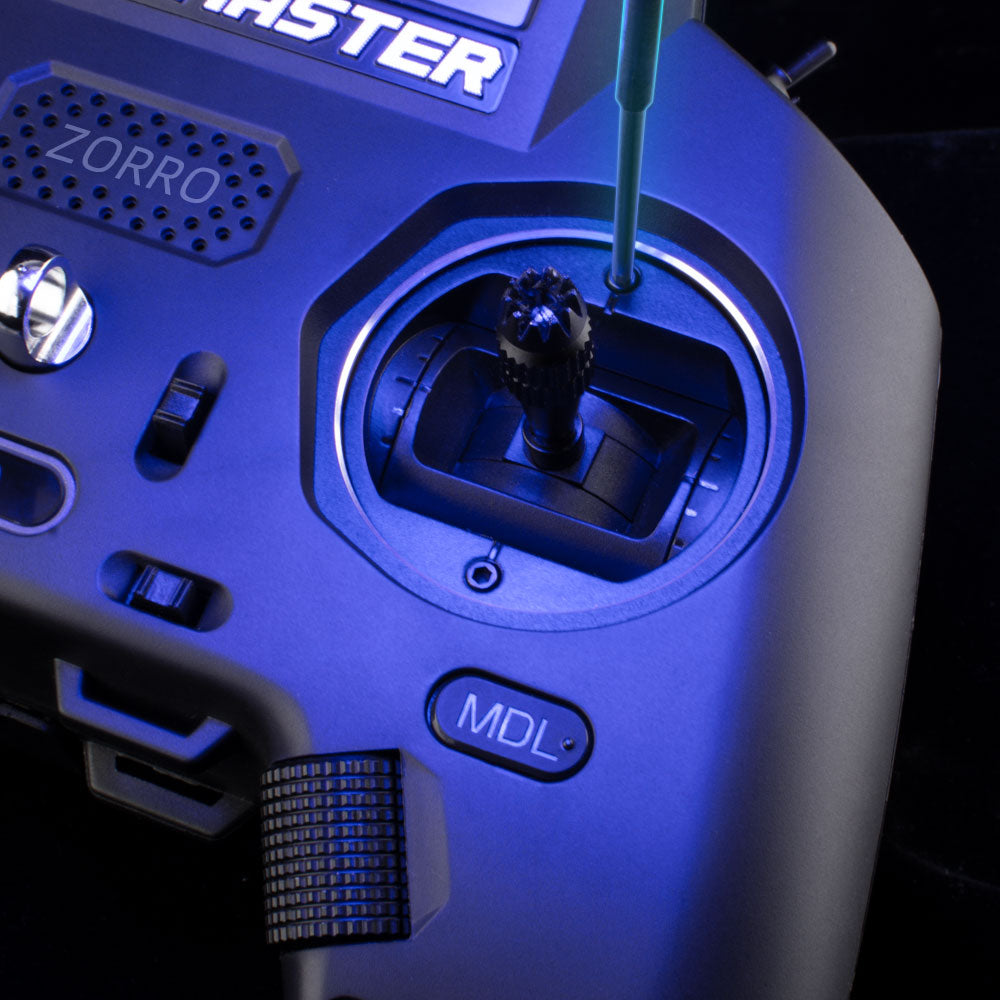

Gimbal:Hall-effect

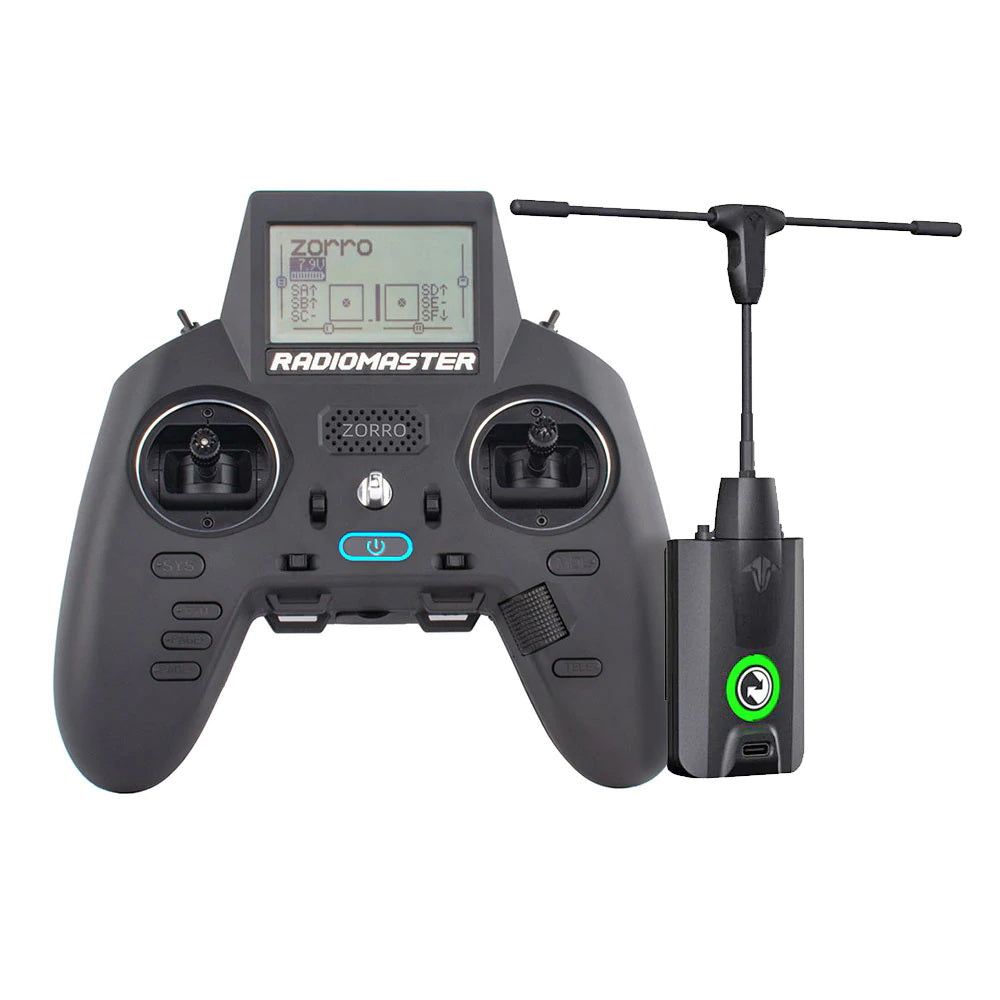

Module bay :Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade method:Via USB or SD card (SD Not included)



Radio Firmware:
https://www.open-tx.org/
http://edgetx.org/

RF Firmware

CC2500 & 4-in-1 Multi-module https://www.multi-module.org/basics/supported-protocols

ELRS : –https://github.com/ExpressLRS/ExpressLRS
