RadioMaster AG01 Full CNC Metal Hall Sensor Gimbal for VBar Radio Transmitter Set

Original price $139.99 - Original price $139.99
Original price
$139.99
$139.99 - $139.99
Current price $139.99
SKU RMS-0072

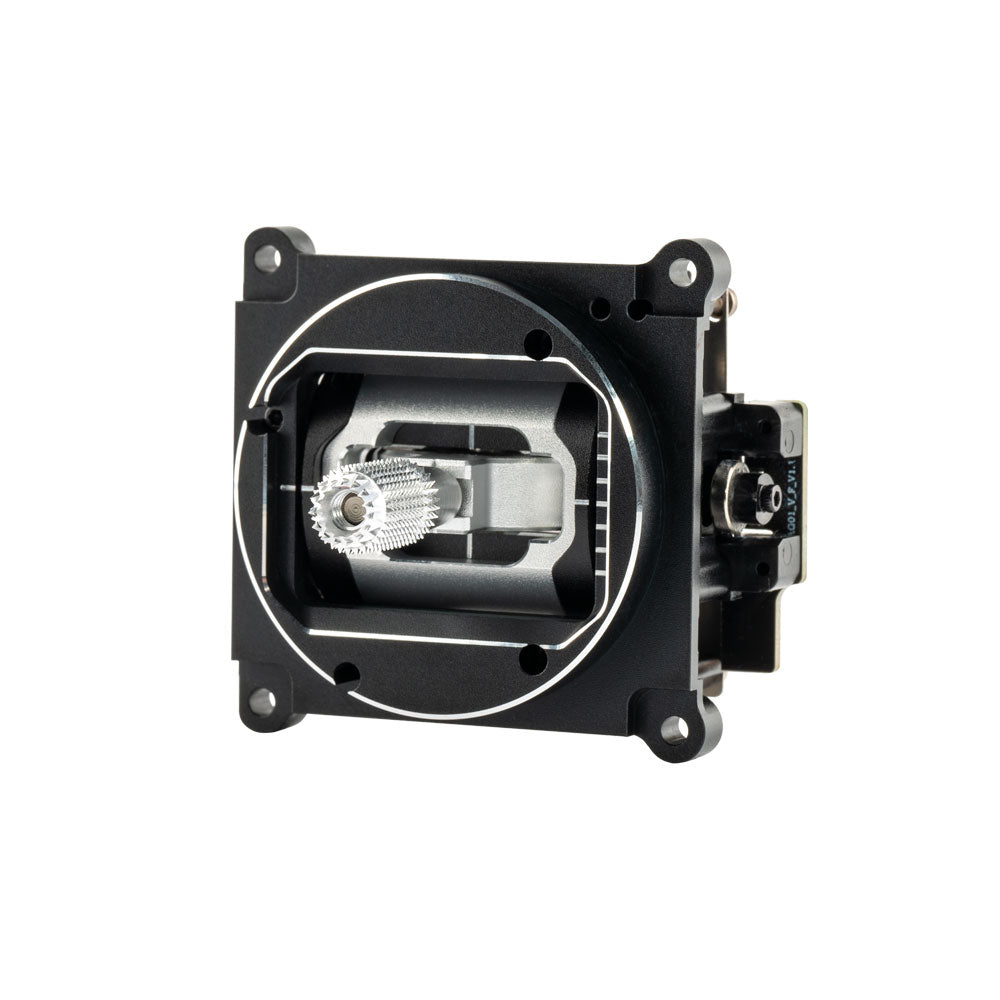

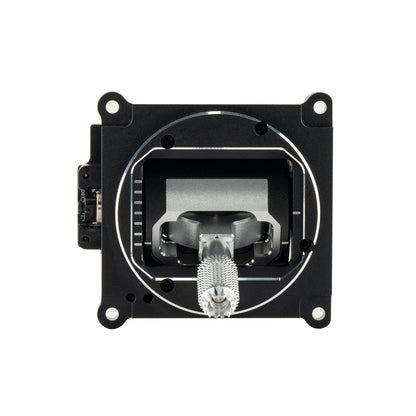

RadioMaster AG01 Full CNC Metal Hall Sensor Gimbal for VBar Radio Transmitter Set
Introducing the latest in the AG01 family: the AG01-V gimbals, crafted for discerning pilots seeking excellence! Developed and rigorously tested alongside champion pilot Kenny Ko, these gimbals played a pivotal role in securing victories at the 2023 FAI F3N World Championship and the 2023 Rotor Asia Masters. The AG01-V gimbals are poised to dominate the global stage.

Constructed from aviation-grade aluminum, these gimbals offer unparalleled precision control and a smooth touch. Sporting the exceptional adjustable angles and tension settings found in the AG01 series, they come equipped with black and silver Sticky series gimbal stick ends in two sizes for tailored stick feel. Elevate your radio experience with the AG01-V gimbals, revitalizing your control and enabling you to conquer the challenges of elite-level competitions while deeply engaging in your flying.

*Compatible exclusively with VBar Control Radios.

Features

  • M4 threaded stick ends, Sticky360 & Sticky360 SLIM M4 threaded stick ends, two sizes for randomly switch
  • Made with CNC processed aviation grade aluminum
  • Non contact hall sensors for accurate control inputs and precise centering
  • Quad precision bearings for unparalleled stick feel
  • AG01-V features the same travel adjustment as the full size AG01(Min. 38°, Max. 54°)

Specifications

  • Name: AG01-V CNC Metal Gimbal
  • Sensor type: Hall Sensor
  • Working voltage: DC 3.3V
  • Linearity: Real-time (No delay)
  • Adjustable vertical travel range: 38°—54°
  • Self-centering adjustment: Yes
  • Easy mode adjustment: Yes
  • Adjustable tension: Yes
  • Quad bearing: Yes
  • Temperature range: -20°C-85°C
  • Size: 58.7*54.9*33.3mm
  • Weight: 76.1g/pc

Compatible with

  • VBar Control
  • VBar Control Touch
  • VBar Control EVO

  • ① Set the lower travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counter clockwise to increase the travel. Travel range (38-54°)
  • ② Set the upper travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counter clockwise to increase the travel. Travel range (38-54°)
  • ③ Up and down spring tension: Turn the screw clockwise to increase the up and down spring tension. Turn the screw counter clockwise to reduce the up and down spring tension.
  • ④ Centering and Mode adjustment: When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stick is released.
  • ⑤ Left and right spring tension: Turn the screw clockwise to increase the left and spring tension. Turn the screw counter clockwise to reduce the left and right spring tension. Throttle tension adjustment: When there is no tension up and down, the ⑥ screw adjusts the tension tightness, the ⑦ screw adjusts the scale tightness.

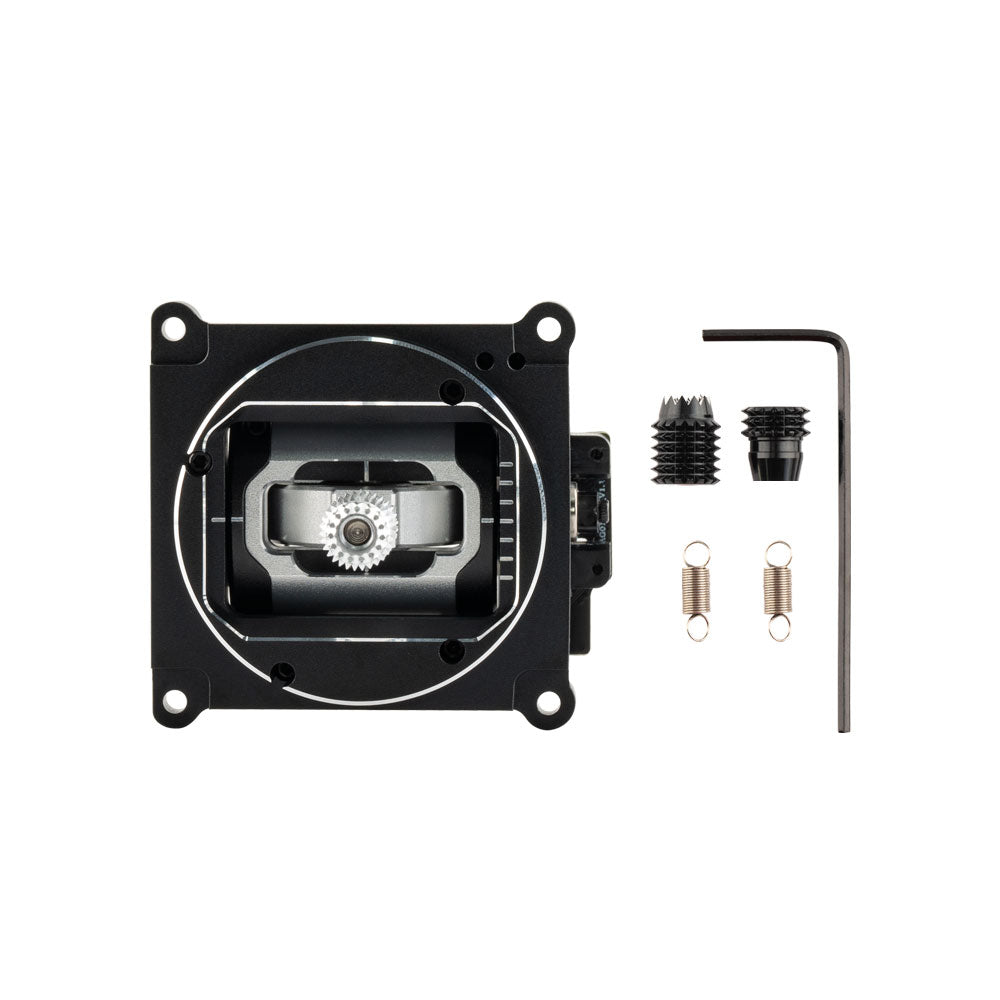

Package Includes

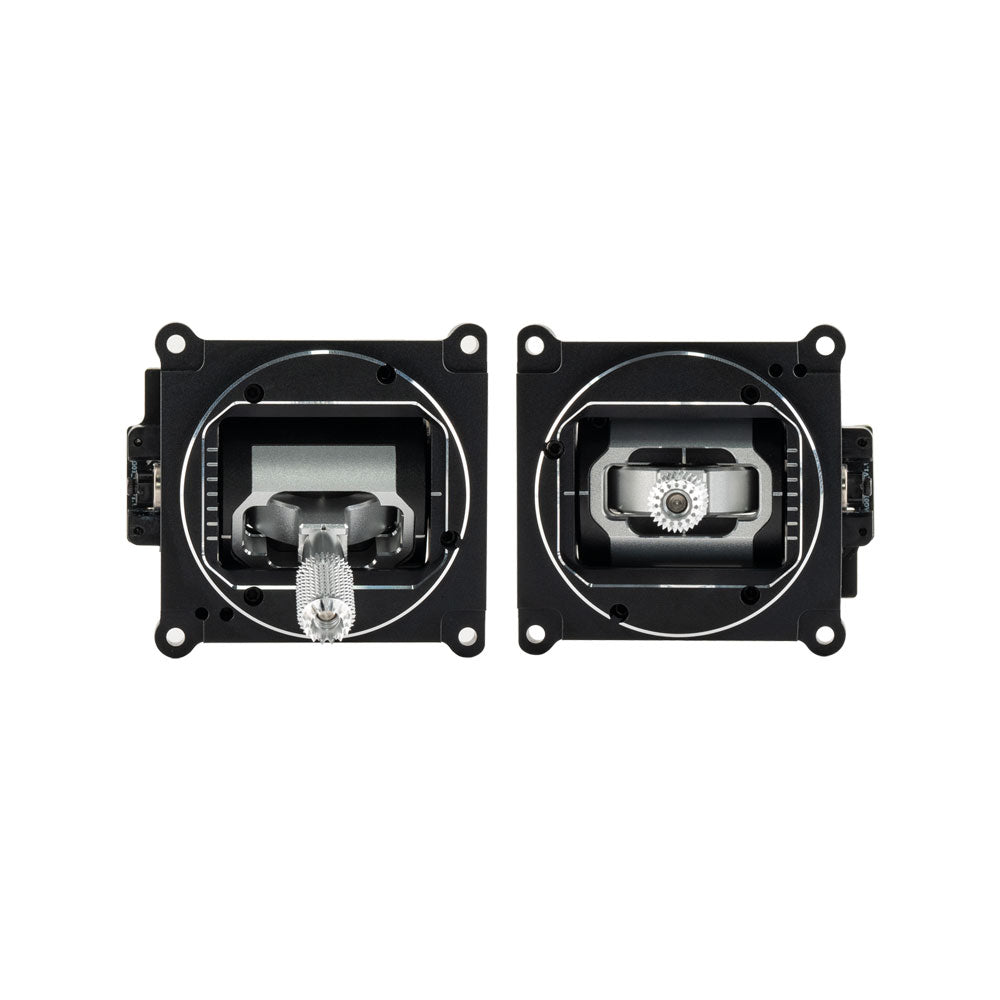

  • 1 * AG01-V Hall CNC Gimbal (Throttle)
  • 1 * AG01-V Hall CNC Gimbal (Centering)
  • 2 * Sticky360 Gimbal Stick Ends(Installed on gimbal)
  • 2 * Sticky360 SLIM Gimbal Stick Ends
  • 4 * Low Tension Springs
  • 2 * 1.5MM Allen Key
  • 2 * Manual

*The AG01-V is designed and manufactured by RadioMaster for compatibility with Mikado Vbar control radios.
