Product Specification
| Dimension and Weight: |
42.0mm(L) x 23.1mm(W), 8.7g |
| Recommended voltage range: |
3.5V to 8.5V (2S LiPo capable) |
| Technology: |
DSMP with GEN2 SDR stack (DSMX / DSM2 compatibility) |
Highlight

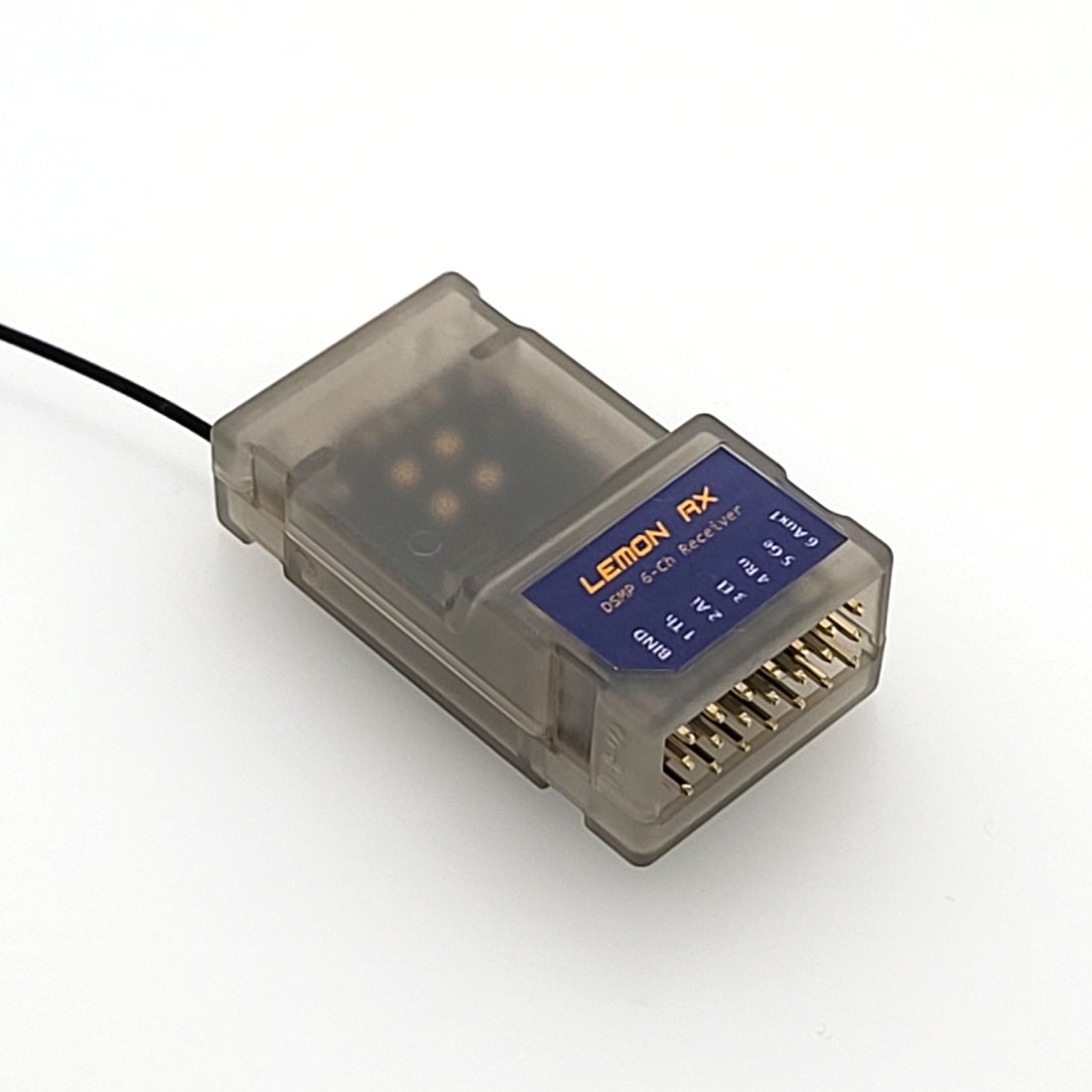

DSMP 6-channel receiver is DSMX/DSM2 compatible that provides exceptional performance.
Quick Reference Guide
Failsafe
Bind receiver and current channel values will be saved. Failsafe will be activated when no signal is received for 2 seconds. All channels will be positioned to failsafe default. For this reason, it is recommended that the throttle should be at 0% while all other sticks are centred during binding.
1S LiPo Application
The minimum recommended safe supply voltage is 3.5V
NOTE:
- The battery must be capable of maintaining that voltage while delivering the required maximum load current to the receiver and servos. In some cases you MAY be able to operate at a lower voltage (for example a well discharged 1S LiPo cell) but you must test it in practice to be sure.
