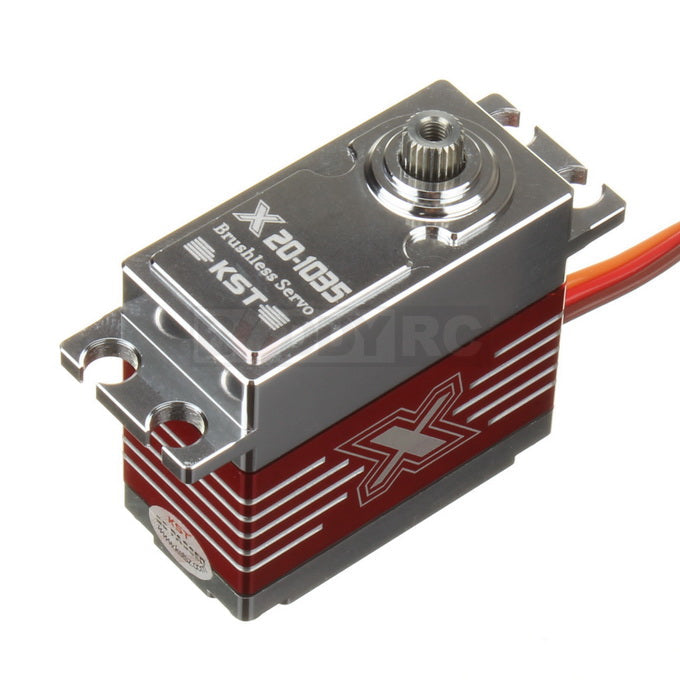

The X20-1035 is a high voltage, high torque, high end burshless tail servo from KST.
The all new X20 servos (X20-2208, X20-1035) are mainly designed for competition level 3D helicopters (550-800 size) and will provide ultimate performance and best value without any doubt.
Equipped with an all new CNC aluminum case, the X20 servos are not only much more visually stunning and elegant than ever before, but also brutally durable and stable. The grooves on the case provide better cooling in the extreme conditions.
The utilization of the high-end Namiki brushless motor ensures the ultimate in performance with lightning fast speed and undefeatable torque. The X20-1035 (for tail) can deliver 0.07sec/60° and 25Kg.cm when operated under 8.4V, meanwhile the X20-2208 (for cyclic) perform as 0.03sec/60° and 12.00Kg.cm. Besides the smooth performing and low-noise operation guarantee excellent control experience.
Unlike any other servo, the X20 generates no counter EMF in any working condition thanks to the all-new design IC board. From now, your flybarless system and receiver will not be interfered anymore.

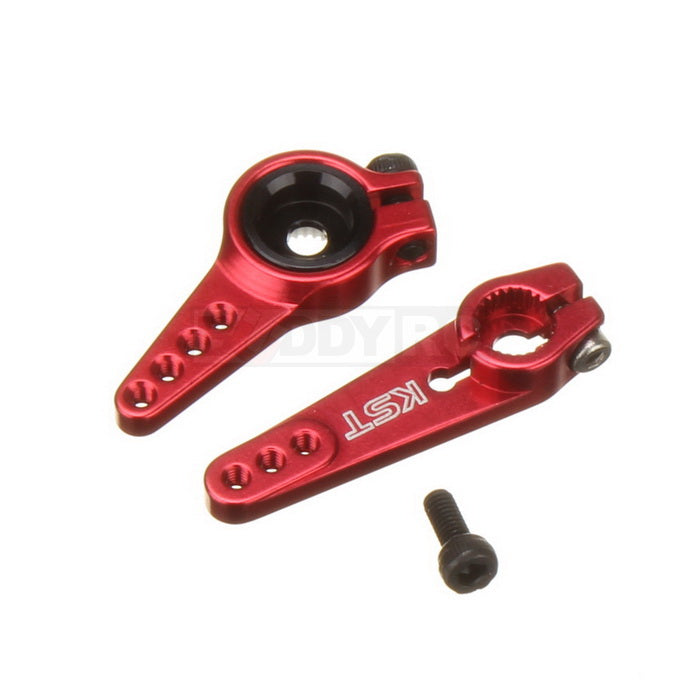

Every X20 servo comes with a creative metal servo arm. This servo arm allows for continuous fine adjustments of the angle just by loosing one screw. And it can protect the servo gears during a crash.
The X20 series are the best servos KST ever made. With them you will experience the ultimate in every respect.
Voltage Rating: 6.0V to 8.4V
Torque:
118 oz.in @ 6.0V
143 oz.in @ 7.4V
166 oz.in @ 8.4V
Speed:
.03 sec/60* @ 6.0V
.035 sec/60* @ 7.4V
.04 sec/60* @ 8.4V

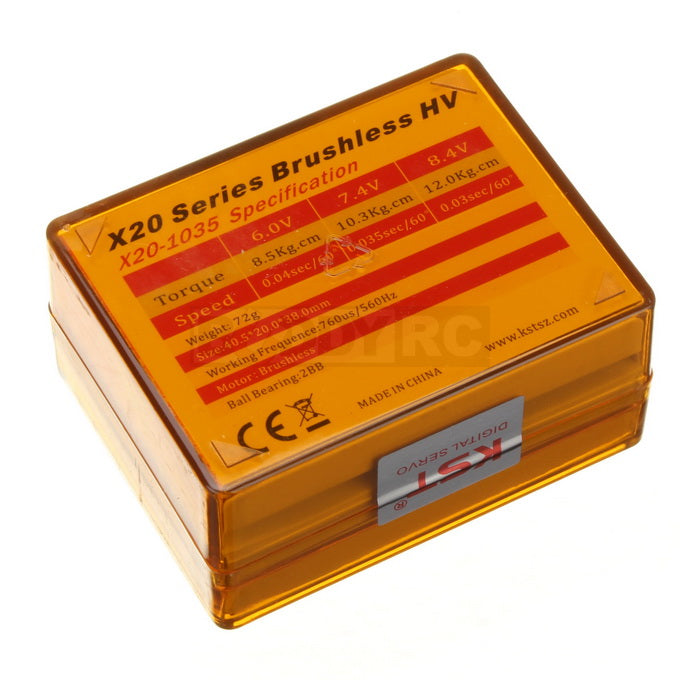

X20-1035 Specifications：
Operating Voltage: DC 6.0V-8.4V
Size: 40.5*20*38mm
Torque: 12.00Kg.cm@8.4V
10.30Kg.cm@7.4V
8.50Kg.cm@6.0V
Speed: 0.03sec/60°@8.4V
0.035sec/60°@7.4V
0.04sec/60°@6.0V
Weight: 72g
Working Frequency: 760us/560Hz
Motor: Brushless
Ball Bearing: 2BB
