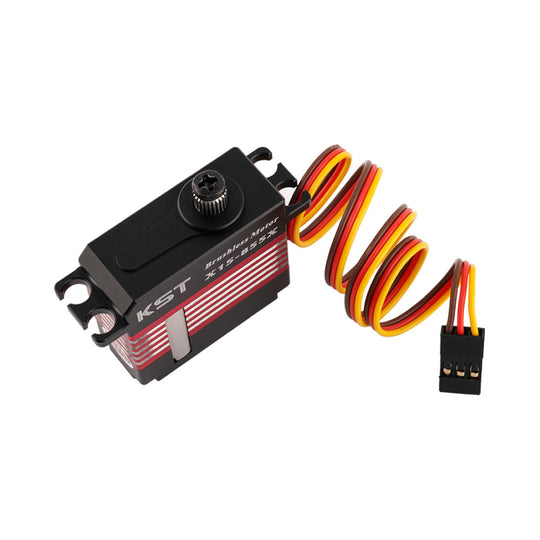

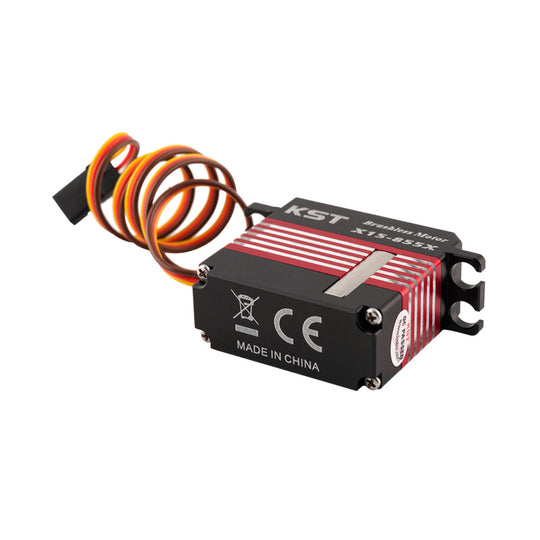

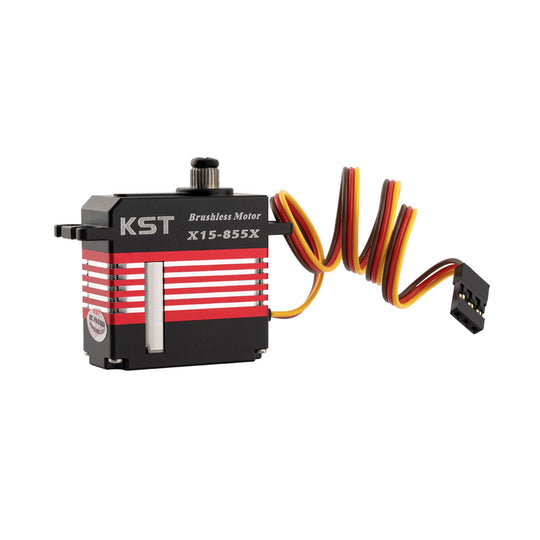

KST X15-855X Digital Metal Gear Brushless Tail Servo 1.5N.m 0.05sec for RC Helicopters

The KST X15-855X Mini Tail Digital Metal Gear High Voltage Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini tail servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings
• Support High Voltage 8.4V
• Programmable via Programming Card

Specification

• Item: X15-855X Tail Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Working Frequency:  760us/560Hz
• Temperature Range: -10℃……+65℃
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2 Ball Bearings
• Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
• Torque: 1.0N.m@6.0V,  1.3N.m@7.4V,  1.5N.m@8.4V
• Speed: 0.07sec/60°@6.0V,  0.06sec/60°@7.4V,  0.05sec/60°@8.4V
• PWM Command Interface
• Weight: 45g±10%

Size

Package Including

• 1 * X15-855X 8.4V for Helicopters Tail
• 1 * Accessories

• X15-855X Servo Technical Specification
