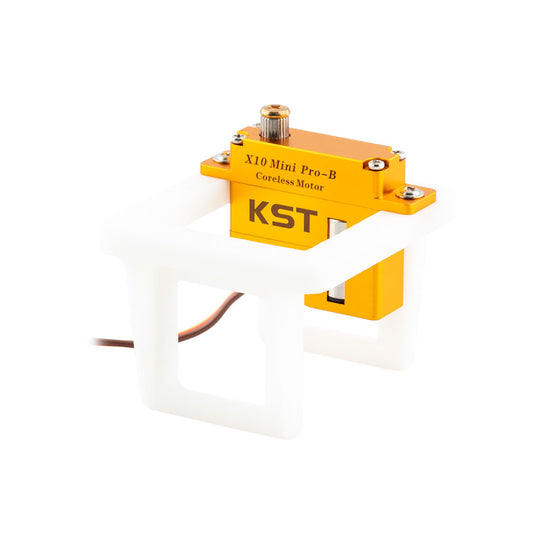

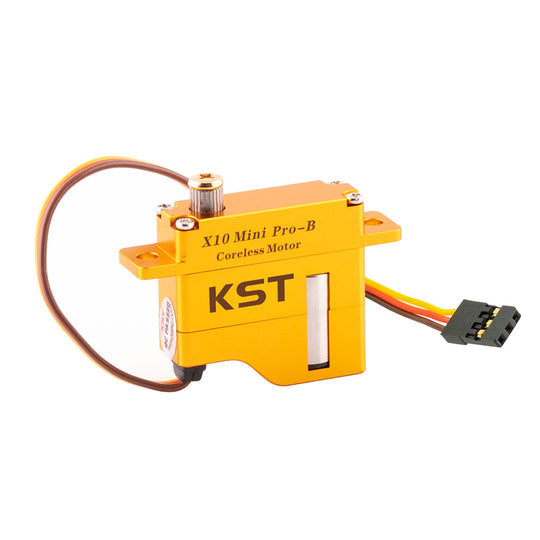

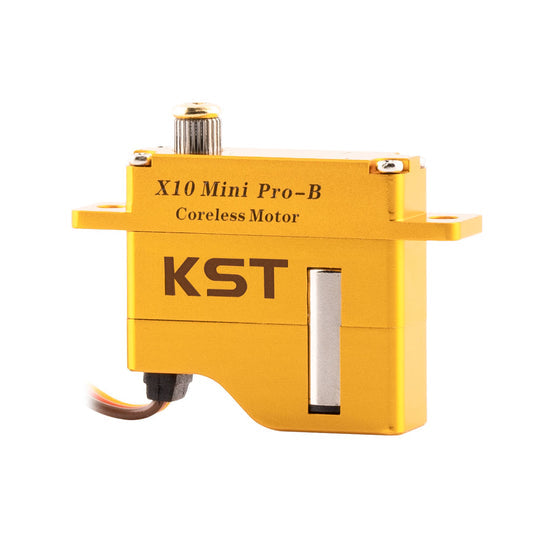

KST X10 Mini Pro Digital Metal Gear Servo 8.0Kgf.cm 0.08sec

X10 Mini Pro Digital Metal Gear Servo 8.0Kgf.cm 0.08sec for Competition Gliders and Large Scale Gliders
The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.

Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.

Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight.

Features

• Programmable
• Supports Soft Start
• Hardened Steel Gears
• Anodized CNC Aluminum Case
• Ultra High Torque & Excellent Speed
• Smaller Size and Larger Travel Angle
• Ideal for Competition Gliders and Large Scale Gliders

Specification

• Item: X10 Mini Pro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC4.8V-8.4V
• Torque: 4.5Kgf.cm@4.8V, 6.0Kgf.cm@6.0V, 7.2Kgf.cm@7.4V, 8.0Kgf.cm@8.4V
• Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V
• Working Frequency: 1520μs/333Hz

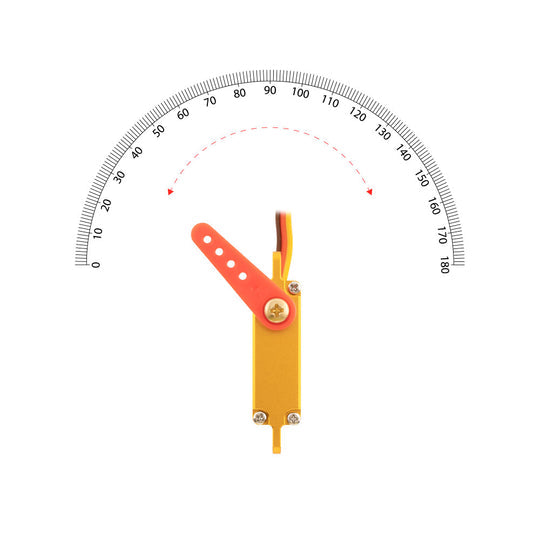

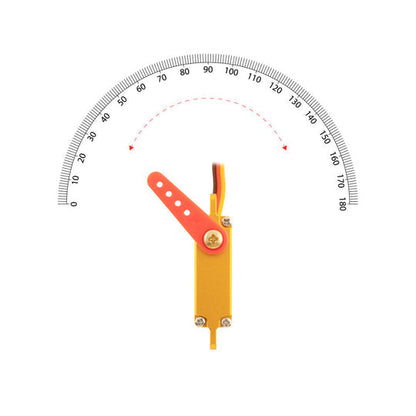

• Default Travel Angle: ±60°=120° Total
• Temperature Range: -10℃.......+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 30mm*10mm* 28mm±0.2mm
• Weight: 20g±10%

Package Including

• 1 * X10 Mini Pro Servo
• 1 * Servo Horn Screw
• 2 * Plastic Servo Horn
• 4 * Mounting Screw
