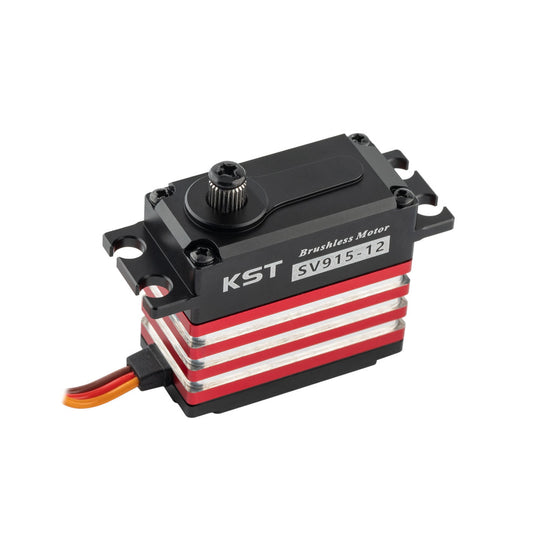

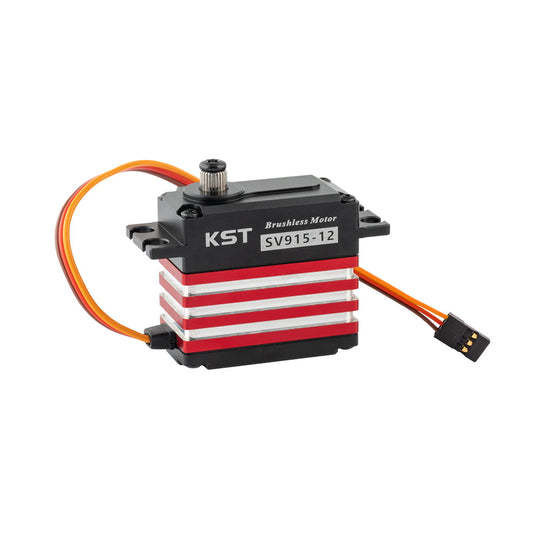

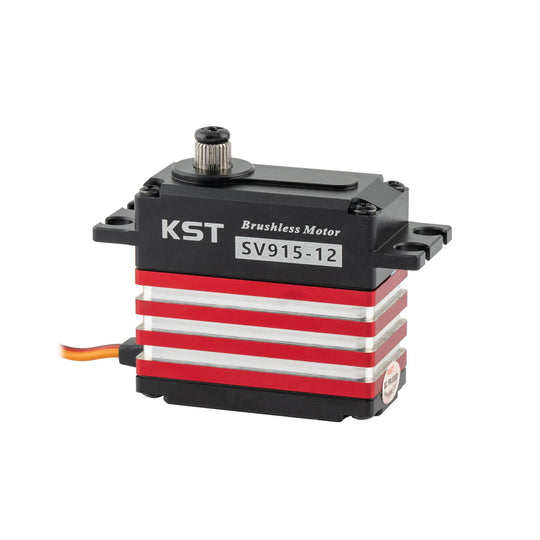

KST SV915-12 HV Brushless Metal Gear 30Kgf.cm 0.07sec Cyclic Servo
Presenting the outstanding value SV915-12 HV brushless cyclic servo, crafted specifically for enthusiasts of 550-700 class RC helicopters who demand top-tier performance and unwavering reliability. The SV915-12 HV cyclic servos excel in power delivery, driving an impressive 30Kgf.cm of torque at 13V while maintaining an exceptional 0.07-second speed for lightning-fast responsiveness.
Engineered with an emphasis on 12V LiPo Battery Direct Drive, these servos guarantee steadfast stability and dependable performance under any circumstances. Featuring dual ball bearings, our servos have a rock-solid gear-train, ensuring seamless and pinpoint-accurate operation.
This high-voltage servo is set to leave a lasting impression, elevating your experience with unprecedented levels of power and precision.
Features
- DC 12V Rated Voltage
- Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
- High Frequency & Fast Response
- Ultra High Torque & Excellent Speed
- Dual Ball Bearings
- Brushless DC Motor
- Hardened Steel Gear
- CNC Aluminium Case
- Programmable (Please refer to the programming tool manual for correct voltage)
- Ideal for 550-700 Class RC Helicopters
Specification
- Item: SV915-12 Servo
- Rated Voltage: DC12V
- Voltage Range: DC8.0V-13V
- Torque: 24Kgf.cm@8.4V / 28Kgf.cm@12V / 30Kgf.cm@13V
- Speed: 0.10sec/60°@8.4V / 0.08sec/60°@12V / 0.07sec/60°@13V
- Working Frequency: 760μs/560Hz
- Temperature Range: -10℃.......+65℃
- Programmable: Yes (Please refer to the Programming tool manual for correct voltage)
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 40.5mm*20mm*38mm±0.2mm
- Weight: 70g±10%
- Ball Bearing: 2BB
Package Includes
1 * SV915-12 Servo
5 * Plastic Servo Horn
1 * Servo Horn Screw
4 * Grommet
4 * Eyelet
4 * Mounting Screw
