The KST DS725MG Digital Servo is a top-quality choice for 550 helicopter airplanes, featuring a large stall torque of 18.0kg and a small size and light weight. The all-metal case is crafted using CNC technology, and two ball bearings are included for added precision. The servo comes equipped with a 17mm coreless motor and high-precision metal gear. It also includes four sets of servo horns and fittings.
Specifications:
- Brand: KST
- Item Name: DS725MG
- Material: Metal
- Signal: Digital
- Connector Wire Length: About 325mm
- Operating Voltage: DC 6.0-8.4V
- Operating Speed: 0.09 sec / 60° @ 6.0V; 0.08 sec / 60° @ 7.4V; 0.07 sec / 60° @ 8.4V
- Stall Torque: 13kg.cm @ 6.0V; 16kg.cm @ 7.4V; 18kg.cm @ 8.4V
- Working Frequency: 1520us/333Hz, 900us-2100us
- Motor Type: Φ17mm coreless motor
- Bearing Type: 2BB

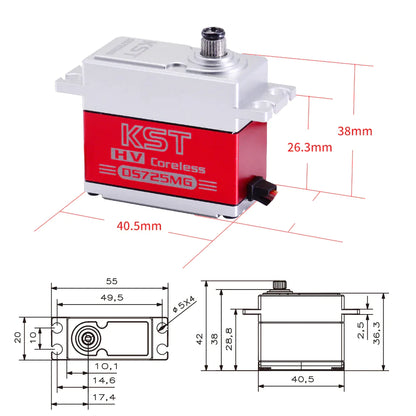

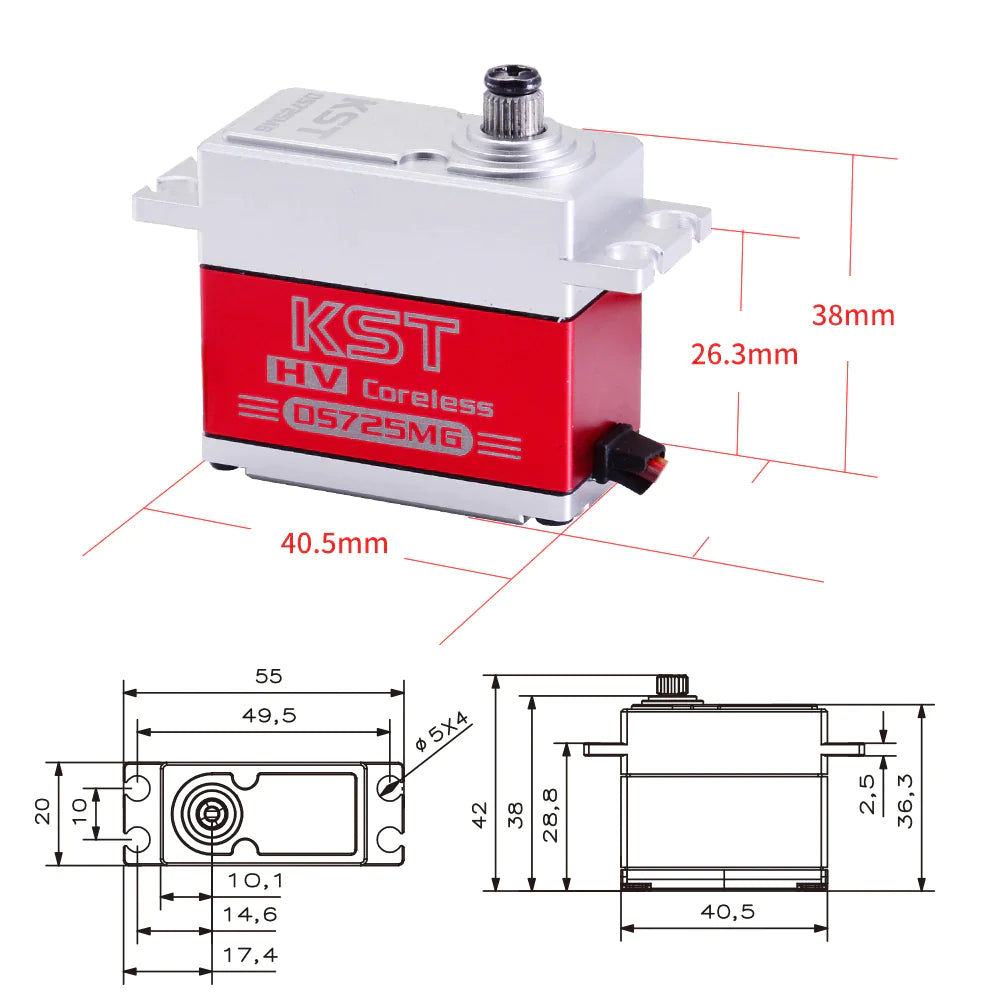

- Item Size: 40.5 * 37.0 * 20mm
- Item Weight: 70g (including wires)
Package Information:
- Package Size: 7.8 * 6 * 3.8cm / 3.1 * 2.4 * 1.5in
- Package Weight: 128g / 4.5oz
- Comes in a brand gift box package
Package List:
- 1 x KST DS725MG Servo

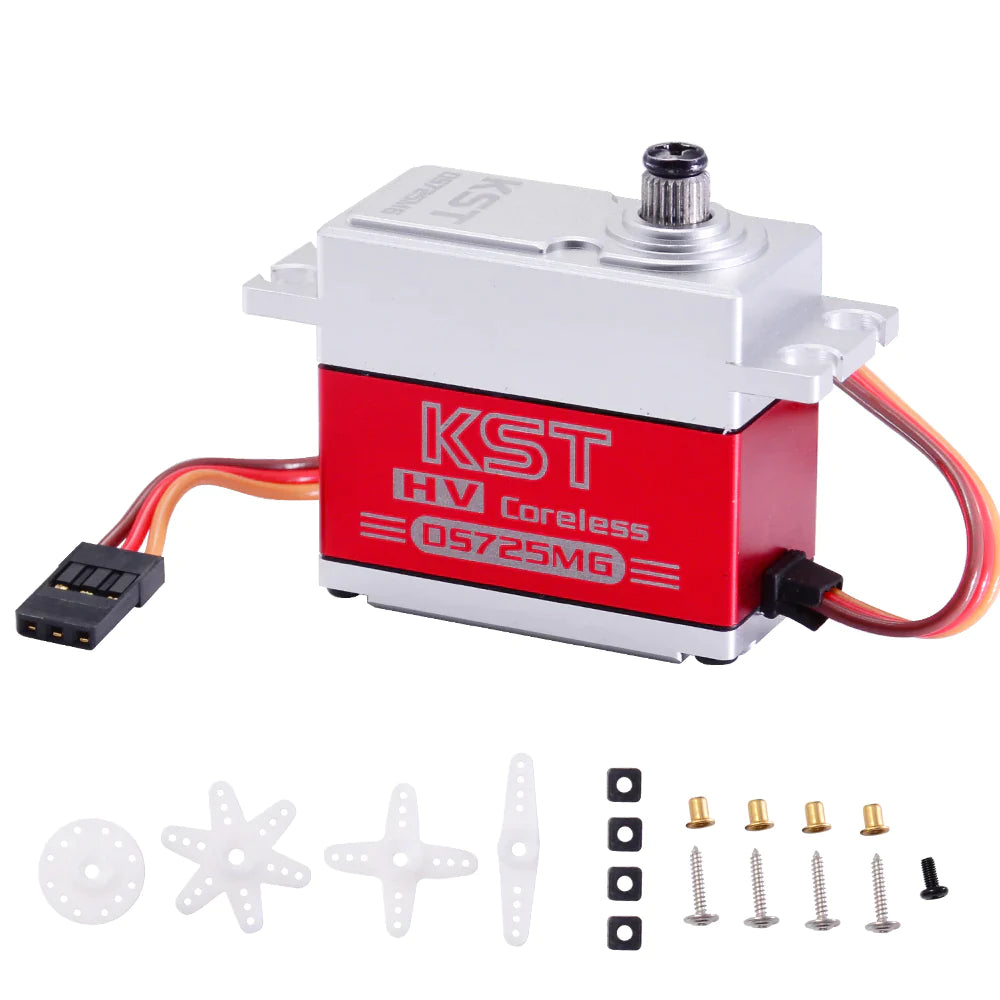

- 4 x Servo Horns and Fittings
