KST DS215MG V8.0 Metal Gear Digital Servo For RC Helicopter
DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque, and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and market leading speed.
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC Gliders
- Excellent heat dissipation
- Programmable with KST-Tool 1
Specifications
- Item: DS215MG V 8.0 Micro Servo
- Operating Voltage: DC6.0V-7.4V

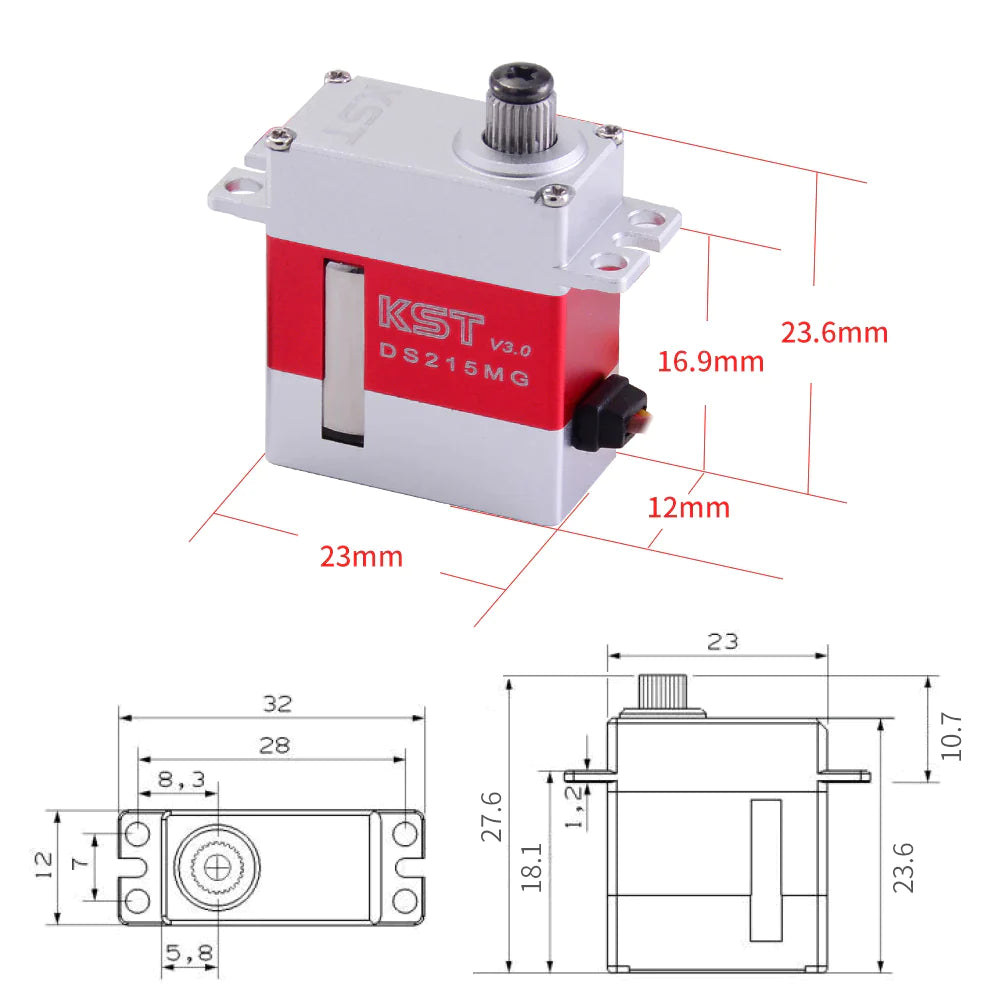

- Size: 23*12*27.50mm
- Torque: 3.70Kg.cm@7.4V / 3.10Kg.cm@6.0V
- Speed: 0.05sec/60°@7.4V / 0.06sec/60°@6.0V
- Weight: 20g
- Working Frequency: 1520us/333Hz, 800us-2200us
- Motor: Φ12mm Coreless
- Ball Bearing: 2BB
- Accessories: Metal Gear Set
Package Including
- 1 * DS215MG V3.0 Digital Metal Gear Mini Servo Motor
- 1 * Accessories
