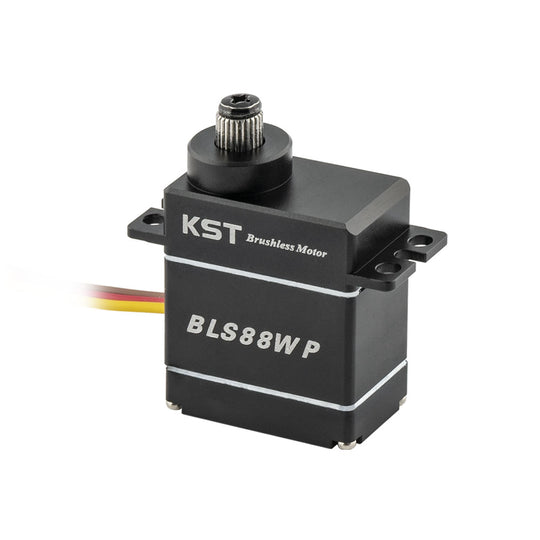

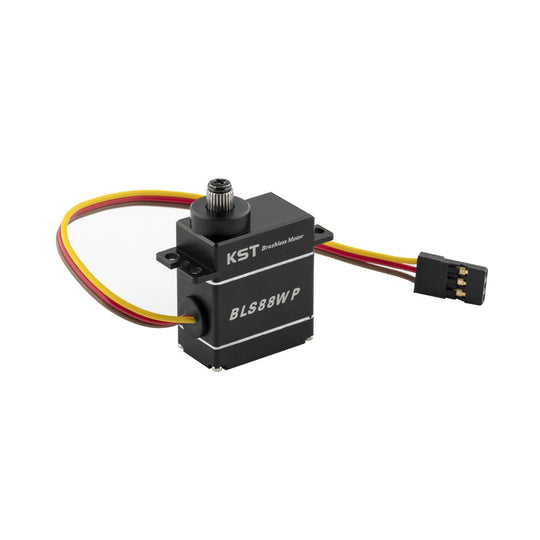

KST BLS88WP Waterproof Brushless Micro Servo 8.5kg.cm 0.07sec 8.4V

BLS88WP Waterproof Brushless Micro Servo 8.5kg.cm 0.07sec 8.4V for RC Car, RC Boat, RC Seaplane
BLS88WP brushless micro servo - A high-performance servo perfect for 1/12 pan car, 1/16 & 1/18 crawler, RC boat, and RC seaplane. Featuring ultra-high torque 8.5Kgfcm, excellent speed 0.07sec/60° and IP67 waterproof, BLS88WP is one of the best servos on the market right now for its applications.

Features

• Brushless Micro Servo, with fast response and high efficiency
• Ultra-high torque & Excellent speed

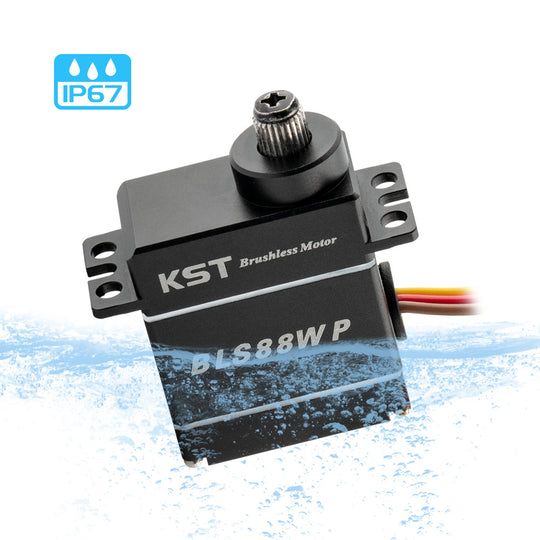

• IP67 waterproof
• Double ball bearings
• Hardened steel gear
• CNC aluminum case
• Soft start
• Ideal for 1/12 pan car, 1/16 & 1/18 crawler, RC boat and RC seaplane

Specification

• Item: BLS88WP Micro Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 7.5Kgf.cm@6.0V , 8.0Kgf.cm@7.4V , 8.5Kgfcm@8.4V
• Speed: 0.09sec/60°@6.0V ,  0.08sec/60°@7.4V , 0.07sec/60°@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±50°= 100°Total
• Temperature Range: -20°C.....+65C
• Soft Start: Programable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Waterproof: IP67
• Case Dimensions: 24mm*13mm*30mm±0.2mm

• Weight: 21g±10%

Package Including

• 1 * BLS88WP Micro Servo
• 1 pack of accessories
