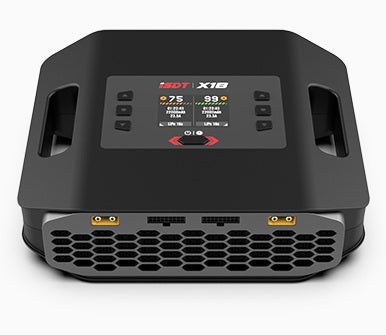

ISDT X16 Dual Channel 2200W 20A 16S UAV AC DC Battery Charger

Original price $628.95 - Original price $628.95
Original price
$628.95
$628.95 - $628.95
Current price $628.95
SKU ISD-X16

The X16 is a high-performance smart charger that provides all-round, continuous high-energy for 2~16S LiFe, LiPo, LiHv, and ULiHv batteries. The charger features a high-power synchronous dual channel with smart charging, and a smart high-speed processor delivers parameter interference to each port.

The X16 supports ultra-high voltage lithium batteries with a 4.45V battery cell voltage, and the maximum total output power is 2200W for continuous, high-energy output. The charger is equipped with an 18PIN balance port, and both channels can independently support 2~16S lithium batteries.

The X16 also supports Bluetooth connectivity for mobile operations, and users can control the charger to run tasks or view detailed parameters of each channel in the “isdGO” App. Preset charging tasks can also be created in the app for hassle-free charging, and OTA upgrades are available.

Power is delivered from the heart with built-in independent dual 1200W high-power AC power supply, and short circuit protection, overload protection, under voltage protection, over voltage protection, and over temperature protection ensure safety. Two channels work independently and stably, which can be independent or combined, providing a steady stream of power for X16 stability.

Synchronous parallel charging is also supported with built-in high-speed processor synchronous balance two channel charging, and the maximum parallel charging power is up to 1800W. Choose ISDT for hassle-free charging and high-performance smart charging solutions.

Specifications:

  • Input voltage: AC 100~240V
  • Output voltage: DC 10~72V
  • Charging current: 1.0~20.0A ×2
  • Discharging current: 0.5~3.0A ×2
  • Max. charging power: 1100W ×2
  • Max. discharging power: 50W ×2
  • Balance current: 1.5A/cell
  • Supported battery types and cell count: LiFe, LiPo, LiHv, ULiHv (2~16S)
  • Abnormal voltage alarm: Supported
  • Incorrect cell count setting alarm: Supported
  • Working temperature: 0℃~40℃
  • Storage temperature: -20℃~60℃
  • Dimension: 276×246×82mm
  • Weight: About 3.5kg
