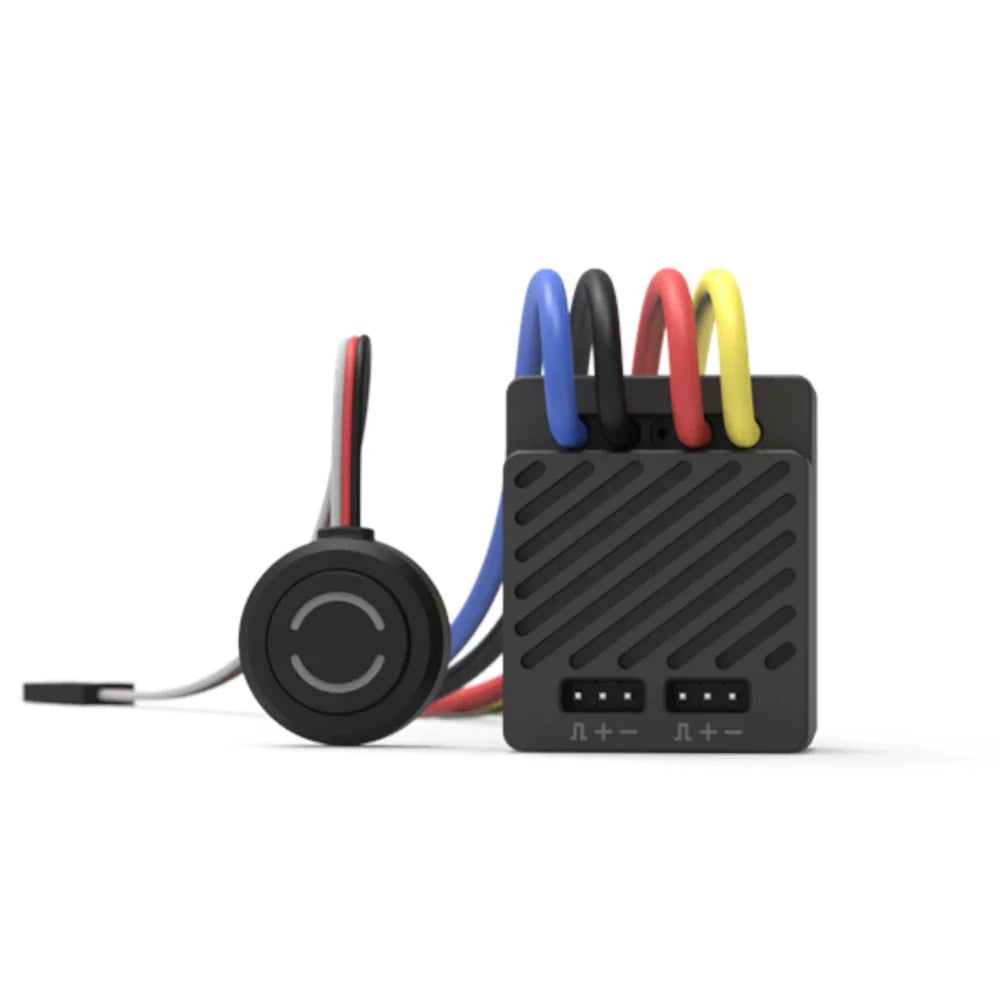

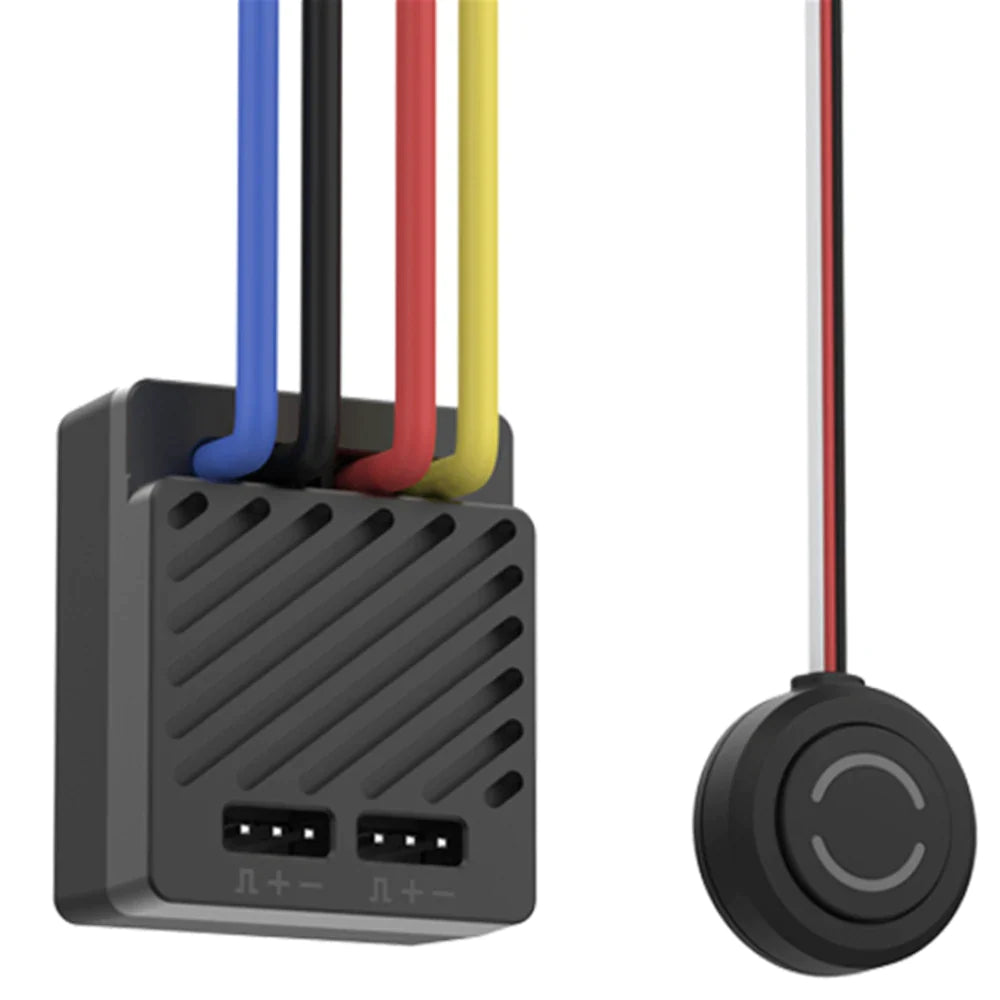

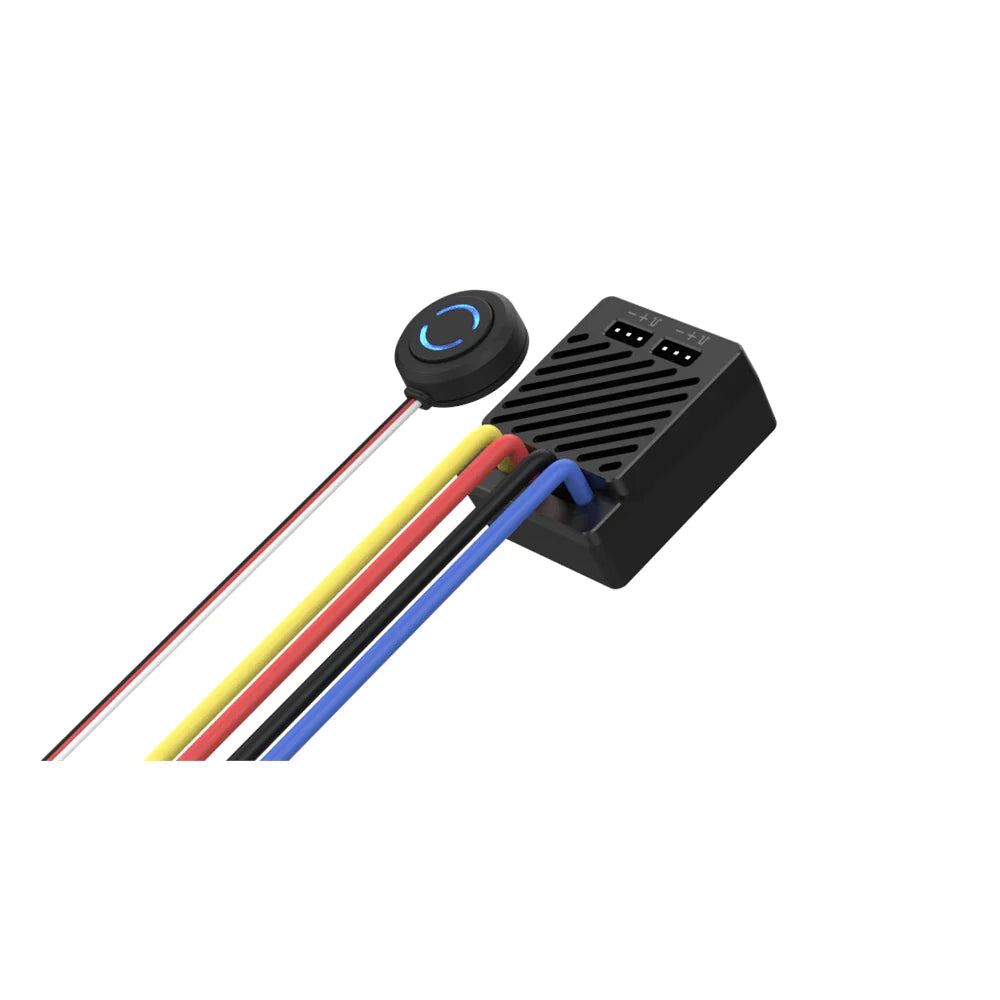

Description:
Item Brand:ISDT
Model:ESC70
Cont./Peak Current:70/120A
Motor Type:540/550/775 Brushed Motor
Application:1/8 1/10
Support batteries:Lipo(2-3S)/NiMH(6-8S)
BEC Output:3A amp rating,5V-7.5V Switch (Stepping 0.1V)
Wire/Connectors:16AWG 200mm / No
Explanation for LED Status
Power On:Short press once-white LED flashes
Standby:Green LED on
Error:Red LED flashes
Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes
Bluetooth Connected: Blue LED ON
Power Off: Long press once
Specifications
| Cont. / Peak Current： | ESC 70： 70/120A | ESC 90： 90/180A |
| Motor type： | 540/550/775 Brushed motor |
| Battery Type： | 2~3S LiPo or 6~8Cell NiMH |
| Applications： | 1/8 or 1/10 Various models |
| Wire/ Connectors： | 16AWG-200mm(Without Plug) |
| Weight： | about 49g/switch about 4.5g |
| Dimension： | 38.6×31.6×17.15mm |
Package included:
1X 70A ESC
