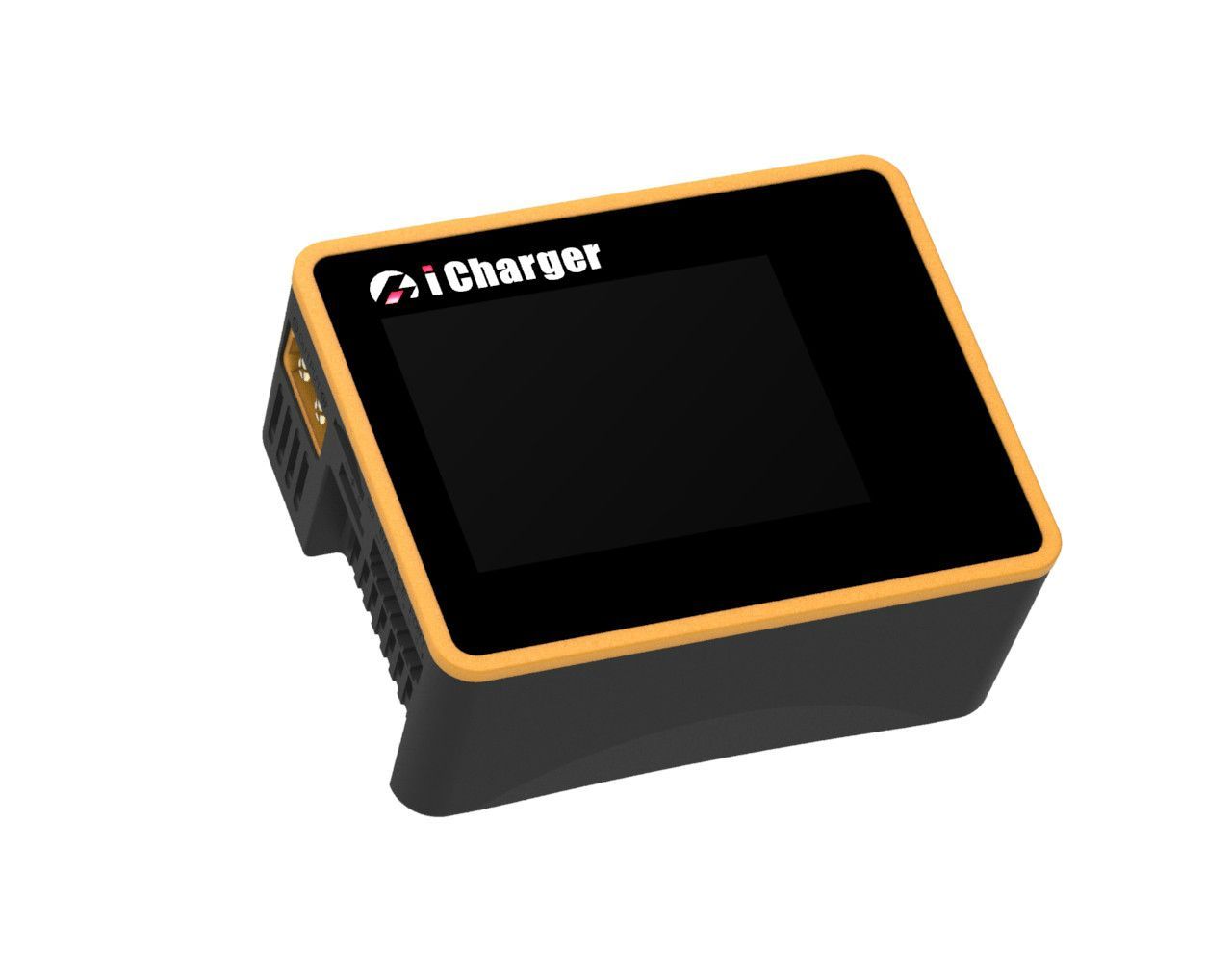

iCharger X6 800W 30A 6S Balance Battery Charger

Original price $109.99 - Original price $109.99
Original price $109.99
$109.99
$109.99 - $109.99
Current price $109.99
SKU JNS-X61

You can download the iCharger X6 Manual by clicking here.

Introduced in the summer of 2018, the iCharger X6 is a new Junsi product that boasts an incredible 800W of power packed into a palm-sized charger. Despite its miniature frame, it offers features that are typically only found in advanced chargers. The user interface is straightforward and accessible, just like the popular Duo iChargers. As a major iCharger distributor since 2009, Buddy RC has a reputation for providing unparalleled service to iCharger users in the RC hobby community.

Here are the X6's special features:

  1. Supports up to 6s LiPo, Lilo, LiFe, LiHV, LTO, NiZn batteries with a maximum 2A balance current, and features unique balance calculation of internal resistance correction. It also supports 1 - 20s NiMH/NiCd batteries and 1 - 12s Pb batteries.

  2. Intelligent fan control. The internal temperature sensor detects internal temperature and allows the charger to control fan speed.

  3. Internal temperature protection. When the internal temperature exceeds the power reduce temperature, the output power is automatically reduced, and the charger shuts down when temperature exceeds the shut-down temperature.

  4. The charger can save 32 parameter settings and support data import/export to SD Card.

  5. A 2.4" IPS LCD screen provides rich information, including current, voltage, power, capacity, internal resistance, control status, time-consuming, and temperature, among others.

  6. Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.

  7. Supports measurement for internal resistance of batteries both offline and online. It can measure not only the internal resistance of the entire battery pack but also the internal resistance of each cell within the lithium battery.

  8. The X6 has protection against reverse polarity, input or output.

  9. Supports software updates via USB port or SD card. The X6 also supports the “Junsi Console” software, which displays, plots, and analyzes the charge and discharge data.

The iCharger X6 also comes with a one-year manufacturer warranty, which is handled by Buddy RC.

Here are the X6's specifications:

  • Input voltage range: 7—32VDC
  • Maximum input current limit: 2.0A
  • Display: 2.4 " IPS LCD (320×240)
  • Net weight: 168g
  • Dimensions: 83 × 64.5 × 37 ± 0.5 mm
