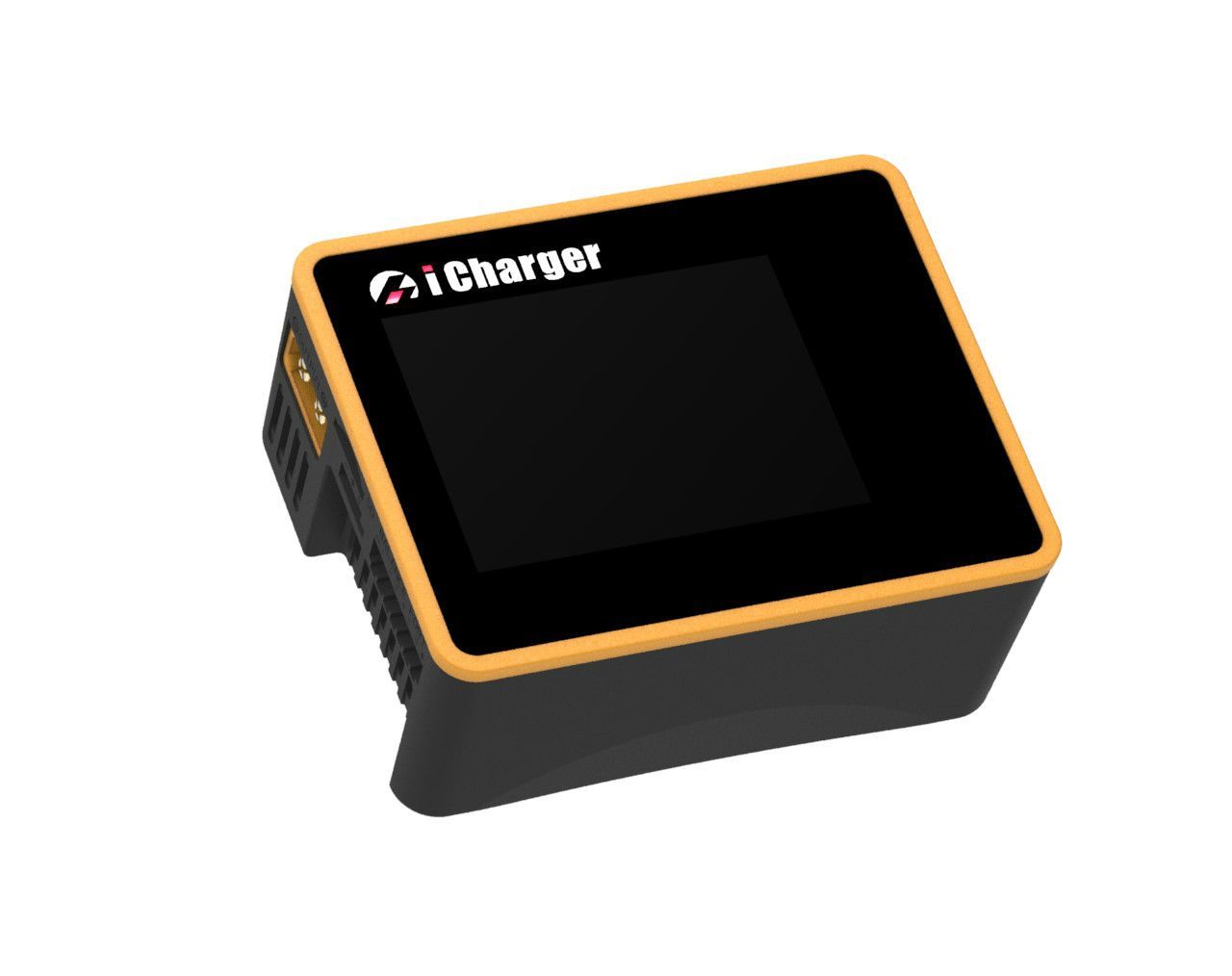

iCharger X12 1100W 30A 12S Balance Battery Charger

Original price $179.99 - Original price $179.99
Original price $179.99
$179.99
$179.99 - $179.99
Current price $179.99
SKU JNS-X12

To download the iCharger X12 manual, please click here.

The iCharger X12 is a powerful Junsi product that was launched in fall of 2020. Despite its miniature frame, this palm-sized charger can deliver an incredible 1100W 30A of power, making it perfect for charging up to 12S LiPo batteries. It is also packed with features that are typically only found in advanced chargers. The X12 shares the same easy-to-use interface as the popular Duo iChargers. Buddy RC has been a leading iCharger distributor since 2009, and we are known for our unparalleled service to iCharger users in the RC hobby community.

Special Features:

  1. The X12 supports a wide range of batteries, including up to 12s LiPo, Lilo, LiFe, LiHV, LTO, and NiZn batteries, with a maximum 2A balance current. It utilizes a unique balance calculation with internal resistance correction.

  2. Intelligent fan control. The internal temperature sensor detects the internal temperature, allowing the charger to control fan speed.

  3. Internal temperature protection. The output power is automatically reduced when the internal temperature exceeds the power reduce temperature, and the charger will shut down when the temperature exceeds the shut-down temperature.

  4. This charger can save 32 parameter settings and support data import/export to an SD card.

  5. A 2.4" IPS LCD screen provides rich information, including current, voltage, power, capacity, internal resistance, control status, time-consuming, and temperature.

  6. Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.

  7. Supports measurement for internal resistance of batteries both offline and online. It can measure not only the internal resistance of the entire battery pack but also the internal resistance of each cell within the lithium battery.

  8. The X12 has protection for reverse polarity, input, or output.

  9. Supports software updates via USB port or SD card. The X12 also supports the “Junsi Console” software, which displays, plots, and analyzes the charge and discharge data.

The X12 comes with a one-year manufacturer warranty handled by Buddy RC, a major iCharger distributor since 2009.

Specifications:

  • Display: 2.4 " IPS LCD (320×240)
  • Net weight: 230g
  • Dimensions: 112 × 64× 37 ± 0.5 mm
  • Input voltage range: 11-53VDC
  • Maximum input current limit: <35A
  • Maximum charge/discharge current: 30A
  • Max. output voltage/current for digital power supply: 50V/30A
  • Maximum charge power capacity: 1100W
  • Maximum discharge power capacity: 50W built-in
  • Maximum regenerative discharge power capacity: 1100W
  • Maximum extra discharge power capacity: 1500W@50V/40A
  • Maximum current drain for balancing: >2.0A
