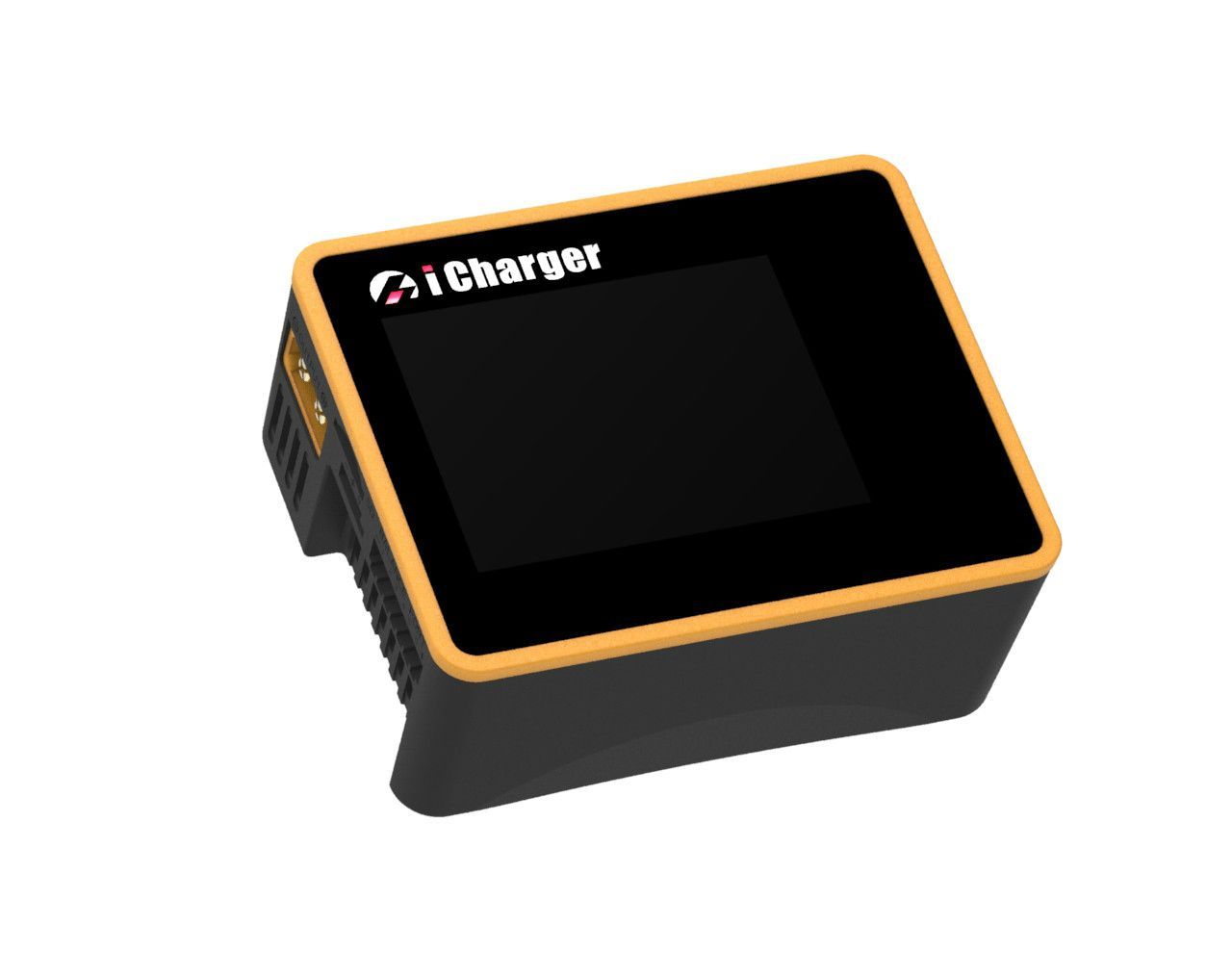

iCharger S6 1100W 40A 6S Balance Battery Charger
To Download the iCharger S6 Manual, click here.
The iCharger S6 is a new product from Junsi launched in the fall of 2020. This palm-sized charger packs an impressive 1100W and 40A of power into a miniature frame and comes with advanced features not commonly found in other chargers. The S6 shares the same user-friendly interface found in the popular Duo iChargers. Buddy RC has been a major iCharger distributor since 2009, and our service to iCharger users is well-known in the RC hobby community.
Special Features:
-
The S6 supports up to 6s LiPo, Lilo, LiFe, LiHV, LTO, NiZn batteries with a maximum 2A balance current and utilizes a unique balance calculation of internal resistance correction. It also supports 1 - 20s NiMH/NiCd batteries and 1 - 12s Pb batteries.
-
Intelligent fan control. The internal temperature sensor detects the internal temperature, allowing the charger to control fan speed.
-
Internal temperature protection. The output power is automatically reduced when the internal temperature exceeds the power reduce temperature, and the charger will shut down when the temperature exceeds the shut-down temperature.
-
This charger can save 32 parameter settings and supports data import/export to an SD card.
-
A 2.4" IPS LCD Screen provides rich information, including current, voltage, power, capacity, internal resistance, control status, time-consuming, and temperature, etc.
-
Multi discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.
-
Supports measurement for internal resistance of batteries both offline and online. It can measure the internal resistance of not only the entire battery pack but also each cell within the lithium battery.
-
Protection against reverse polarity, input, or output.
-
Supports software updates via USB port or SD card. The S6 also supports the “Junsi Console” software, which displays, plots, and analyzes charge and discharge data.
The S6 comes with a one-year manufacturer warranty handled by Buddy RC, a major iCharger distributor since 2009.
Specifications: Display: 2.4" IPS LCD (320×240) Net weight: 200g Dimensions: 83 × 71 × 36.5 ± 0.5 mm
Input voltage range: 9-32VDC Maximum input current limit: <45A Maximum charge/discharge current: 40A Max. output voltage/current for digital power supply: 26.5V/40A Maximum charge power capacity: 1100W Maximum discharge power capacity: 40W Maximum regenerative discharge power capacity: 110W Maximum extra discharge power capacity: 1200W@30V/40A Maximum current drain for balancing: >2.0A
