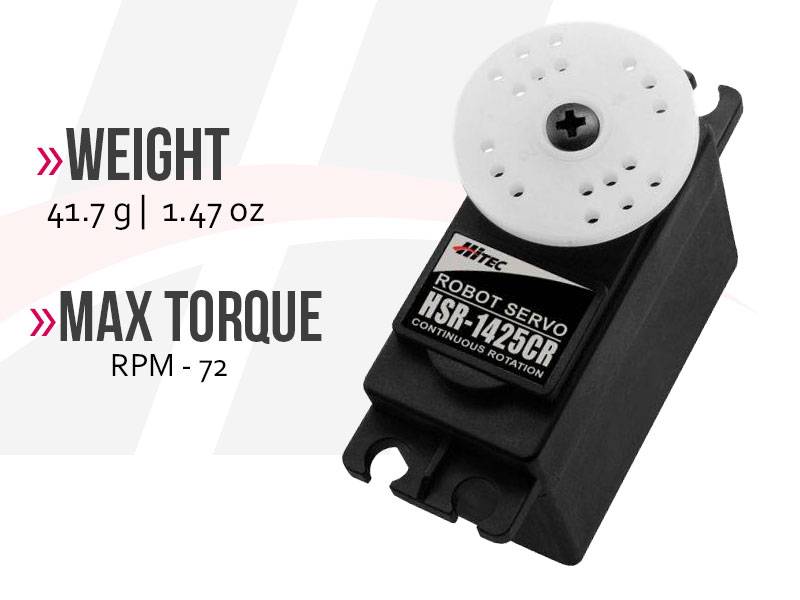

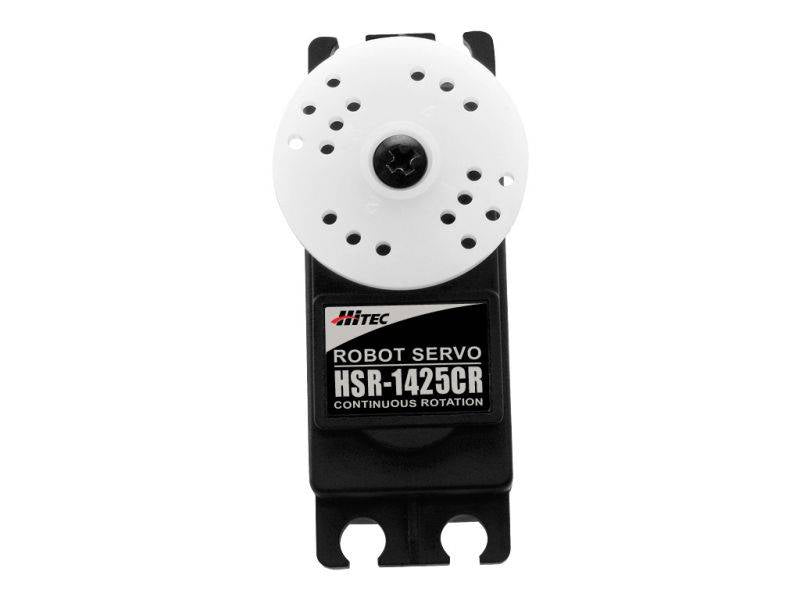

Hitec HSR-1425CR Continuous Rotation Robot Servo
Sold out
Original price
$21.99
-
Original price
$21.99
Original price
$21.99
$21.99
-
$21.99
Current price
$21.99
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description
The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications.
HS-1425CR Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (RPM) | 43 ~ 52 |
| Maximum Torque Range oz. / in. | 39 ~ 47 |
| Maximum Torque Range kg. / cm. | 2.8 ~ 3.4 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 150 mA |
| Stall Current Draw | 640 mA |
| Dead Band Width | 10 µs |
| Physical Specifications | |

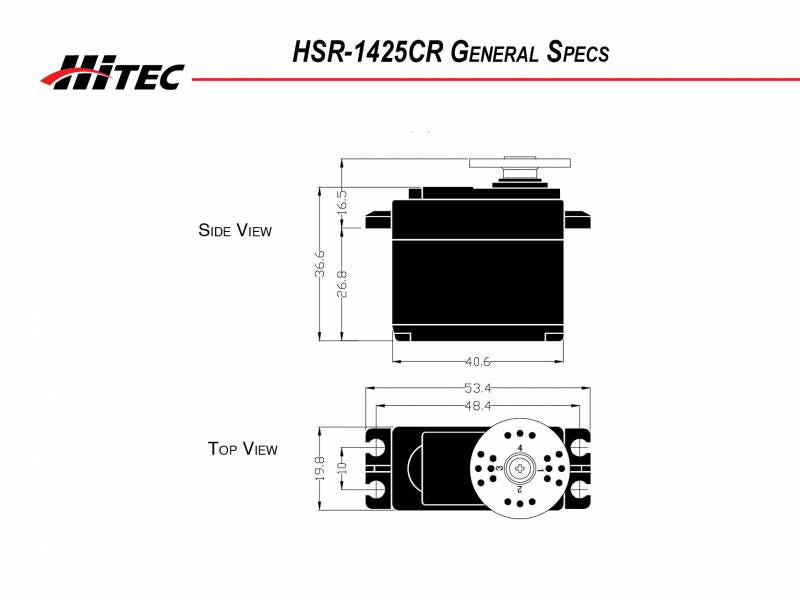

| Dimensions (Inches) | 1.59 x 0.77 x 1.44 |
| Dimensions (Metric) | 40.6 x 19.8 x 36.6 |
| Weight (Ounces) | 1.47 |
| Weight (Gram) | 41.7 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | N / A |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | N / A |
| Buggies | N / A |
| Truggies | N / A |
| Short Course / Truck | N / A |
| Crawlers | N / A |
| Sail Boat | =>1M+ & Scale |
| Power Boat | N / A |
