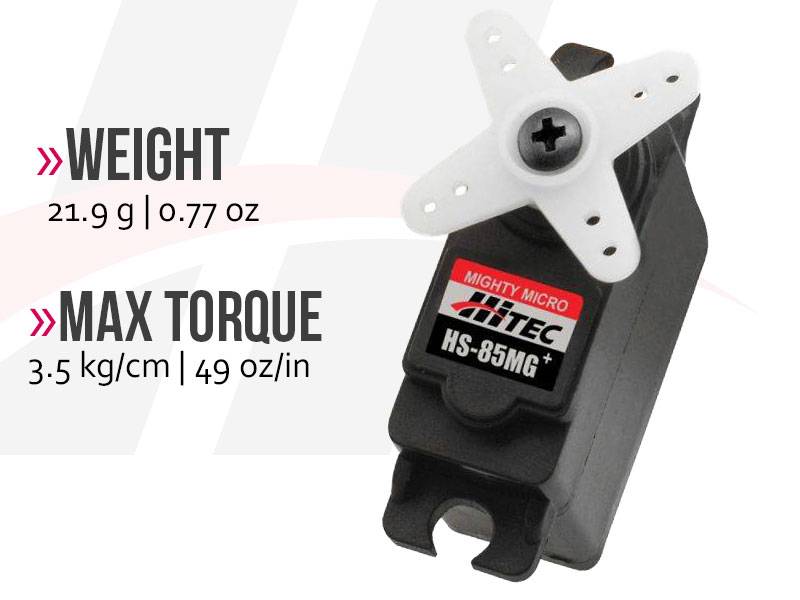

HiTec HS-85MG Mighty Micro Analog Metal Gear Servo

The HiTec HS-85MG Mighty Micro Analog Metal Gear Servo is a high-performance servo designed for modelers who seek speed and torque without spending too much. It features a powerful motor that delivers excellent performance, along with a ball bearing-supported output shaft and sturdy gear trains that are perfect for smaller glow and electric airplanes, heli's, and sail planes.

Features:

The HS-85MG servo offers high torque and precision centering, thanks to its rugged metal gears. It also features a ball bearing-supported output shaft and is perfect for applications where a standard servo is too heavy or large but standard torque is required.

HS-85MG Servo Specifications:

Performance Specifications:

• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
• Speed (Second @ 60°): 0.16 ~ 0.14
• Maximum Torque Range oz. / in.: 42 ~ 49
• Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
• Current Draw at Idle: 8 mA
• No Load Operating Current Draw: 240 mA
• Stall Current Draw: 1,200 mA
• Dead Band Width: 8 µs

Physical Specifications:

• Dimensions (Inches): 1.14 x 0.51 x 1.18
• Dimensions (Metric): 29.0 x 13.0 x 30.0
• Weight (Ounces): 0.77
• Weight (Gram): 21.9
• Circuit Type: HT7003 Analog SMT
• Motor Type: 3 Pole Metal Brush Ferrite
• Gear Material: Metal
• Bearing Type: Top Ball Bearing
• Output Shaft (type / Ømm): Standard 24
• Case Material: Plastic
• Dust / Water Resistance: N / A
• Connector Gauge (AWG) / Strand Count: 28 / 20
