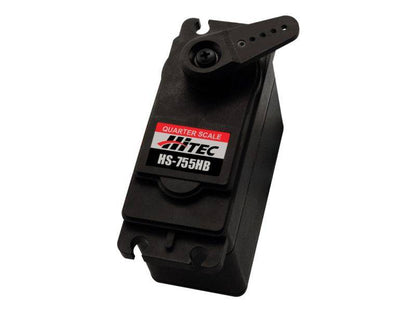

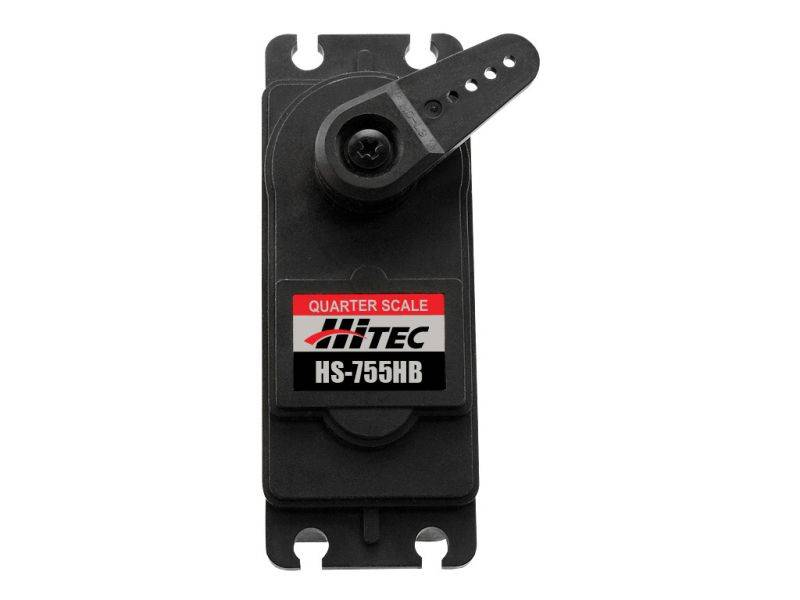

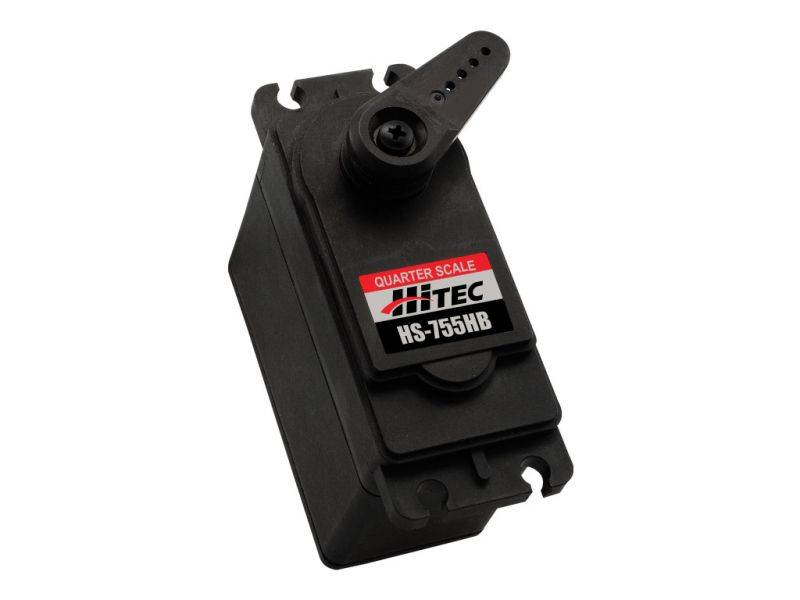

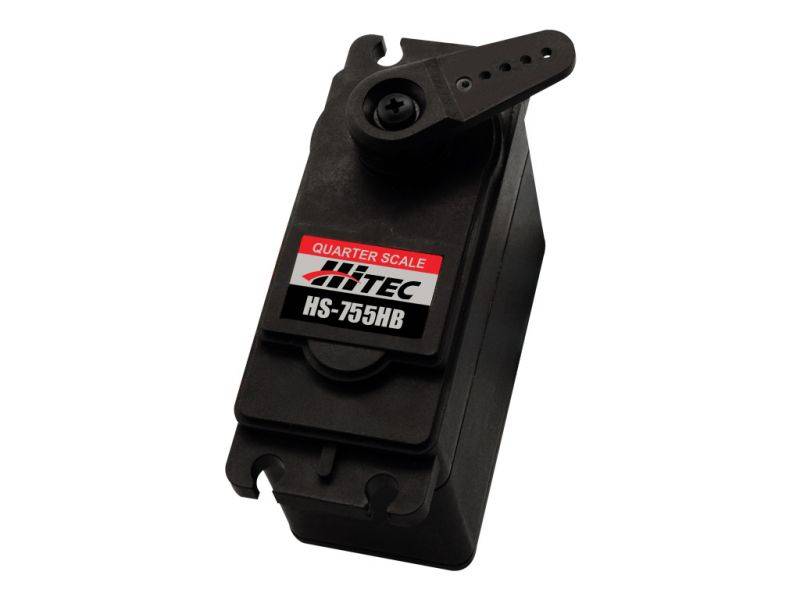

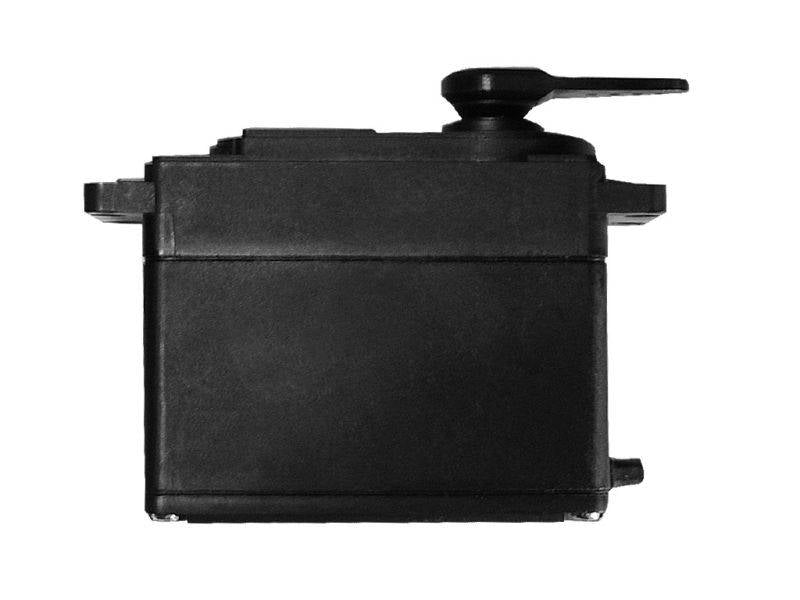

Hitec Giant Scale Servos 755HB
Sold out
Original price
$34.99
-
Original price
$34.99
Original price
$34.99
$34.99
-
$34.99
Current price
$34.99
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description
Hitec’s expansive line-up of servos include the HS-755HB and HS-755MG “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755HB delivers 183 oz./in. of torque at 6 volts.
Features
- Economical Choice in a Giant, Analog Servo
- Tough Karbonite Gears
- Dual Ball Bearing-Supported Output Shaft
- Water and Dust Resistant Case
Accessories
HS-755HB Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.28 ~ 0.23 |

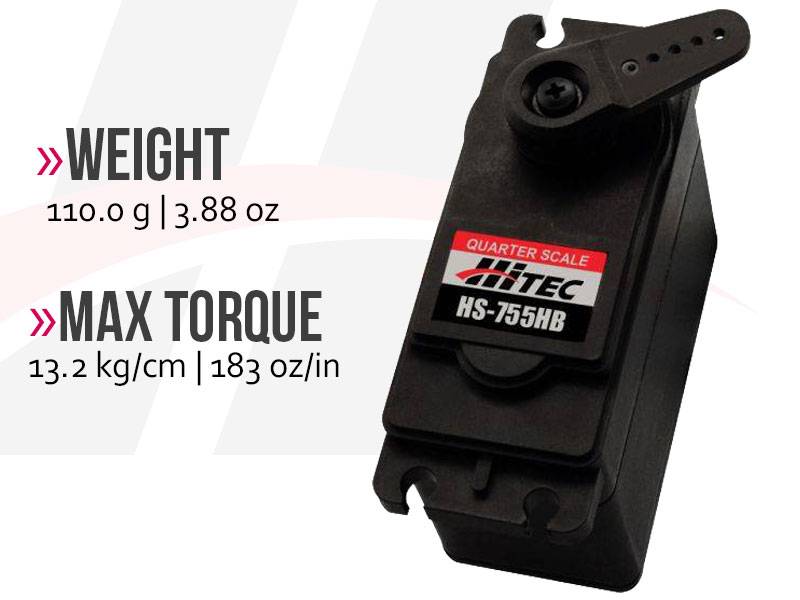

| Maximum Torque Range oz. / in. | 153 ~ 183 |
| Maximum Torque Range kg. / cm. | 11.0 ~ 13.2 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 250 mA |
| Stall Current Draw | 1,800 mA |
| Dead Band Width | 5 µs |
| Physical Specifications | |

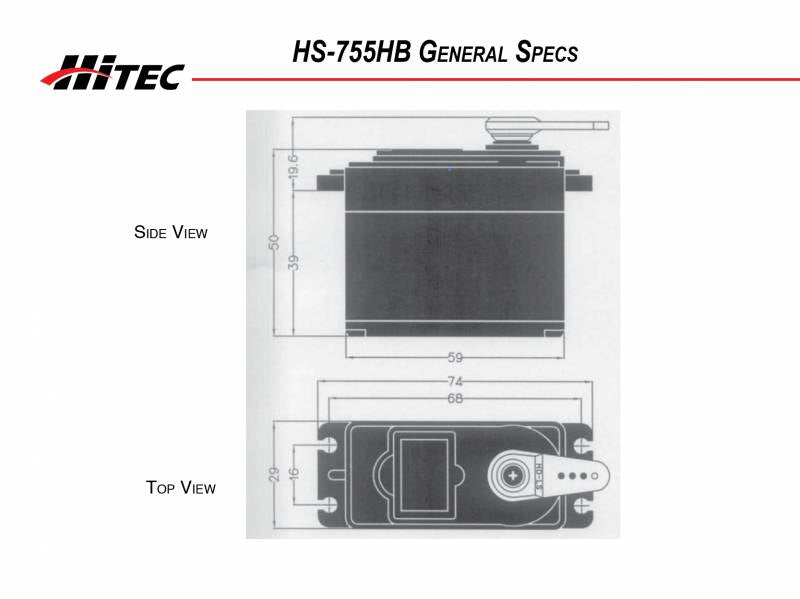

| Dimensions (Inches) | 2.32 x 1.14 x 1.96 |
| Dimensions (Metric) | 59.0 x 29.0 x 50.0 |
| Weight (Ounces) | 3.88 |
| Weight (Gram) | 110.0 |
| Circuit Type | HT7003 Analog MosFet |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Karbonite |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 12-15 lbs. |
| Sailplane | N / A |
| 3D Performance | N / A |
| Scale | 25 - 30% |
| Electric Helicopter | N / A |
| Gas Helicopter | N / A |
| On Road | N / A |
| Monster Truck | 1/10th |
| Buggies | 1/10th |
| Truggies | 1/10th |
| Short Course / Truck | 1/10th |
| Crawlers | N / A |
| Sail Boat | =>1M+ & Scale |
| Power Boat | 1/5th & Up |
