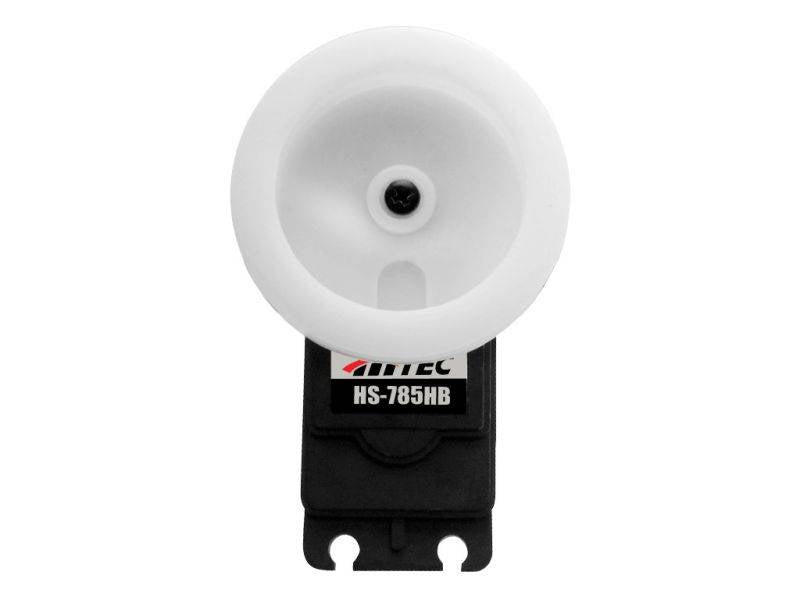

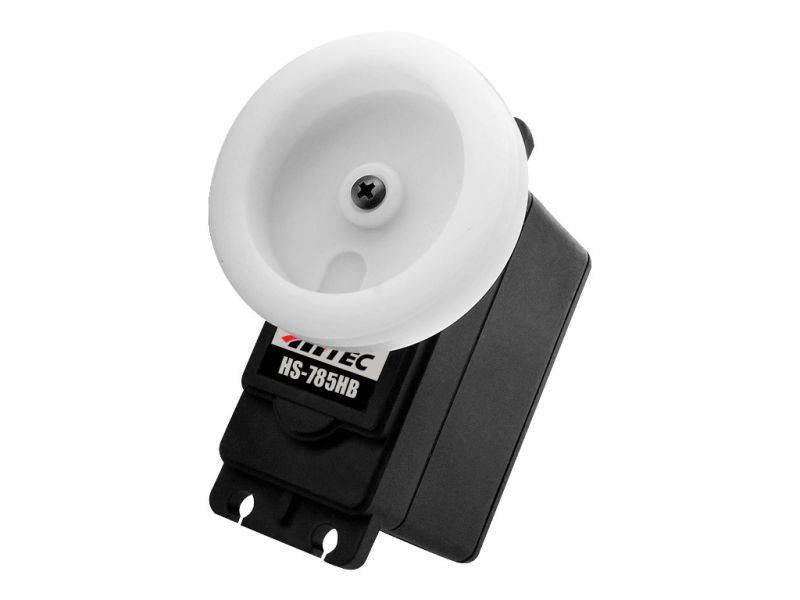

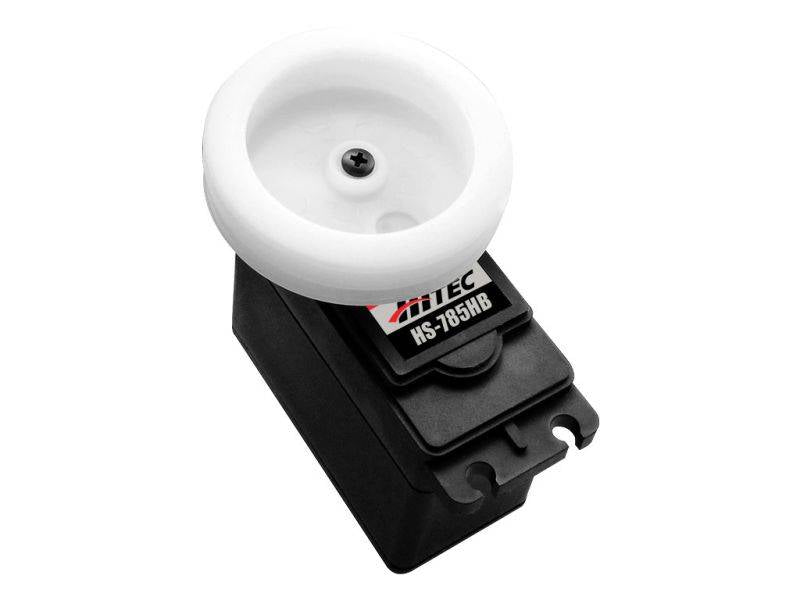

Hitec Boat Servos 785HB

Sold out
Original price $54.99 - Original price $54.99
Original price
$54.99
$54.99 - $54.99
Current price $54.99
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The HS-785HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service.

Features

  • Large Drum Wheel with 3.5 Revolutions of Travel
  • Strong Karbonite Gear Train
  • Dual Ball Bearing-Supported Output Shaft
  • Water and Dust-Resistant Case

Accessories

  • Karbonite Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns

HS-785HB Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 1.68 ~ 1.38

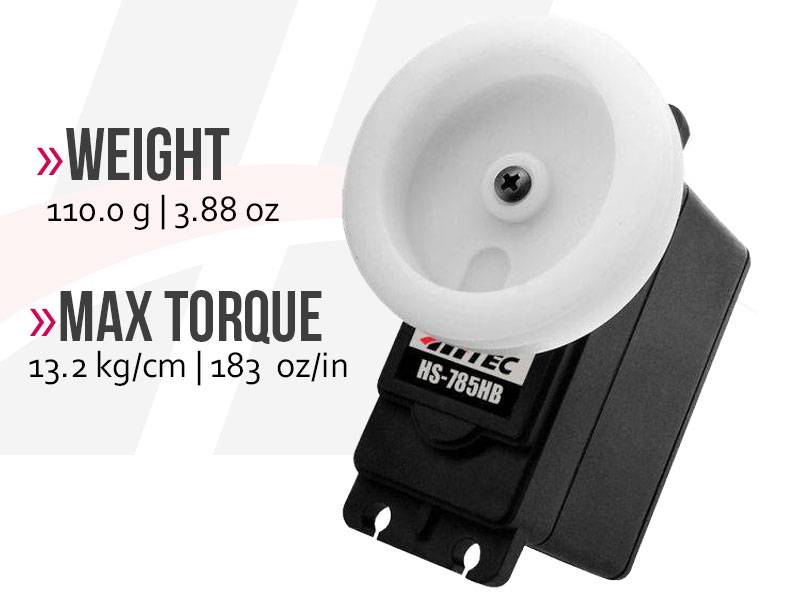

Maximum Torque Range oz. / in. 153 ~ 183
Maximum Torque Range kg. / cm. 11.0 ~ 13.2
Current Draw at Idle 8 mA
No Load Operating Current Draw 250 mA
Stall Current Draw 1,800 mA
Dead Band Width 5 µs
Physical Specifications
Dimensions (Inches) 2.32 x 1.14 x 1.96
Dimensions (Metric) 59.0 x 29.0 x 50.0
Weight (Ounces) 3.88
Weight (Gram) 110.0
Circuit Type HT7003 Analog MosFet
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Karbonite
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane N / A
Sailplane N / A
3D Performance N / A
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat =>1M+ & Scale
Power Boat N / A
