Himax HC3516 Outrunner Brushless Motors

Himax HC3516 Outrunner Brushless Motors

$69.99 - $69.99
$69.99
$69.99 - $69.99
$69.99
Size: HC3516-0840

HC35 Outrunner
250-450 Watts



• Wide application ranges - 9 motors in 4 frame sizes,

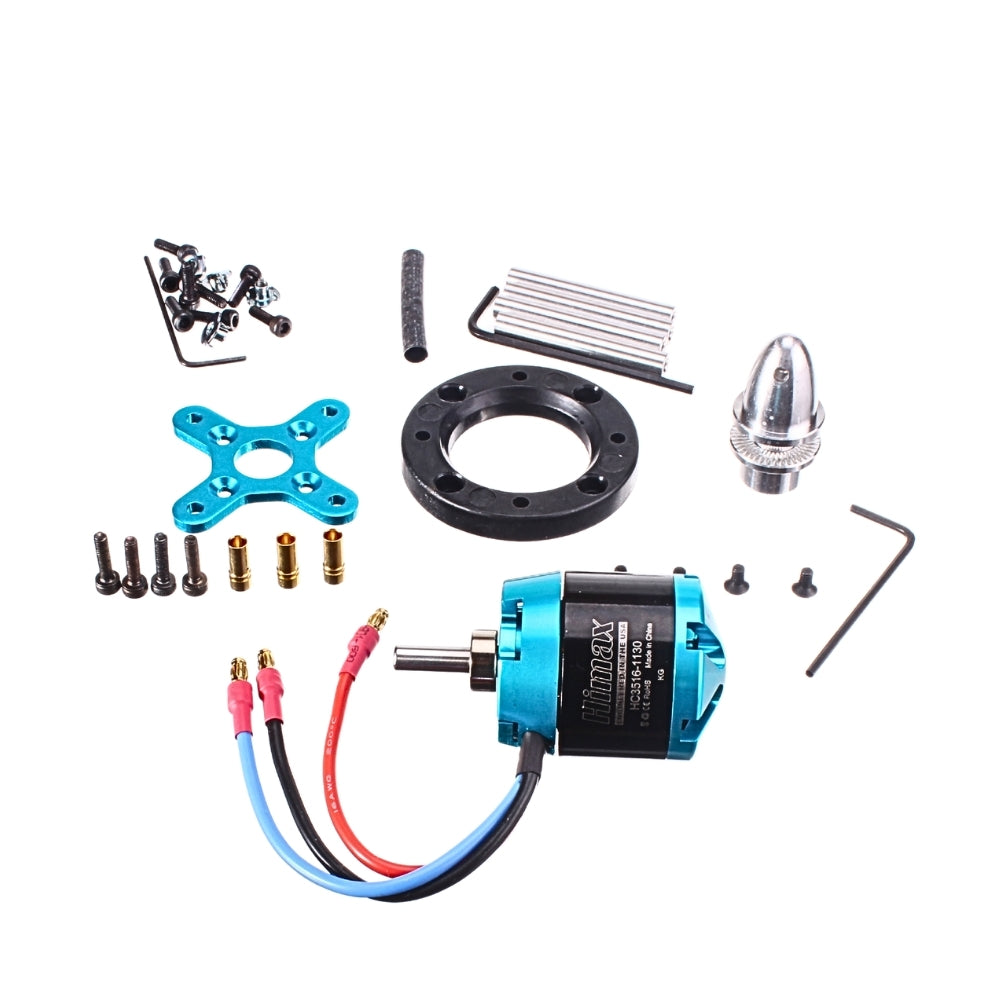

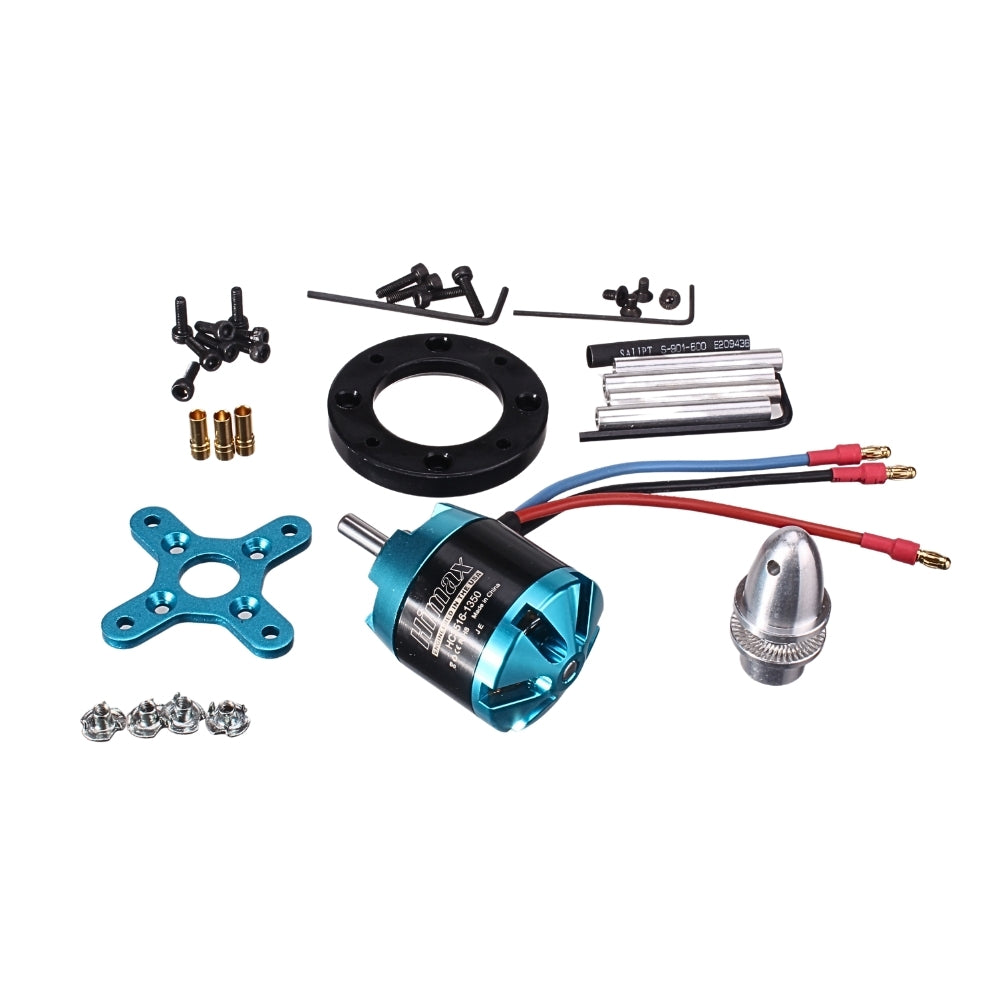

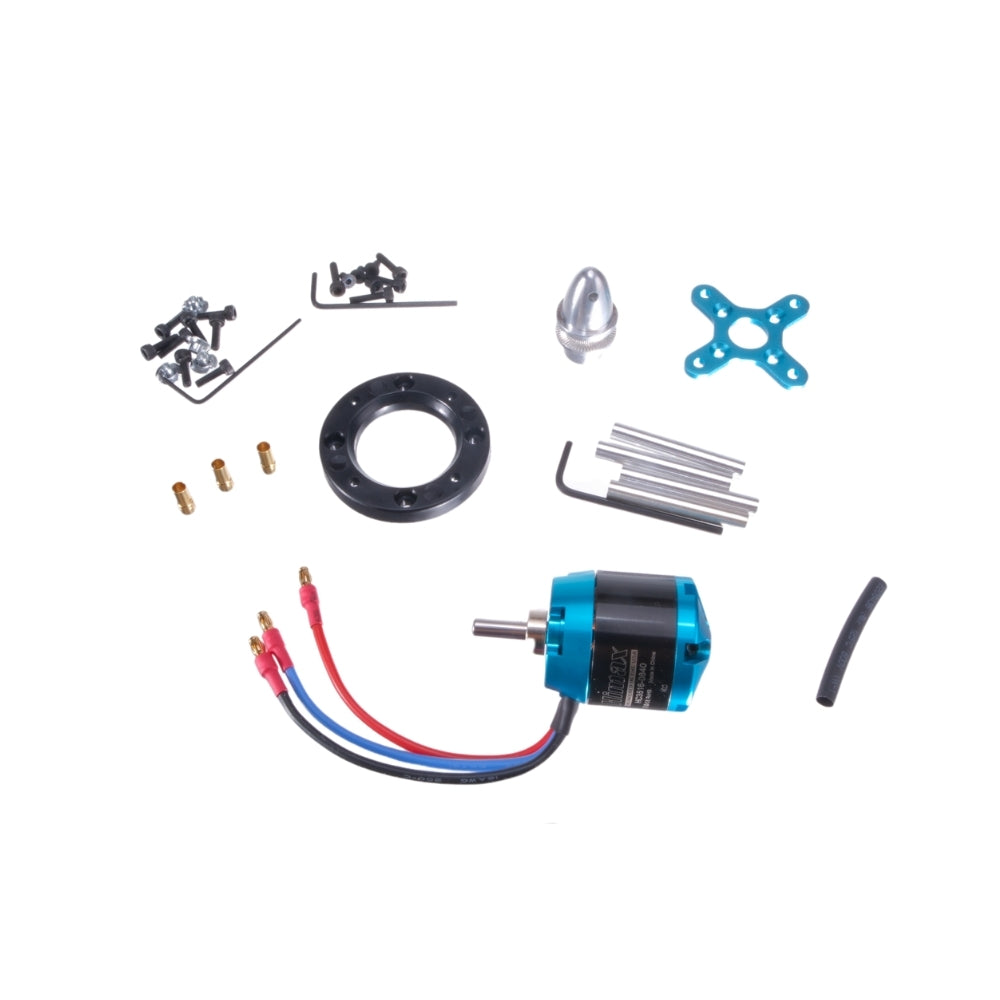

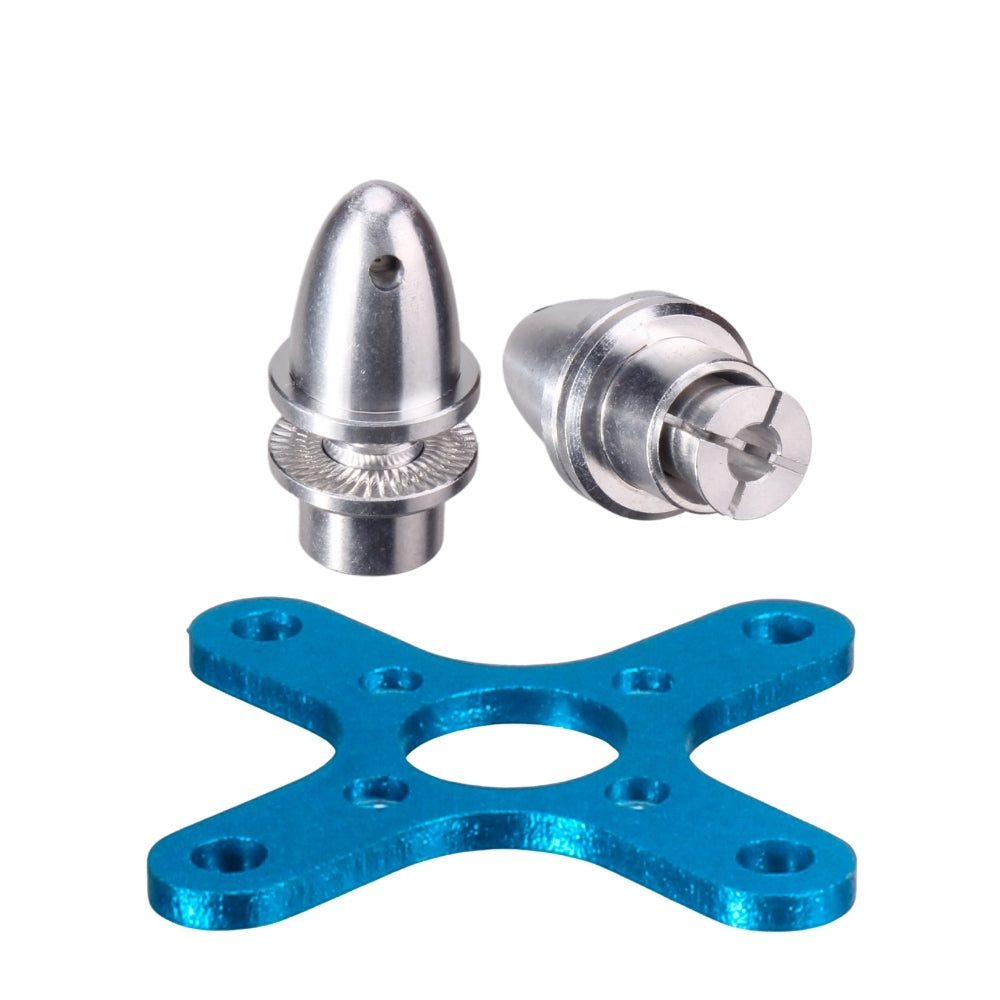

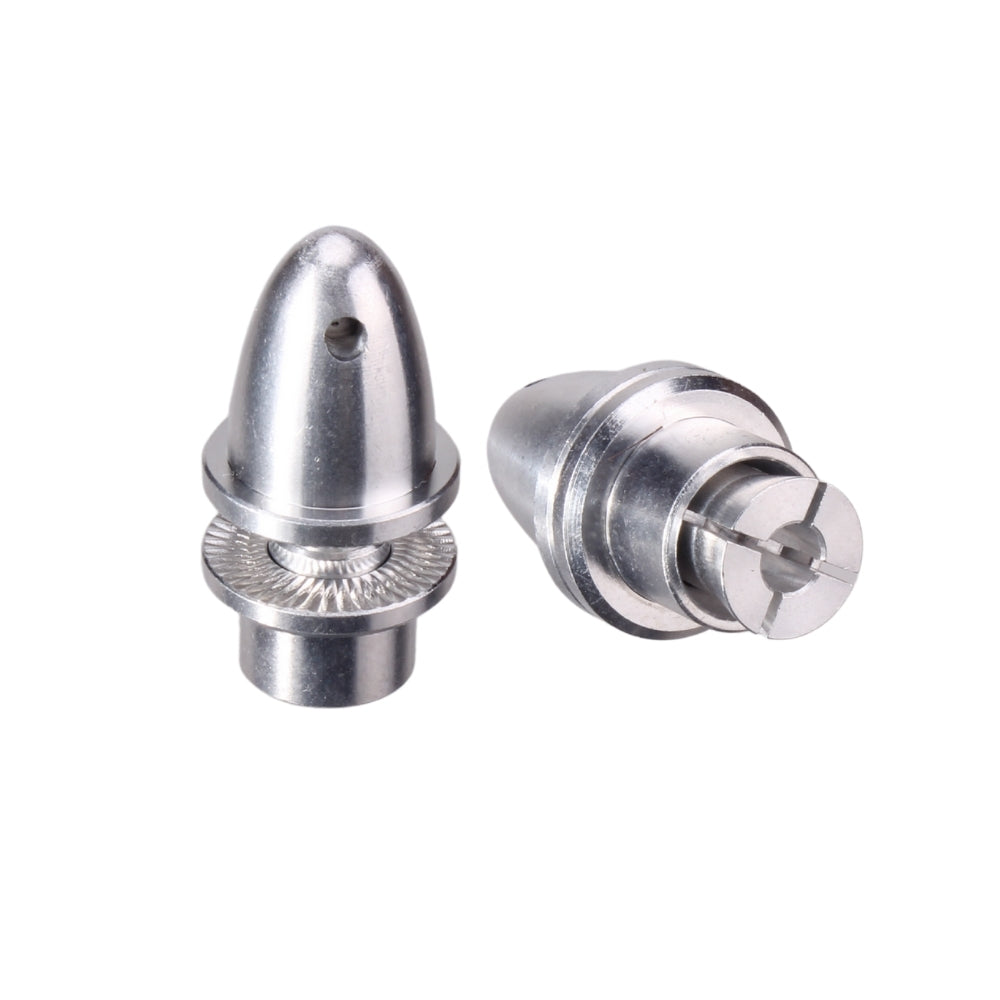

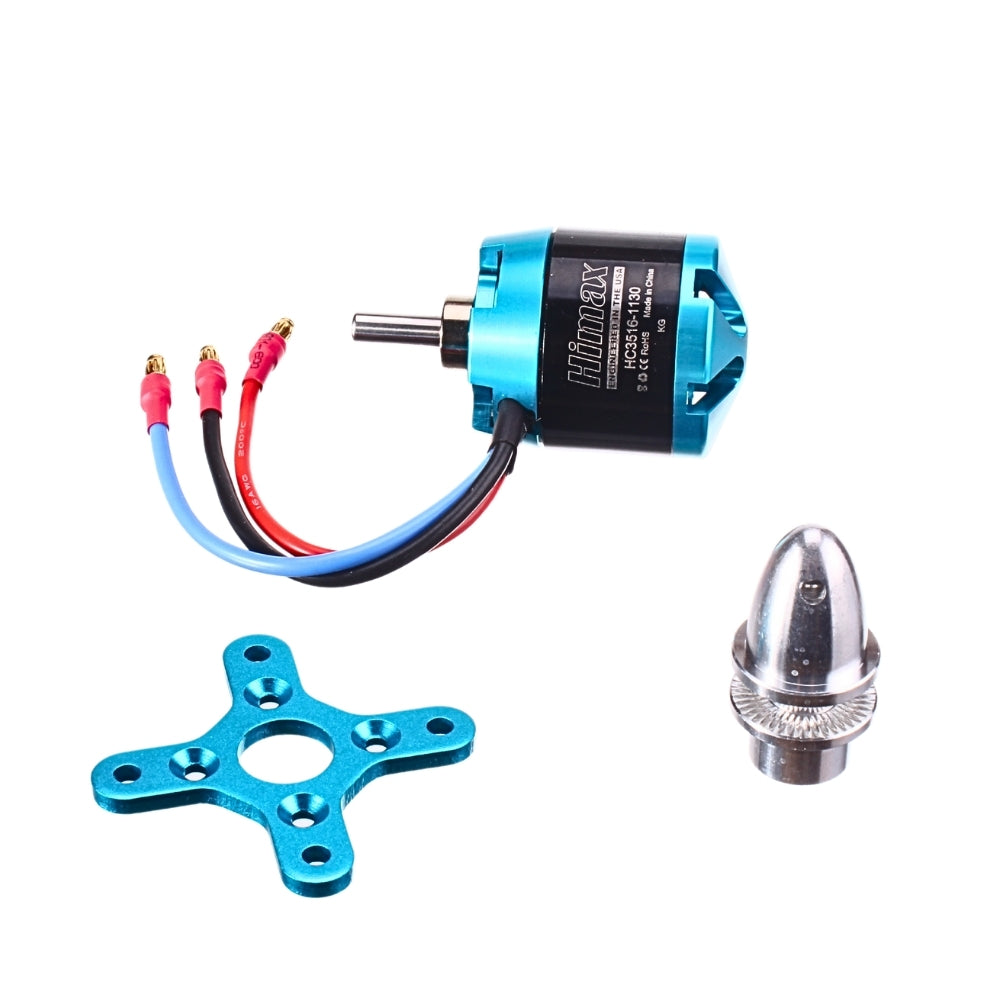

• Heavy duty motor mount, prop adapter & connectors included,
• Advanced designs - dual ball bearing & powerful magnet,
• Replaces Axi-28 series motors.

HC3516 -This 350 watt motor is for midsize models weighing 34-45 oz for 3-D flight, up to 56 oz for aerobatic flight and up to 70 oz for leisure flight.

• For two-cell LiPo applications - use HC3516-1350
• For three-cell LiPo applications - use HC3516-1130
• For four-cell LiPo applications - use HC3516-0840
• Gas equivalent - .25
Part No. Dia mm Length mm Weight g Shaft Dia Prop Size* ESC Rating Kv Rm Io

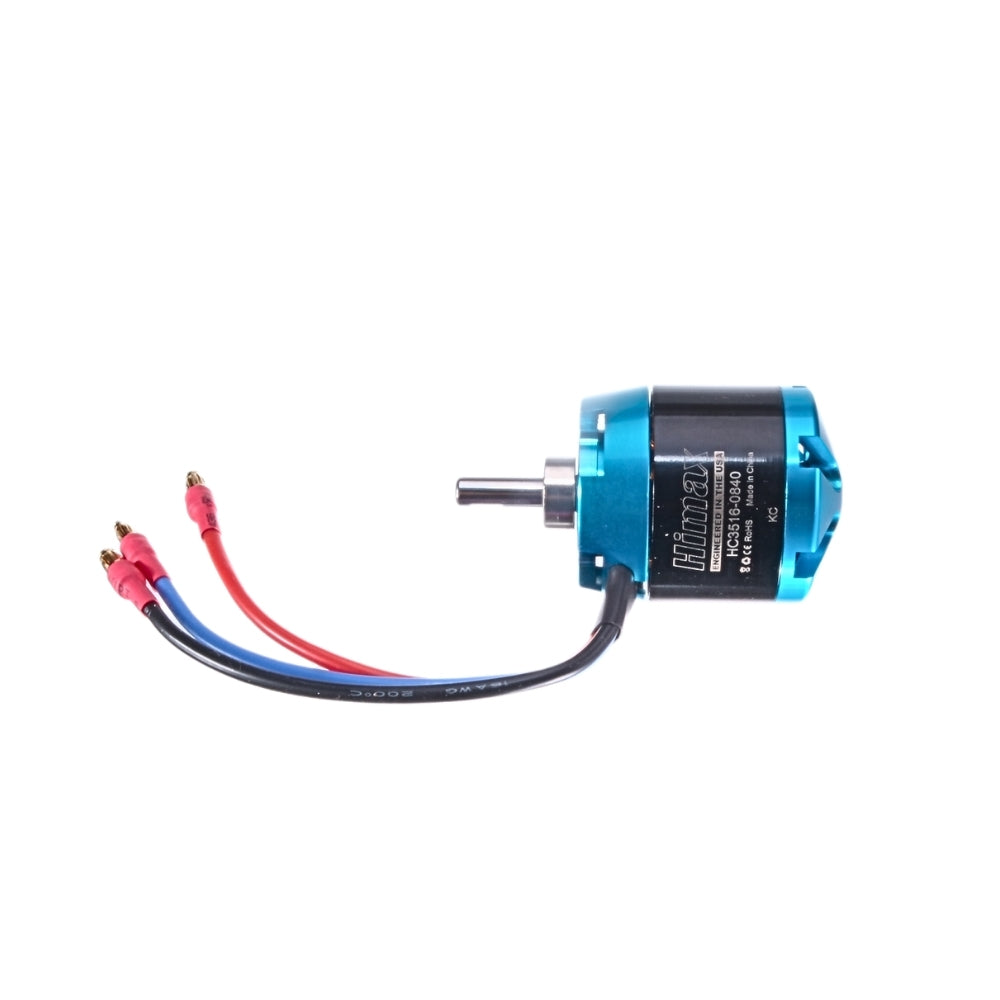

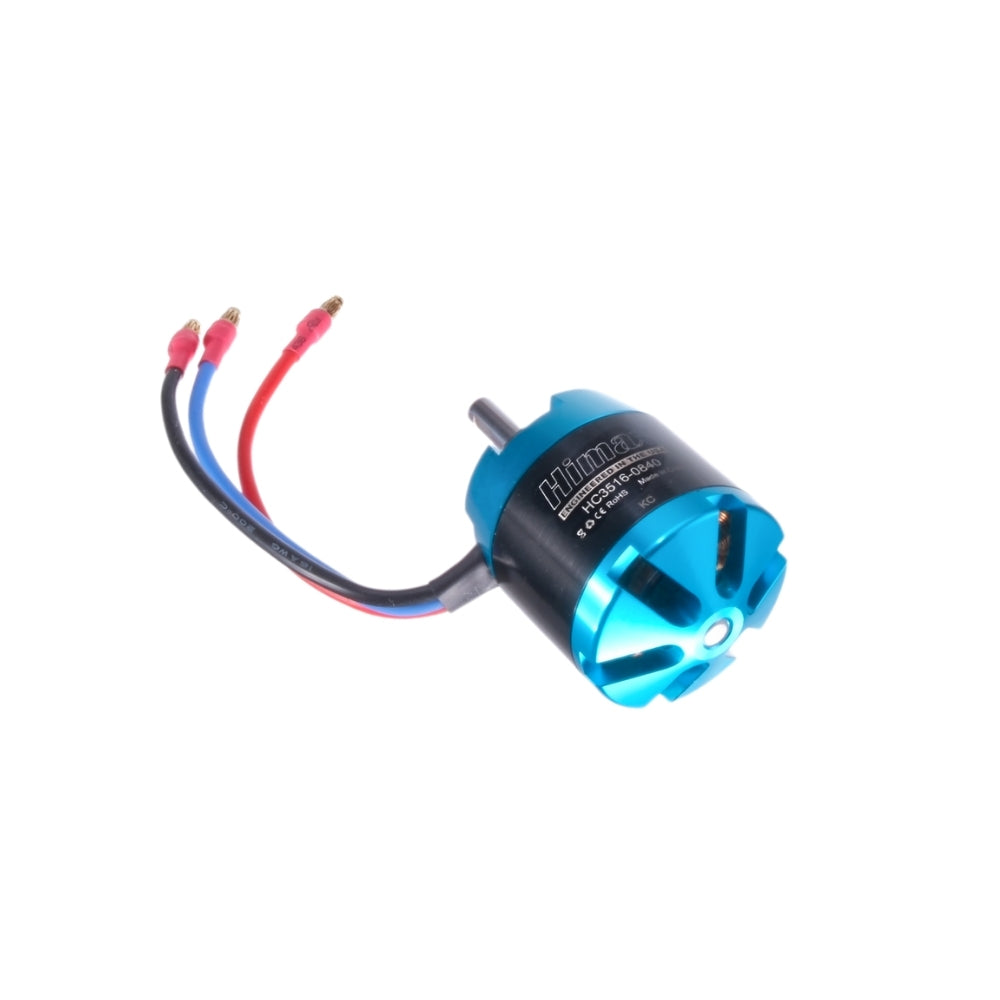

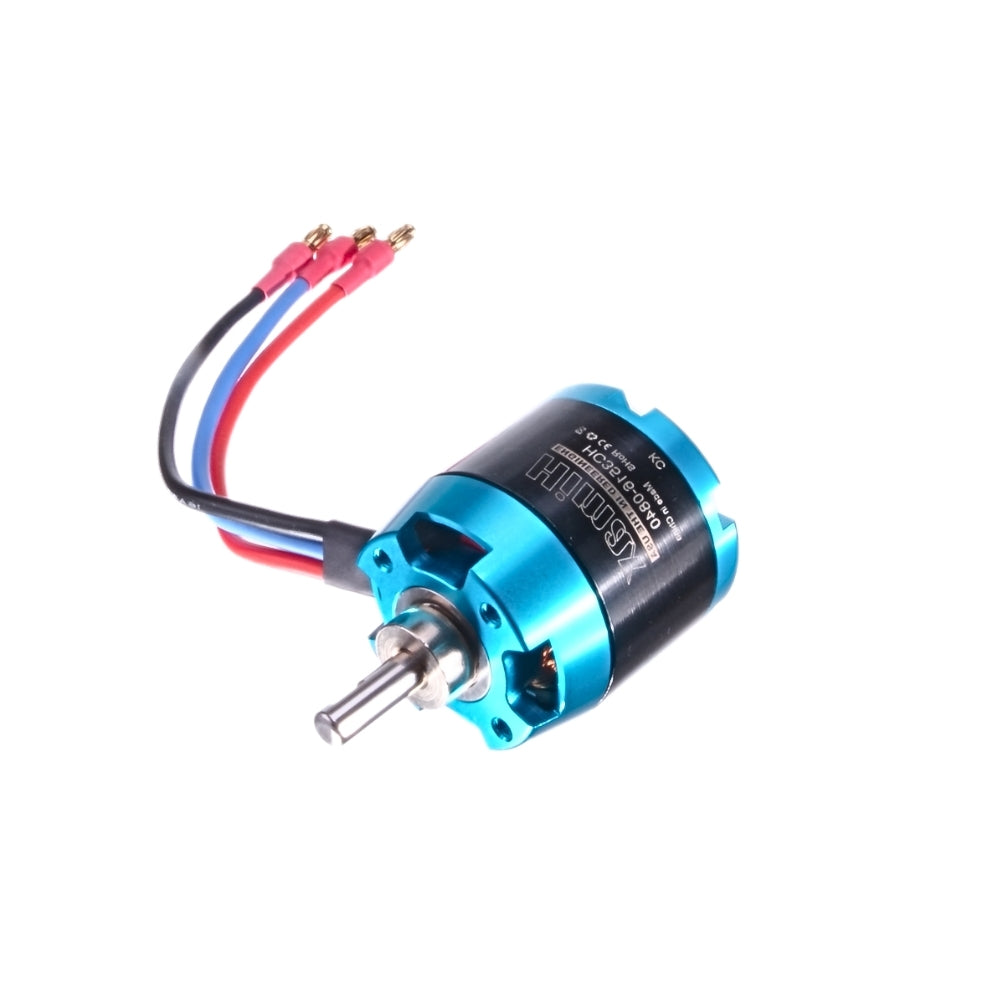

HC3516-0840
Learn more 		35.2 42.2 134 5mm 10x7-13x9 35 840 .051 1.5

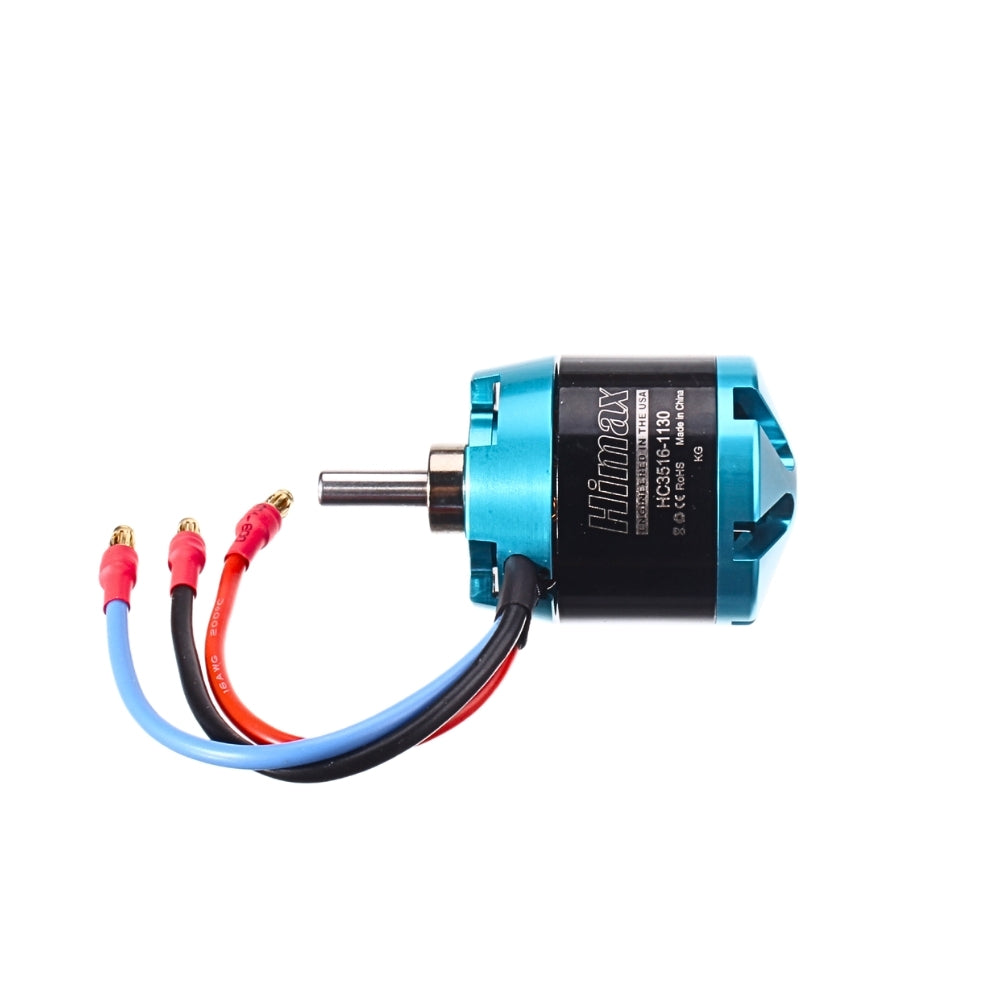

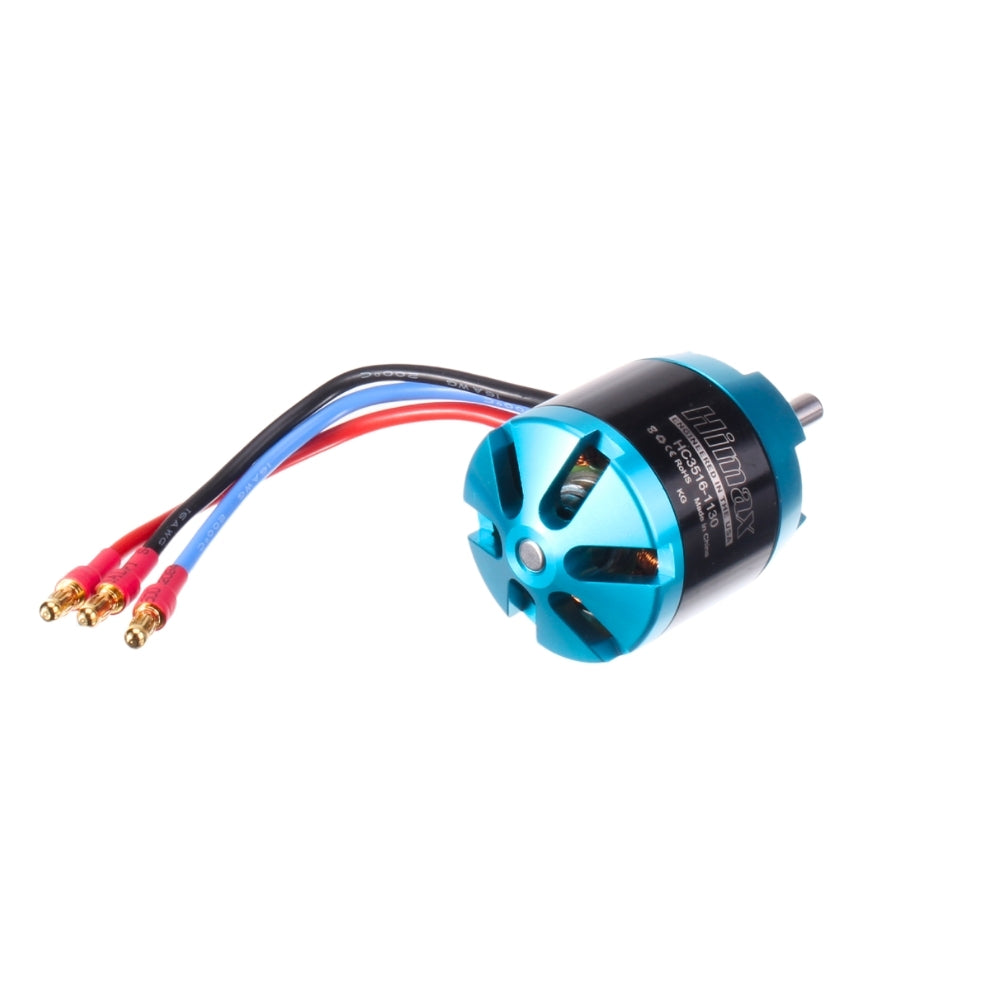

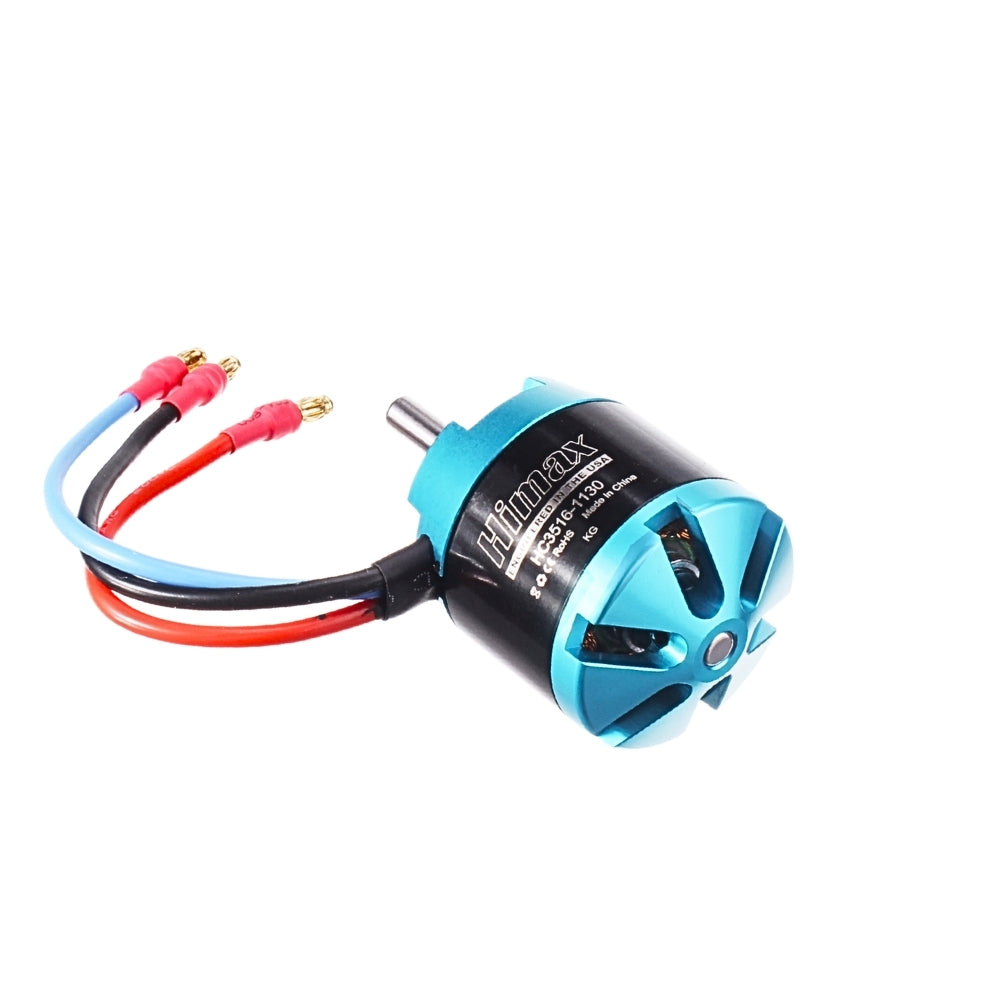

HC3516-1130
Learn more 		35.2 42.2 134 5mm 10x6-12x8 35 1130 .030 1.8

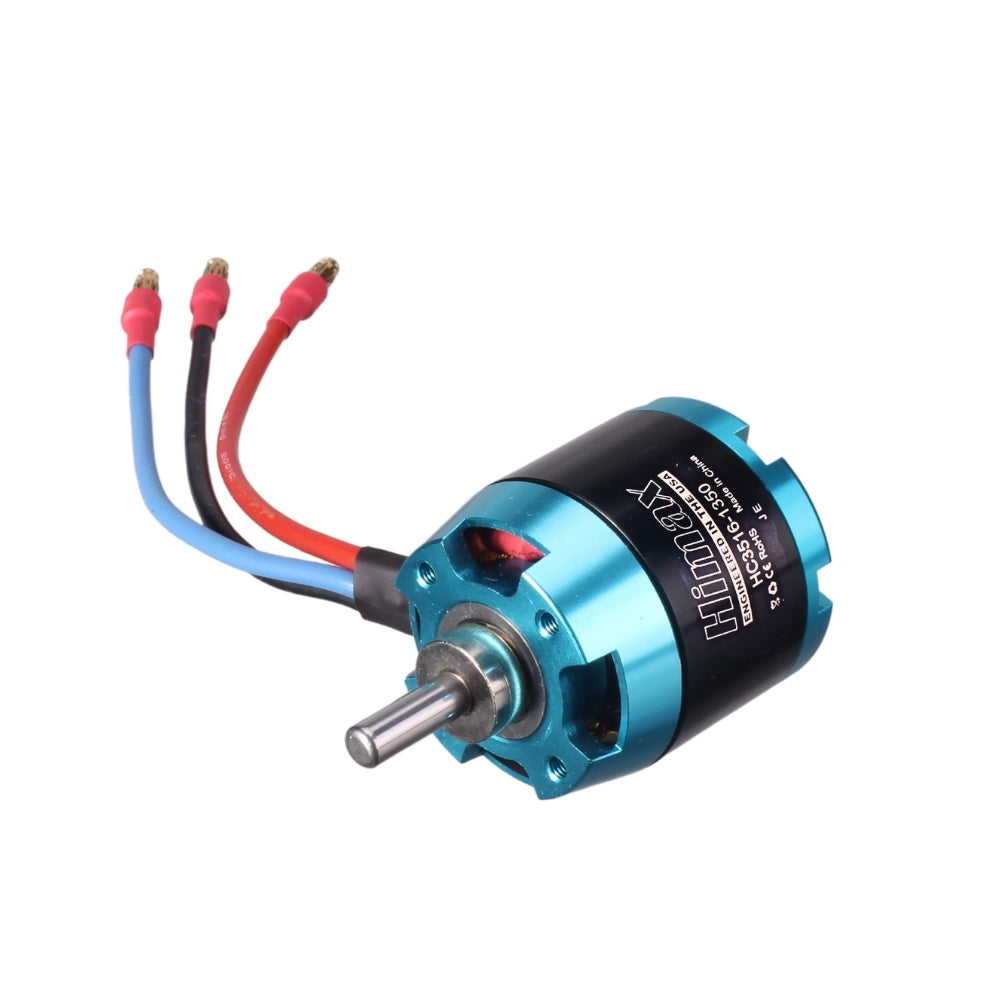

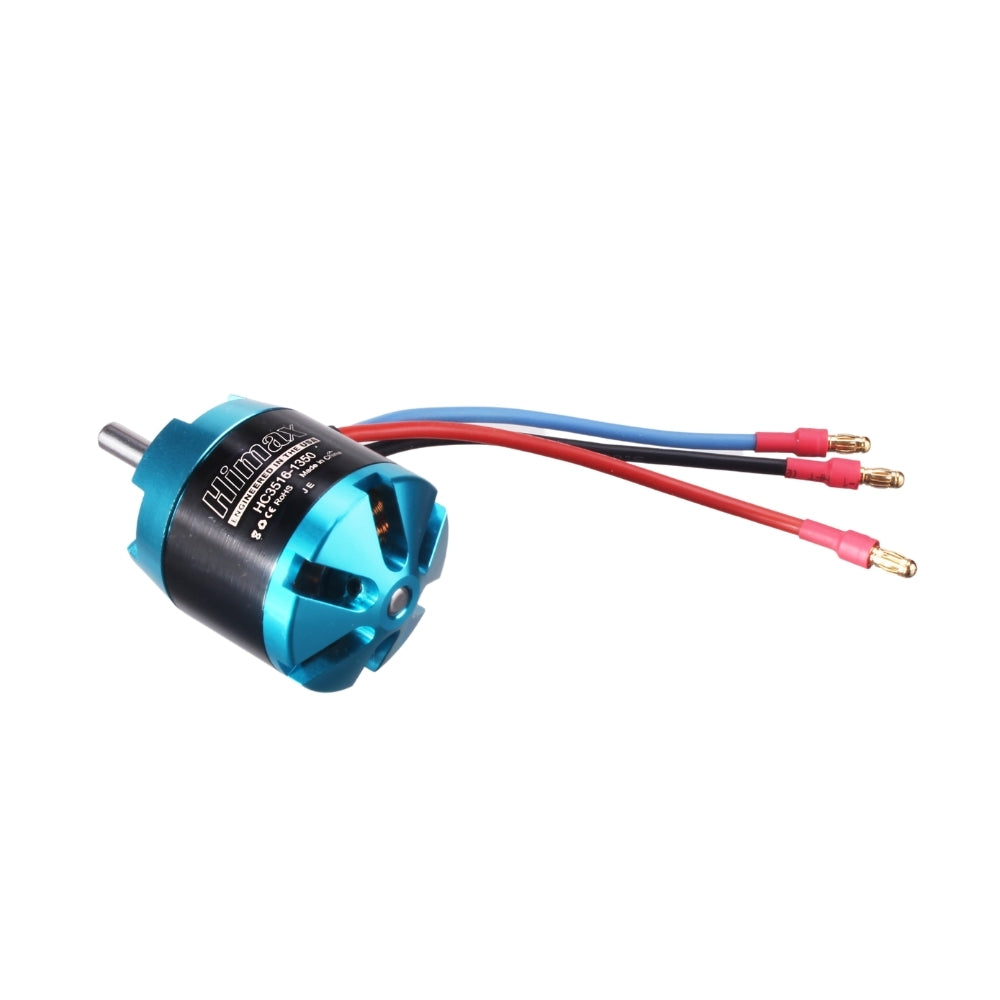

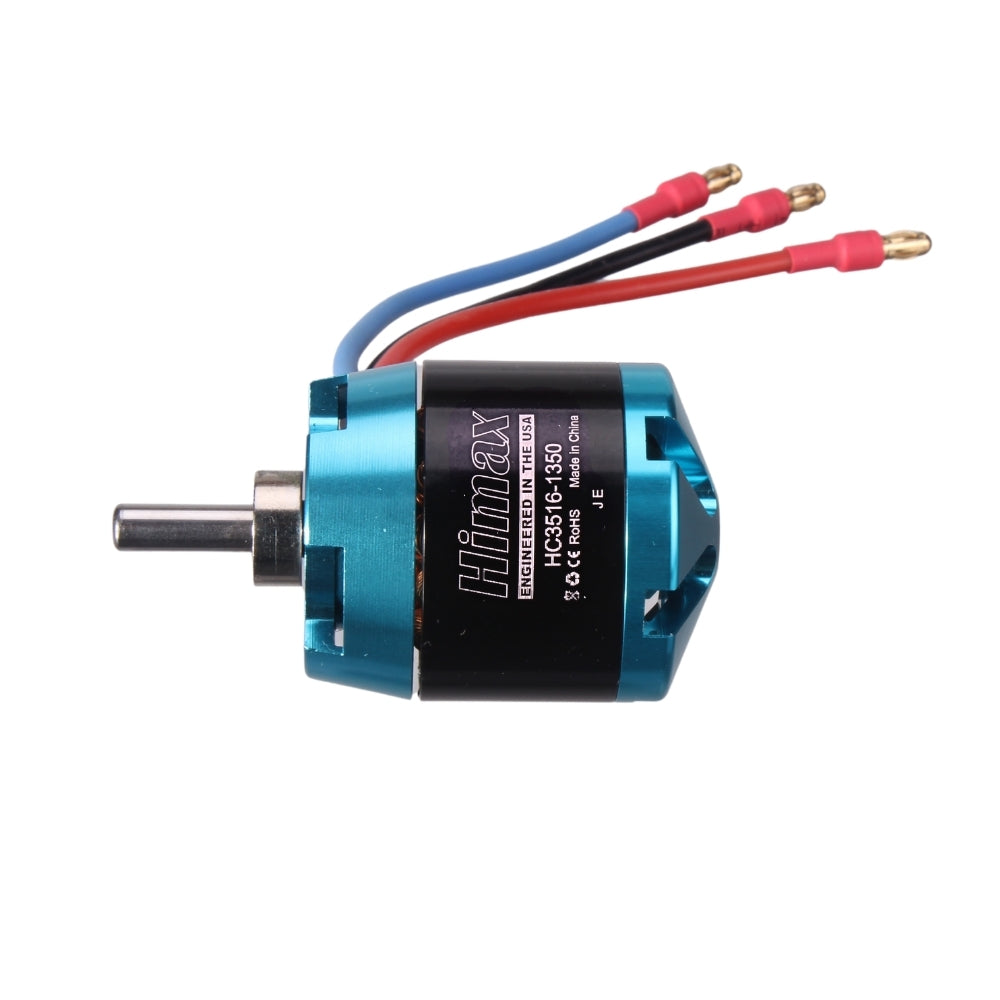

HC3516-1350
Learn more 		35.2 42.2 134 5mm 9x7-12x6 45 1350 .023 2.3
*Caution - Prop size is highly dependent on battery choice. Check the manual for full information. Always monitor current when choosing prop.
