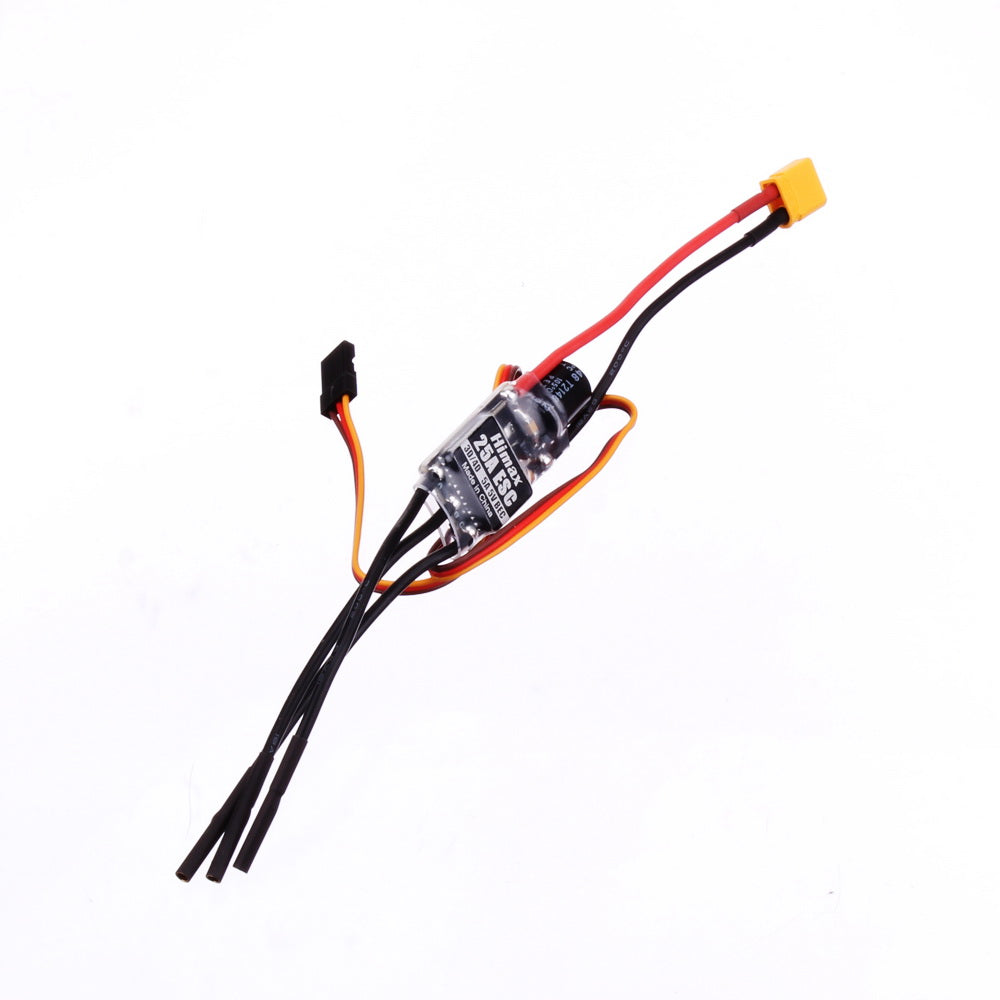

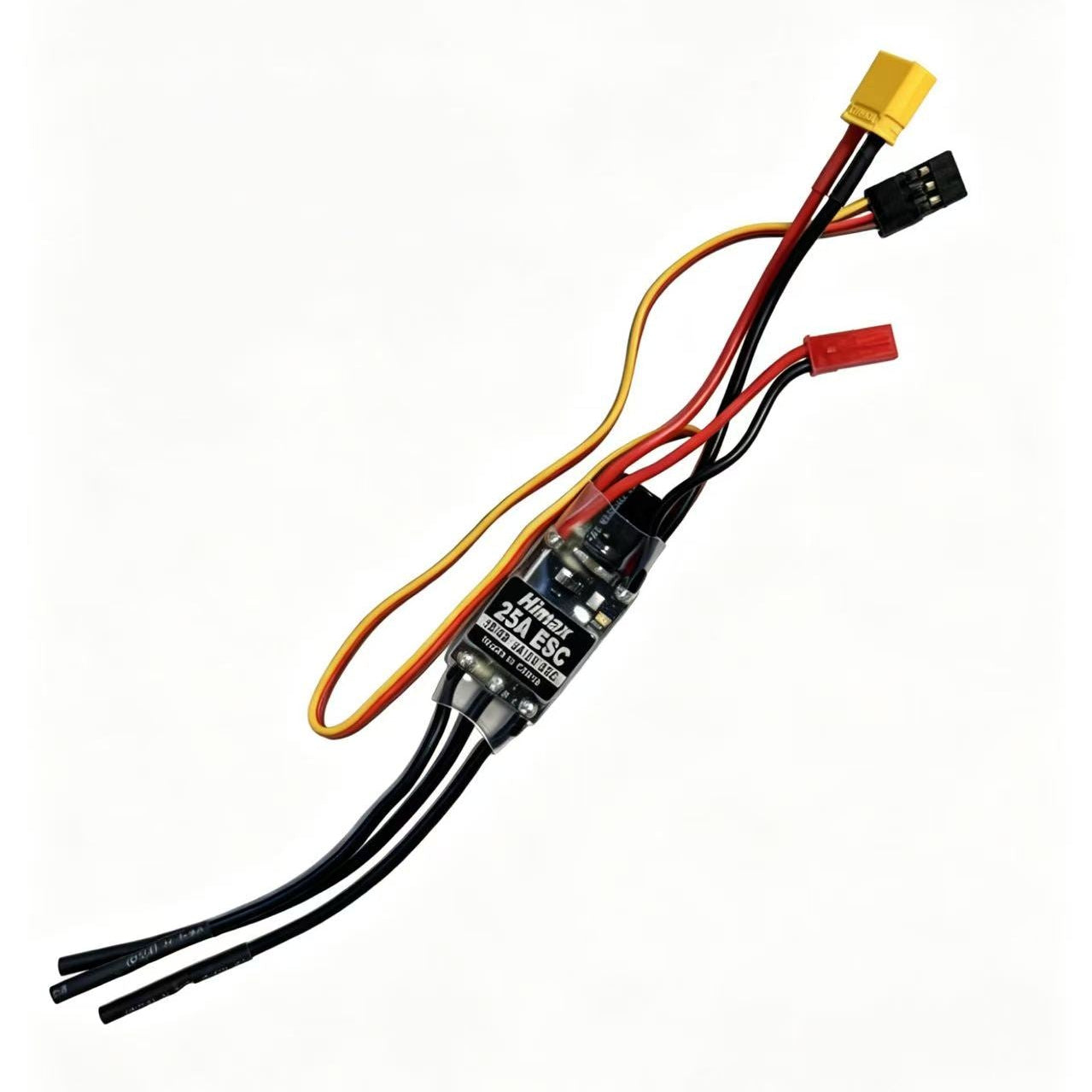

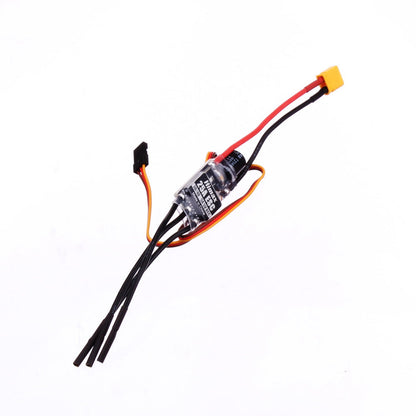

Himax 25A ESC for Aircraft with XT30 Connector

Manual

Himax 25A ESC for Aircraft with XT30 Connector

This is a great compact, light weight and smooth throttle ESC. With it's compact size it will fit in the smallest of aircraft. The light weight will not affect the C.G. The linear throttle assures great control through many 3D and 4D aerobatics and yes it is 4D compatible with forward and reverse. Thanks to the built in button on the back of the ESC. BEC power is rated at a consist and clean 5v at 5A even under load.

Features:

• Throttle calibration function, the throttle range can be calibrated to be compatible with different transmitters.
• 25A constant current
• 3s or 4s capable
• XT30 battery Connector
• 2mm bullet connectors pre soldered
• 5A/5V BEC
• Over temperature protection ,low voltage cut off protection ,signal loss protection and so on.
• BLHeli_S Firmware (Programmable)
• Can be set to reverse below mid throttle stick with a button on the ESC

Max Cell Count: 4s
