GensAce Imars Dual Channel AC200W/DC300W Balance Charger

GensAce Imars Dual Channel AC200W/DC300W Balance Charger

$118.00 - $118.00
$118.00
$118.00 - $118.00
$118.00
SKU GEA200WDUAL-UW
Color: White

The GensAce iMars Dual Channel AC200W/DC300W Balance Charger is a versatile and powerful device designed to charge and discharge batteries with ease. With support for two channels, it can charge and discharge using either AC or DC power, providing a maximum charging power of 200W (2 channels) and a maximum charging current of 15A. The charger is easy to use and operate, with seven different modes available, including charge, discharge, balance, storage, ExtDischarge, SyncCharging, and digital power supply.

During the charging process, the charger displays real-time information on the current task, total voltage, charging/discharging current, working time, and more. It also provides real-time single-cell voltage information, internal resistance, and temperature, allowing users to monitor battery performance and charging status easily.

The GensAce iMars features a small and lightweight portable design, making it easy to take on the go. The wide-view IPS display ensures that you can see all the information you need at a glance. With high-power charging capabilities of up to 15 amps for one channel, worldwide voltage versatility of 100V-240V, AC 200 Watts, and DC 600 Watts, this charger is perfect for a wide range of applications.

Other features include an external discharge function, synchronous output, 2-in-1 fast-charging, built-in DC power source for different devices, controlled heat dissipation system, temperature compensation function, and advanced safety features, such as UL94-V0 Flame Retardant Grade and protection against short circuit, overcurrent, overcharge, and overvoltage.

Specifications:

  • Input Voltage: AC100-240V DC7-30V
  • Output Voltage: DC 1~30V
  • Max. Input Current: DC 30A
  • Max. Discharging Power: 15W2 (Main port 6W2, Balance port 9W*2)
  • Maximum Charging Power: 100W2 DC 300W2
  • Charge Current: 0.1-15A*2
  • Discharge Current: 0.1~3A*2
  • Cell Balancing: 1~6s
  • USB Output: 5V/2.4A
  • Display Type: 2.4 inch IPS LCD Display
  • Supported Battery Chemistries: LiPo/LIHV/LiFe 16S; NiMH/Cd 116S
  • Dimensions: 145x76x62 mm
  • Product Net Weight: 530G

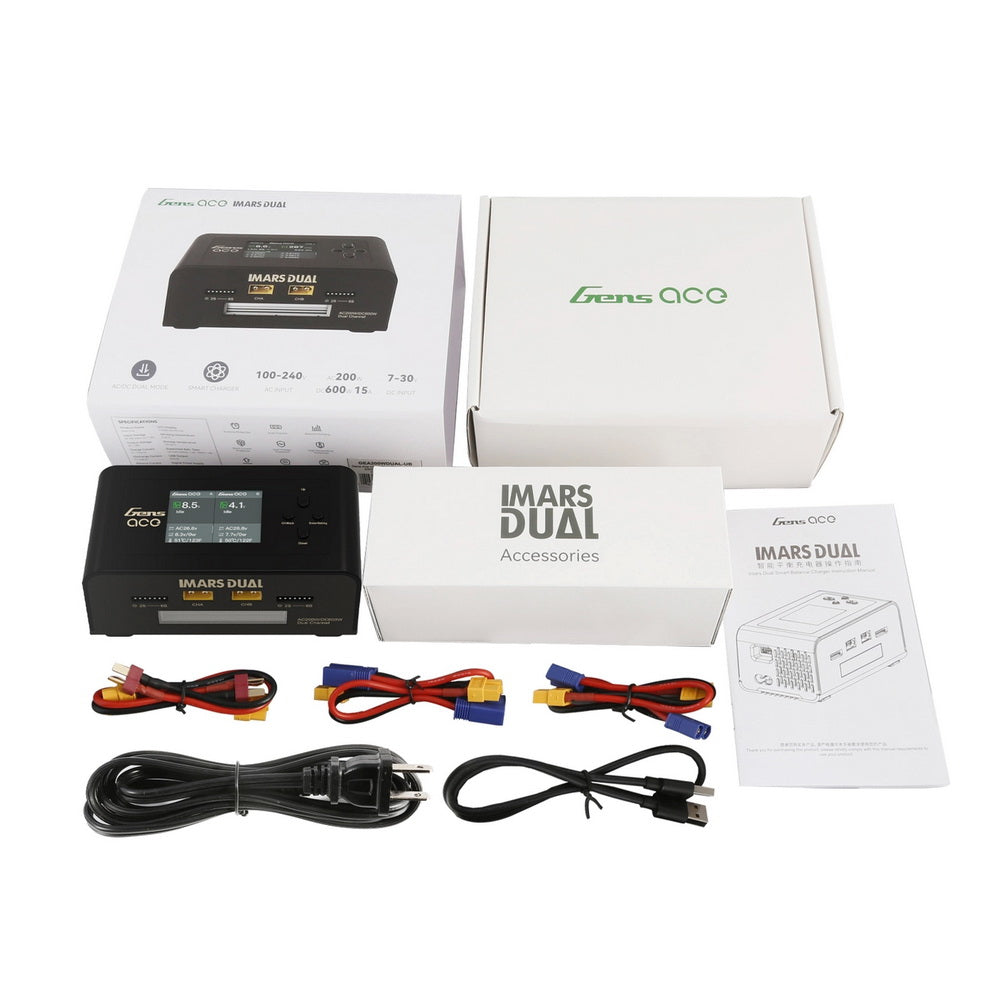

  • Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
  • Brand: GensAce
  • Part N: GEA200WDUAL-UB
  • Manuals: ImarsDualV1.0.5.rar
