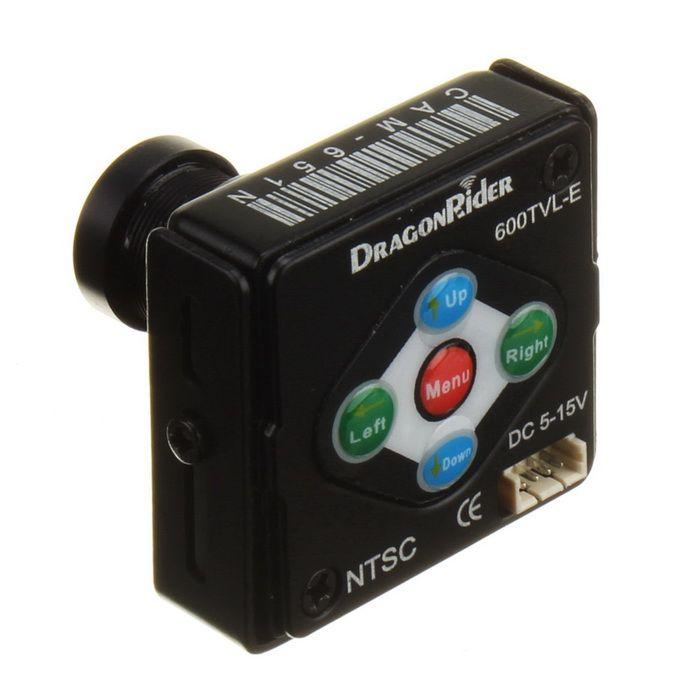

Dragon Rider 600TVL NTSC FPV Camera 651N

600 TVL high resolution FPV camera with all Sony chips: 1/3" Sony HAD CCD II, Sony Effio-E PSD. Please check the above photos for wiring details. Specifications: Model: CAM-651N Encoding system: NTSC CCD: 1/3" Sony HAD CCD II PSD: Sony Effio-E Resolution: 600 TVL OSD function: built-in Lens: 3.6mm standard Dimensions: 32x32x30mm Weight: 40g Camera case: black zinc alloy Minimum Illumination: 0.01Lux Effective Pixels: PAL: 960(H)*582(V) NTSC: 960(H)*494(V) Scanning System: PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec S/N Ratio: More Than 48dB(AGC off) Electronic Shutter: PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto Gamma Characteristic: 0.45 White Balance: ATW/AWB/Fixed /Manual OSD: Built-in Day/Night(colour/BW): Colour/Auto /BW Mirror: On /Off (optional) Display Adjust: Contrast/Sharpness/CB-Gain/CR-Gain Privacy: On/Off (4 programmable zone) Lens Option: 3.6mm board lens BLC: On /Off (optional) AGC: On /Off (optional) Sync System: Internal/Line Lock selectable Video output: 1Vp-p 75 Oms , Negative Power Consumption: 12V± 10%DC, 50mA Operation Temperature: -10°C ~ + 50°C, RH 95% Max Storage Temperature: -20°C ~ + 60°C, RH 95% Max Contents: 1 x camera 1 x AV cable 1 x lens cap 1 x camera bracket
