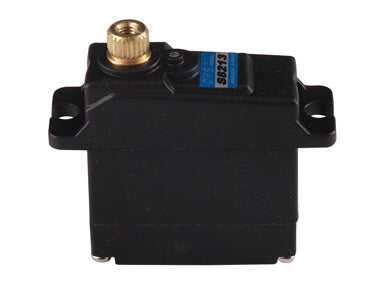

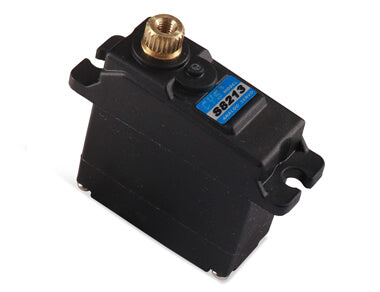

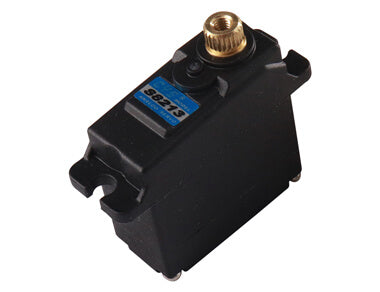

Item NO.: CYS-S8213 20g servo motor
Description : Robotics servo motor – servo motor for aircraft
Size : 29*13.5*30.4MM
Torque : 2.8Kg.cm ~ 3.0Kg.cm
Speed : 0.18sec ~ 0.16sec/60 degree
Voltage : 4.8Volts ~6.0Volts
Weight : 20± 1 g
Application&Features
| Specification Sheet | |
| Item No. | S8213 |
| Type | Analog |
| Weight | 20g |
| Size | 29*13.5*30.4mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.14sec/60° at no load |
| Operating Speed (7.4V) | 0.12sec/60° at no load |
| Stall Torque (6.0V) | 2.8kg.cm |
| Stall Torque (7.4V) | 3.0kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| 360 Modifiable | No |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 120mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 150mA no load operating |
| Stall Current | 1A/1.3A |
| Dead Band Width | 4usec |
| Motor Type | Iron core |
| Bearing Type | ball bearing |
| Horn gear spline | 25T |
| Gear Type | Metal |
| Connector Wire Length | 300mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal | |
