Parameter Specification
Electric Power (Included):
Motor: X4120 V3 550KV
ESC: 100 amp SunnySky
Servos: SG12 X4
Servo Arms: Aluminum X4
Propeller: 15X8 EOLO
Recommended battery: (not included)
https://www.buddyrc.com/products/gens-ace-5000mah-22-2v-60c-6s1p-lipo-battery-pack-with-ec5-plug-1
|
Item： |

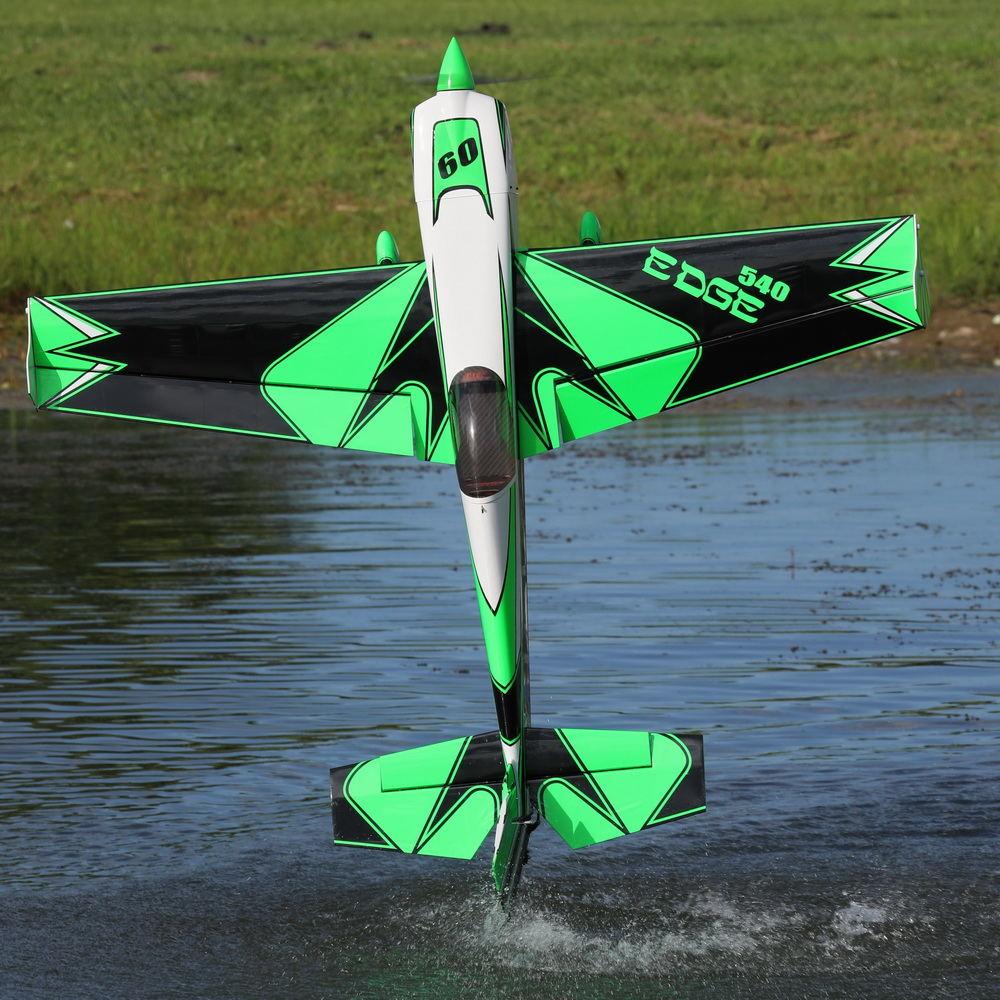

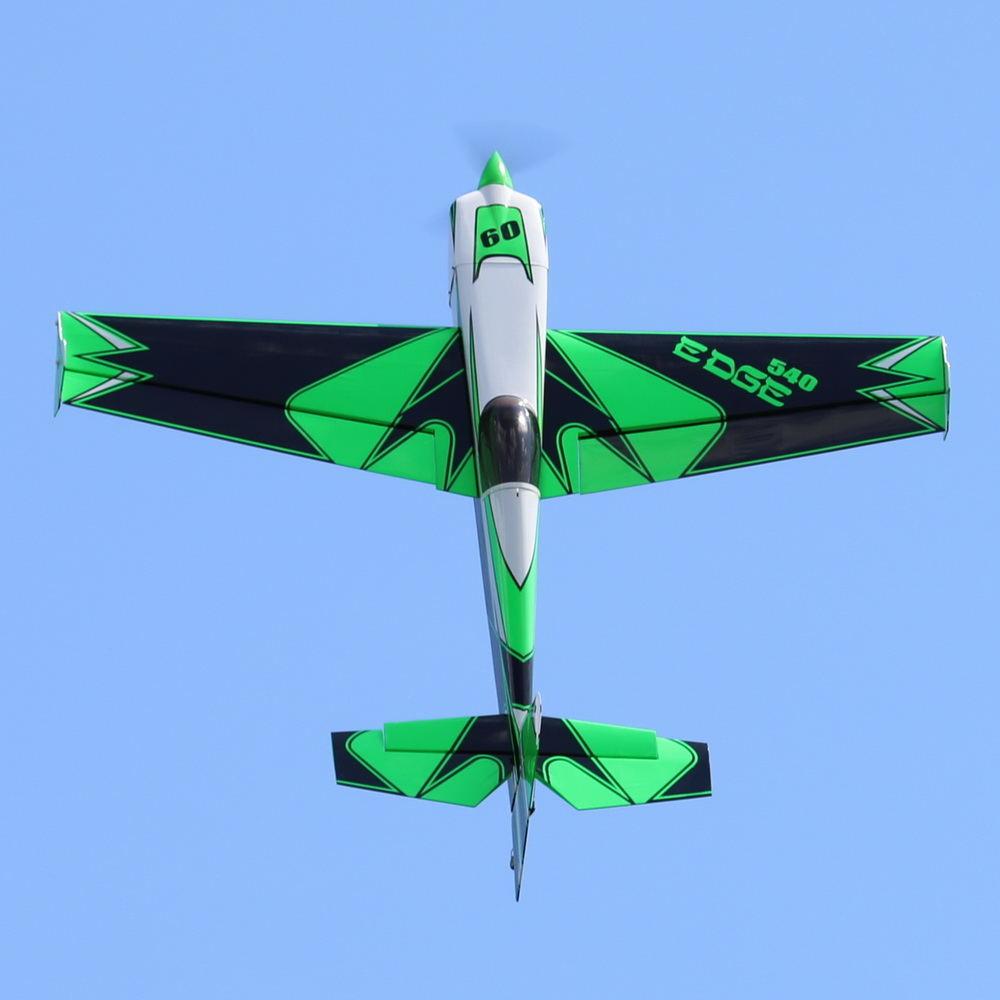

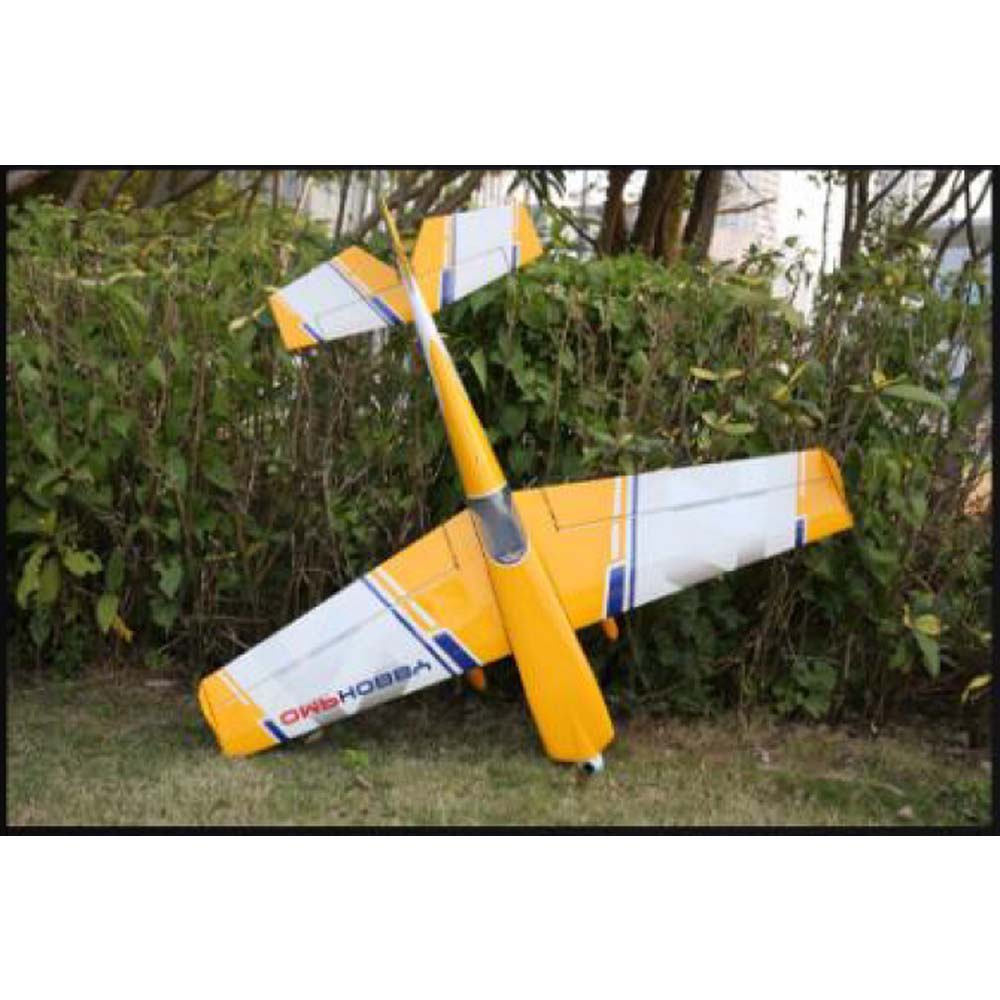

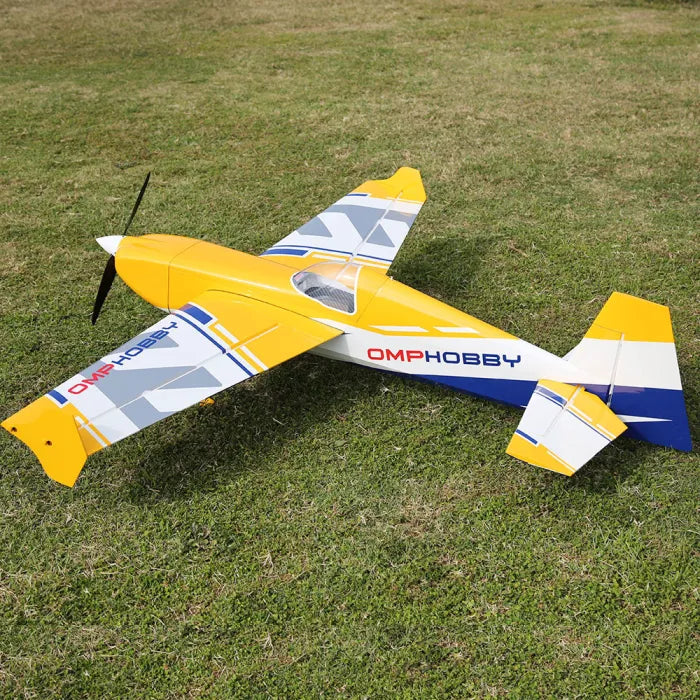

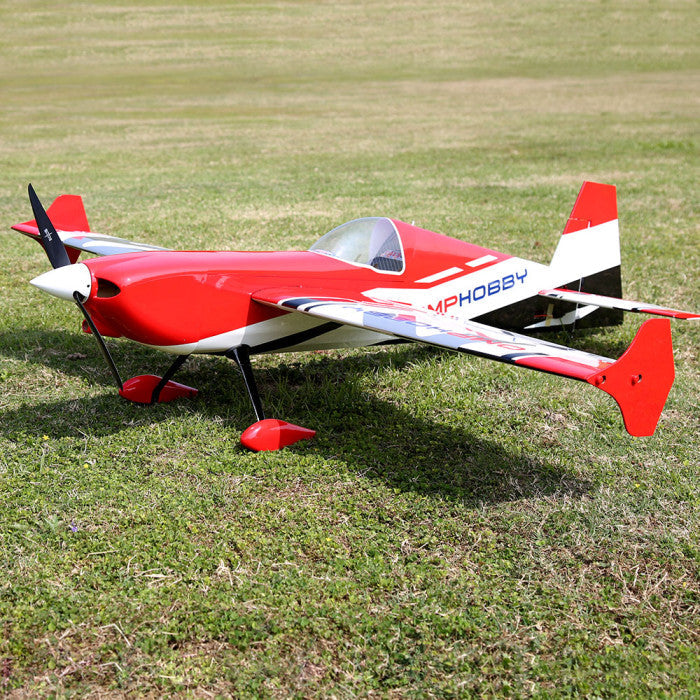

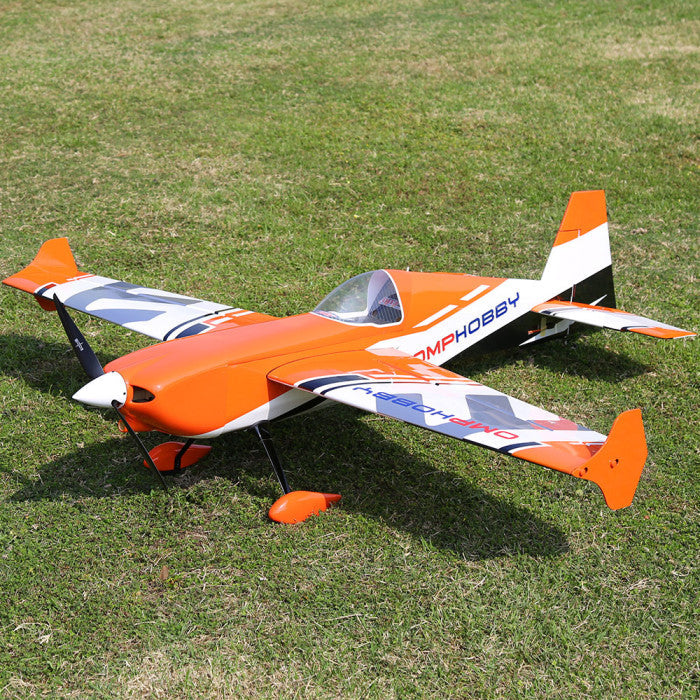

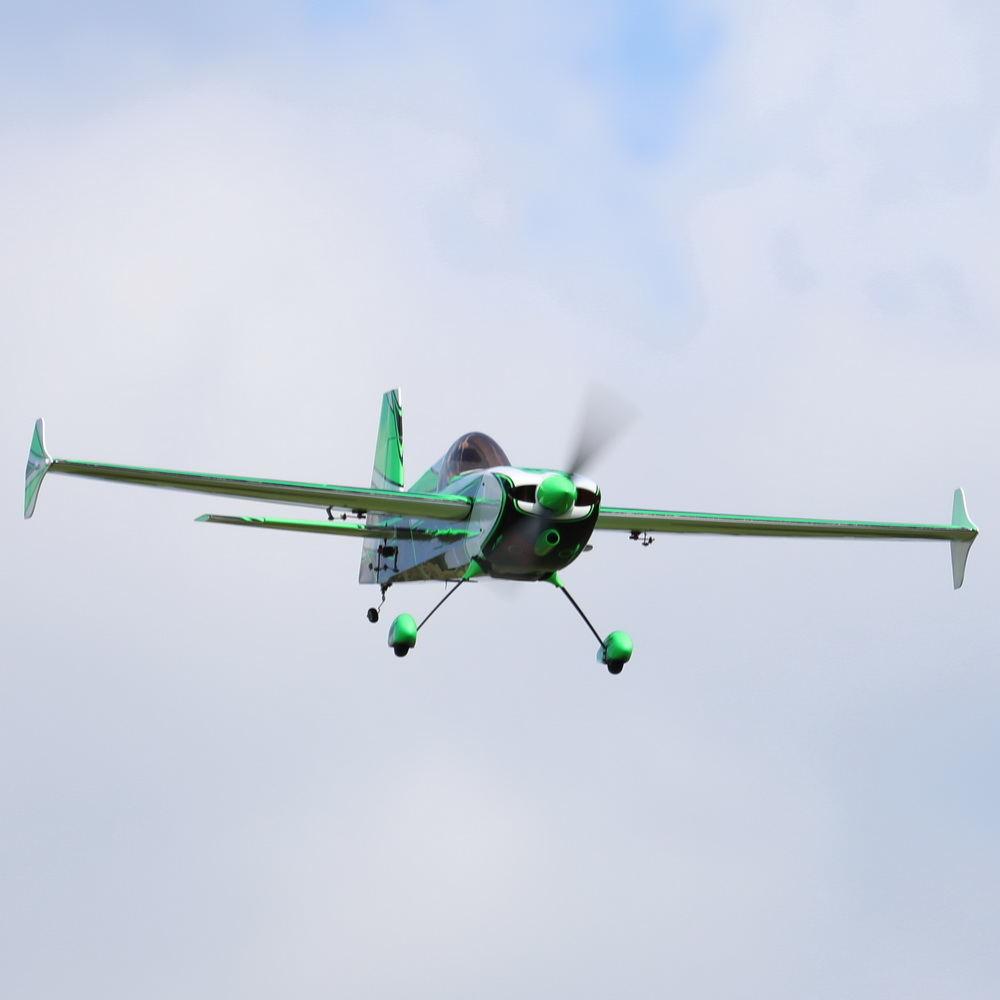

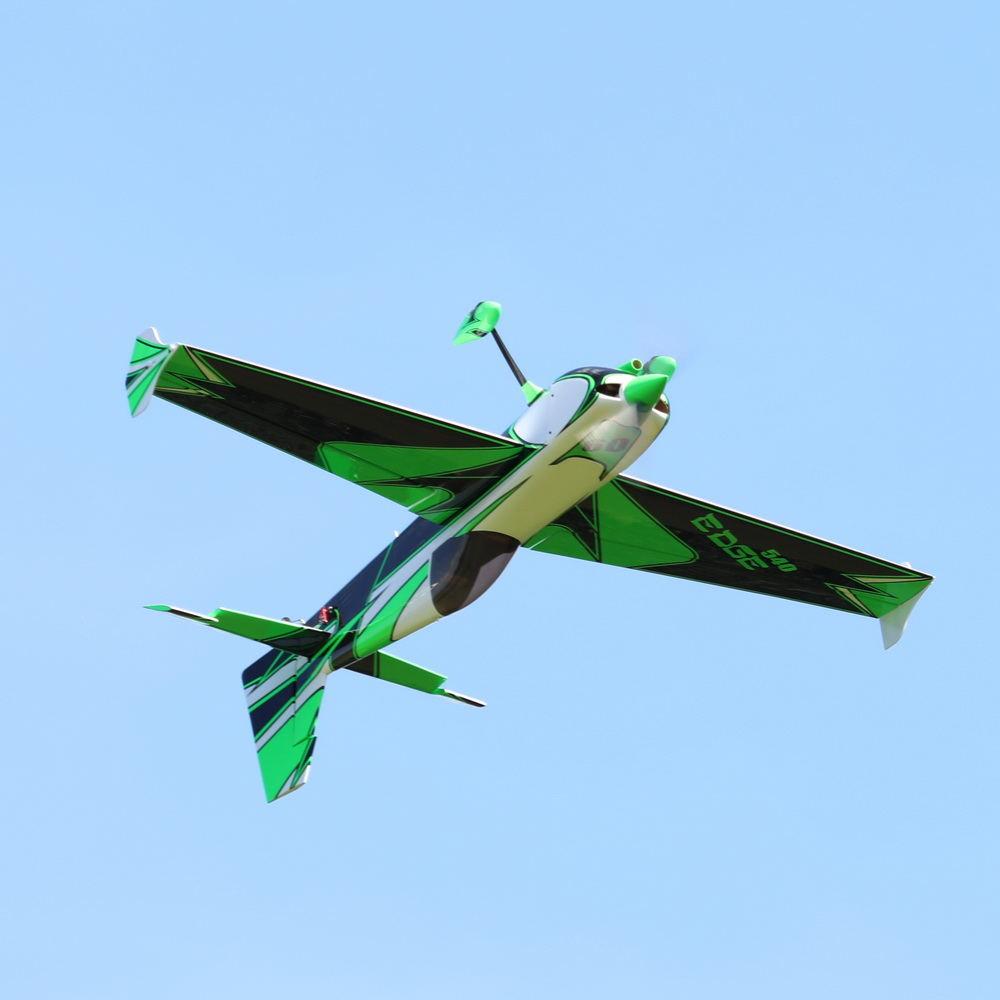

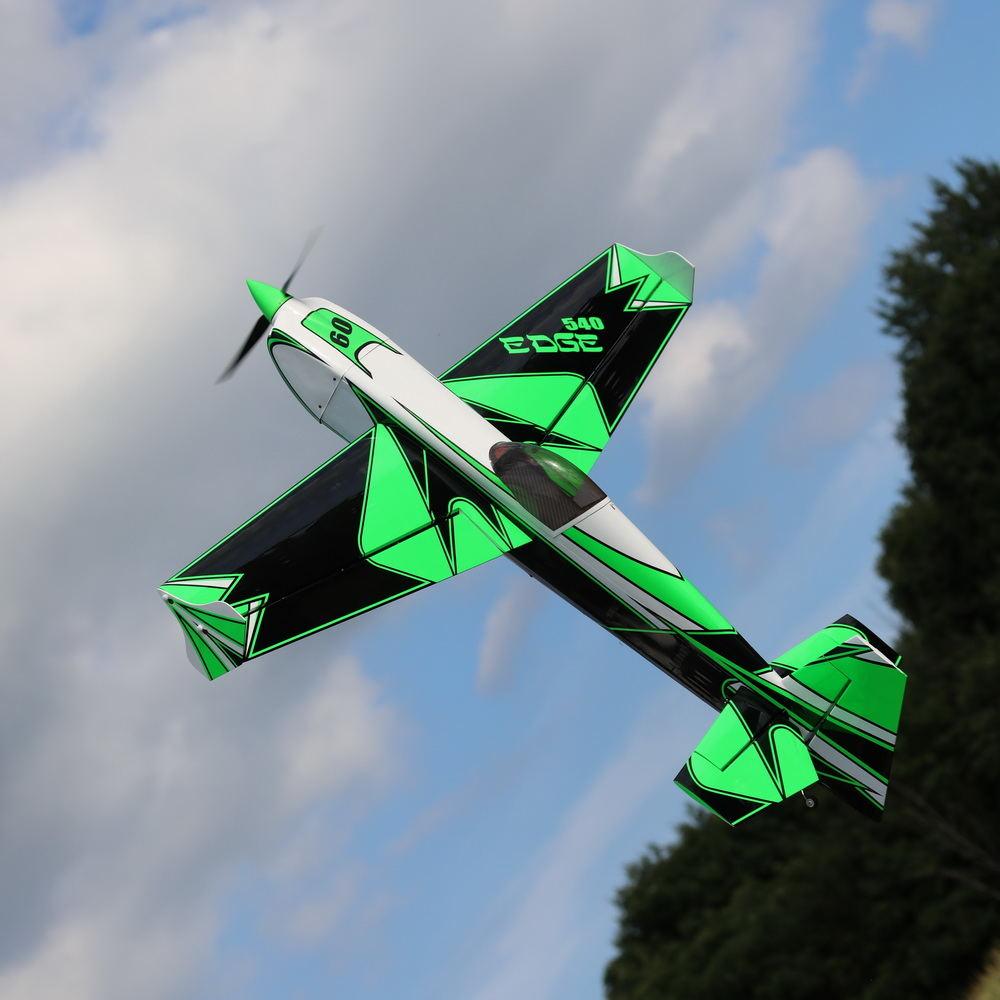

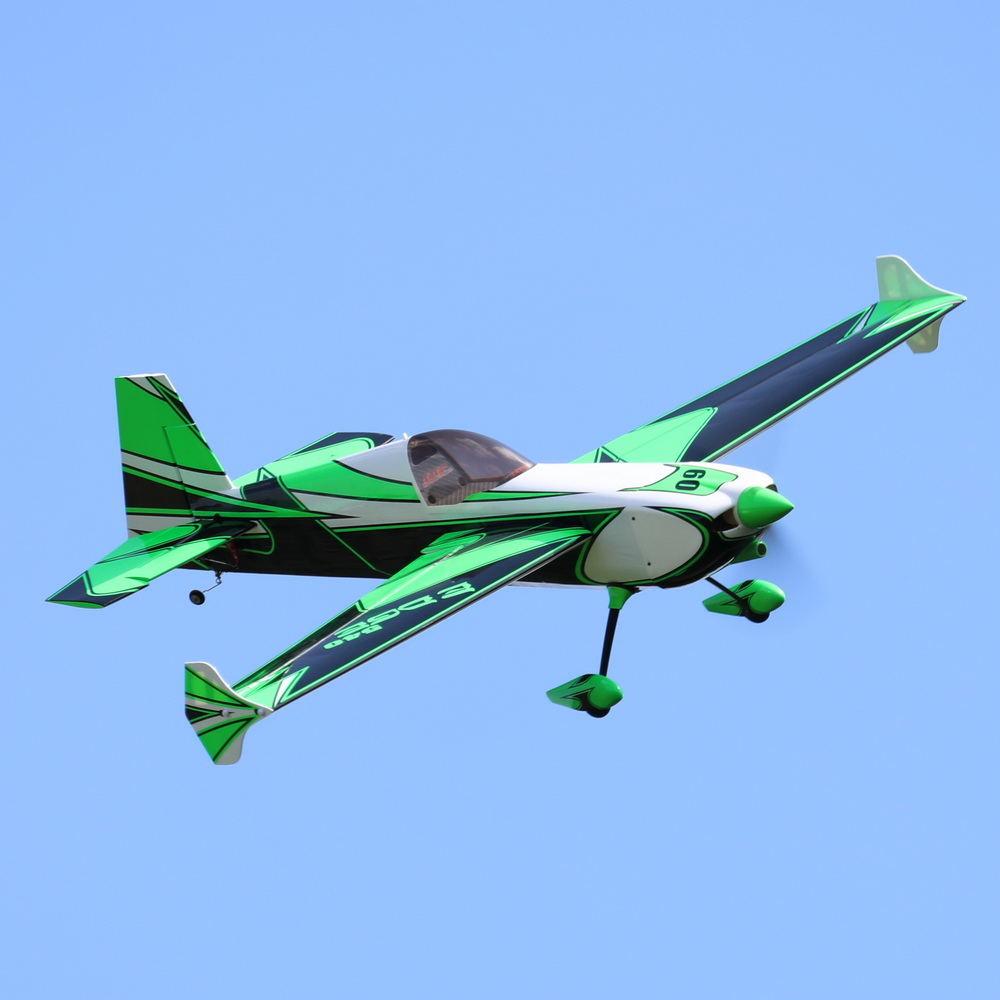

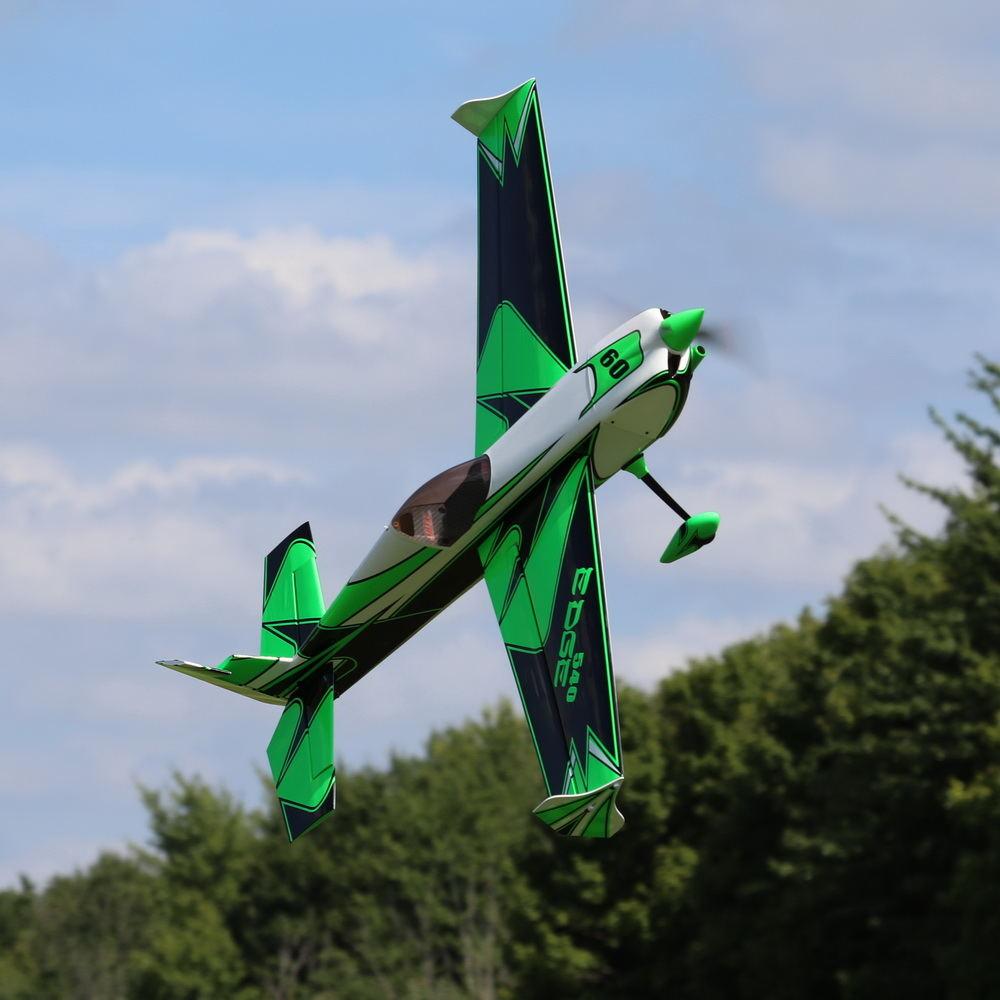

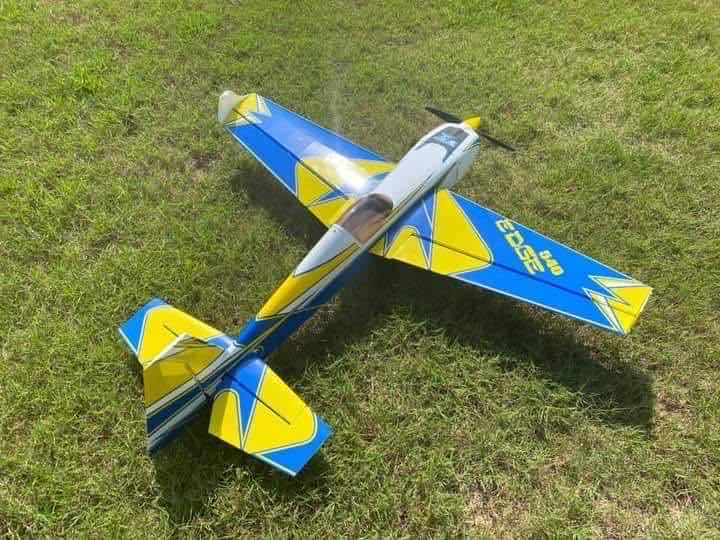

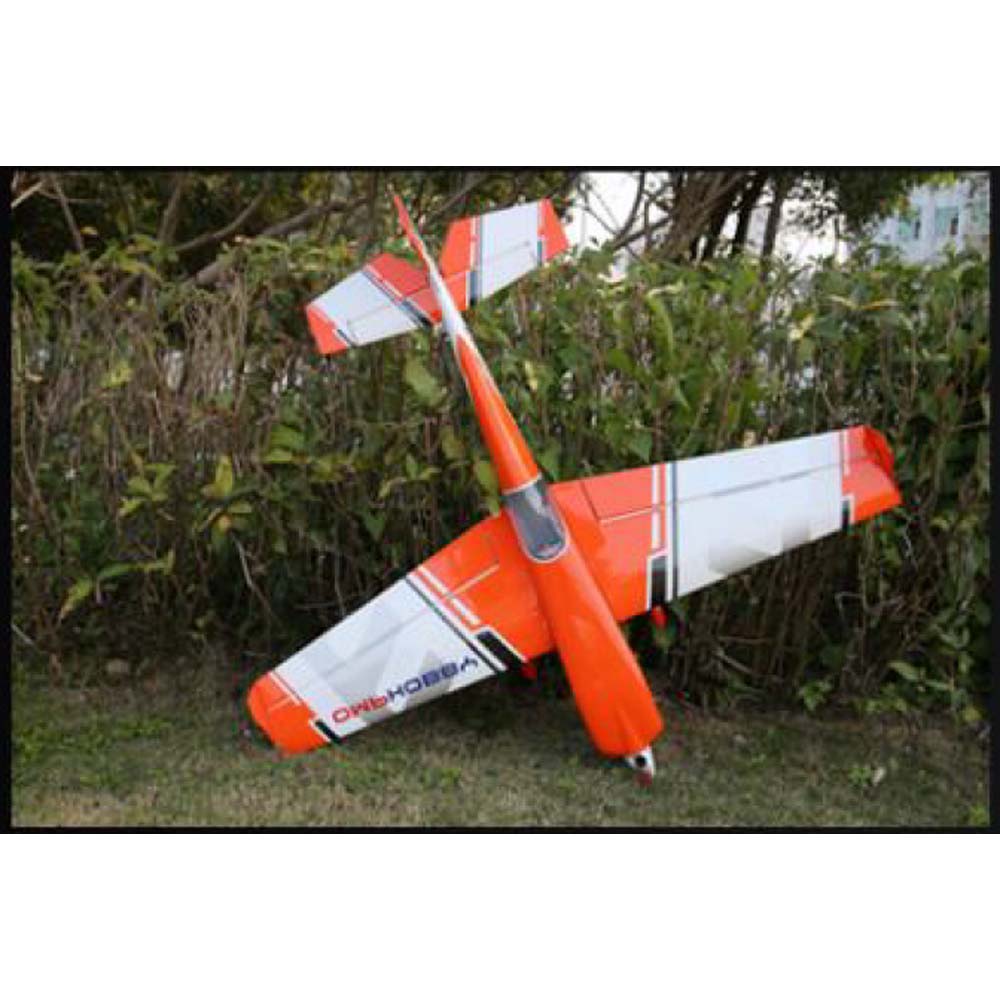

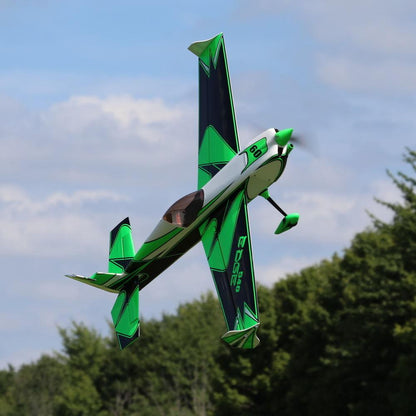

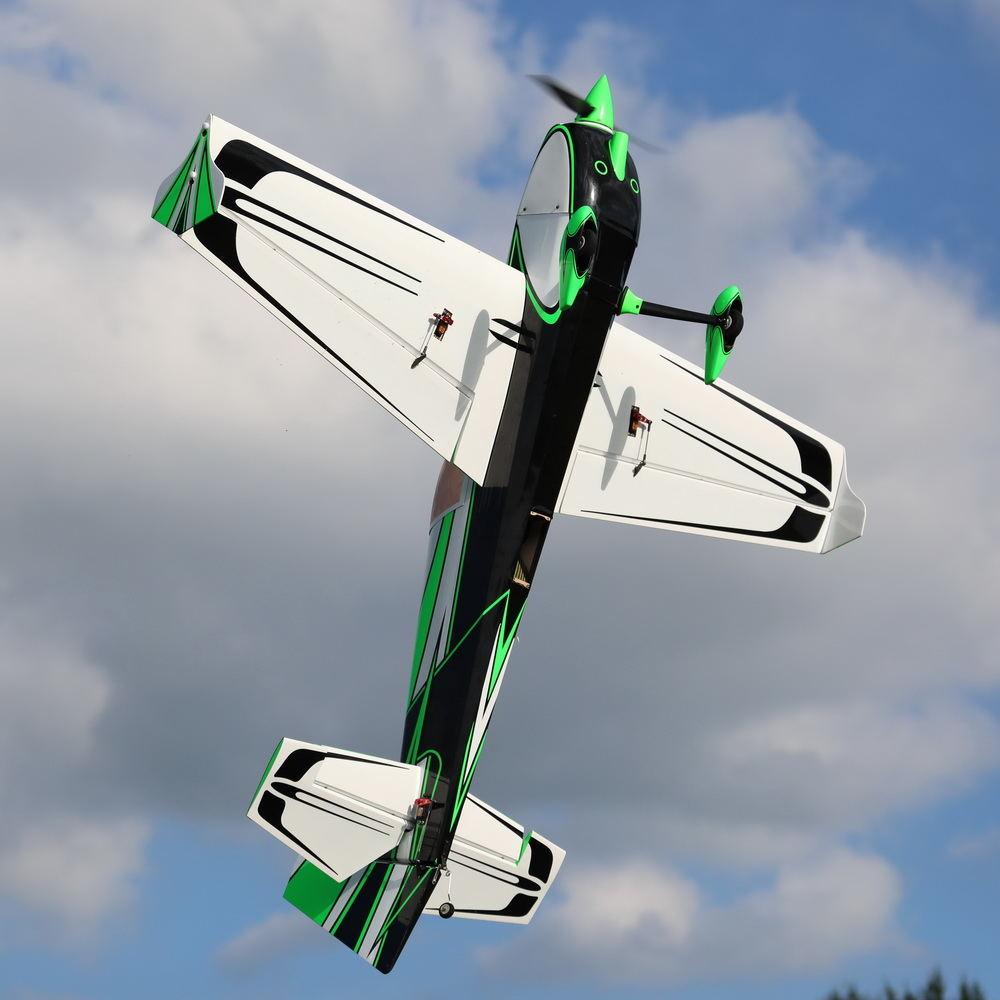

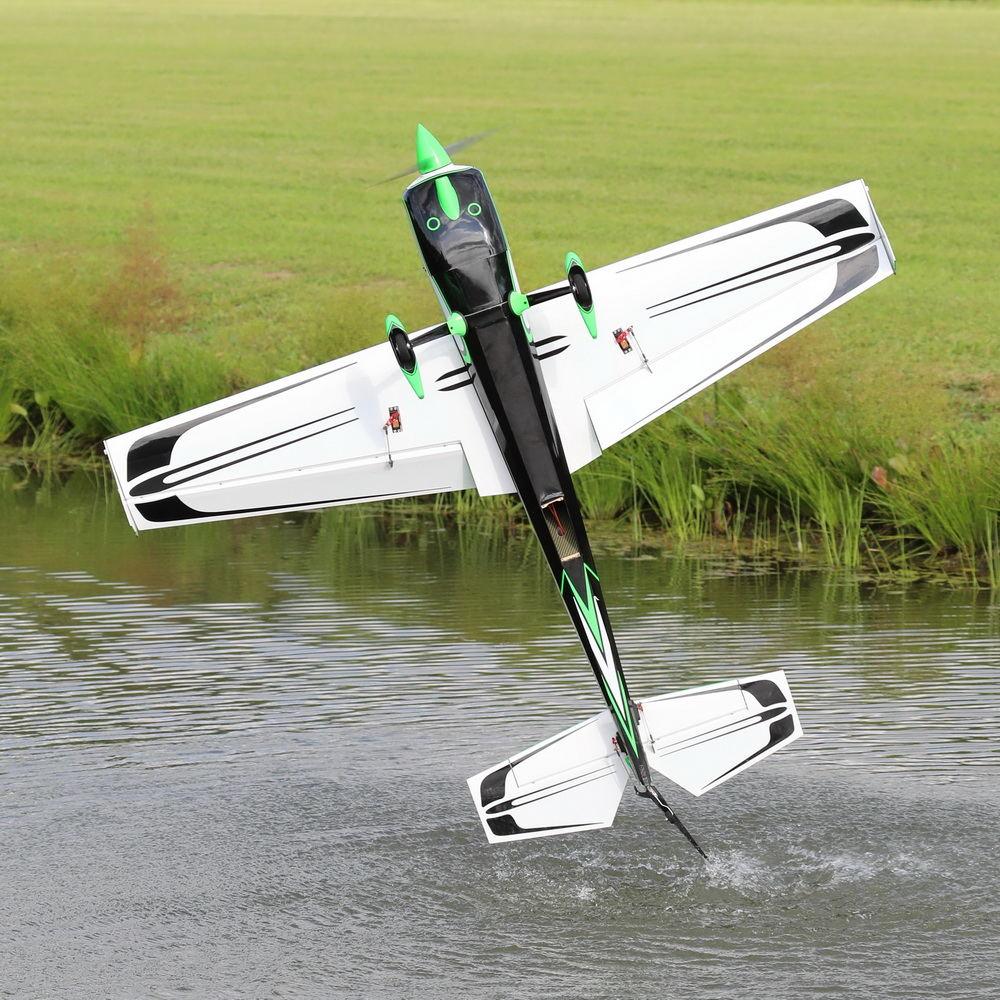

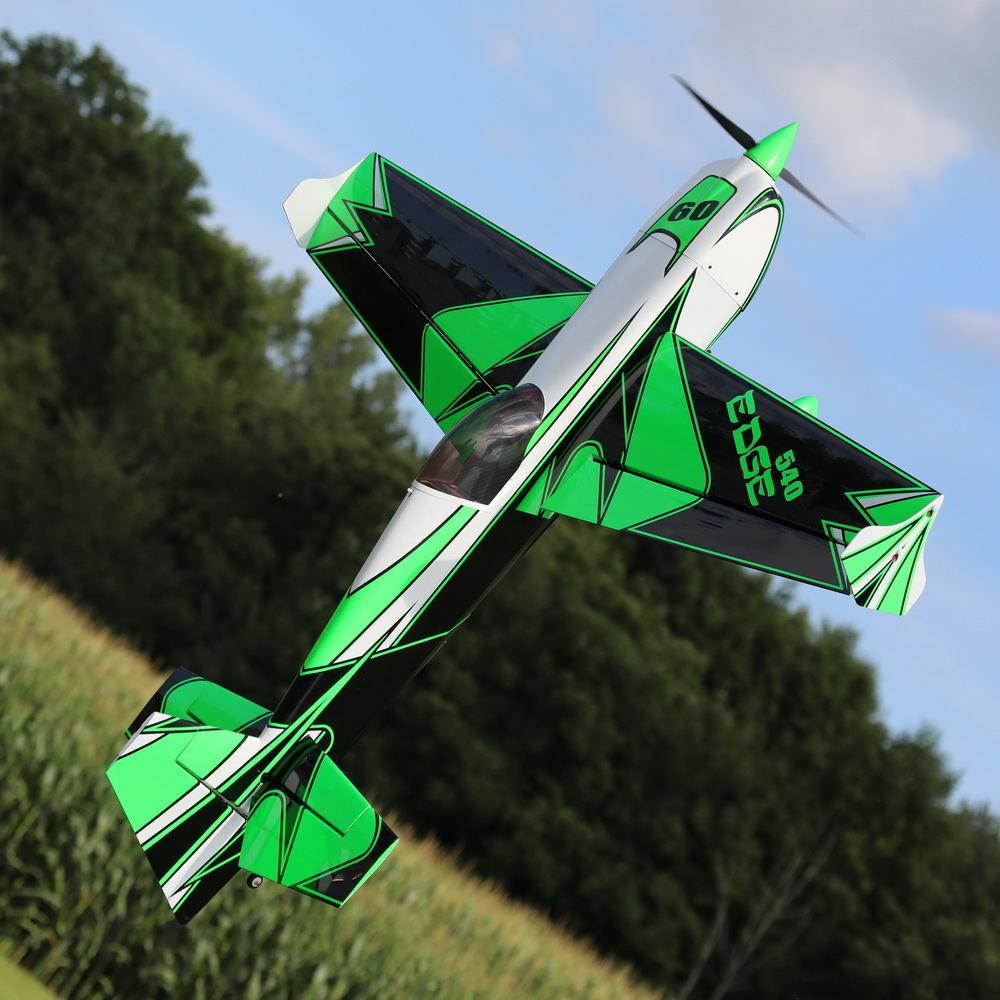

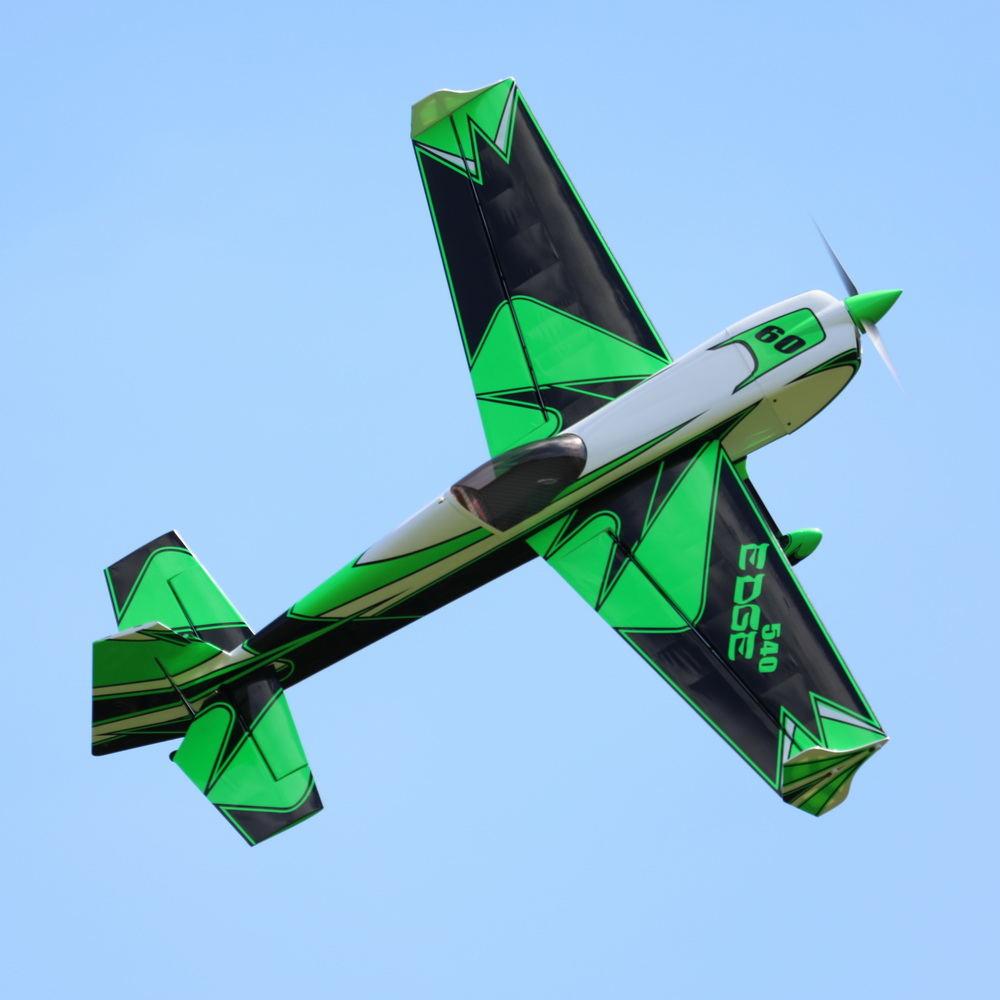

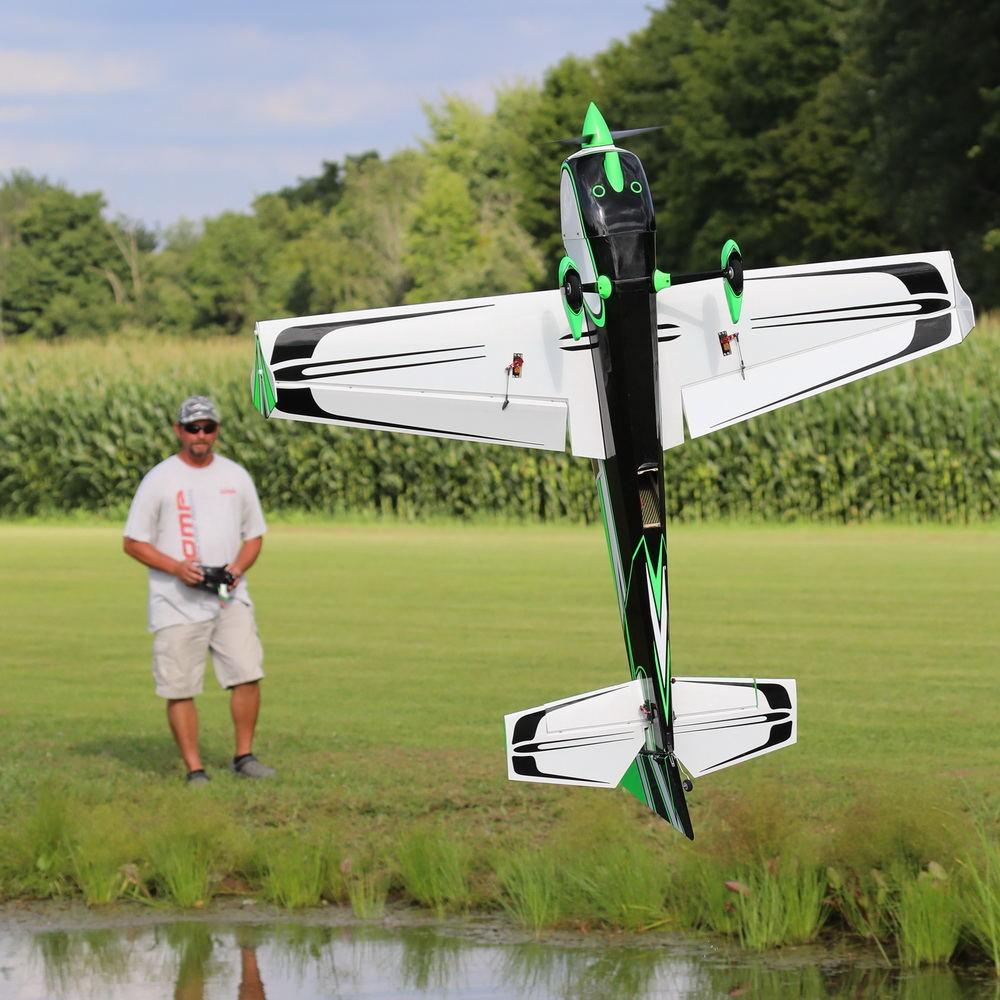

OMPHOBBY 60”EDGE 540 |
Color: |
Green▢ Red▢ Yellow▢ Orange▢ |
|
Wing Span: |
1524mm(60in) |
Full Length: |
1500mm(59in) |
|
Flight Weight: |
2.75~2.85KG |
The Center of Gravity (CG)： |
Approx.86-95mm |
|
Wing Area: |
42.32d㎡ |
Wing Load: |
64.98~67.34g/d㎡ |
|
Wing Angle of Incidence: |
0° |
Motor Thrust Angles: |
Down 0° & Right 2.8° |
|
Pack Dimension： |
130*44*22 (L*H*W)cm |
Gross Weight: |
10KG |
|
Option2: Motor: 4125 515KV Esc 100A Propeller: Eolo 16x8 Lipos: 6s 3300mah-4000mah |
|||
Recommended Settings of Dual Rates and Exponentials of Control Surfaces
| Rate | EXP | Direction |
Throw |
|
| Aileron |
High |
35~40% |
Up |
36~39° |
| Low |
40~45% |
Down |
20~26° |
|
| Elevator |
High |
38~45% |
Up |
45~53° |
| Low |
45~55% |
Down |
30~35° |
|
| Rudder |
High |
38~45% |
Up |
42~50° |
| Low |
45~55% |
Down |
28~32° |
