OMP Hobby 49" Challenger ARF Balsa Airplane
Product manual can be downloaded from here.
OMP Hobby 49" Challenger ARF Balsa Airplane

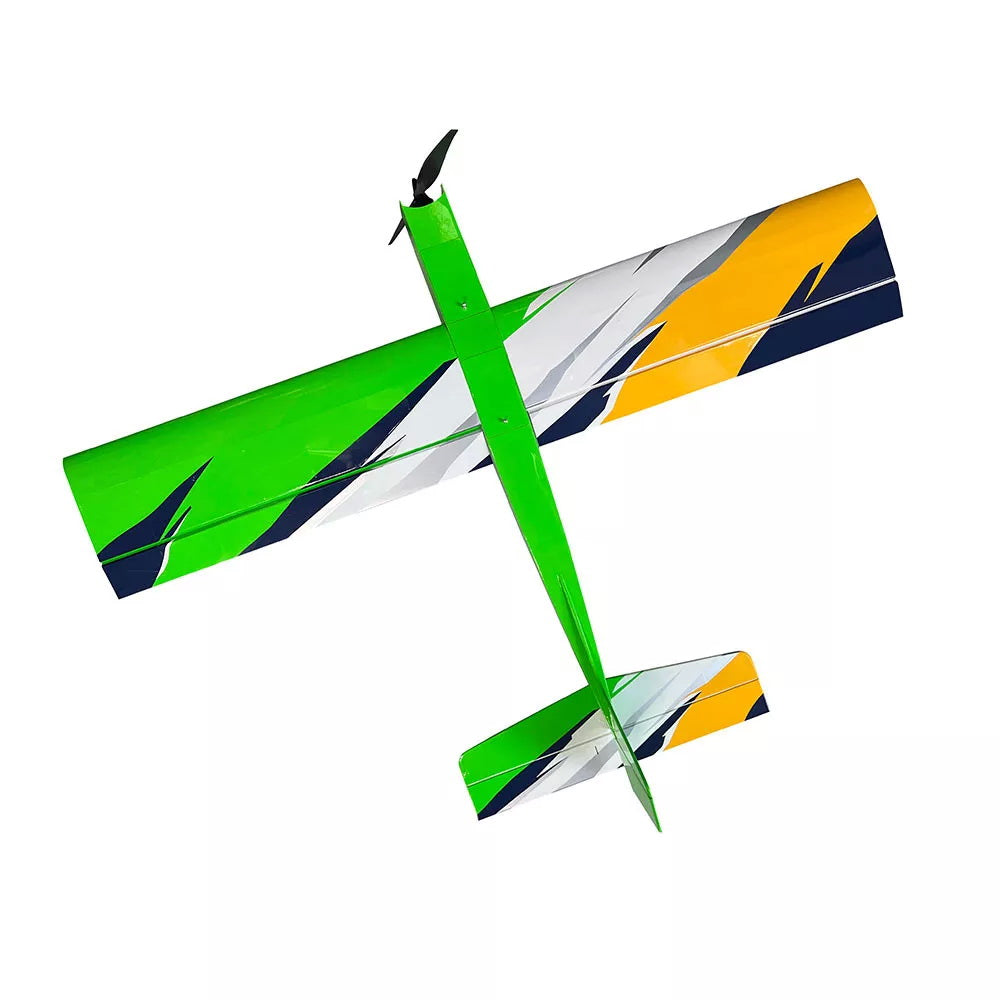

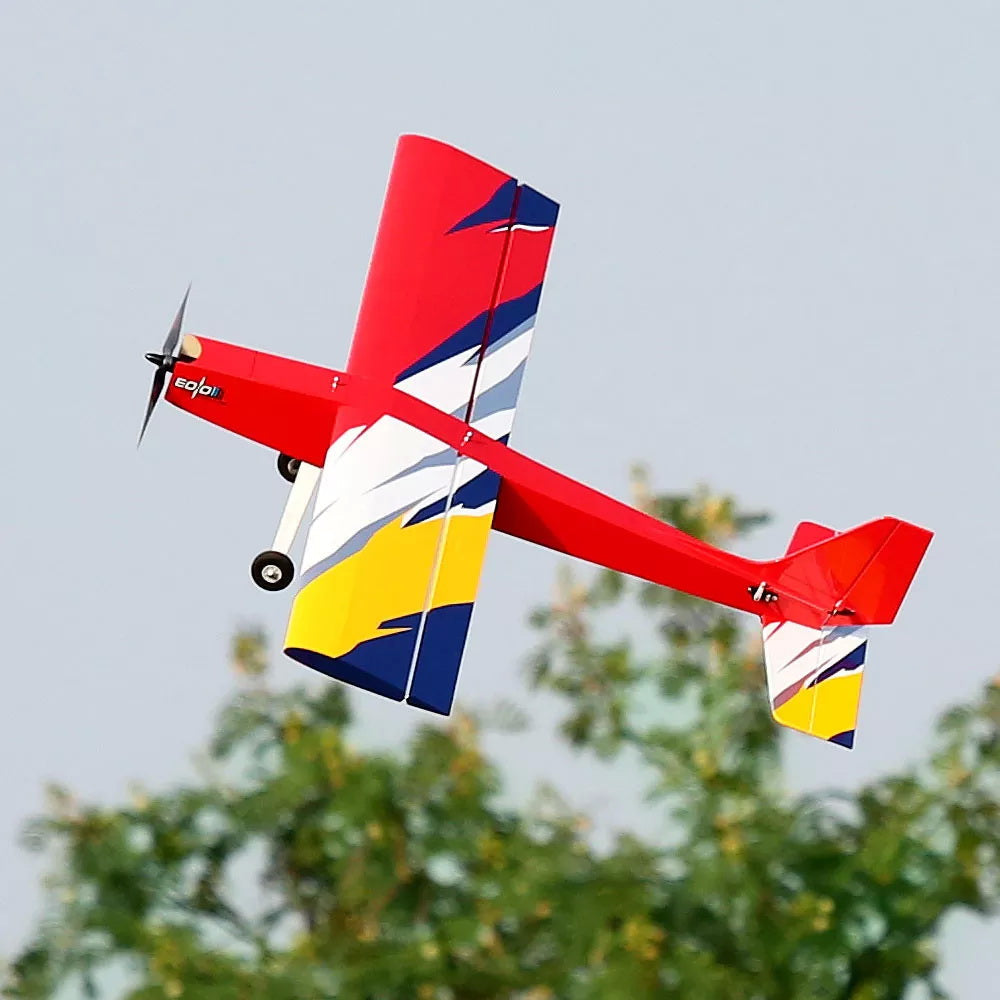

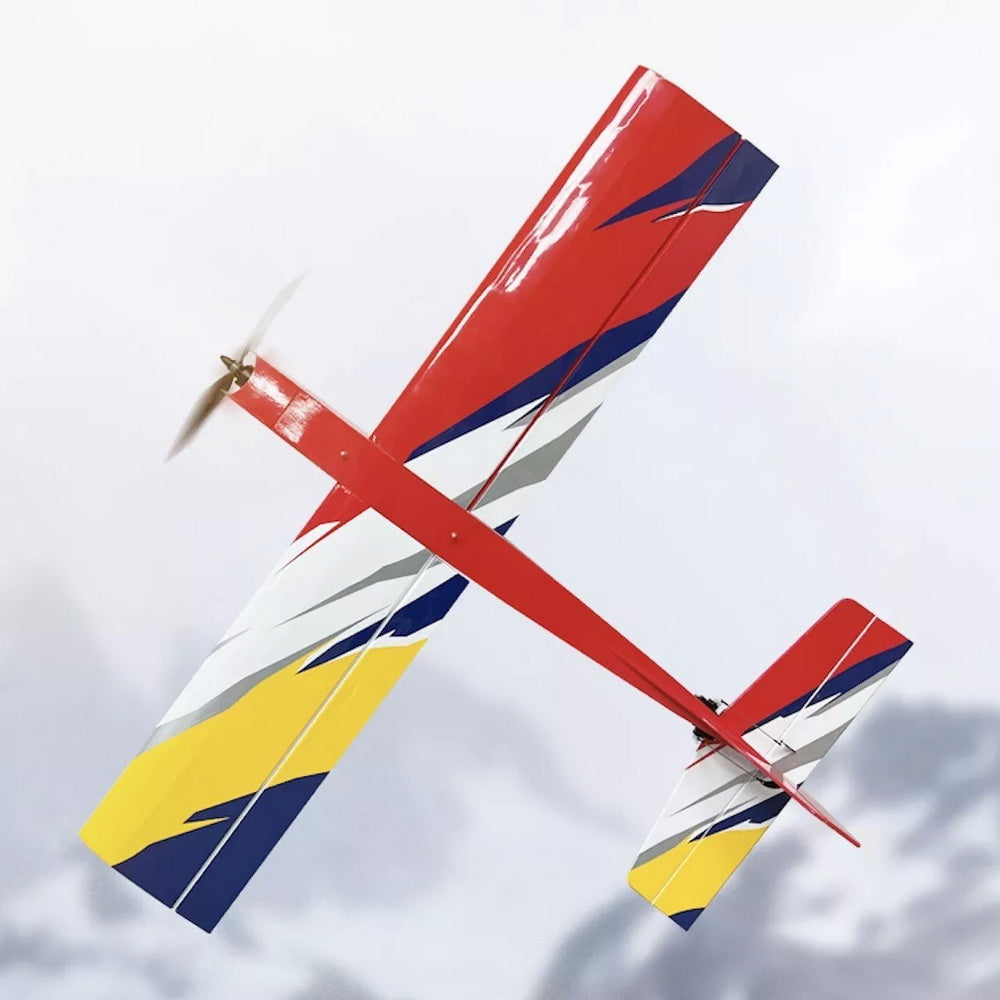

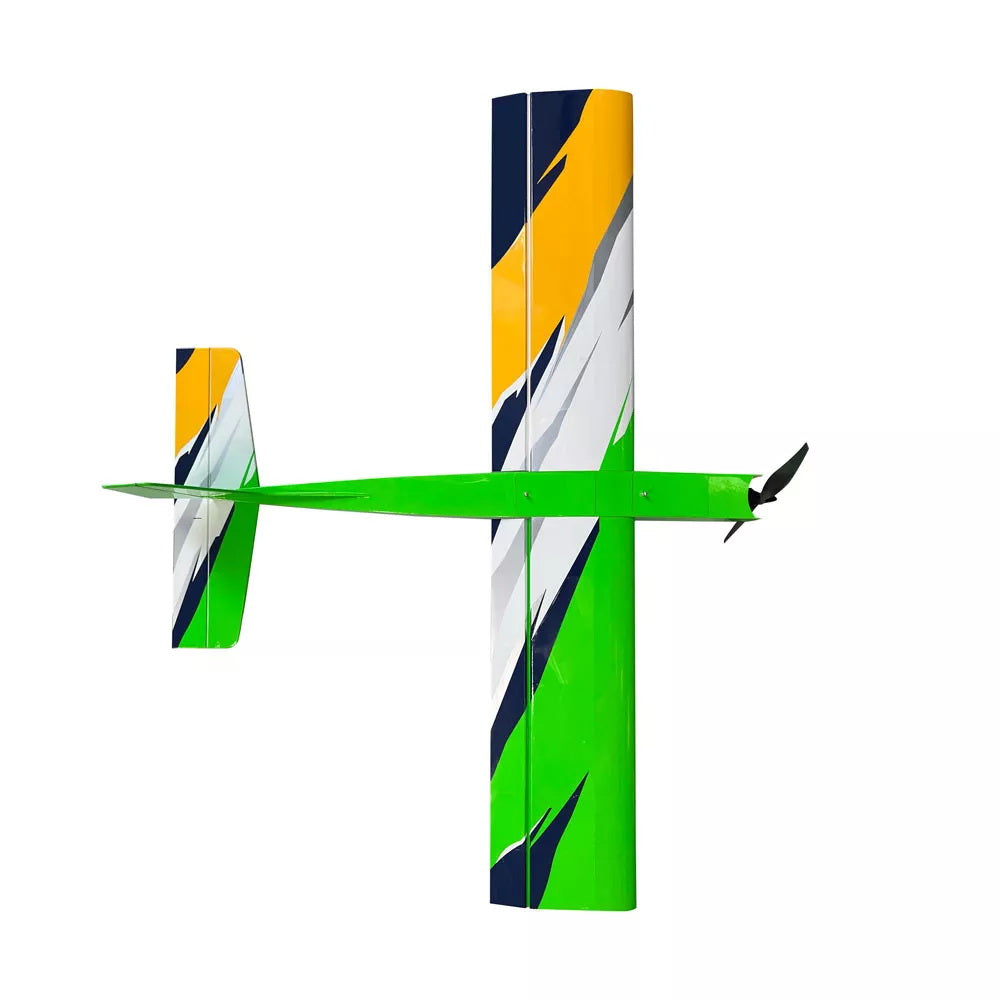

OMP Hobby 49” Challenger is a sport RC model airplane built in the traditional way: balsa and film cover. The airplane features light yet strong structure, low wing load, and abundant power, making the airplane easy to fly and capable of a lot of advanced aerobatics, such as all P3A and a few 3D maneuvers. This airplane performs very well in either low or high speed, with great authenticity and precision in response to radio stick movements, ideal for pilots who graduated from trainer airplanes to the next level of skills.
The 49” Challenger ARF does NOT include Motor, ESC, and servos.
We recommend Glacier 2200mAh 3S LiPo for this airplane. the battery can be purchased by click this link.
DSMX compatible Lemon 6 channel receiver.
Parameter Specification:
Wing Span: 1250mm(49in)
Full Length: 1006mm(39.6in)
Flight Weight: 1170g
Wing Area: 27.37d㎡
Wing Load: 41.8~55.7g/d㎡
Wing Angle of Incidence: 2°
Motor Thrust Angles: Down 2°& Right 4°
Pack Dimension: 104*30*16 (L*H*W)cm
Gross Weight: 5.3KG
The Center of Gravity (CG)
Approx.62mm (measured from wing leading edge at root)
The ARF Version doesn't include Motors, ESC, and Servo.
Recommend Power System:
Motor: Sunnysky 2820
ESC: 40A
Propeller: Eolo 13x7E/12x6.5E
Lipo battery:3S/4S 2200-2600mah
Servo
OMPHOBBY SG5 17g *4 (Aileron*2,Elevator*1, Rudder*1)
Cord/lead: 300mm*2,600mm*4
Servo Arm: 17g, 0.9"plastic servo arm
Recommended Settings of Dual Rates and Exponential of Control Surfaces
Aileron: Low rate 60 deg. 40% expo
High rate 100 deg. 40% expo
Elevator: Low rate 50 deg. 30% expo
High rate 100 deg. 30%expo
Rudder: Low rate 60 deg. 30% expo
High rate 100 deg. 30% expo
