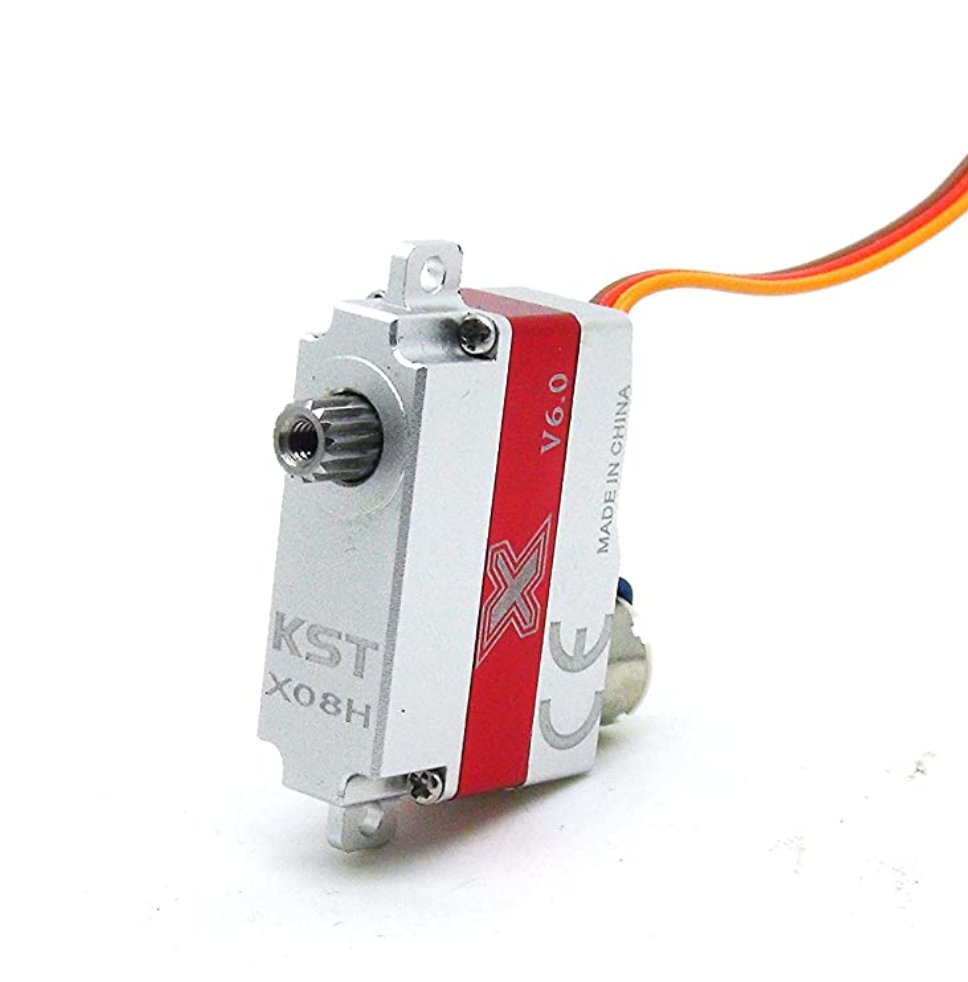

KST X08H V6.0 Digital Servo 8.4V 0.09s 2.8kg.cm 38oz.in

Product: KST X08H V6.0 Digital Servo 8.4V 0.09s 2.8kg.cm 38oz.in

Specifications:

• Rated Voltage: DC7.4V
• Voltage Range: DC3.8V-8.4V
• Torque:
  • 1.4kg.cm@3.8V, 14N.cm@3.8V
  • 2.2kg.cm@6.0V, 22N.cm@6.0V
  • 2.8kg.cm@8.4V, 28N.cm@8.4V
• Speed:
  • 0.18sec/60°@3.8V
  • 0.15sec/60°@6.0V
  • 0.09sec/60°@8.4V
• Working Frequency: 1520us/20KHz
• Default Travel Angle: ±60° = 120° Total
• Temperature Range: -10℃ to +65℃
• Soft Start: Yes
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 23.5816.8mm±0.2mm
• Weight: 8g±10%

Package Included:

• 1x KST X08H V6.0 Servo
