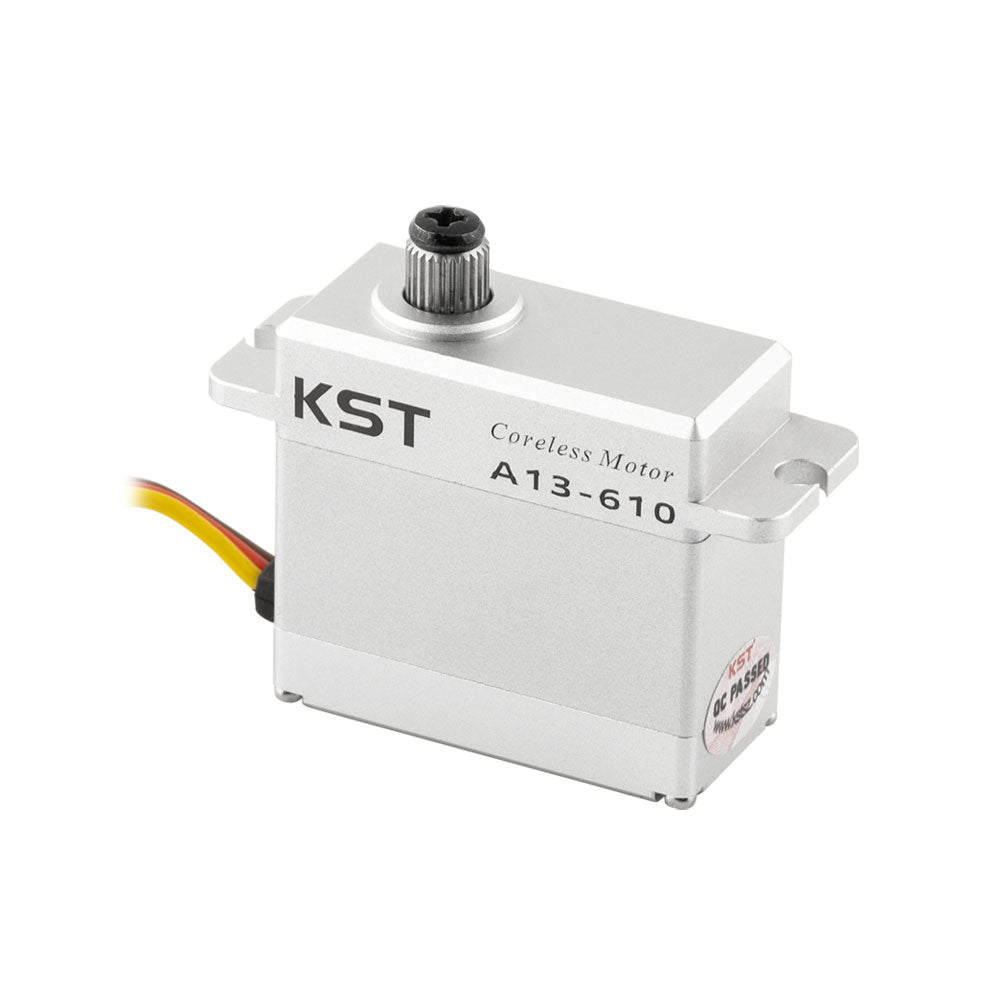

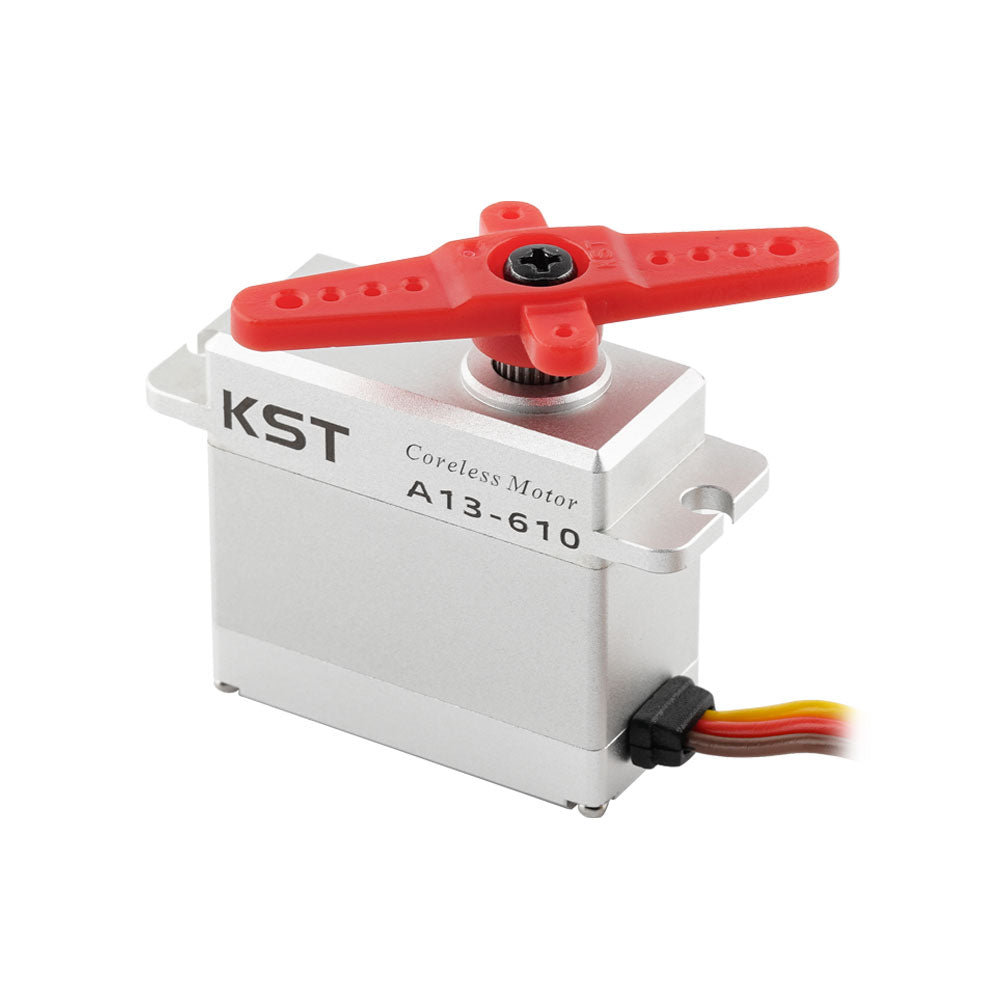

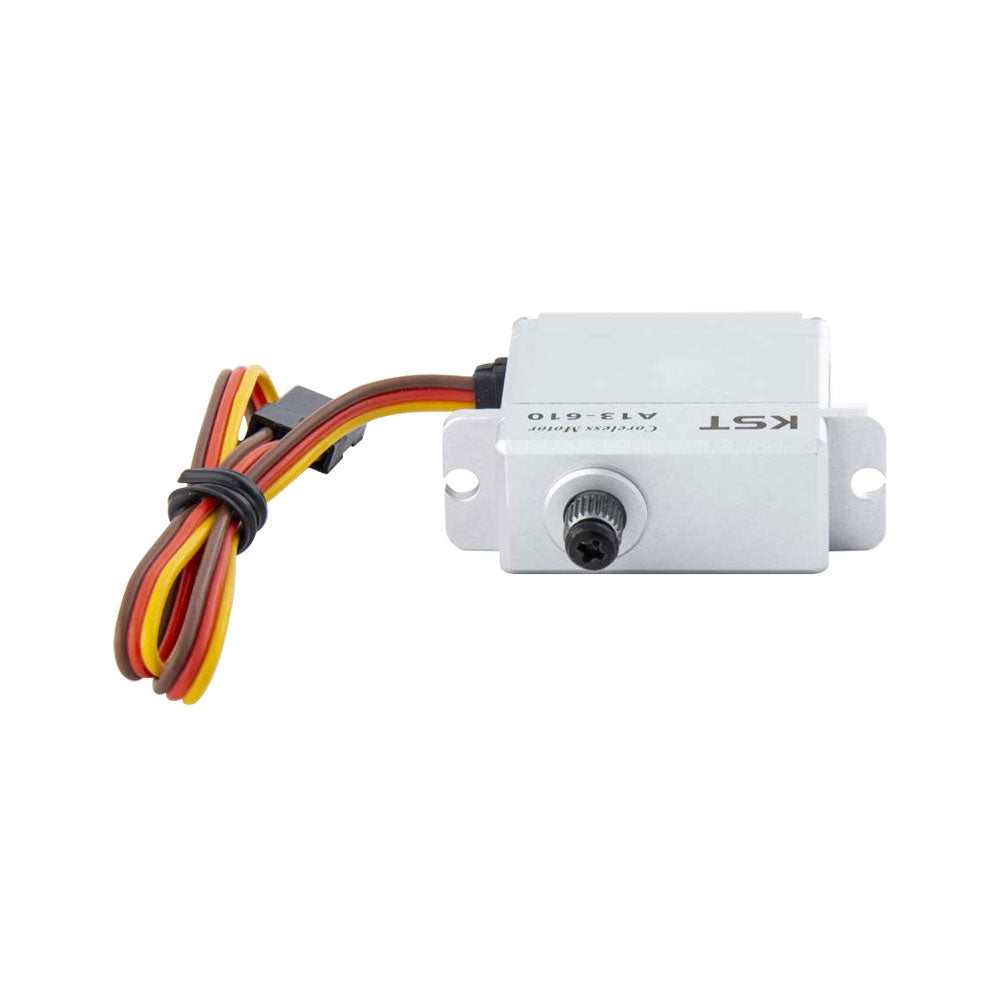

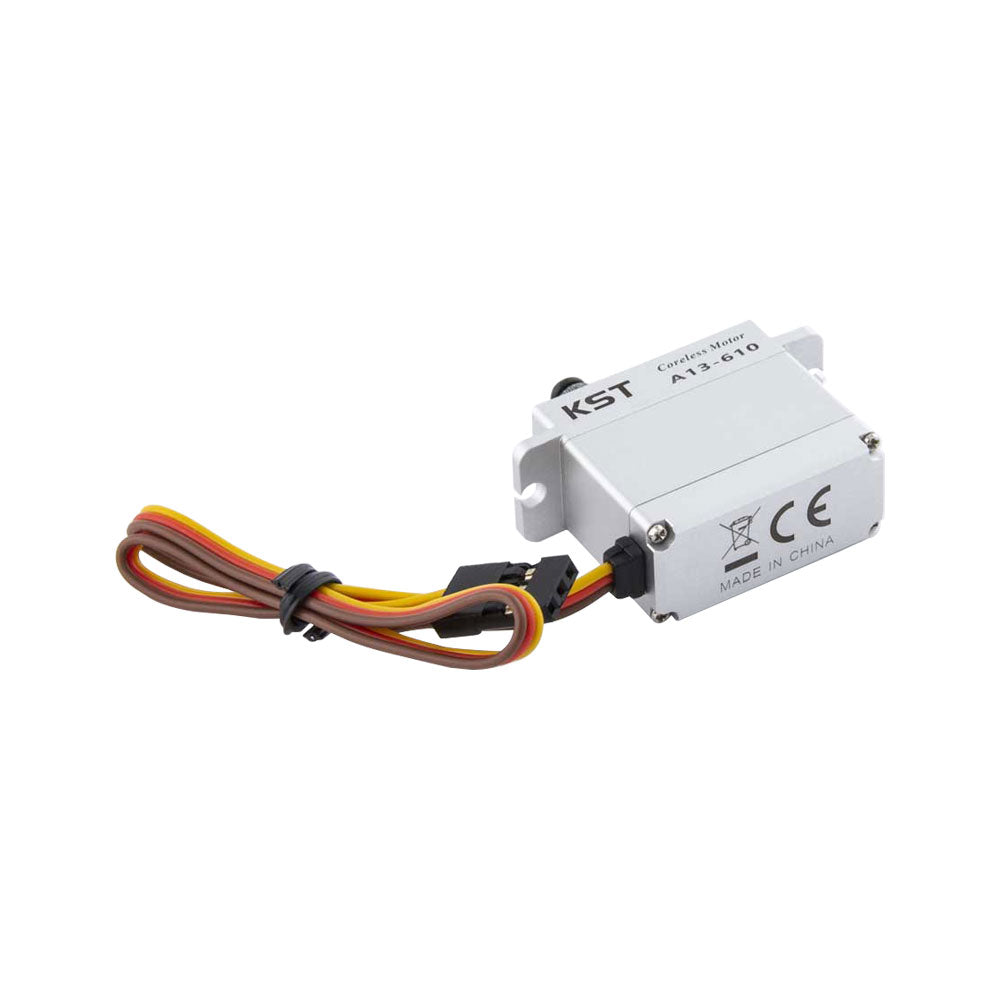

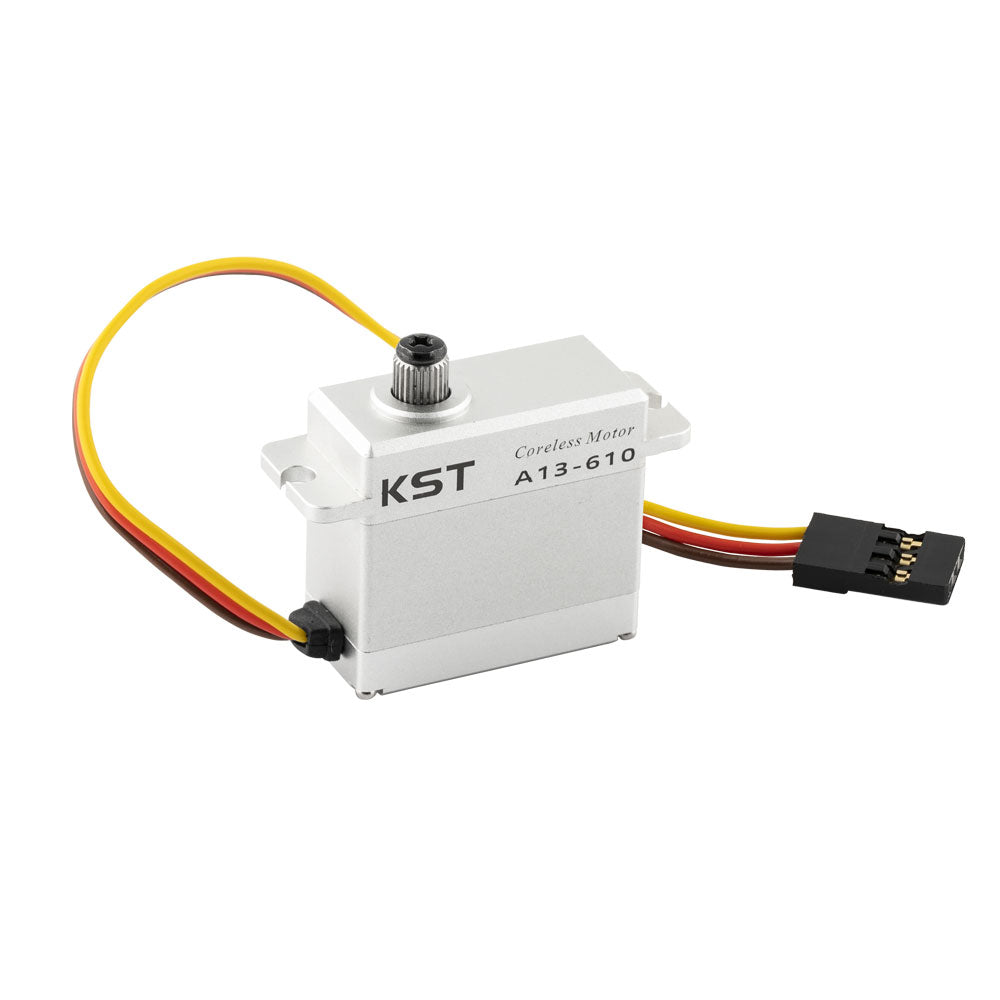

KST A13-610 V8.0 Digital Servo 8.4V 0.10s 9kg.cm 124oz.in

KST A13-610 V8.0 Digital Servo 8.4V 0.10s 9kg.cm 124oz.in

KST Servos are known for their high-quality and affordable prices. Whether you need a servo for a hobby helicopter, glider, industrial equipment, or UAV, KST has a solution for you. With a reputation for performance even under the most demanding conditions, KST servos are the ideal choice for your next competition, mission-critical project, or custom installation. Contact our sales team today to learn more about our OEM and ODM services.

Features:

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC gliders
• Excellent heat dissipation
• Ultra-slim 13mm body
• Programmable with KST-Tool 1

Specifications:

• Operation Voltage (rated): DC 7.4V
• Operation Voltage Range: DC 6.0V-8.4V
• Torque: 6.5Kg.cm @ 6.0V, 8.0Kg.cm @ 7.4V, 9Kg.cm @ 8.4V
• Speed: 0.12sec/60° @ 6.0V, 0.11sec/60° @ 7.4V, 0.10sec/60° @ 8.4V

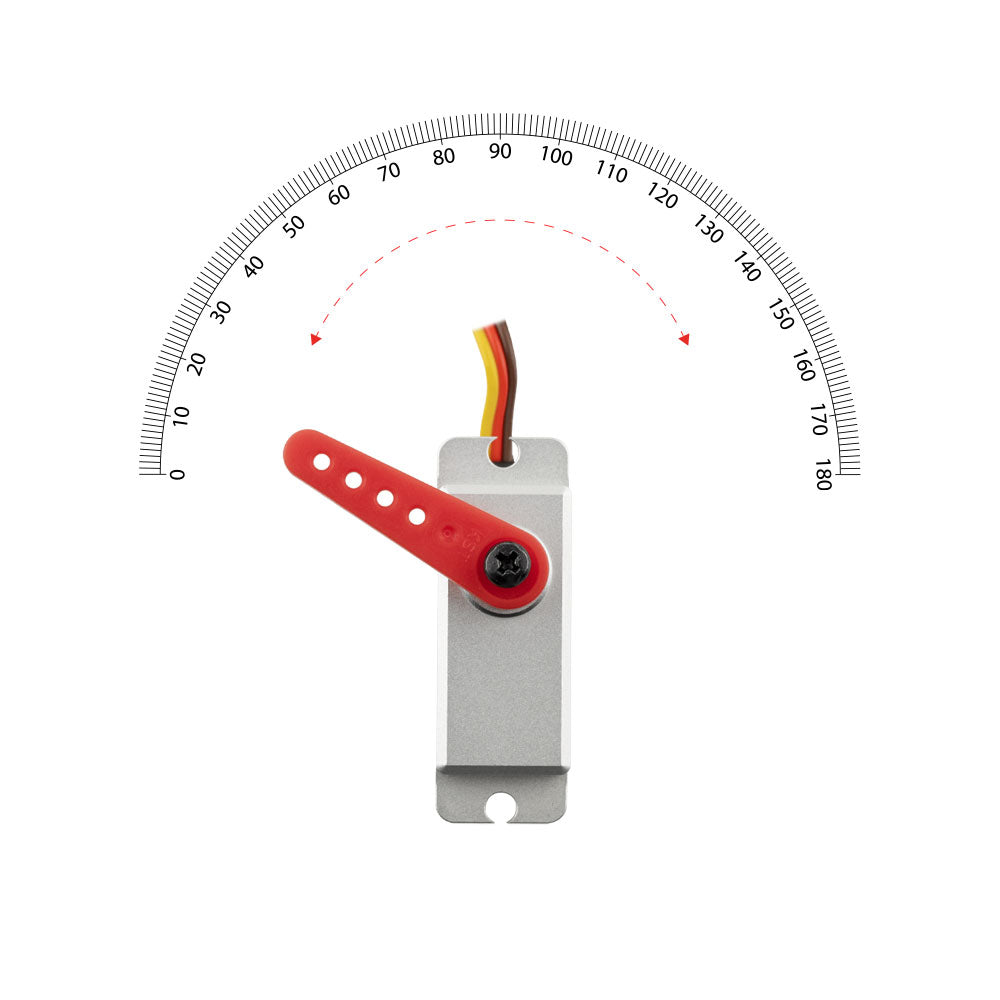

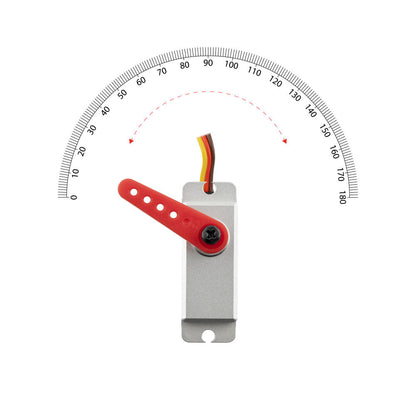

• Travel Angle: ±50° when 1000-2000us
• Operating Temperature Range: -10℃ to +55℃
• Motor Type: Coreless
• Gear Set Material: Hardened Steel
• Shielded Connecting Cable: 26AWG

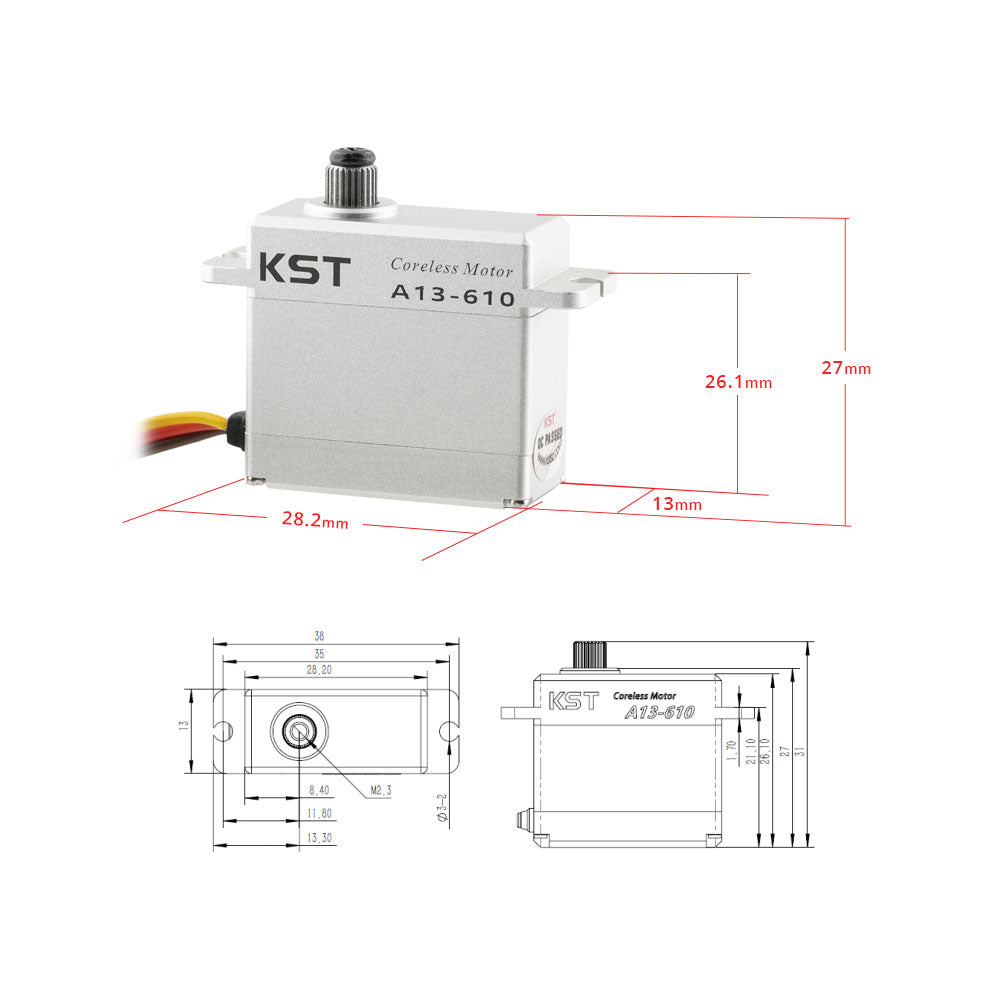

• Case Dimensions: 28.2 * 13 * 27mm
• Weight: 24g
