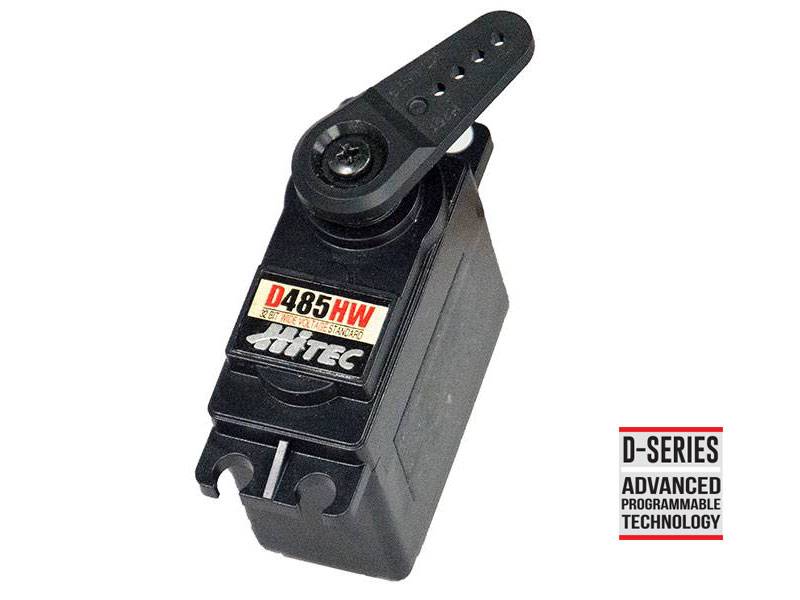

HitecD485HW, 32-Bit, Wide Voltage, Karbonite Servo

Original price $28.99 - Original price $28.99
Original price
$28.99
$28.99 - $28.99
Current price $28.99
SKU HS-D485HW
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

This is the upgraded version of the HS-5485HB and HS-5495BH

D485HW Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
Speed (Second @ 60°) 0.20 ~ 0.15
Maximum Torque Range oz. / in. 72 ~ 104
Maximum Torque Range kg. / cm. 4.8 ~ 7.4
Current Draw at Idle 30 mA
No Load Operating Current Draw 320mA
Stall Current Draw 1,500mA
Dead Band Width N / A

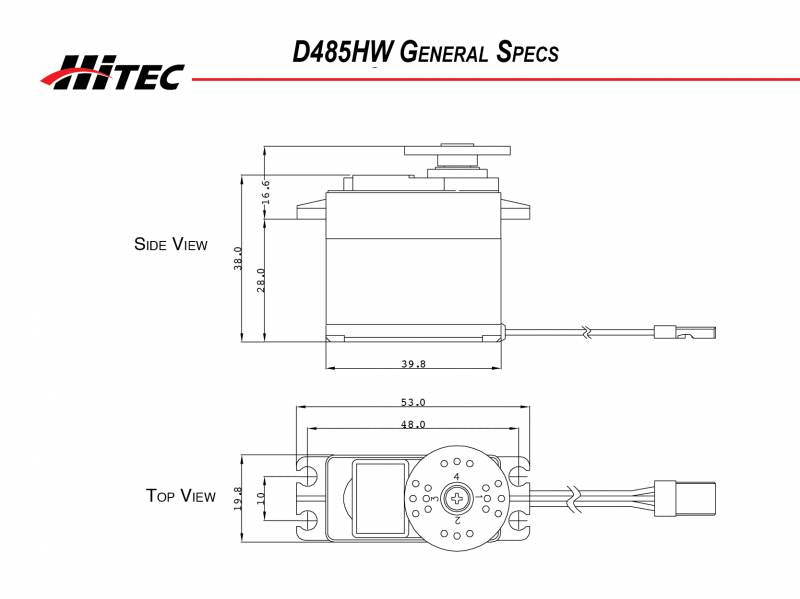

Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 X 19.8 X 38.0
Weight (Ounces) 1.59
Weight (Gram) 45.0
Circuit Type 32 bit Programable Digital
Motor Type Cored Metal Brush
Gear Material MK 1st Gear & 3 Karbonite
Resin Gears
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) 25 / 6
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count N / A
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane  2 meters and up
3D Performance N / A
Scale 50 - 64 oz
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat < 1M
Power Boat 1/10th
