Hitec HS-645MG High Torque, Metal Gear Premium Sport Servo

Original price $34.99 - Original price $34.99
Original price
$34.99
$34.99 - $34.99
Current price $34.99
SKU HS-645MG
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those larger sport planes or monster trucks and buggies requiring a durable high torque servo. Featuring our unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any servo.

Features

  • Top Selling High Torque Metal Gear Servo
  • Strong Three-Pole Ferrite Motor
  • Heavy Duty Metal Gear Train Featuring our Revolutionary Metal/Plastic First Gear (MP Gear)
  • Dual Ball Bearing-Supported Output Shaft

Accessories

  • Metal Gear Set | Link |
  • Metal / Plastic 1st Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-645MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.24 ~ 0.20
Maximum Torque Range oz. / in. 107 ~ 133
Maximum Torque Range kg. / cm. 7.7 ~ 9.6
Current Draw at Idle 9.1 mA
No Load Operating Current Draw 450 mA
Stall Current Draw 2,500 mA
Dead Band Width 8 µs

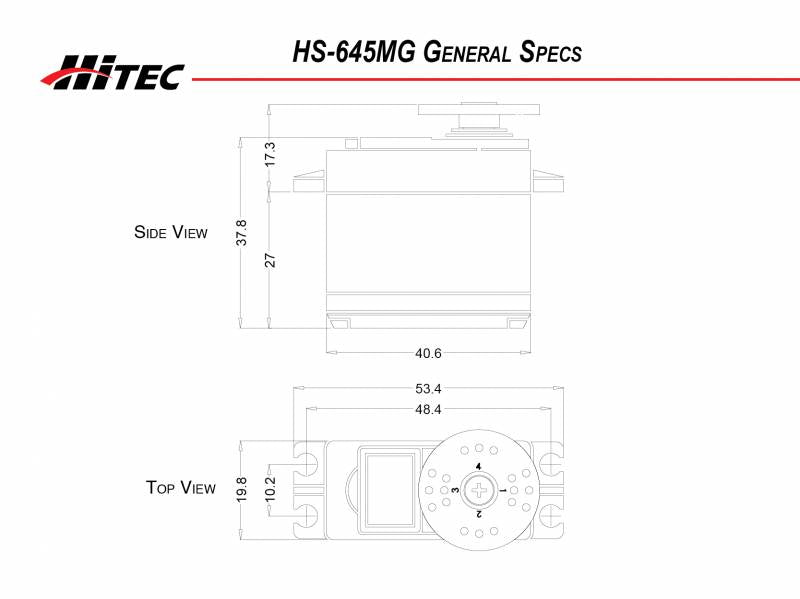

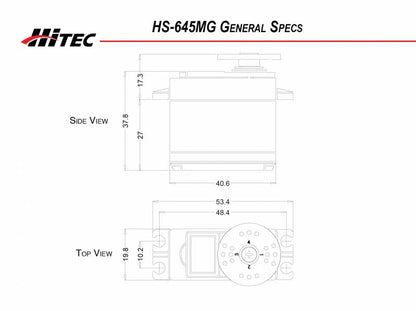

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 1.94
Weight (Gram) 55.2
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 12-15 lbs.
Sailplane 2 meters and up
3D Performance 12-15 lbs.
Scale 12-15 lbs.
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers 1/12th
Sail Boat =>1M+ & Scale
Power Boat 1/10th
