Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

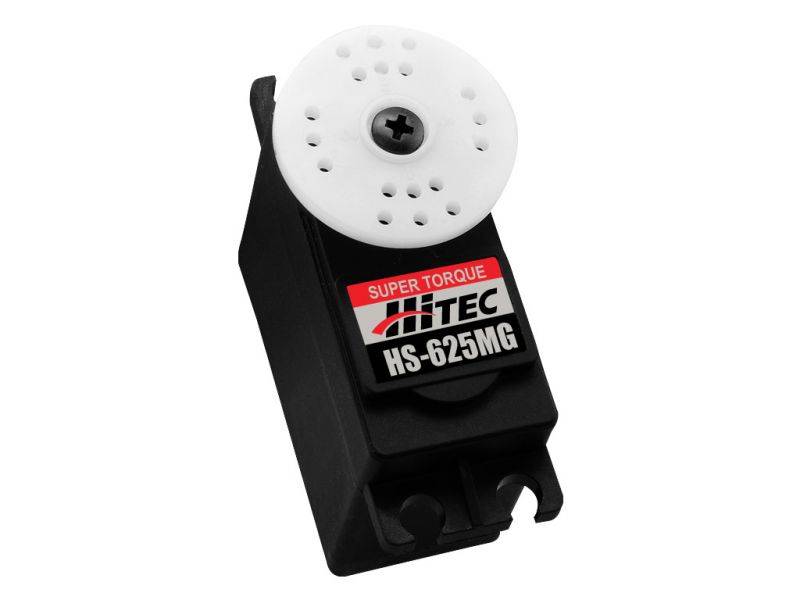

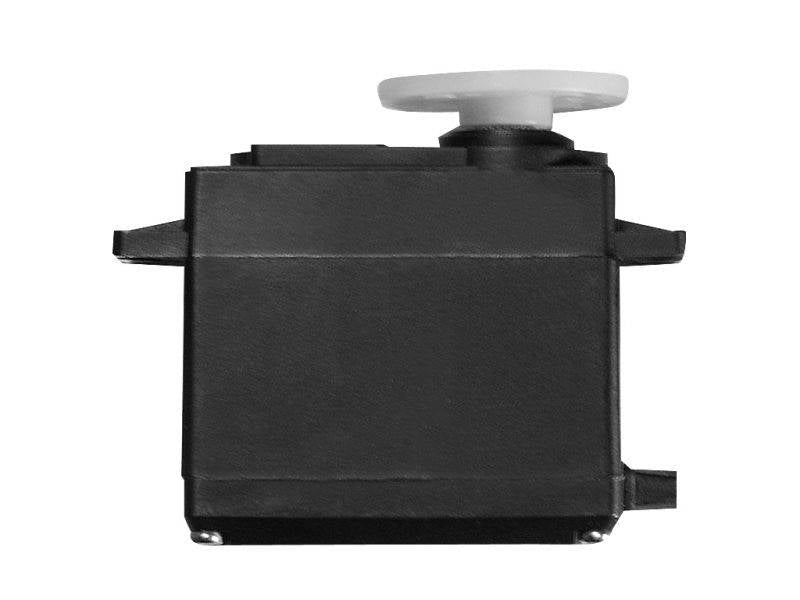

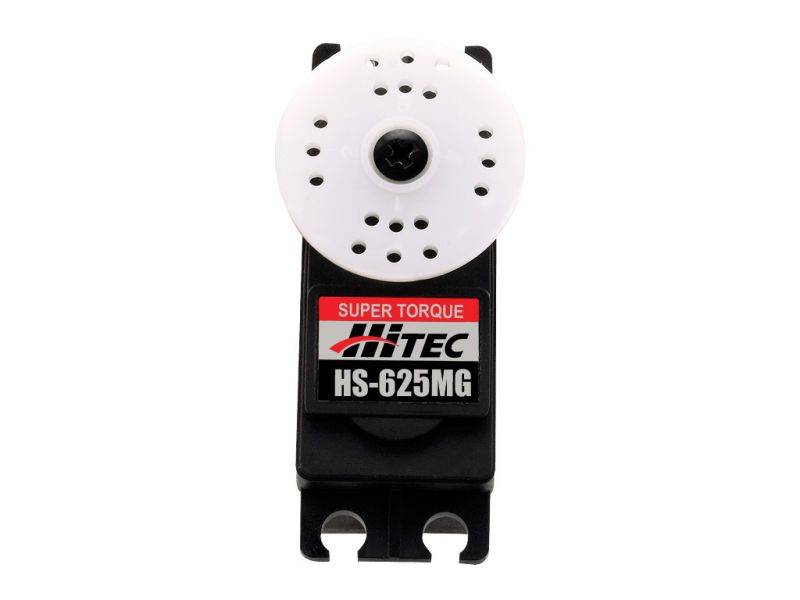

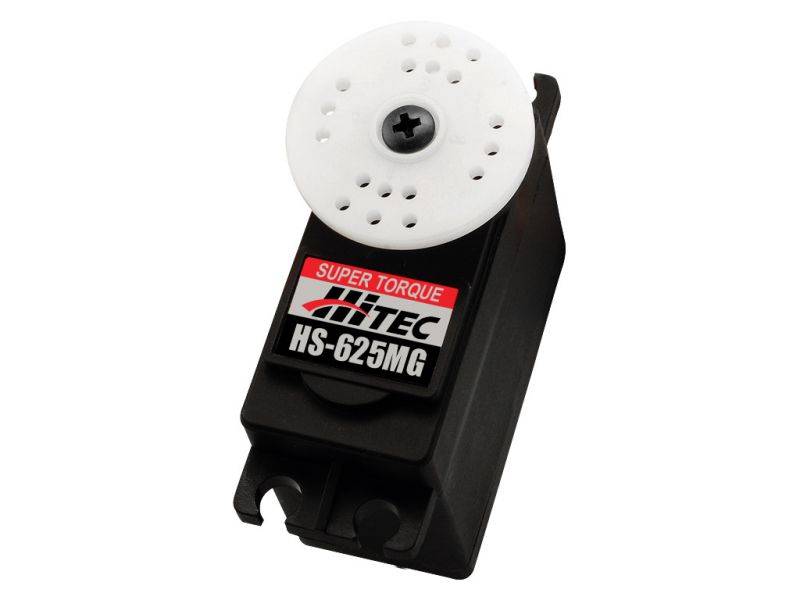

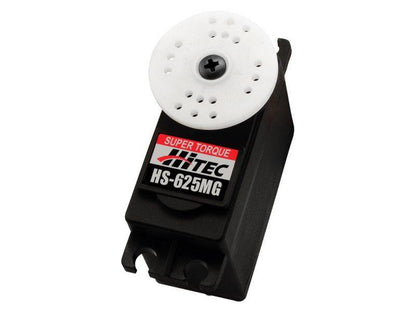

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.
Features
- Affordable High Speed Metal Gear Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
Accessories
- Metal Gear Set | Link |
- Metal / Plastic 1st Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns
HS-625MG Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.18 ~ 0.15 |

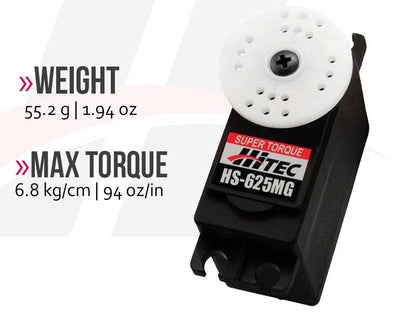

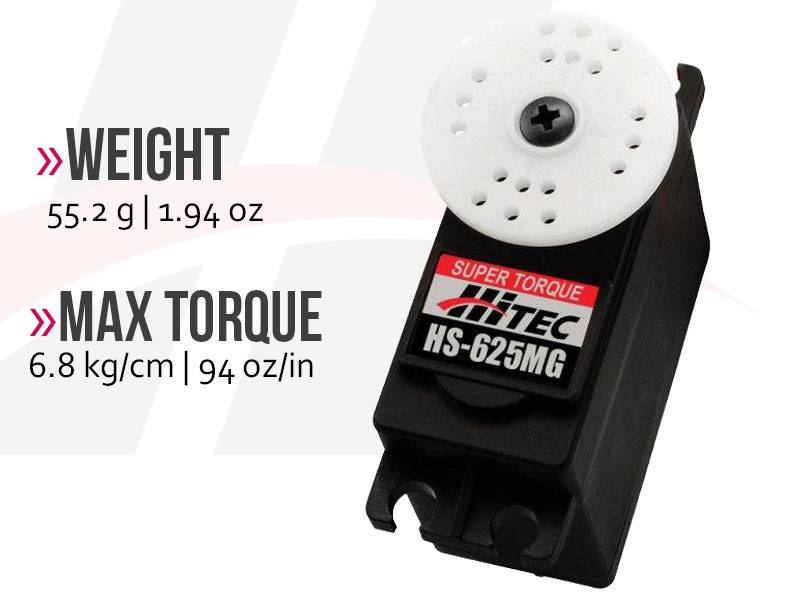

| Maximum Torque Range oz. / in. | 76 ~ 94 |
| Maximum Torque Range kg. / cm. | 5.5 ~ 6.8 |
| Current Draw at Idle | 9.1 mA |
| No Load Operating Current Draw | 500 mA |
| Stall Current Draw | 2,500 mA |
| Dead Band Width | 8 µs |
| Physical Specifications | |

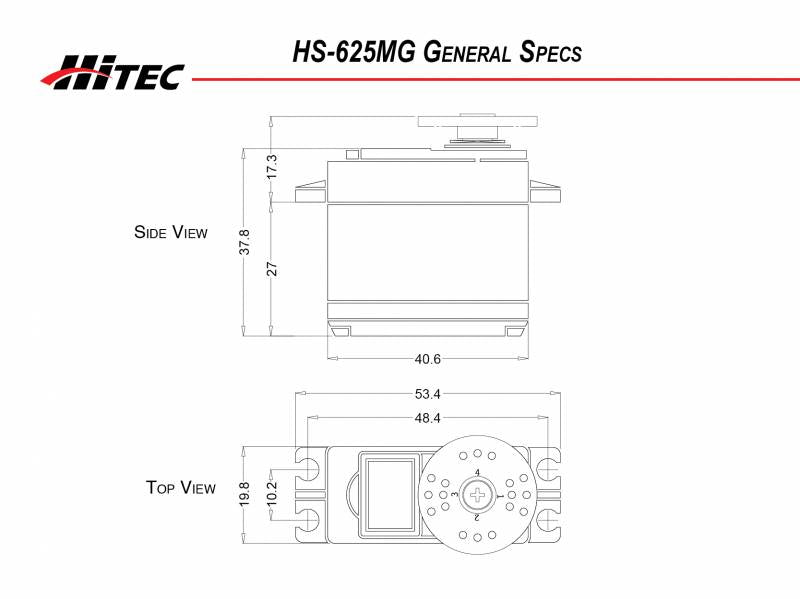

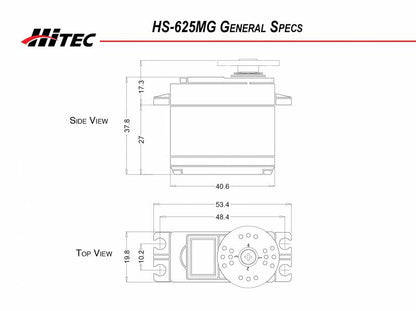

| Dimensions (Inches) | 1.59 x 0.77 x 1.48 |
| Dimensions (Metric) | 40.6 x 19.8 x 37.8 |
| Weight (Ounces) | 1.94 |
| Weight (Gram) | 55.2 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 22 / 60 |
| Radio Control Applications | |
| Parkflyer | N / A |
| Sport Plane | 4-12 lbs. |
| Sailplane | 2 meters and up |
| 3D Performance | 4-12 lbs. |
| Scale | 4-12 lbs. |
| Electric Helicopter | 600mm |
| Gas Helicopter | 50-59 Class |
| On Road | 1/10th |
| Monster Truck | 1/10th |
| Buggies | 1/10th |
| Truggies | 1/10th |
| Short Course / Truck | 1/10th |
| Crawlers | 1/10th |
| Sail Boat | =>1M+ & Scale |
| Power Boat | 1/10th |
