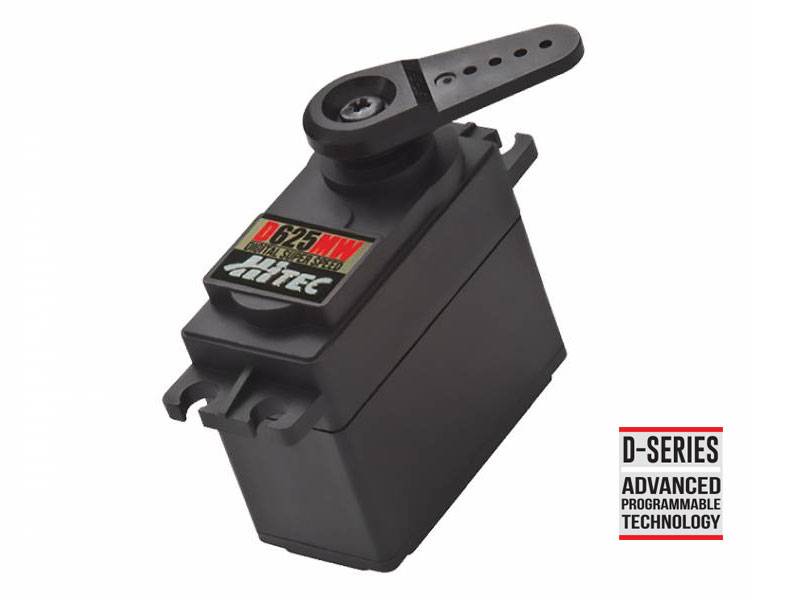

Hitec D625MW 32-Bit, High Speed, Metal Gear Servo

Original price $43.99 - Original price $43.99
Original price
$43.99
$43.99 - $43.99
Current price $43.99
SKU HS-D625MW
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The metal D-625MW is part of our D-Series servo line. All Hitec D-Series servos have been designed using our brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

This is the upgraded version of the HS-5665MH

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • 4096 Resolution
  • 1M Cycle Long Life Potentiometer
  • Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • 25-Tooth Output Spline

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Overload Protection
  • Data Save / Load
  • Program Reset

Accessories

  • Metal Gears Set | Link |
  • Metal / Plastic 1st Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns | Link 1  2 • 3 |


D625MW Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°) 0.20 ~ 0.15 ~ 0.13
Maximum Torque Range oz. / in. 87 ~ 122 ~ 139
Maximum Torque Range kg. / cm. 6.3 ~ 8.8 ~ 10.0
Current Draw at Idle 30 mA
No Load Operating Current Draw 500 mA
Stall Current Draw 2,650 mA
Dead Band Width 2 µs

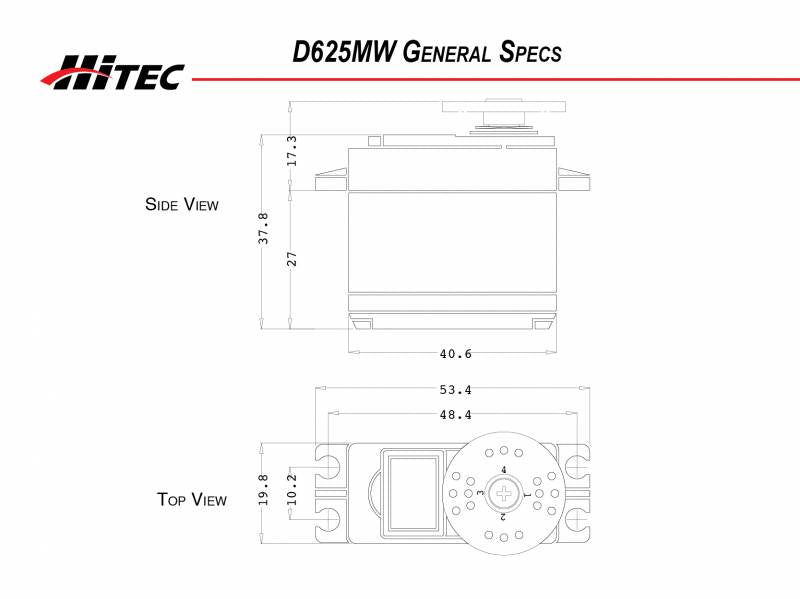

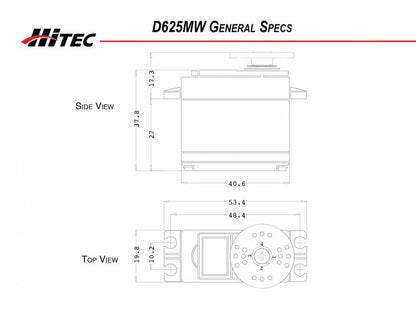

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.48
Dimensions (Metric) 40.6 x 19.8 x 37.8
Weight (Ounces) 2.11
Weight (Gram) 57.0
Circuit Type 32bit Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 22 / 60
Radio Control Applications
Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane 2 meters and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50-59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 2 meters and up
Crawlers N / A
Sail Boat = >1M & Scale
Power Boat 1/10th
