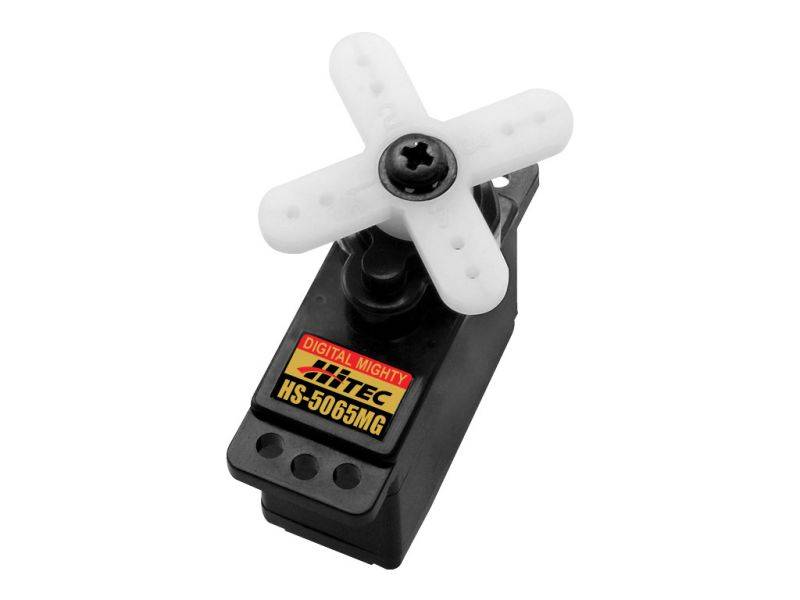

Hitec HS-5065MG High Torque Metal Gear Feather Servo

Hitec HS-5065MG High Torque Metal Gear Feather Servo

$37.99 - $37.99
$37.99
$37.99 - $37.99
$37.99
SKU HS-5065MG
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features

  • Top Selling Digital Feather Servo
  • Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit for More Holding Power
  • High Torque and High Speed
  • Accurate Centering

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Accessories

  • Metal Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-5065MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.11
Maximum Torque Range oz. / in. 25 ~ 31
Maximum Torque Range kg. / cm. 1.8 ~ 2.2
Current Draw at Idle 3 mA
No Load Operating Current Draw 220 mA
Stall Current Draw 1,200 mA
Dead Band Width 2 µs

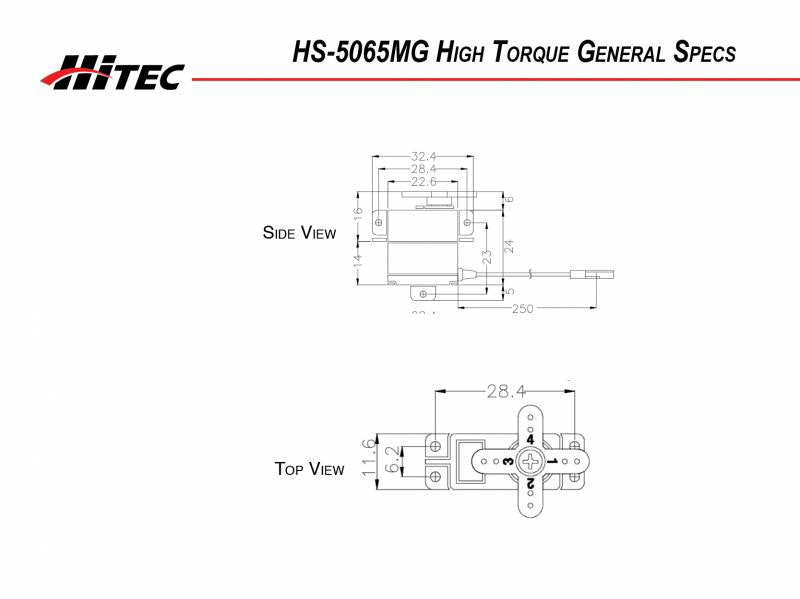

Physical Specifications
Dimensions (Inches) 0.92 x 0.45 x 0.94
Dimensions (Metric) 23.6 x 11.6 x 24.0

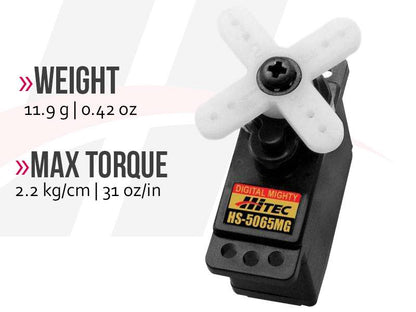

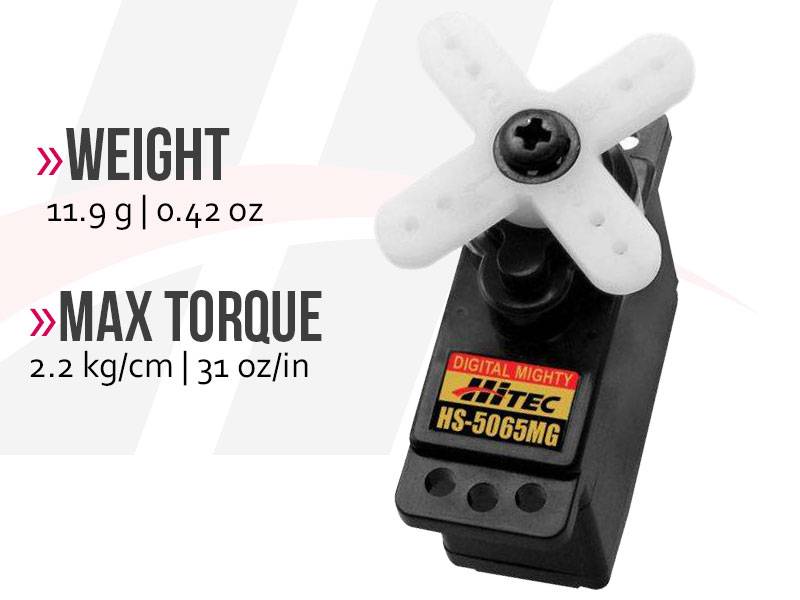

Weight (Ounces) 0.42
Weight (Gram) 11.9
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Neodymium
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Micro 23
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 42 oz.
Sport Plane 36 - 41 oz.
Sailplane <2 meter / DLG
3D Performance Foamies
Scale N / A
Electric Helicopter 400-500mm
Gas Helicopter 30-39 Class
On Road 1/16th
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat N / A
Power Boat 1/18th
