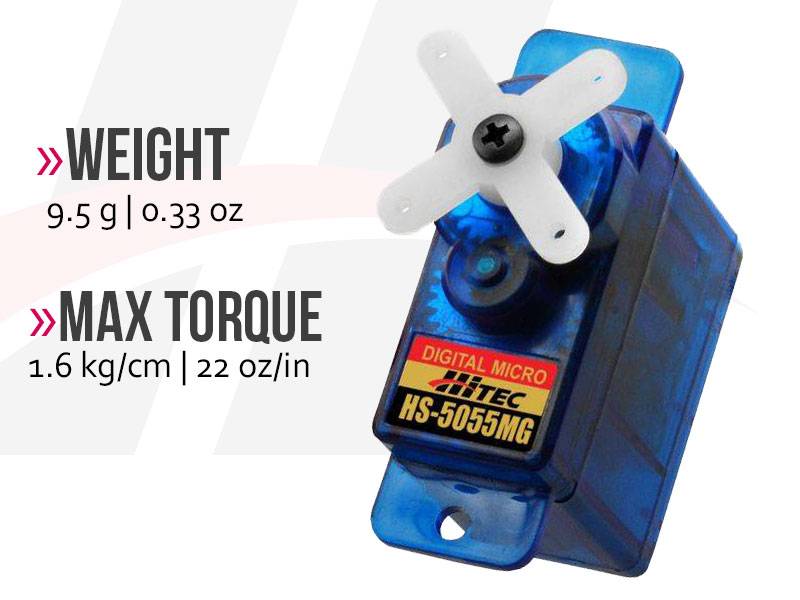

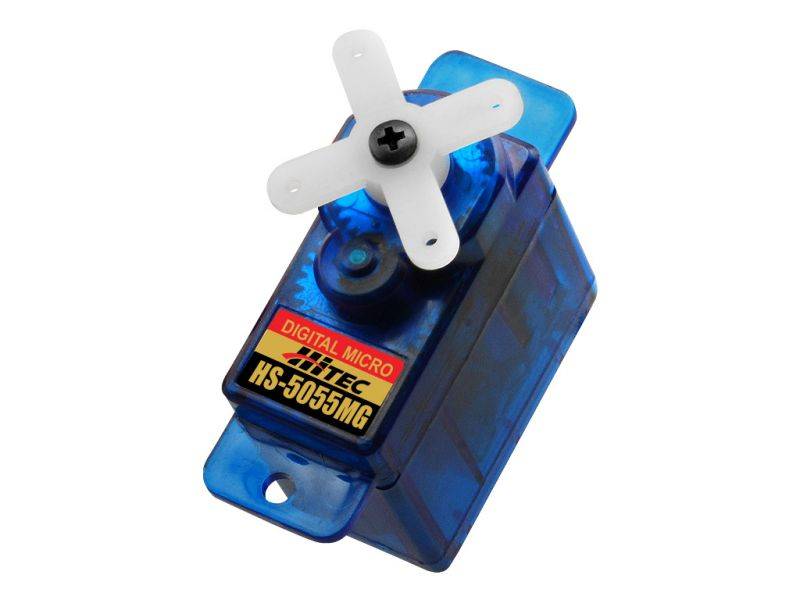

Hitec HS-5055MG Economy Metal Gear Feather Servo
Original price
$23.99
-
Original price
$23.99
Original price
$23.99
$23.99
-
$23.99
Current price
$23.99
SKU HS-5055MG
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description
Since its introduction, the HS-55 has set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service!
Enter the new HS-5055MG digital, metal geared version... with this new servo Hitec takes ultra micro performance to the next level without breaking the bank. The new HS-5055MG is a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes.
Features
- Digital Circuit for Increased Performance and Holding Power
- Smooth Coreless Motor
- Rugged Metal Gears
- Standard Programmable Digital Circuit
- Economical, Feather, Digital Servo
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Accessories
- Metal Gear Set | Link |
- Plastic Case Set | Link |
- Applicable Horns
HS-5055MG Servo Specifications
Performance Specifications | |
Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
Speed (Second @ 60°) | 0.20 ~ 0.17 |
Maximum Torque Range oz. / in. | 18 ~ 22 |
Maximum Torque Range kg. / cm. | 1.3 ~ 1.6 |
Current Draw at Idle | 8 mA |
No Load Operating Current Draw | 120 mA |
Stall Current Draw | 700 mA |
Dead Band Width | 6 µs |

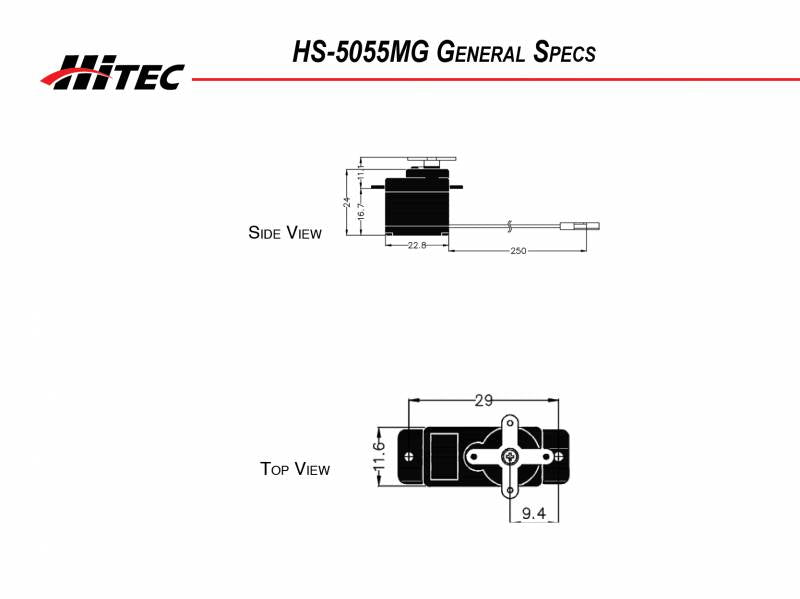

Physical Specifications | |
Dimensions (Inches) | 0.89 x 0.45 x 0.94 |
Dimensions (Metric) | 22.8 x 11.6 x 24.0 |
Weight (Ounces) | 0.33 |
Weight (Gram) | 9.5 |
Circuit Type | G1 Programable Digital |
Motor Type | 3 Pole Metal Brush Ferrite |
Gear Material | Metal |
Bearing Type | None |
Output Shaft (type / Ømm) | Feather 15 |
Case Material | Plastic |
Dust / Water Resistance | N / A |
Connector Gauge (AWG) / Strand Count | 28 / 20 |
Radio Control Applications | |
Parkflyer | < 36 oz. |
Sport Plane | 20 - 35 oz. |
Sailplane | <2 meter / DLG |
3D Performance | Foamie |
Scale | N / A |
Electric Helicopter | 200mm |
Gas Helicopter | N / A |
On Road | N / A |
Monster Truck | N / A |
Buggies | N / A |
Truggies | N / A |
Short Course / Truck | N / A |
Crawlers | N / A |
Sail Boat | N / A |
Power Boat | 1/18th |
