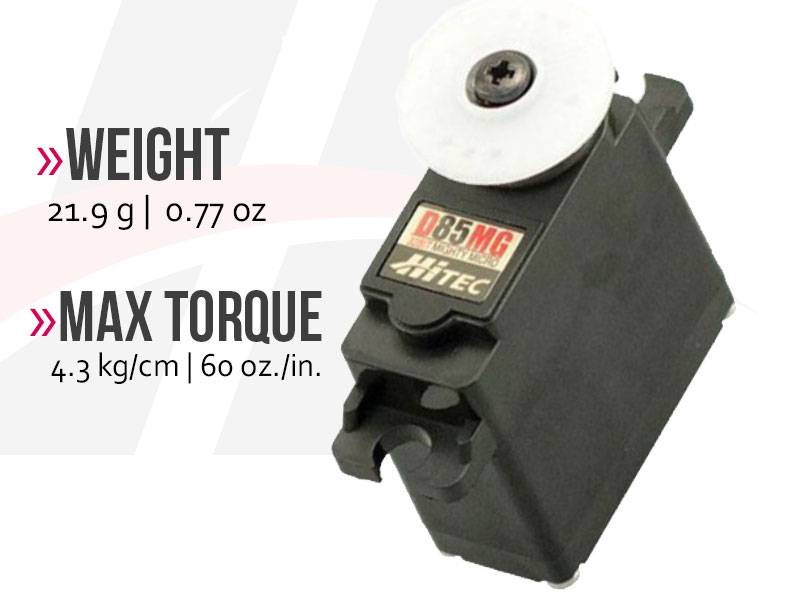

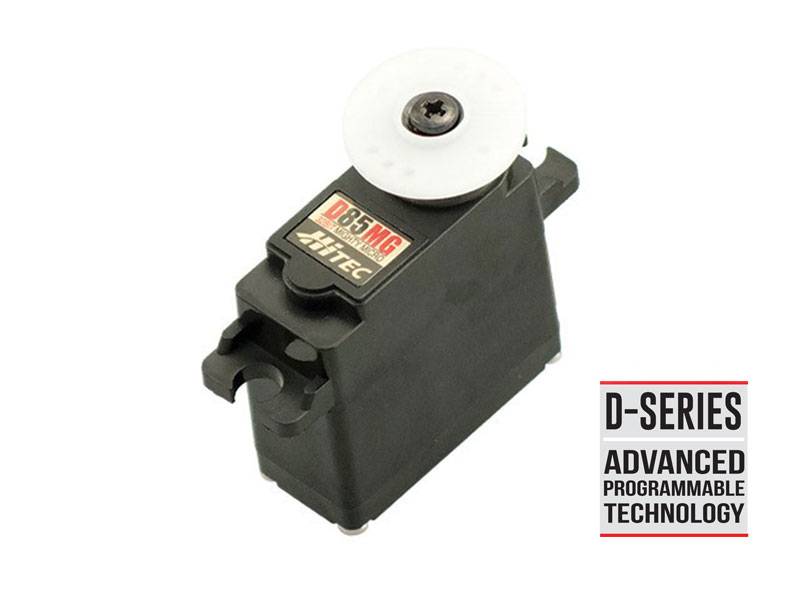

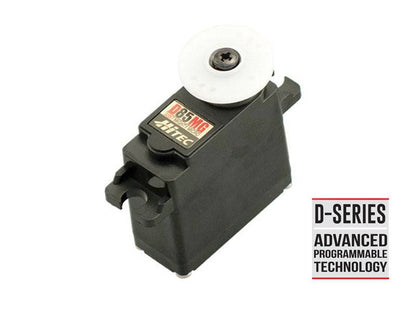

Hitec D85MG Micro, 32-Bit, Metal Gear Servo

Original price $42.99 - Original price $42.99
Original price
$42.99
$42.99 - $42.99
Current price $42.99
SKU HS-D85MG
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

Engineered with our state-of-the-art D-Series technology, this “micro but mighty” servo is an upgrade from the  popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

  • Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles (no internal combustion engines, electric only)

Highlights of the D-Series

D85MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 50 ~ 60
Maximum Torque Range kg. / cm. 3.6 ~ 4.3
Current Draw at Idle 3 mA
No Load Operating Current Draw 290 mA
Stall Current Draw 2,150 mA
Dead Band Width 2 µs

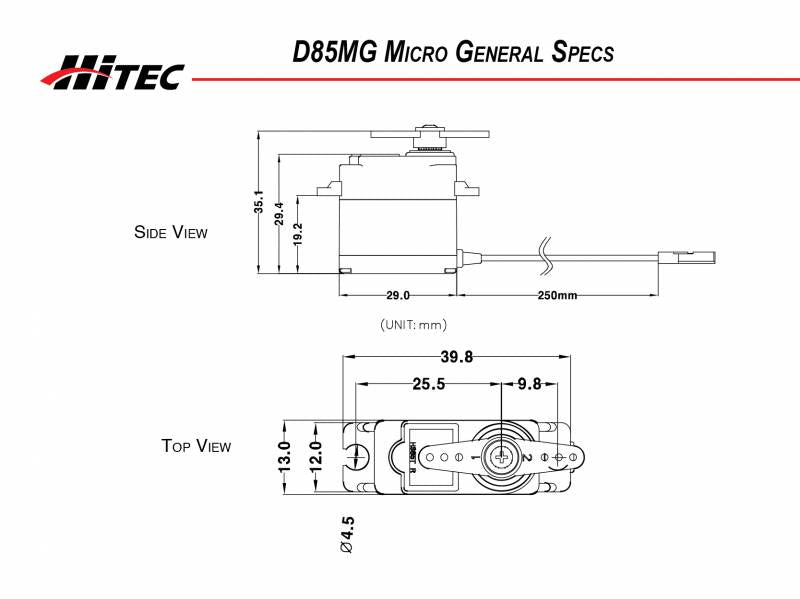

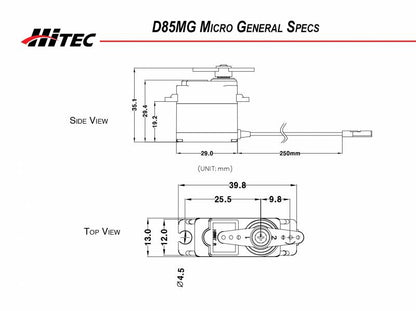

Physical Specifications
Dimensions (Inches) 1.14 x 0.51 x 1.18
Dimensions (Metric) 29.0 x 13.0 x 30.0
Weight (Ounces) 0.77
Weight (Gram) 21.9
Circuit Type 32bit Programmable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 28 / 20
Radio Control Applications
Parkflyer < 50 oz.
Sport Plane 42 - 50 oz.
Sailplane < 2 meters / DLG
3D Performance N / A
Scale N / A
Electric Helicopter N / A
Gas Helicopter N / A
On Road 1/16th
Monster Truck N / A
Buggies 1/16th
Truggies N / A
Short Course / Truck 1/16th
Crawlers N / A
Sail Boat N / A
Power Boat 1/16th
