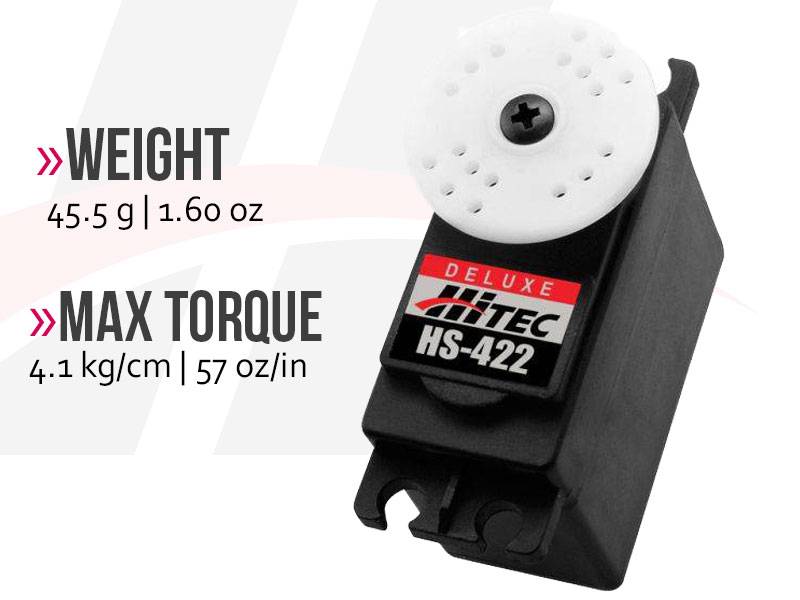

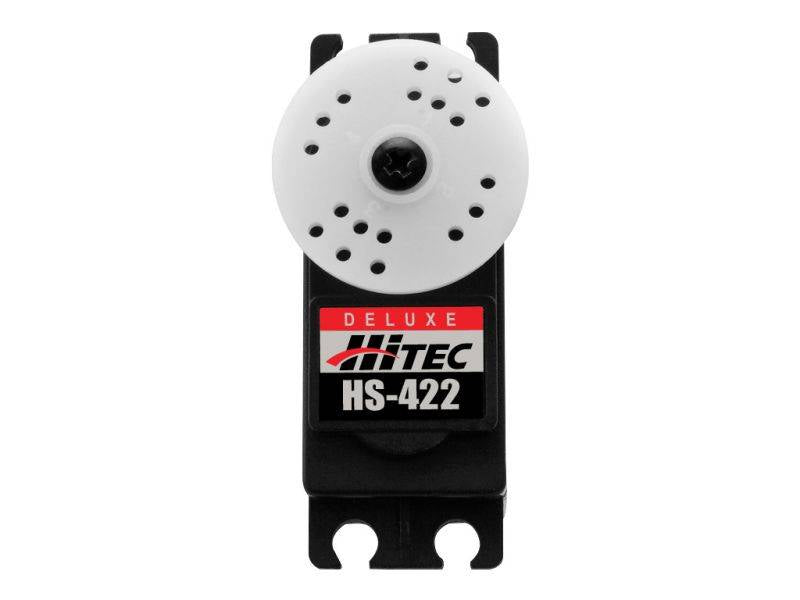

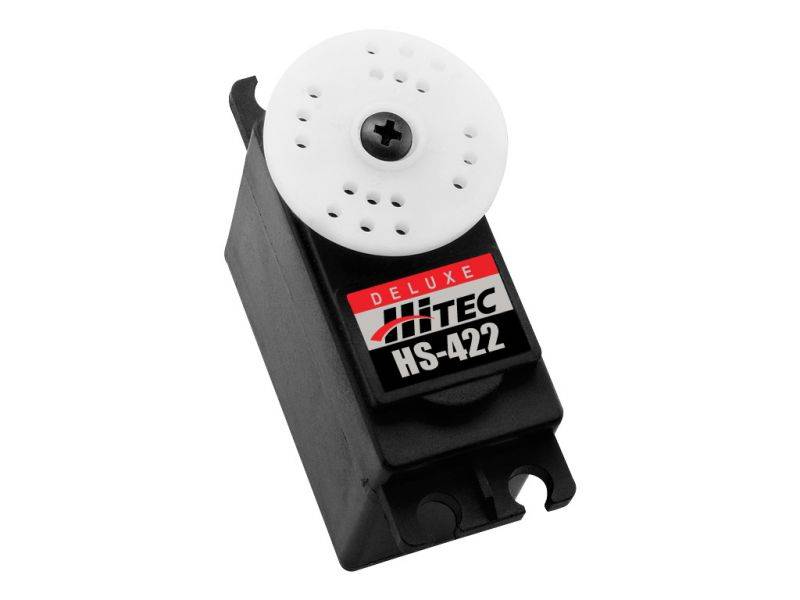

Hitec HS-422 Deluxe Standard Servo

Original price $15.99 - Original price $15.99
Original price
$15.99
$15.99 - $15.99
Current price $15.99
SKU HS-422
Size: HS-422 Pro Servo
Servos are supplied with UNIVERSAL connectors which are compatible with all name-brand systems.
Product Description

The HS-422 is one of the most durable and reliable servos Hitec has ever offered. With its dual iron-oilite bushings, high impact resin gear train and high performance circuitry, the HS-422 features excellent centering and resolution.

Features

  • Durable and Dependable Construction
  • Durable Resin Gear Train
  • Oilite Bushing Supported Output Shaft
  • High Performance Circuitry

Accessories

  • Nylon Gear Set | Link |
  • Plastic Case Set | Link |
  • Applicable Horns


HS-422 Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.21 ~ 0.16
Maximum Torque Range oz. / in. 46 ~ 57
Maximum Torque Range kg. / cm. 3.3 ~ 4.1
Current Draw at Idle 8 mA
No Load Operating Current Draw 150 mA
Stall Current Draw 800 mA
Dead Band Width 8 µs

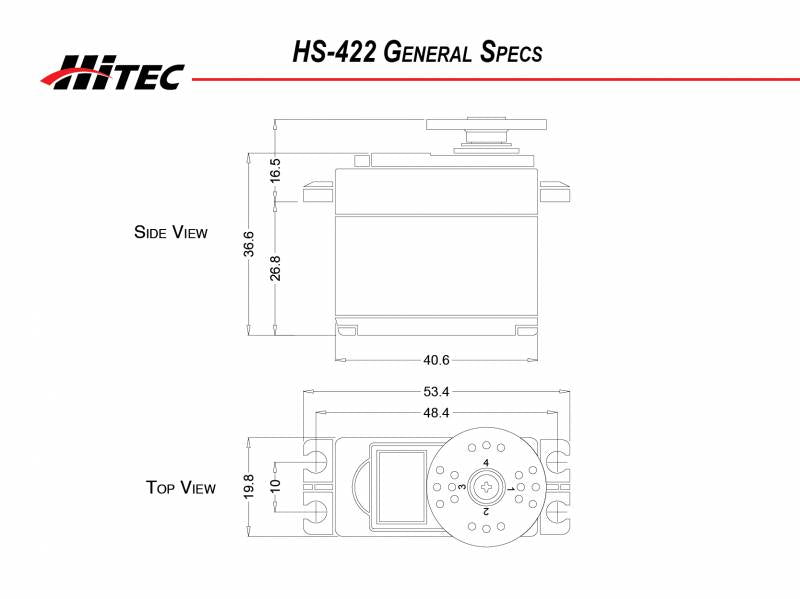

Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.60
Weight (Gram) 45.5
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Oilite
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
Radio Control Applications
Parkflyer N / A
Sport Plane 50 - 64 oz.
Sailplane N / A
3D Performance N / A
Scale 50 - 64 oz.
Electric Helicopter N / A
Gas Helicopter N / A
On Road N / A
Monster Truck N / A
Buggies N / A
Truggies N / A
Short Course / Truck N / A
Crawlers N / A
Sail Boat < 1 meter
Power Boat 1/10th
