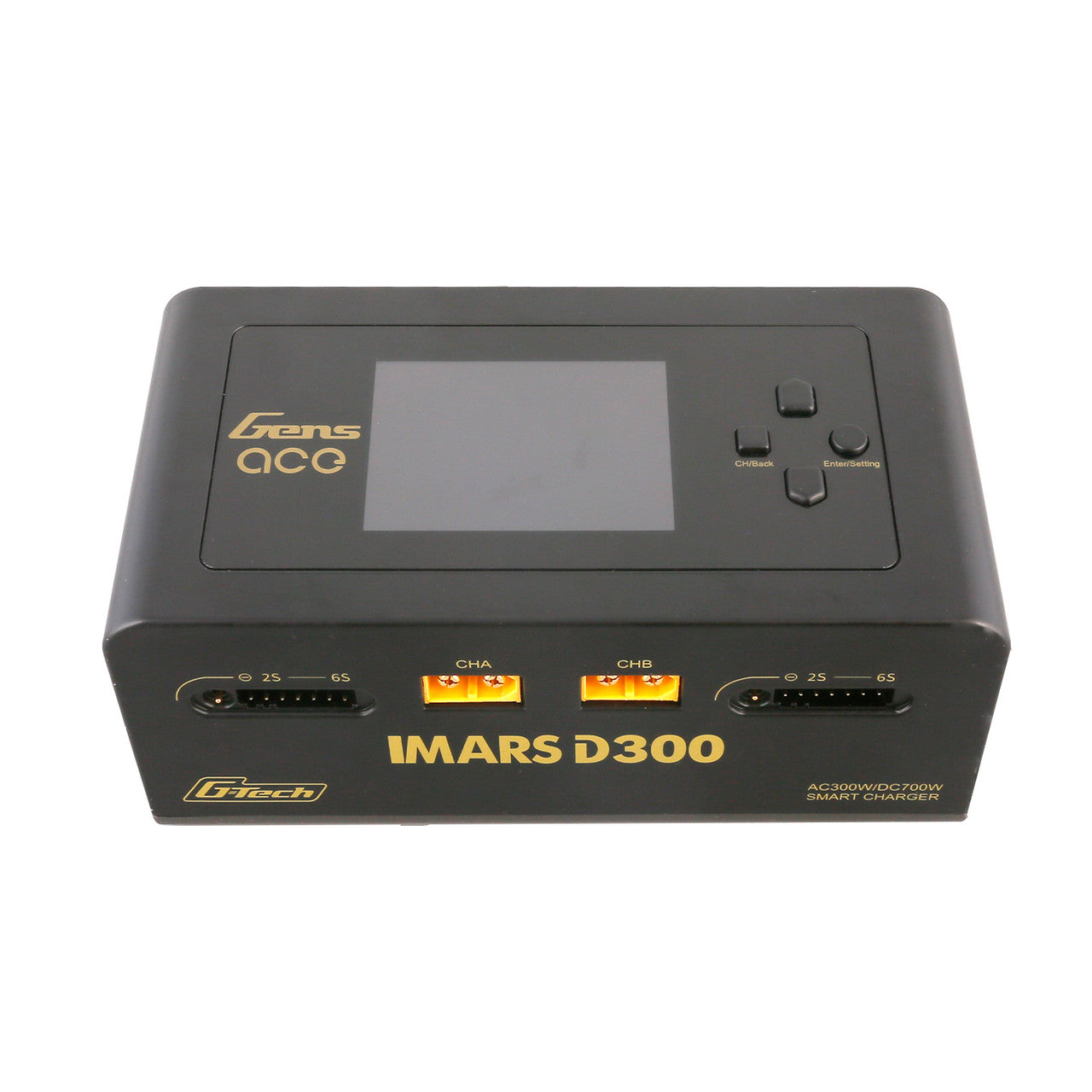

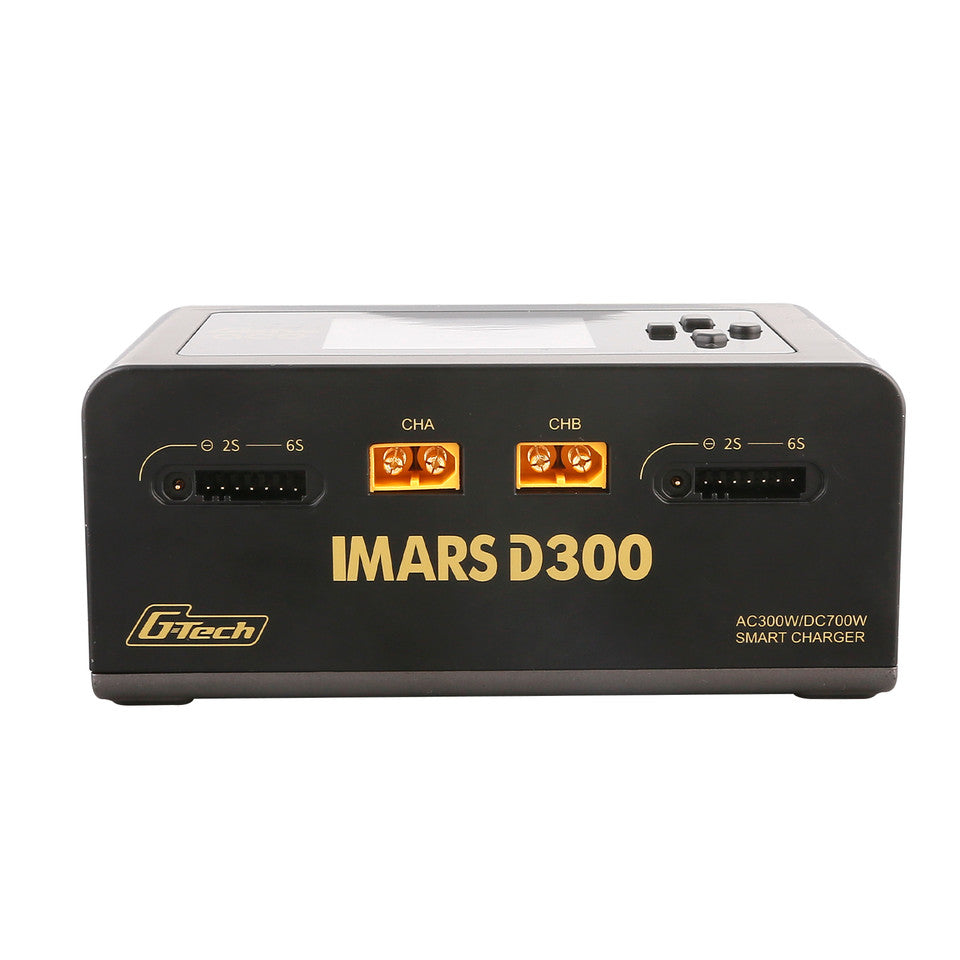

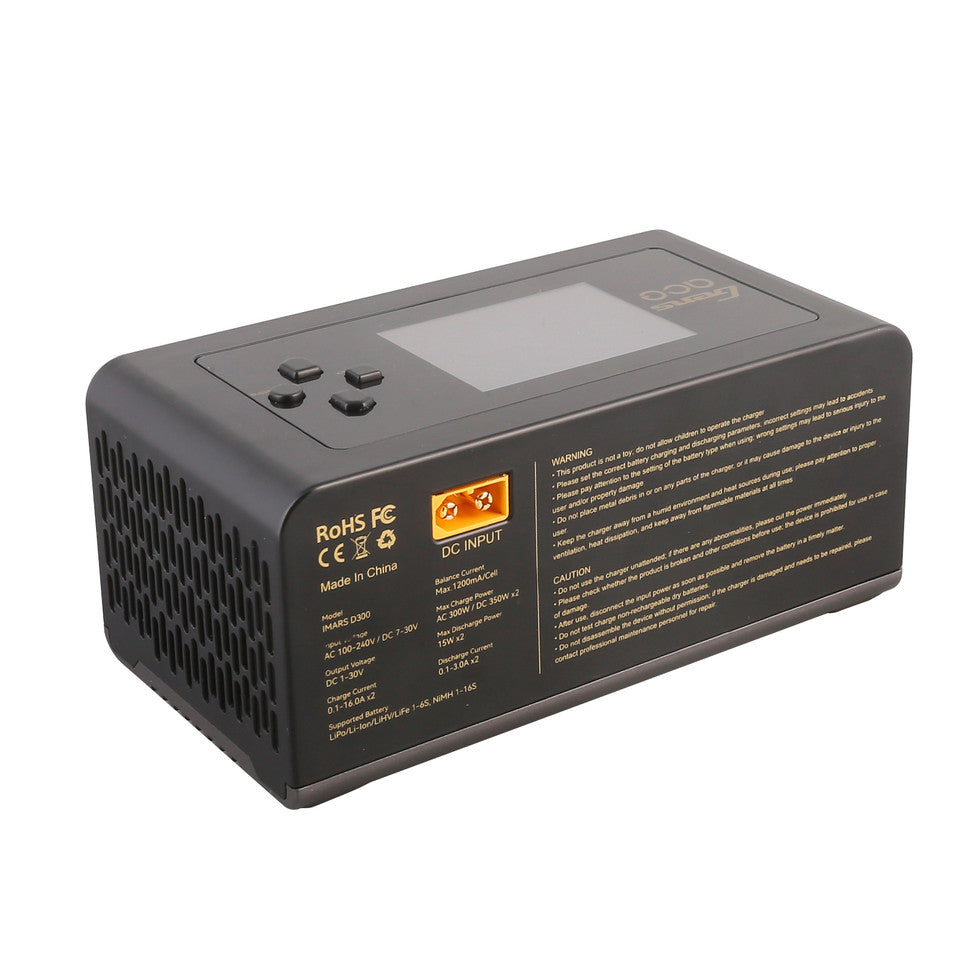

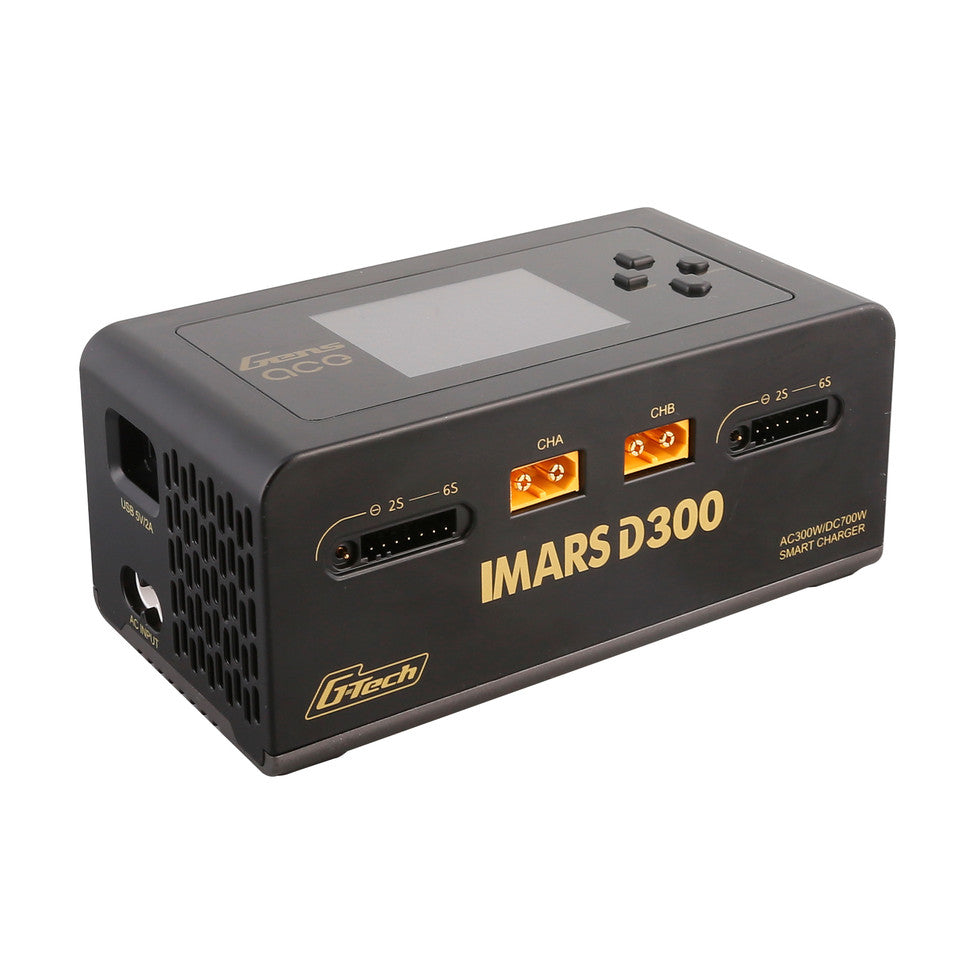

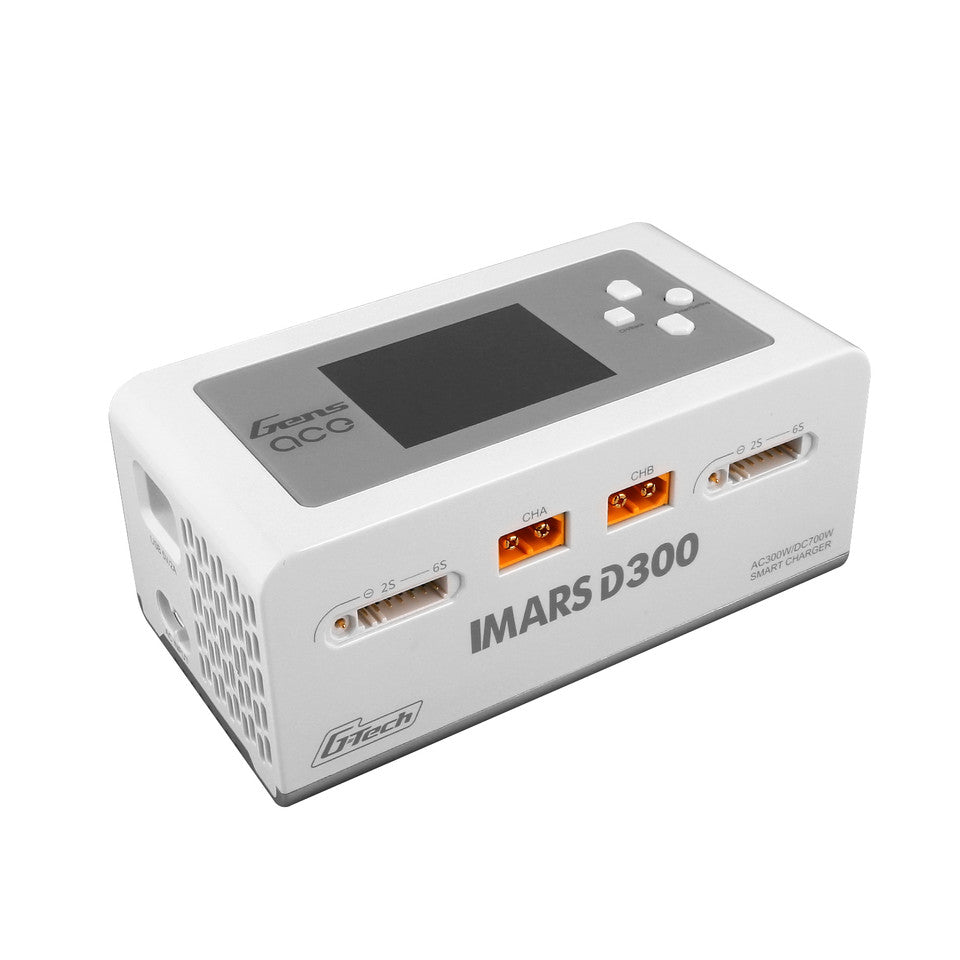

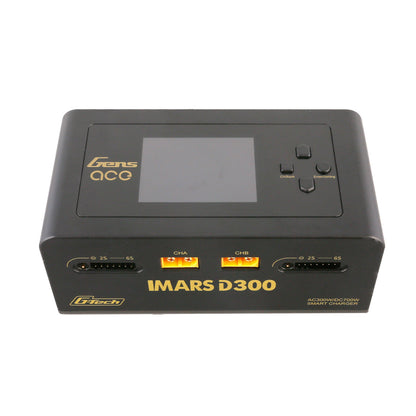

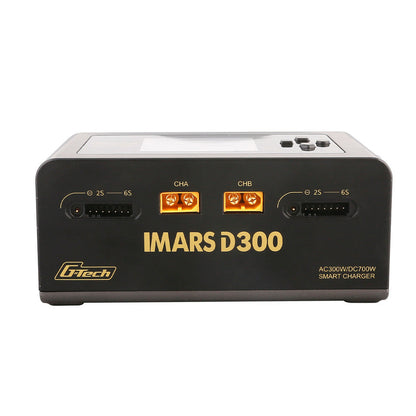

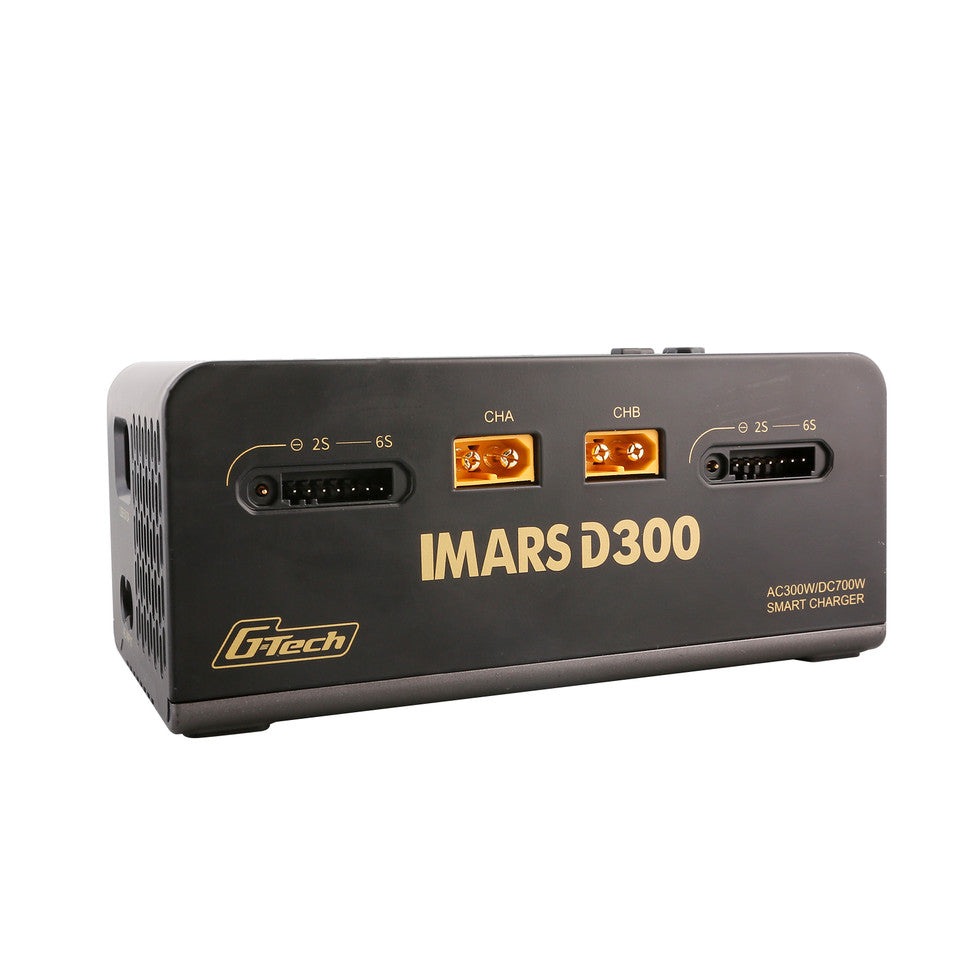

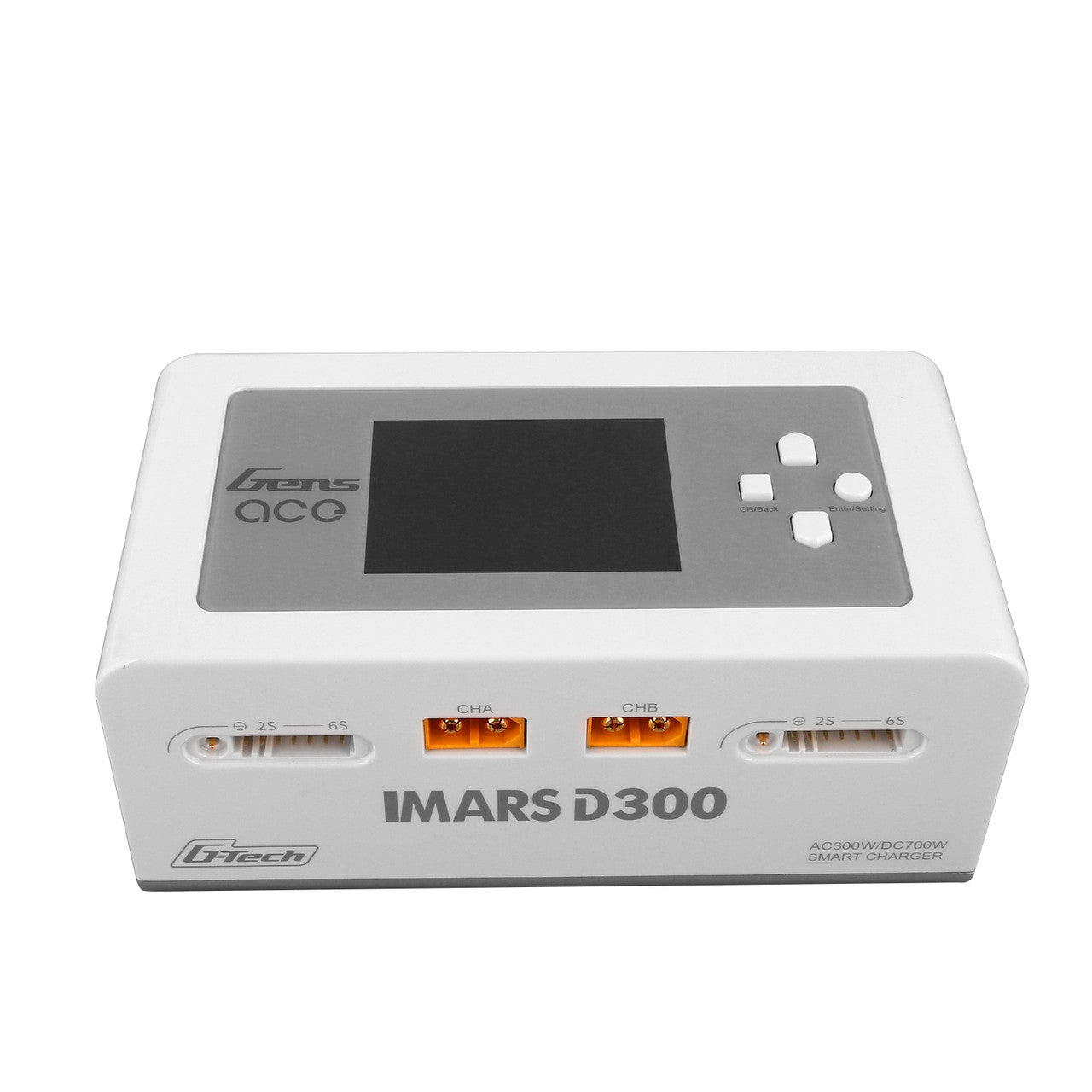

Gens Ace IMARS D300 G-Tech Dual Channel AC/DC 300W/700W RC Battery Charger

SKU:GEA300WD300-UB
UPC:889551116510
Part #:GEA300WD300-UB

The Imars D300 Charger is a versatile and intelligent charger that supports both charging and discharging. As a member of G-Tech Eco, Imars D300 Charger is designed specifically for the G-Tech smart battery, but is also compatible with non-smart batteries.

When a G-Tech smart battery is connected to the Imars D300 charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. For non-smart batteries, it is necessary to manually select the battery type and the required working mode to get started.

The Imars D300 Charger offers a range of features, including dual channel AC/DC smart balance charging, a small and lightweight portable design, a wide-view IPS display, and high power charging.

The charger has seven operating modes: charge, discharge, balance, storage, ExtDischarge, SyncCharging, and digital power supply. It offers simple to use and operation.

Features:
Dual Channel AC/DC Smart Balance Charger.
Small & Lightweight Portable Design with wide-view IPS Display.
High power charging, capable of Max 16 amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 300 Watts, DC 700 Watts.
External discharge feature available.
Synchronous output, 2-in-1 Fast-charging.
Built-in DC power source for different devices.
Controlled heat dissipation system.
Advanced safety features, UL94-V0 Flame Retardant Grade.
Protection of Short circuit / Over current / Overcharge / Over voltage.
Support Gens Ace G-tech smart charging.

Specifications:
Input Voltage: AC 100-240V; DC 7-30V
output Voltage: DC 1~30V
Max. Input Current: DC 34A
Max. Discharging Power: 15W*2
Maximum Charging Power: AC 300W; DC 350W*2
Charge Current: 0.1-16A*2
Discharge Current: 0.1~3A*2
Balance Current: 1.2A/Cell max*2
Cell Balancing: 1~6s
USB Output: 5V / 2.4A
Display Type: 2.4 inch IPS LCD Display
Supported Battery Chemistry: LiPo / LiHV / LiFe 1~6S; NiMH  1~16S
Dimensions: 145x76x62 mm
Product Net Weight: 530g

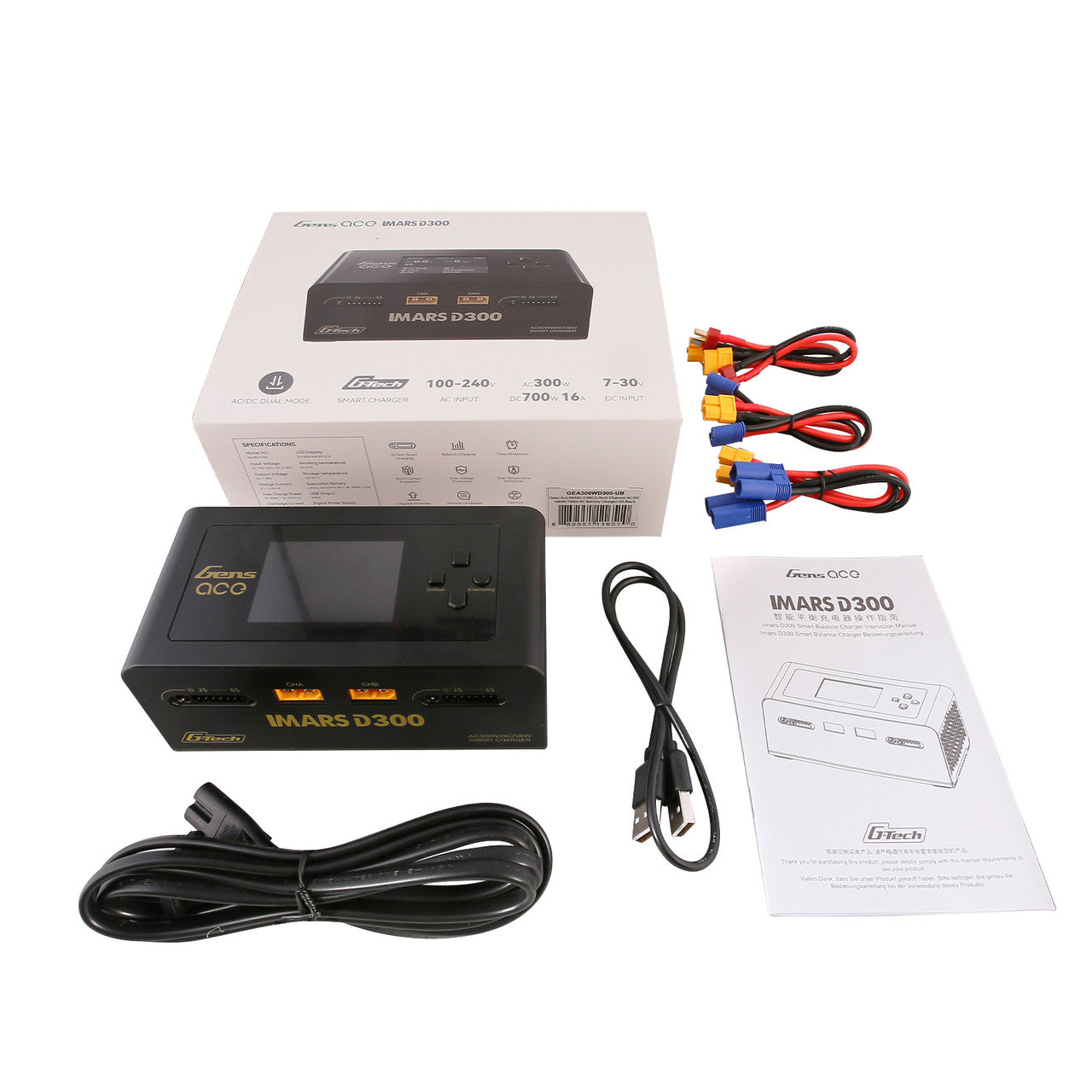

Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter
