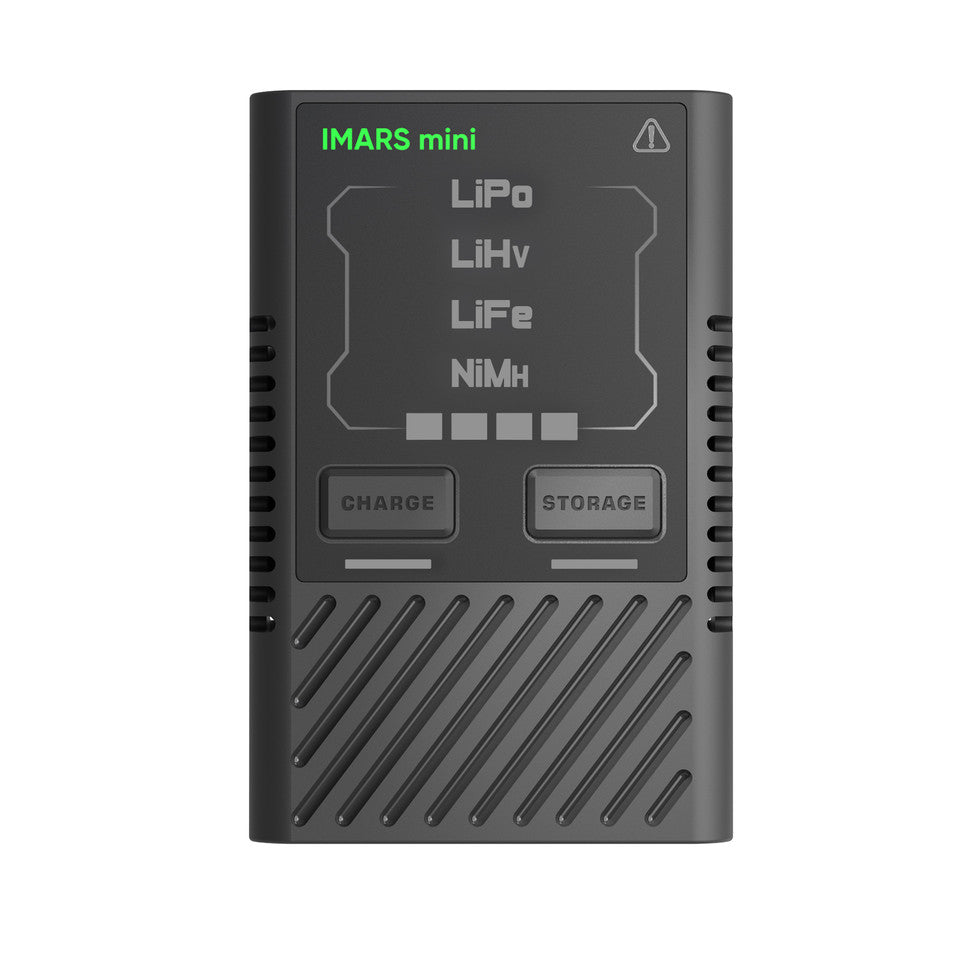

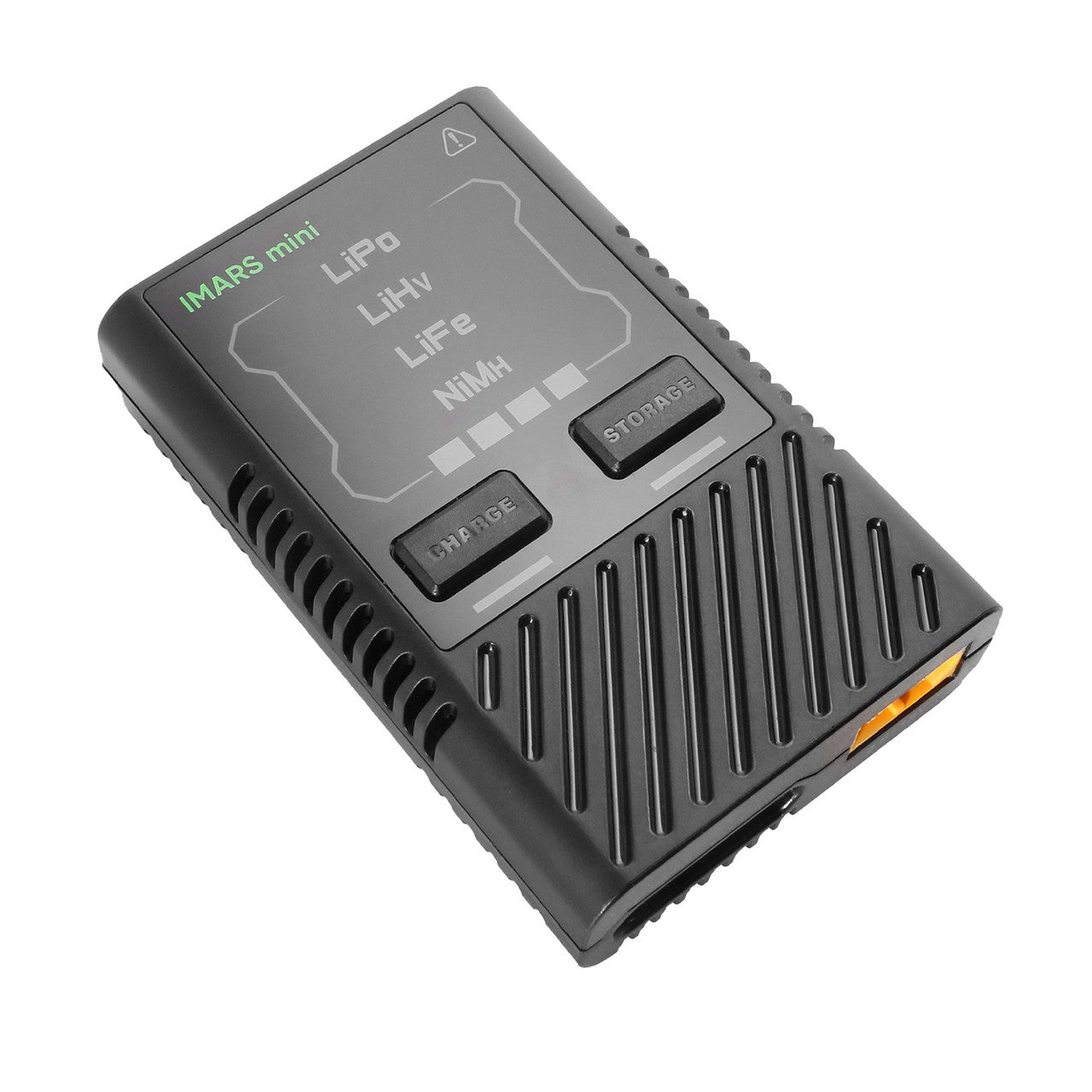

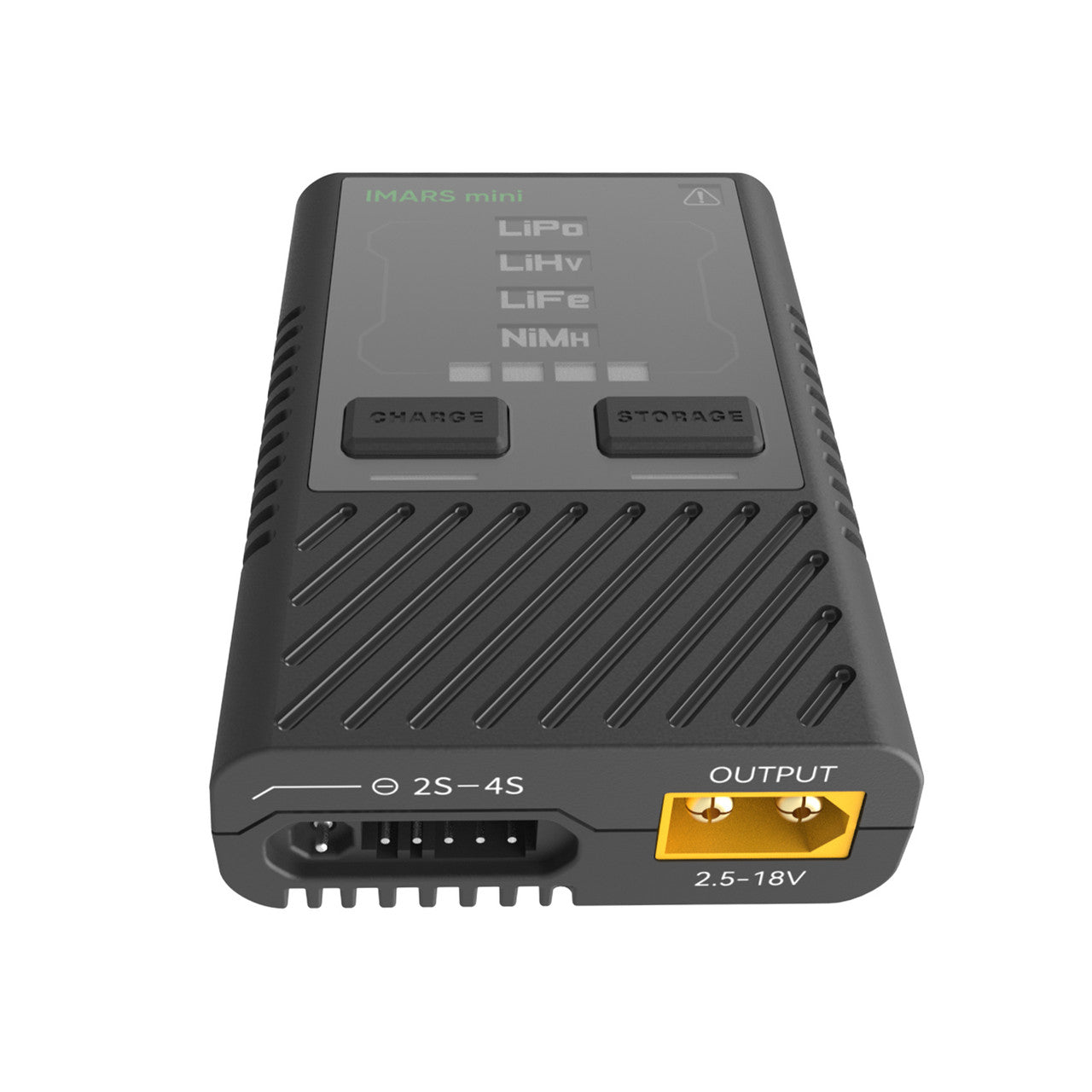

Gens Ace IMARS Mini G-Tech 60W RC Battery Charger With USB-C Power Supply Adapter

The Gens ace Imars Mini Charger was specifically designed for the Gens ace G-Tech smart battery, but it is also compatible with non-smart batteries. It is the first member of the Gens ace G-Tech Smart Eco family. When connected to a Gens ace G-Tech smart battery, the Imars Mini Charger automatically identifies the battery type, voltage, and recommended charging current through the smart balance connector. Charging begins automatically within 5 seconds of connection.

For non-smart batteries, manual selection of the battery type and working mode is required to initiate charging. The charger is able to intelligently adjust the charging current based on the voltage flow of the battery being charged.

Product Features:

1. Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
2. Intelligently recognizes G-Tech smart battery info through an IC chip for safe and easy charging.
3. Automatic storage function, it's the smallest charger with auto storage.
4. New interface design and increased balance connector durability.
5. Small & lightweight, portable design.

Product Specifications:

1. Max. Charge Power: 60W
2. Charge Current:1-5A, Max. 5A(Auto Adjustment)
3. Max. Storage Power: 3W discharge, 60W charge
4. Input Voltage: 5-20V
5. Max. Input Current: DC 3A
6. Balance Current: 0.4A/Cell X 2
7. Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A(Does not support 5V/1A adapter input)
8. Abnormal Battery Voltage Alarm: Yes
9. Supported Battery Types: Lipo/LiHv/LiFe(2~4S), NiMH(2-12S)
10. Working Temperature: 0℃~40℃
11. Storage Temperature: -20℃~60℃
12. Dimension: 85*55*21mm
13. Net Weight: Approx. 64g

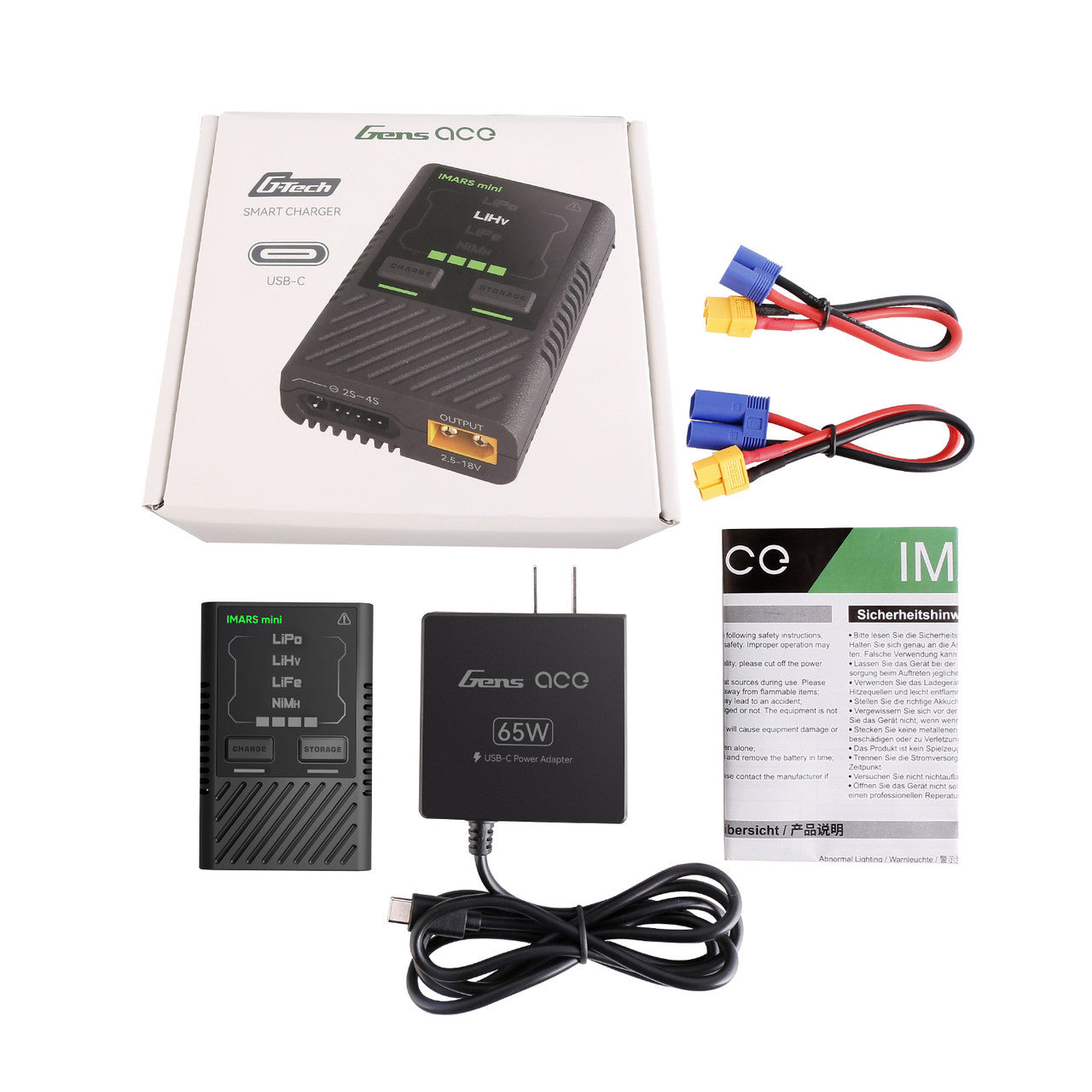

Package:

1. Imars Mini 60W Smart Charger * 1

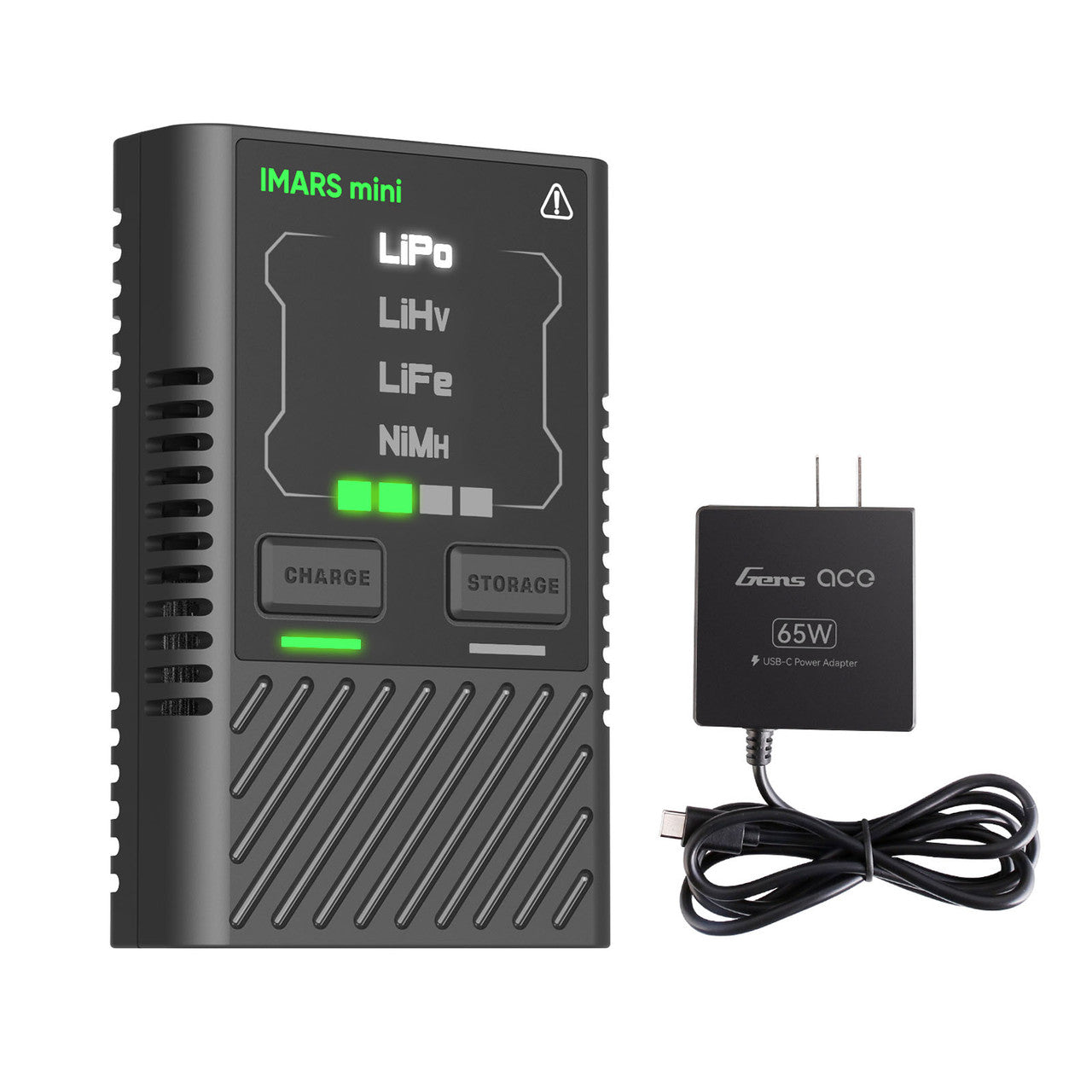

2. 65W power supply adapter with USB-C cable* 1
3. XT60 female to EC3 male adapter *1
4. XT60 female to EC5 male adapter *1
5. Product Manual *1
