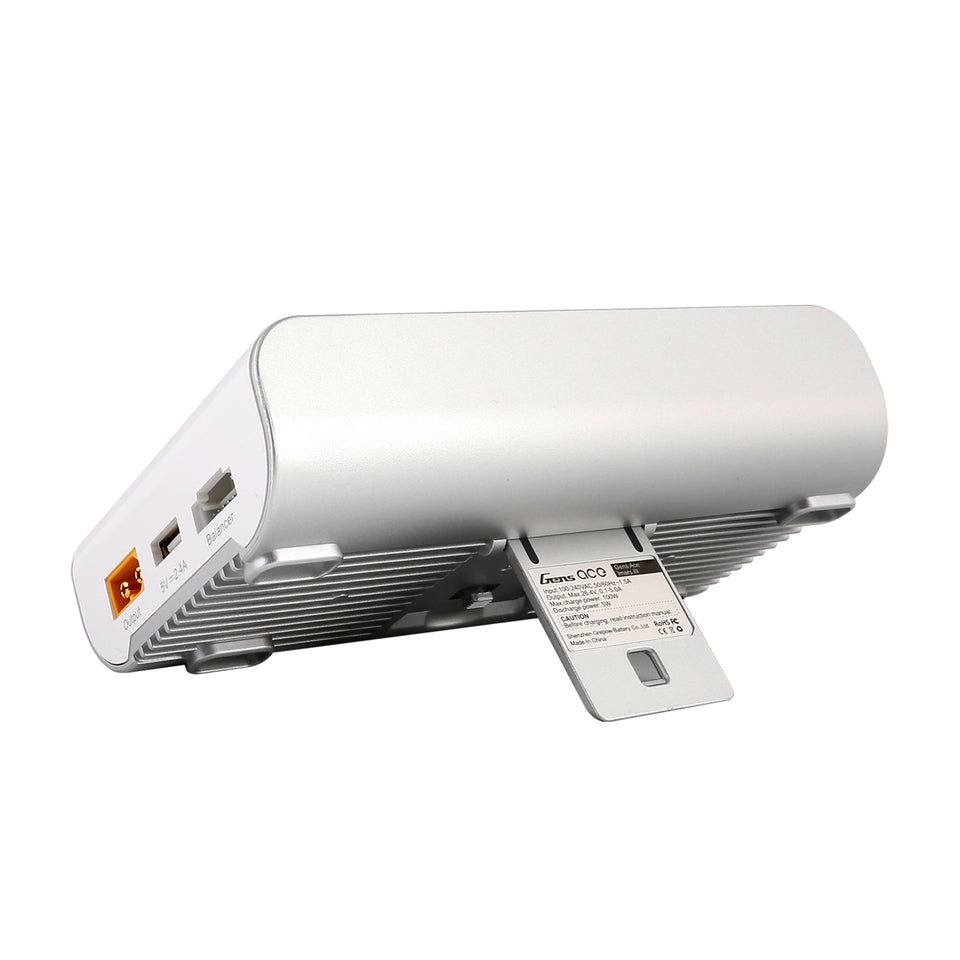

GensAce Imars III PRO 10A Smart Balance RC Battery Charger

Instructions:

To use the IMARS III PRO charger, connect it to the power supply. The IMARS III PRO LOGO will be displayed for about 2 seconds before entering Charger mode. The top-level menu consists of 3 functions. By pressing the +/- buttons, the user can select between charge mode, battery check mode, and system setting mode.

The IMARS III PRO has passed FCC, CE, and RoHS certifications, ensuring safe RC charging. Its lightweight design allows for quick and easy charging of batteries anywhere, anytime.

Features:

1. Single Channel AC Balance Charger
2. Small and Lightweight Portable Design
3. Smart Balance Charging
4. Capable of 10 Amp Charge Rates, Worldwide 100V-240V Voltage Versatility, with 100 Watts of Power
5. Built-in PFC Circuit
6. Temperature Compensation Function
7. Controlled Heat Dissipation System
8. Quiet Inner Fan

Specifications:

• Maximum Charging Voltage: 26.4V
• Maximum Charging Power: 100W
• Charge Current: 0.1~10A
• Discharge Current: 0.1~1.5A
• Cell Balancing: 2~6S
• USB Output: 5V/2.4A
• Dimensions: 146x87x40 mm
• Product Net Weight: 0.4kg

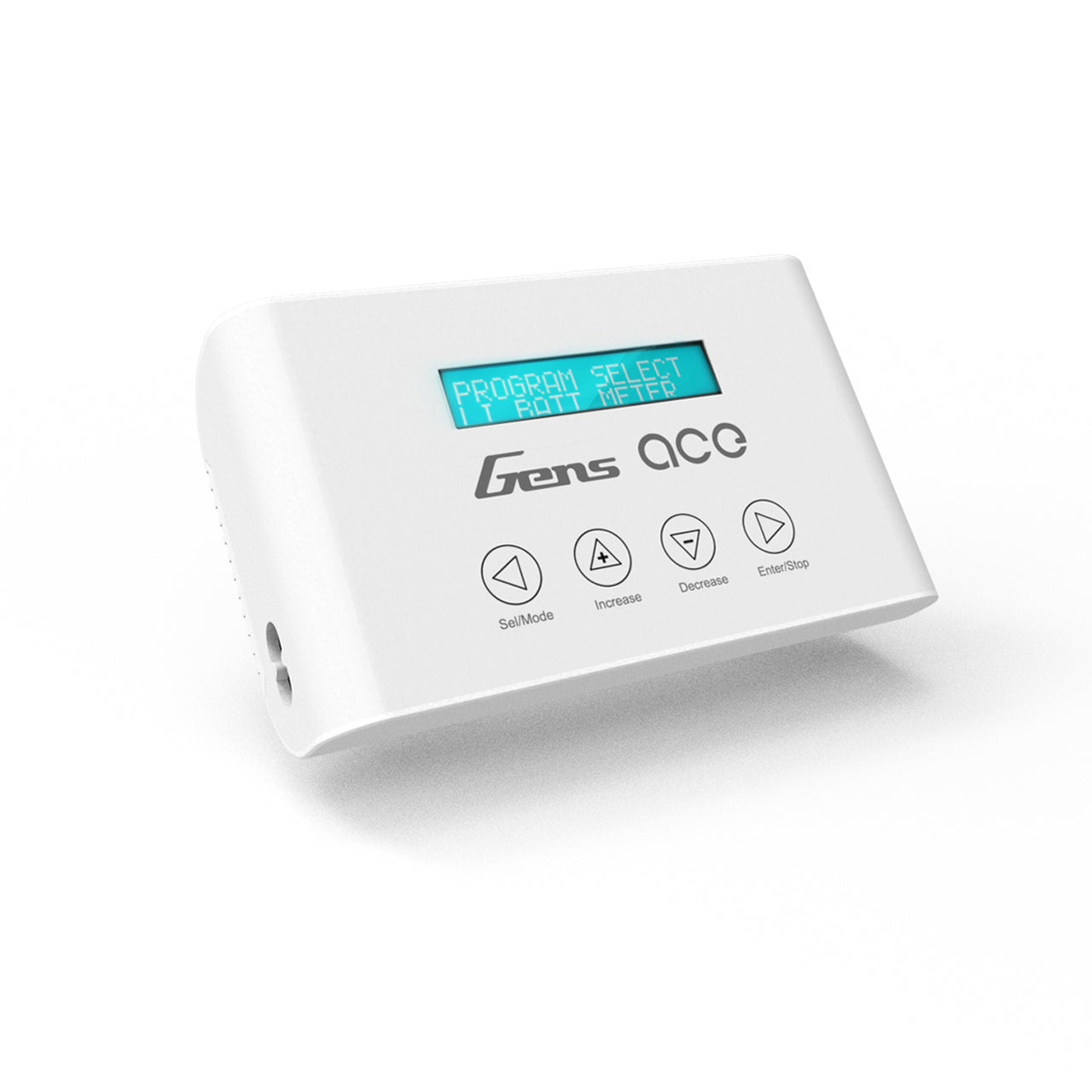

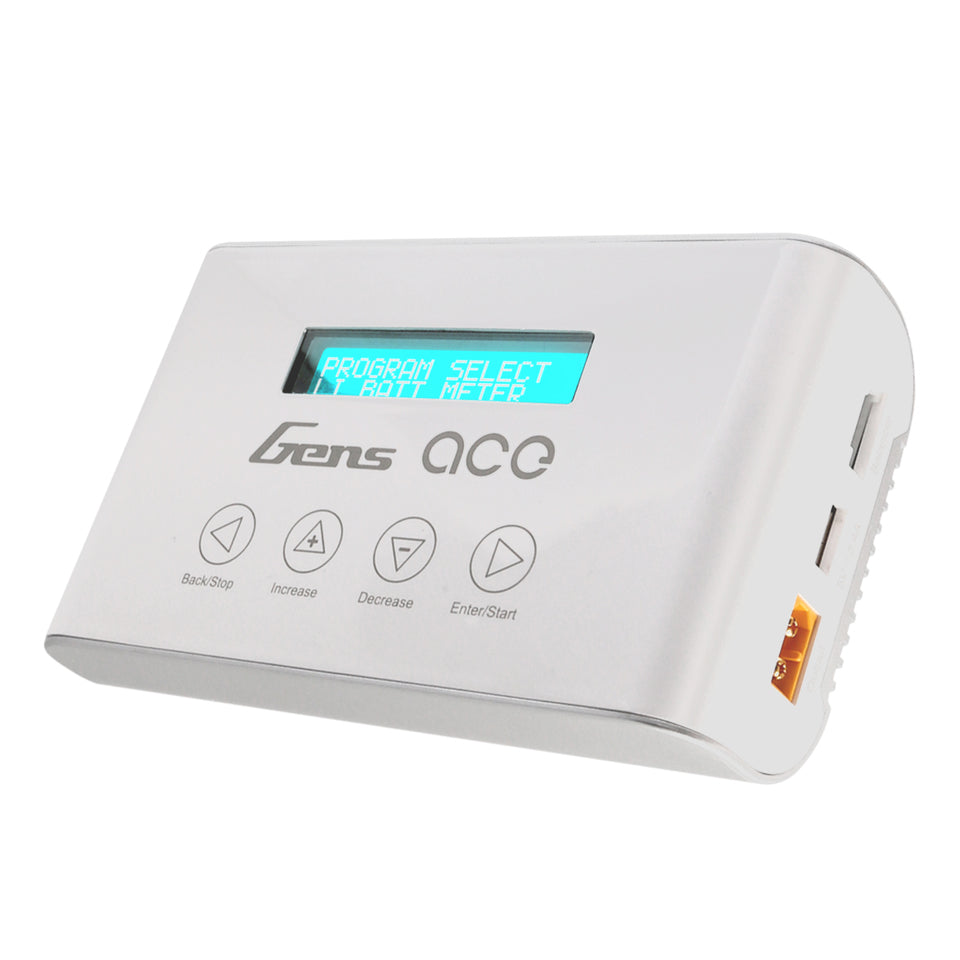

• Display Type: Backlight 2x16 LCD
• Supported Battery Chemistries: LiPo/LiFe/LiHv (1-6S), NiMH Charge (3-18S), NiMH Discharge (1-10S)

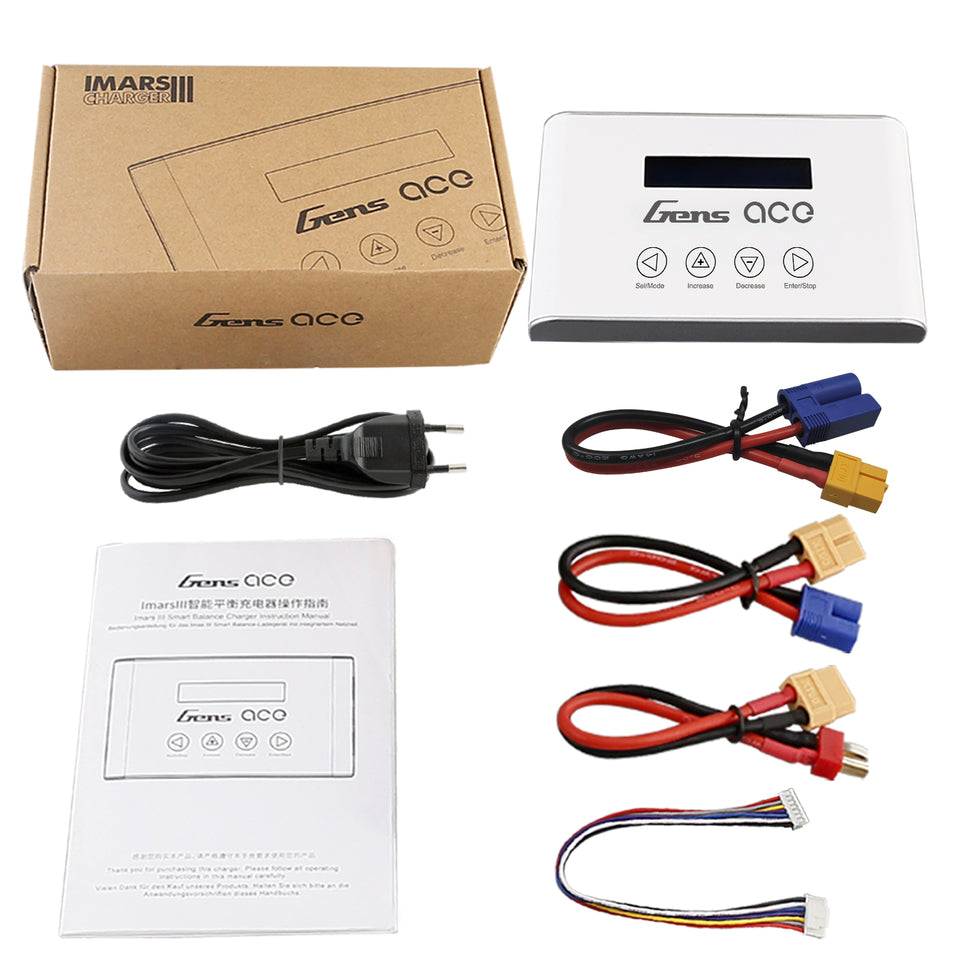

• Accessories Included: AC Input Cable, Balance Adapter Board, XT60-T Plug Adapter, XT60-EC3 Adapter
