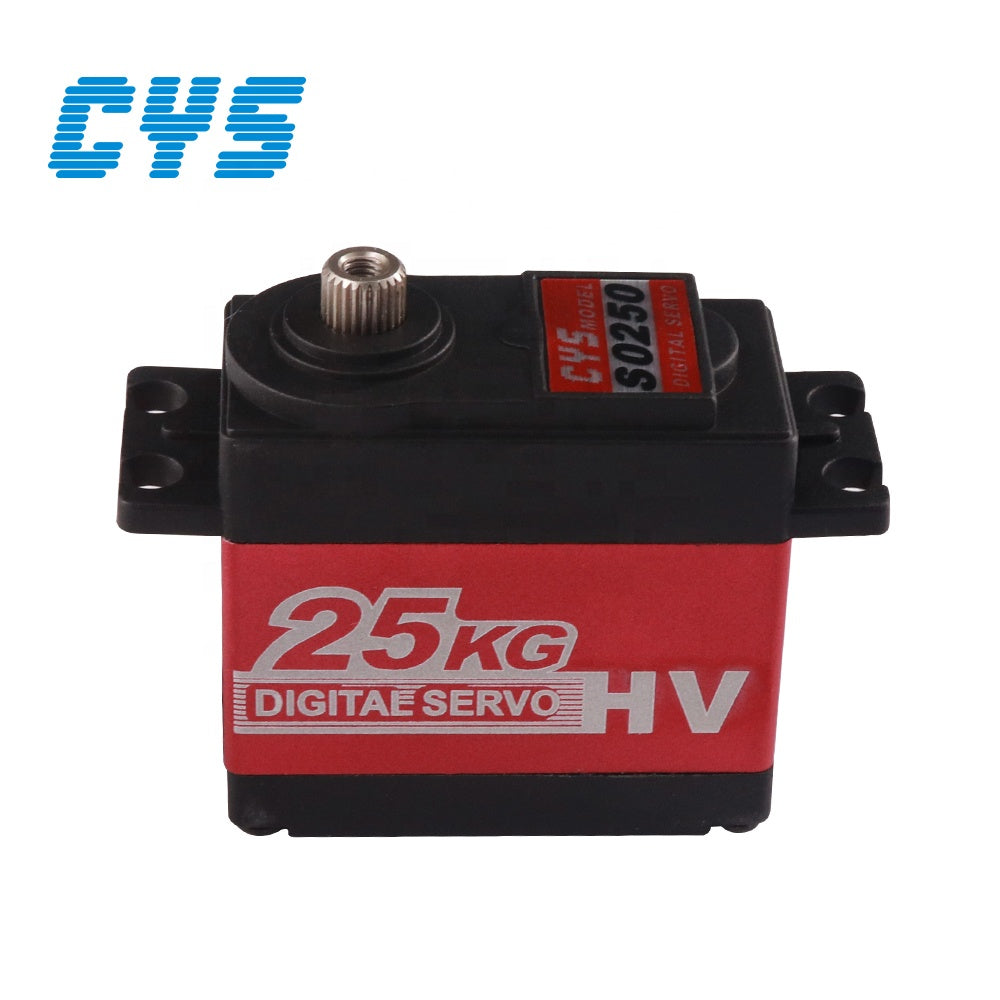

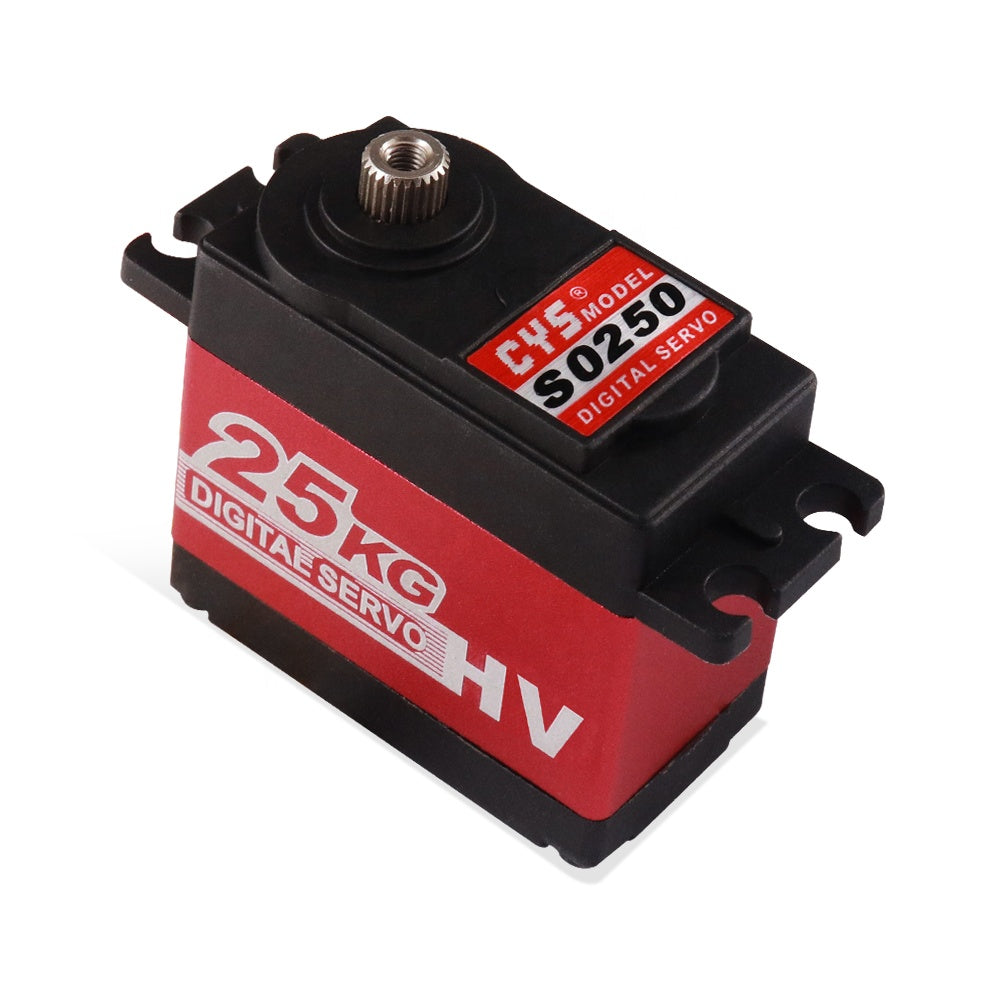

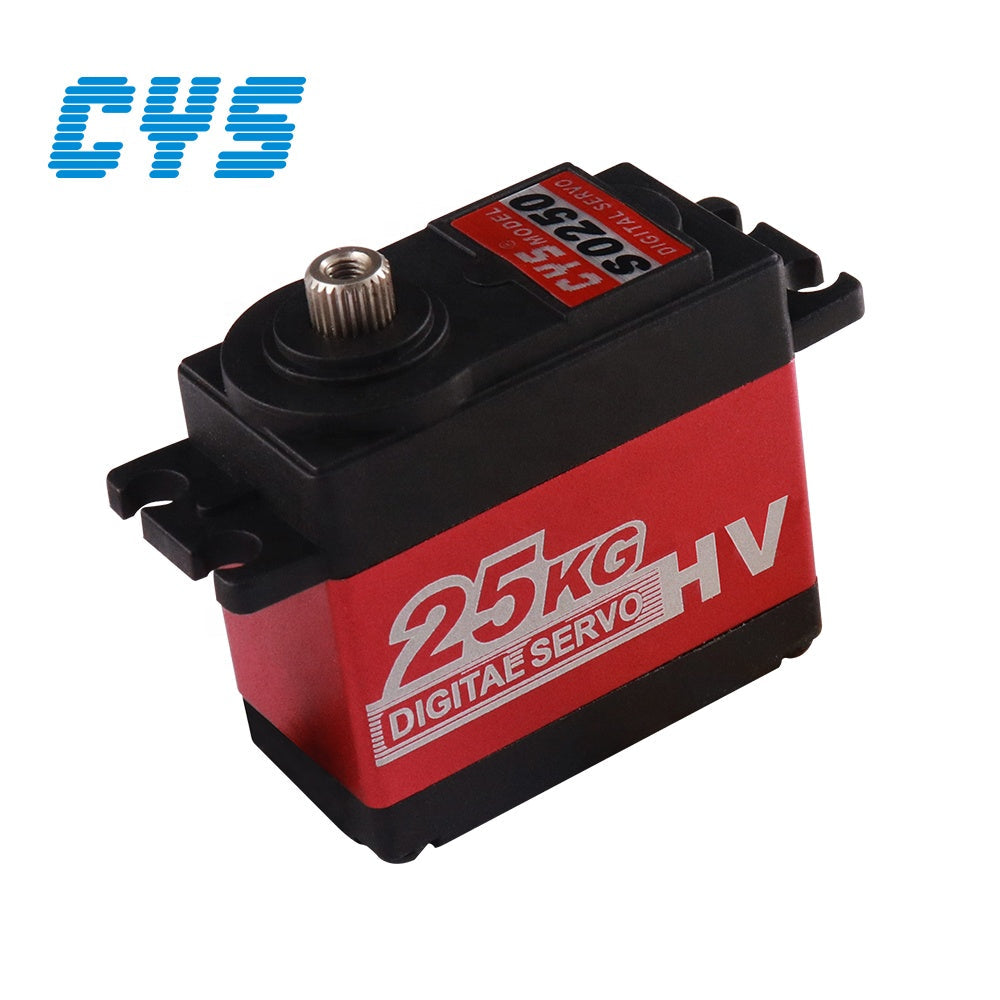

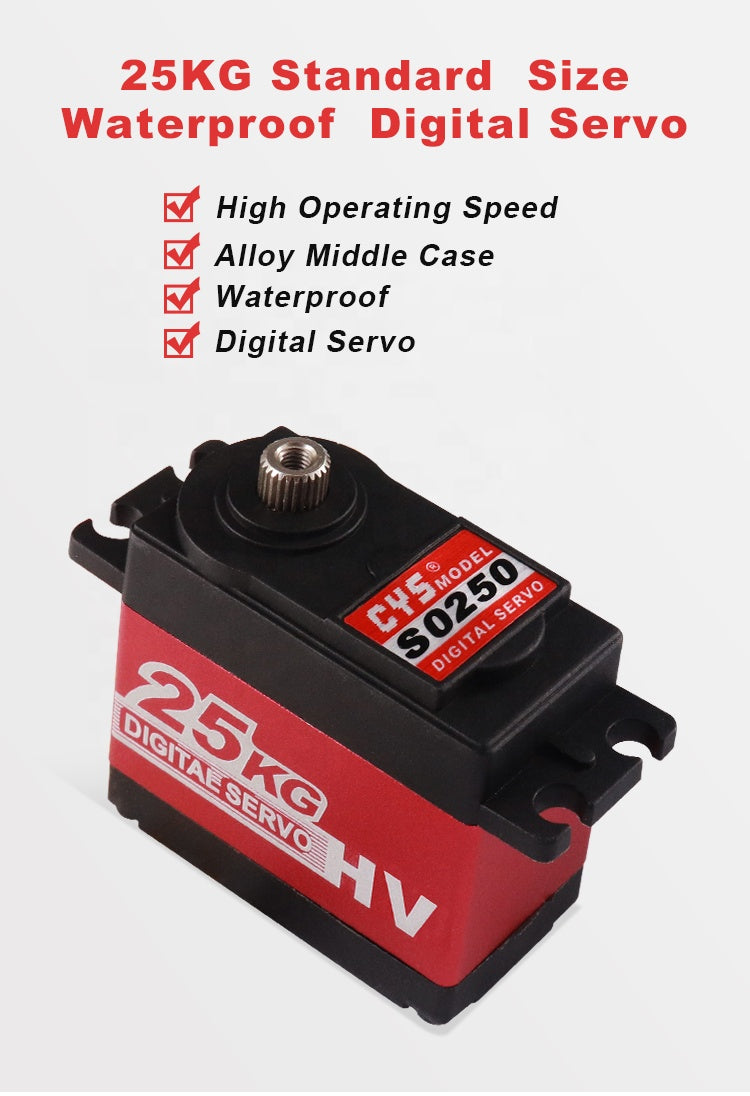

CYS S0250 Low Profile Waterproof 62g Metal Gear Digital Servo
Sold out
Original price
$19.99
-
Original price
$19.99
Original price
$19.99
$19.99
-
$19.99
Current price
$19.99
SKU CYS-S0250
Item NO.: CYS S0250
Description : Low Profile Waterproof 62g Metal Gear Digital Servo

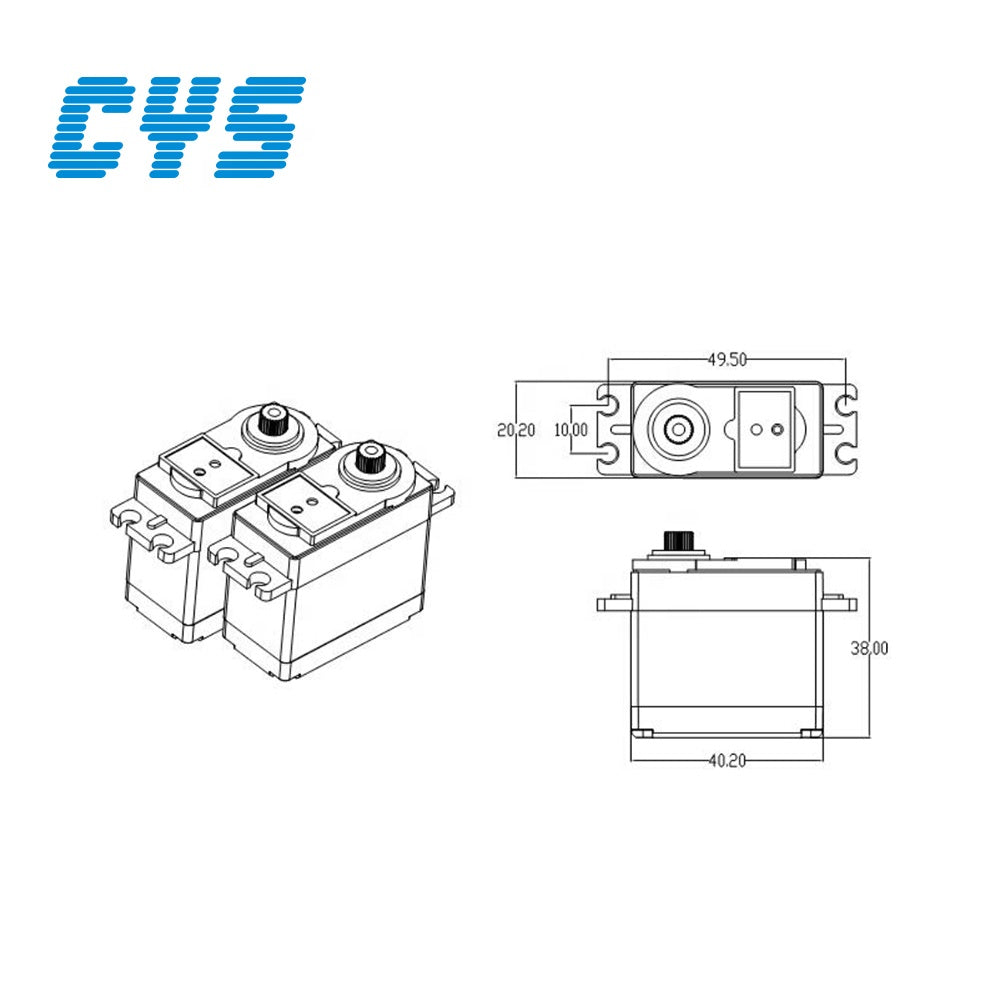

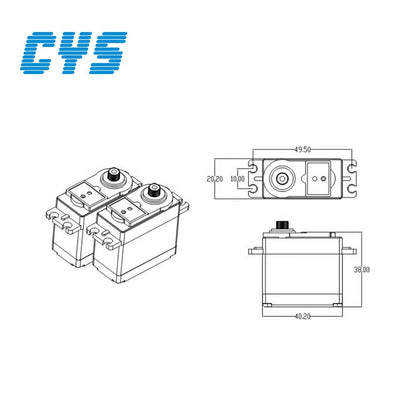

Size : 40.5*20*38MM
Torque : 22Kg.cm ~ 25Kg.cm
Speed : 0.14sec ~ 0.12sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 62± 1 g
Important Notes:
-Refer to the figure when installing the servo accessories.
-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
- Please choose correct model for your application.
-Torque over-loaded will damage the servo's mechanism-.
- Keep the servo clean and away from dust, corrosive gas and humid air.

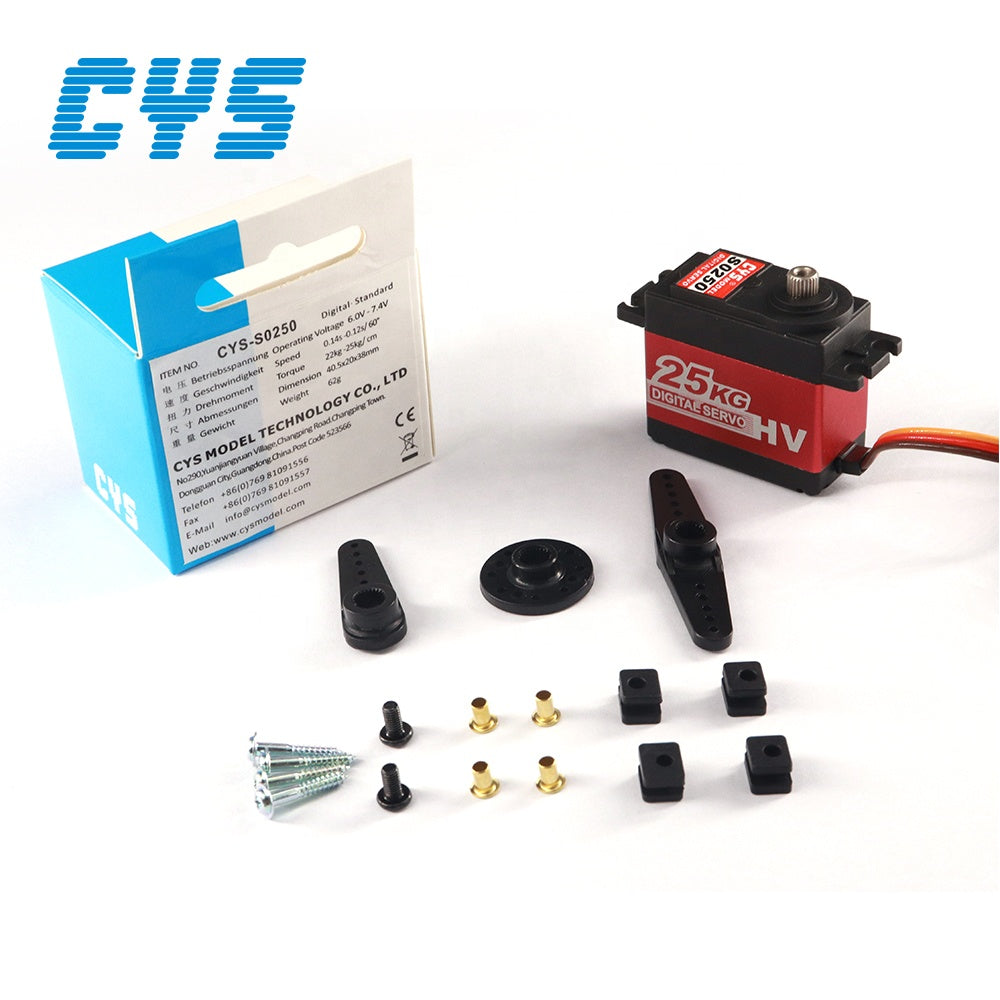

Package Included:
1 x CYS-S0250 Brushless Motor Metal Gear Servo
|
Item NO.
|
CYS-S0250
|
|
Type
|
High Torque Digital Servo
|
|
Gear Type
|
Metal Gear
|
|
Weight
|
62g
|
|
Size
|
40*20.2*38mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.14sec - 0.12sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
22kg.cm-25kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 120mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 150mA no load operating
|
|
Stall Current
|
2.3A/3.8A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Iron Core Motor Servo
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
